| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01003cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01003cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,000,223,360 | 208,719,360 |
| Size | 1.9 GB | 199.1 MB |
| Events in quadrant A | 14,526,121 | 1,382,619 |
| Events in quadrant B | 15,423,177 | 1,393,899 |
| Events in quadrant C | 14,876,273 | 1,362,022 |
| Events in quadrant D | 14,933,181 | 1,326,902 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52040 | 8 |
| B | 0 | 54545 | 3 |
| C | 0 | 52965 | 3 |
| D | 0 | 53175 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 252 | 0 |
| B | 0 | 252 | 0 |
| C | 0 | 252 | 0 |
| D | 0 | 252 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12384 | 14 | 0.113049% |
| B | 12386 | 43 | 0.347166% |
| C | 12386 | 27 | 0.217988% |
| D | 12386 | 58 | 0.468271% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12870 | 12388 | 520 | 520 | 4.04% | 4.20% |  |
| B | 12870 | 12388 | 732 | 732 | 5.69% | 5.91% |  |
| C | 12870 | 12388 | 562 | 562 | 4.37% | 4.54% |  |
| D | 12870 | 12388 | 675 | 675 | 5.24% | 5.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 31259 | 30.21 | 3774 | 3796 | 909.1 |
| A | 12 | 189 | 16395 | 13.86 | 3774 | 3796 | 909.1 |
| A | 11 | 79 | 16091 | 13.52 | 3774 | 3796 | 909.1 |
| B | 15 | 22 | 102870 | 105.51 | 3971 | 3987 | 937.2 |
| B | 7 | 221 | 66257 | 66.44 | 3971 | 3987 | 937.2 |
| B | 5 | 249 | 54584 | 53.99 | 3971 | 3987 | 937.2 |
| C | 15 | 241 | 627861 | 623.3 | 3610 | 3736 | 1001.3 |
| C | 3 | 79 | 67406 | 63.59 | 3610 | 3736 | 1001.3 |
| C | 3 | 111 | 64014 | 60.2 | 3610 | 3736 | 1001.3 |
| D | 12 | 22 | 923535 | 850.85 | 3492 | 3614 | 1081.2 |
| D | 1 | 4 | 500285 | 459.38 | 3492 | 3614 | 1081.2 |
| D | 1 | 83 | 251869 | 229.62 | 3492 | 3614 | 1081.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

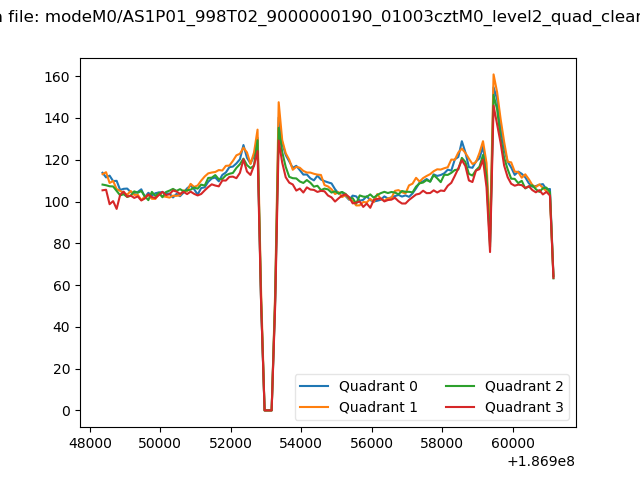

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

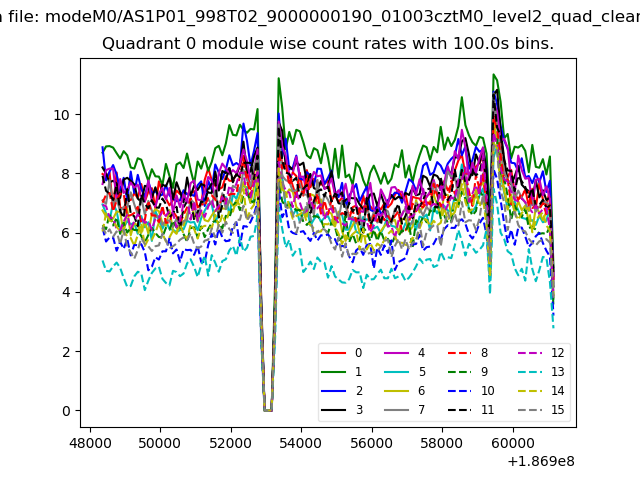

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

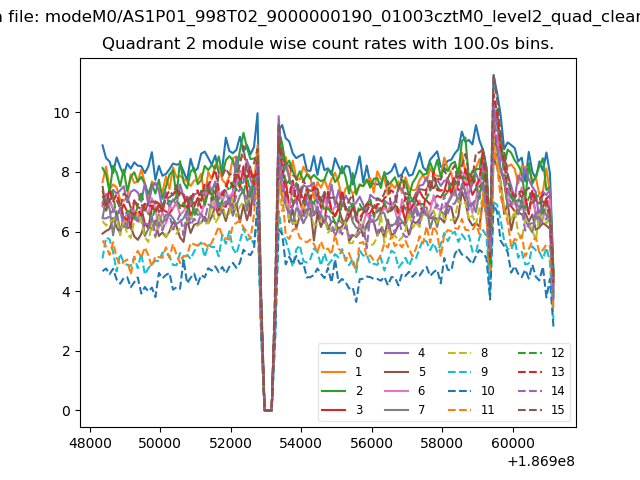

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

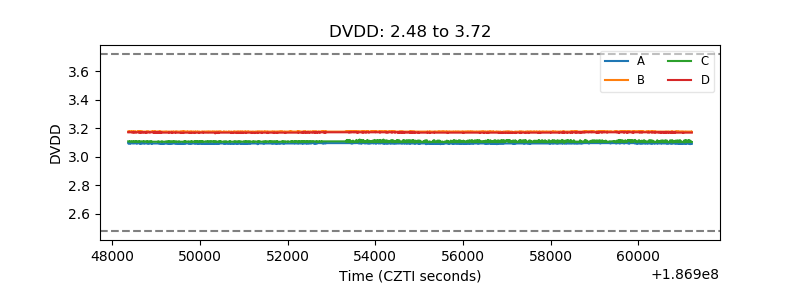

| D_VDD |  |

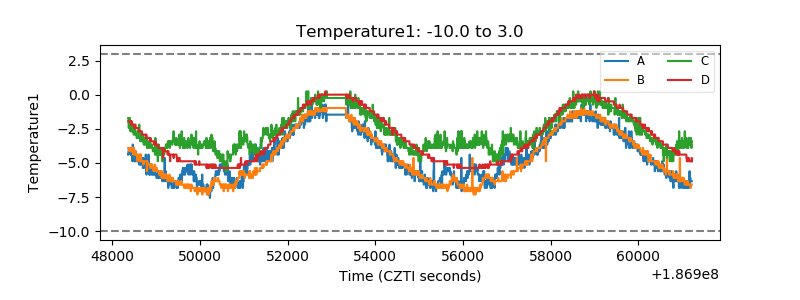

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

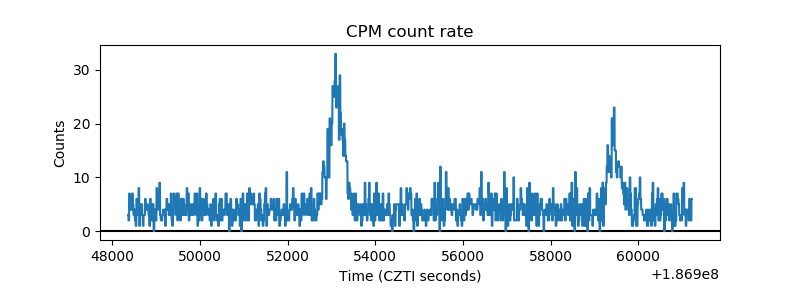

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

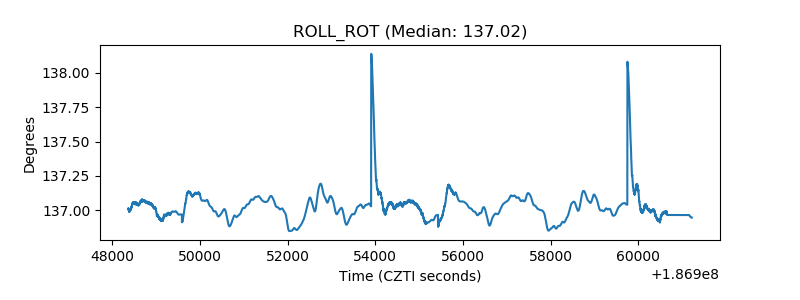

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

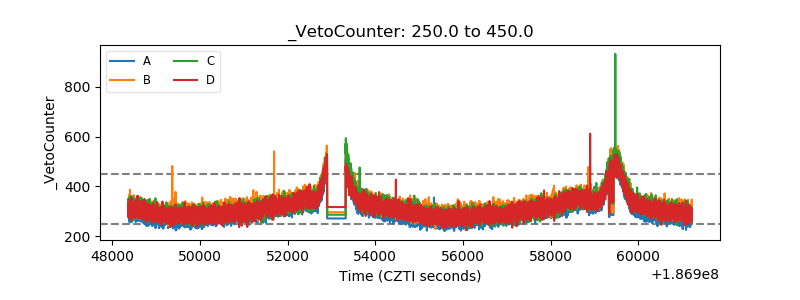

| Veto Counter |  |
