| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01010cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01010cztM0_level2_quad_clean.evt |
| Size (bytes) | 962,562,240 | 106,145,280 |
| Size | 918.0 MB | 101.2 MB |
| Events in quadrant A | 7,208,111 | 705,040 |
| Events in quadrant B | 7,675,367 | 714,353 |
| Events in quadrant C | 7,191,055 | 686,622 |
| Events in quadrant D | 6,665,374 | 676,386 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25835 | 1 |
| B | 0 | 27185 | 1 |
| C | 0 | 25740 | 1 |
| D | 0 | 24211 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6188 | 19 | 0.307046% |
| B | 6188 | 29 | 0.468649% |
| C | 6188 | 10 | 0.161603% |
| D | 6187 | 12 | 0.193955% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7238 | 6189 | 147 | 147 | 2.03% | 2.38% |  |
| B | 7238 | 6189 | 225 | 225 | 3.11% | 3.64% |  |
| C | 7238 | 6189 | 116 | 116 | 1.60% | 1.87% |  |
| D | 7237 | 6188 | 93 | 93 | 1.29% | 1.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 9587 | 17.06 | 1876 | 1885 | 451.5 |
| A | 11 | 79 | 7199 | 11.77 | 1876 | 1885 | 451.5 |
| A | 3 | 111 | 5815 | 8.7 | 1876 | 1885 | 451.5 |
| B | 7 | 221 | 76650 | 161.48 | 1948 | 1952 | 462.6 |
| B | 15 | 22 | 44177 | 91.28 | 1948 | 1952 | 462.6 |
| B | 5 | 249 | 35748 | 73.06 | 1948 | 1952 | 462.6 |
| C | 15 | 241 | 304523 | 618.45 | 1749 | 1806 | 489.5 |
| C | 3 | 111 | 27613 | 52.72 | 1749 | 1806 | 489.5 |
| C | 3 | 79 | 24647 | 46.66 | 1749 | 1806 | 489.5 |
| D | 1 | 4 | 227792 | 424.89 | 1710 | 1768 | 532.0 |
| D | 1 | 83 | 26636 | 46.75 | 1710 | 1768 | 532.0 |
| D | 13 | 53 | 11107 | 17.56 | 1710 | 1768 | 532.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

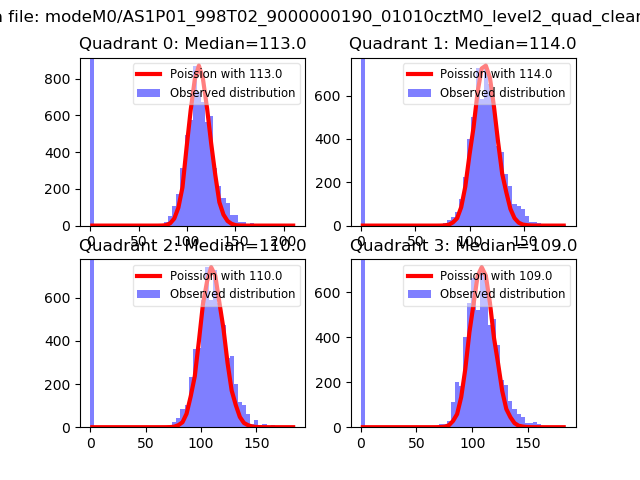

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

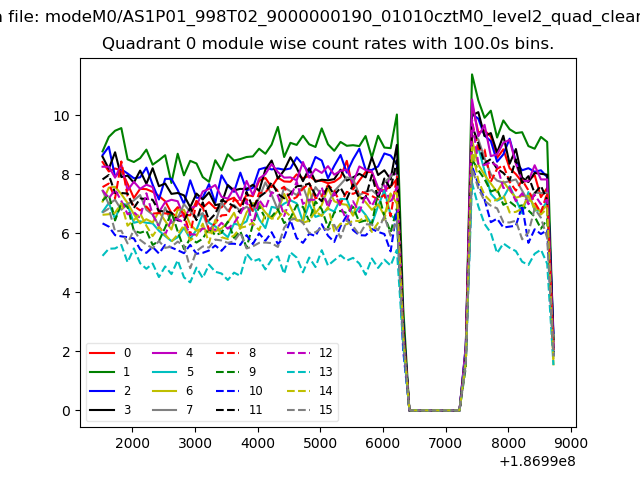

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

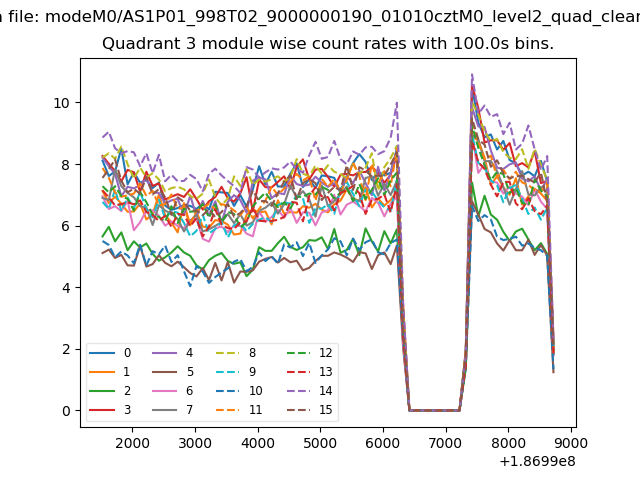

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

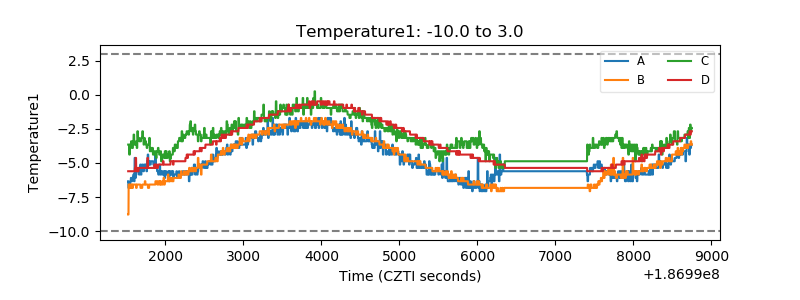

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

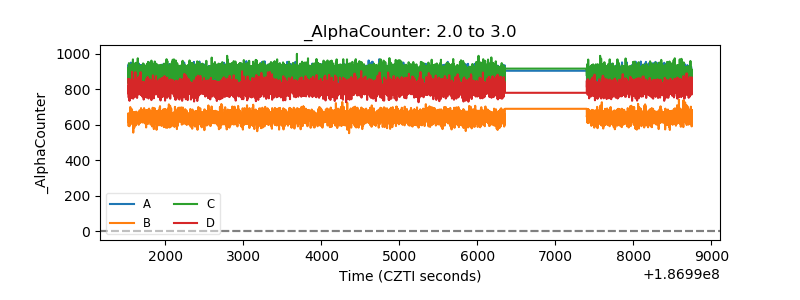

| Alpha Counter |  |

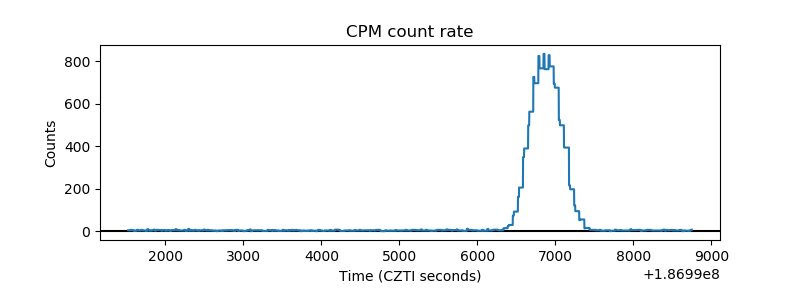

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

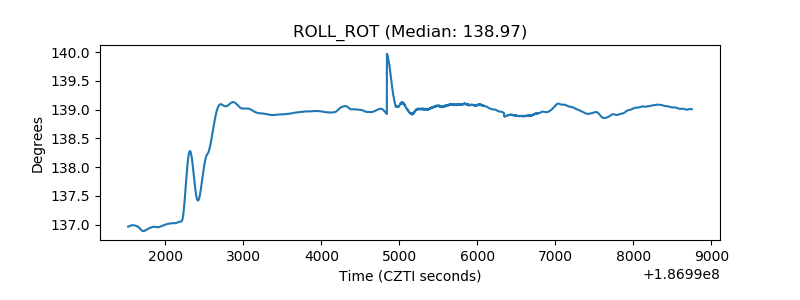

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
