| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01021cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01021cztM0_level2_quad_clean.evt |
| Size (bytes) | 975,205,440 | 105,675,840 |
| Size | 930.0 MB | 100.8 MB |
| Events in quadrant A | 7,289,702 | 690,456 |
| Events in quadrant B | 7,710,600 | 700,385 |
| Events in quadrant C | 7,376,696 | 685,788 |
| Events in quadrant D | 6,732,062 | 677,638 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26187 | 1 |
| B | 0 | 27440 | 1 |
| C | 0 | 26410 | 1 |
| D | 0 | 24631 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6396 | 4 | 0.062539% |
| B | 6396 | 7 | 0.109443% |
| C | 6396 | 2 | 0.031270% |
| D | 6396 | 47 | 0.734834% |

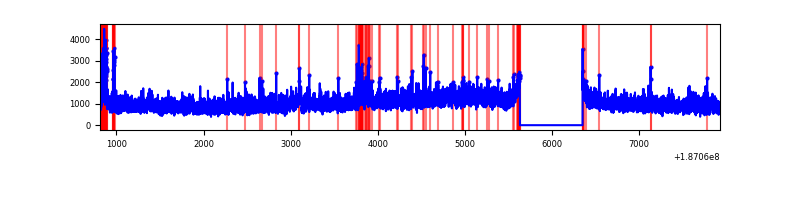

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7116 | 6396 | 107 | 107 | 1.50% | 1.67% |  |
| B | 7116 | 6396 | 129 | 129 | 1.81% | 2.02% |  |
| C | 7116 | 6396 | 112 | 112 | 1.57% | 1.75% |  |
| D | 7116 | 6396 | 152 | 152 | 2.14% | 2.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 214 | 16425 | 31.8 | 1890 | 1906 | 456.5 |
| A | 12 | 189 | 13170 | 24.67 | 1890 | 1906 | 456.5 |
| A | 11 | 79 | 6267 | 9.55 | 1890 | 1906 | 456.5 |
| B | 0 | 220 | 57821 | 119.49 | 1987 | 1997 | 467.2 |
| B | 15 | 22 | 35648 | 72.03 | 1987 | 1997 | 467.2 |
| B | 5 | 249 | 30282 | 60.54 | 1987 | 1997 | 467.2 |
| C | 15 | 241 | 324770 | 649.04 | 1789 | 1851 | 497.5 |
| C | 3 | 111 | 26016 | 48.57 | 1789 | 1851 | 497.5 |
| C | 3 | 79 | 23804 | 44.12 | 1789 | 1851 | 497.5 |
| D | 1 | 83 | 238744 | 444.48 | 1715 | 1778 | 533.1 |
| D | 2 | 33 | 45764 | 82.5 | 1715 | 1778 | 533.1 |
| D | 9 | 49 | 18889 | 32.1 | 1715 | 1778 | 533.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

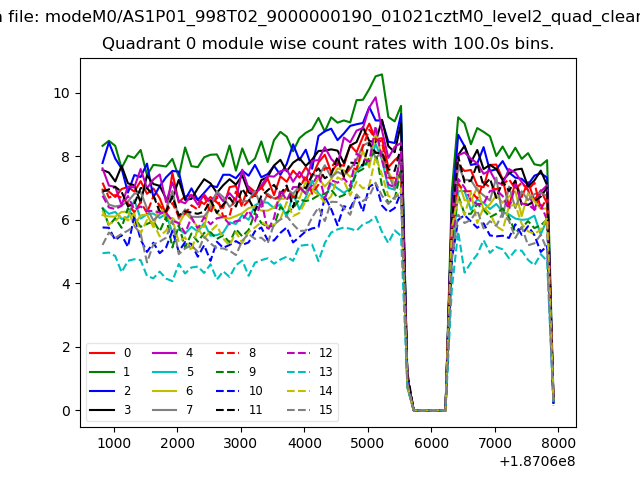

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

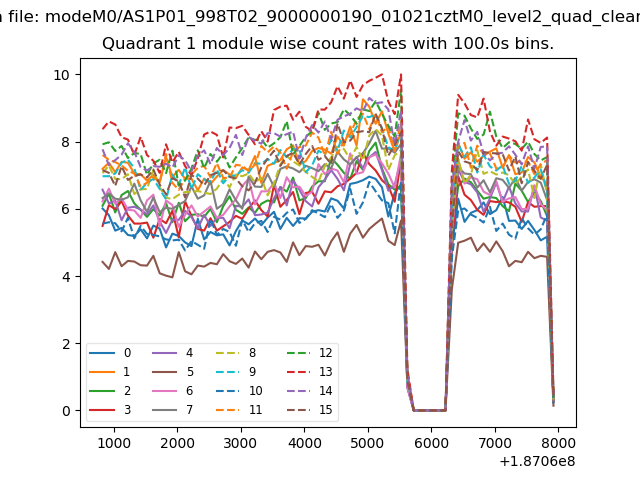

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

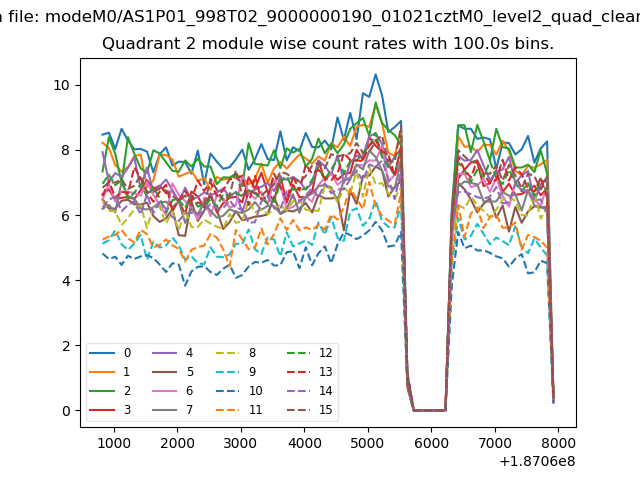

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

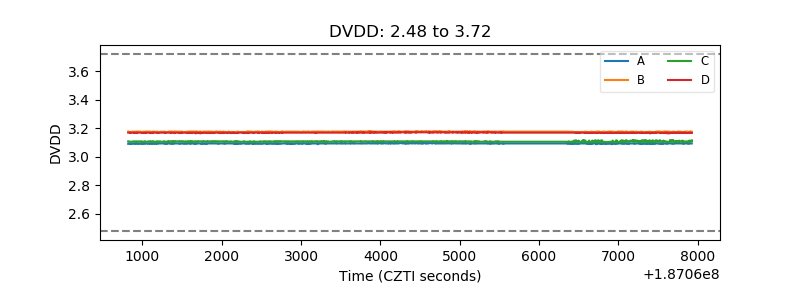

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

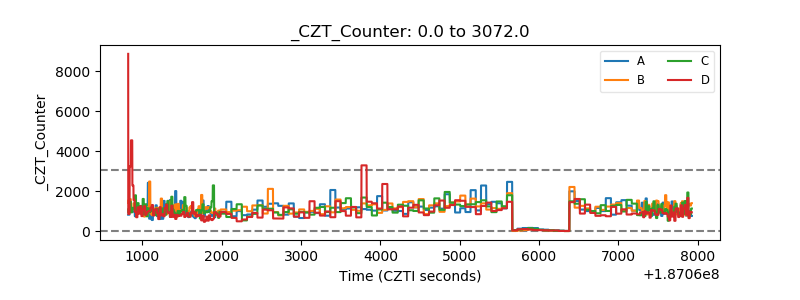

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

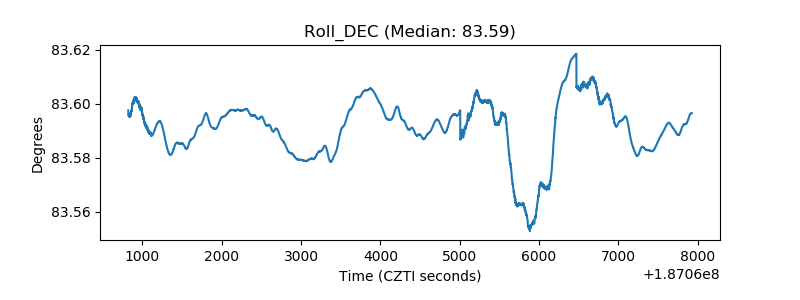

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
