| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01025cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01025cztM0_level2_quad_clean.evt |
| Size (bytes) | 960,264,000 | 103,881,600 |
| Size | 915.8 MB | 99.1 MB |
| Events in quadrant A | 7,011,264 | 703,758 |
| Events in quadrant B | 7,219,851 | 704,739 |
| Events in quadrant C | 6,880,780 | 674,112 |
| Events in quadrant D | 7,575,762 | 648,790 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25059 | 1 |
| B | 0 | 25641 | 1 |
| C | 0 | 24673 | 1 |
| D | 0 | 26836 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5929 | 30 | 0.505988% |
| B | 5929 | 35 | 0.590319% |
| C | 5929 | 29 | 0.489121% |
| D | 5930 | 410 | 6.913997% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7024 | 5930 | 147 | 147 | 2.09% | 2.48% |  |
| B | 7024 | 5930 | 185 | 185 | 2.63% | 3.12% |  |
| C | 7024 | 5930 | 126 | 126 | 1.79% | 2.12% |  |
| D | 7025 | 5931 | 761 | 761 | 10.83% | 12.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 40113 | 88.7 | 1811 | 1823 | 431.7 |
| A | 4 | 32 | 13558 | 27.18 | 1811 | 1823 | 431.7 |
| A | 12 | 189 | 8112 | 14.57 | 1811 | 1823 | 431.7 |
| B | 5 | 249 | 42260 | 91.82 | 1861 | 1867 | 439.9 |
| B | 15 | 22 | 22906 | 47.83 | 1861 | 1867 | 439.9 |
| B | 15 | 85 | 15180 | 30.26 | 1861 | 1867 | 439.9 |
| C | 15 | 241 | 289937 | 623.39 | 1664 | 1721 | 462.3 |
| C | 3 | 79 | 23428 | 46.95 | 1664 | 1721 | 462.3 |
| C | 3 | 111 | 23306 | 46.69 | 1664 | 1721 | 462.3 |
| D | 12 | 22 | 1459854 | 2946.39 | 1614 | 1675 | 494.9 |
| D | 9 | 49 | 19430 | 35.88 | 1614 | 1675 | 494.9 |
| D | 9 | 64 | 18412 | 33.82 | 1614 | 1675 | 494.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

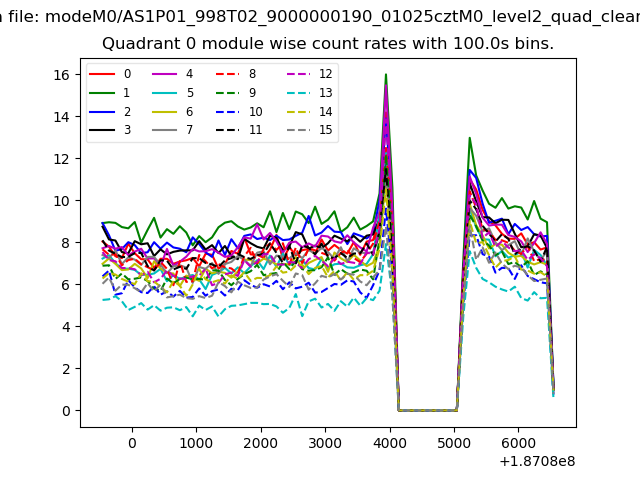

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

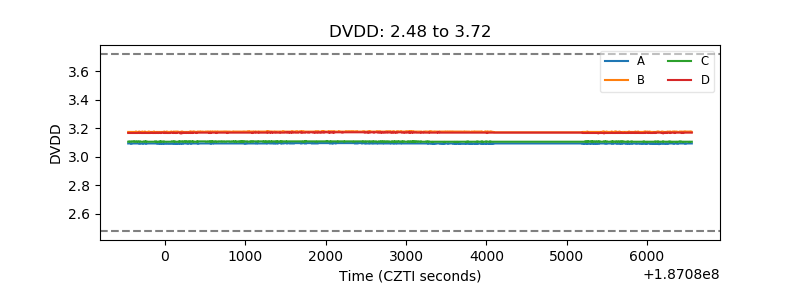

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

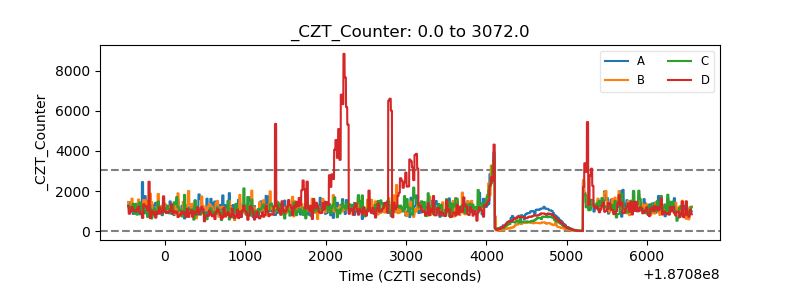

| CZT Counter |  |

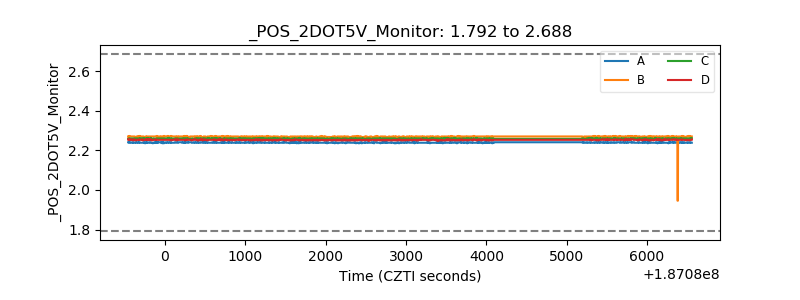

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

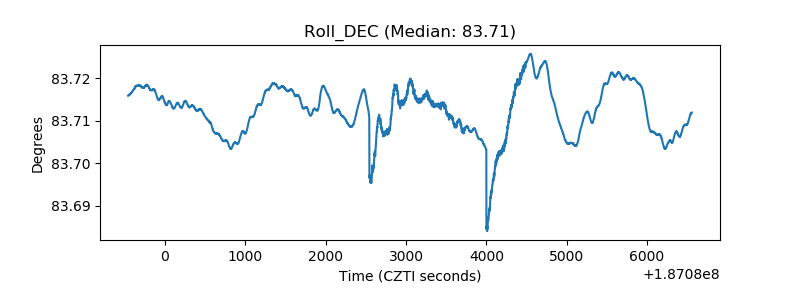

| _Roll_DEC |  |

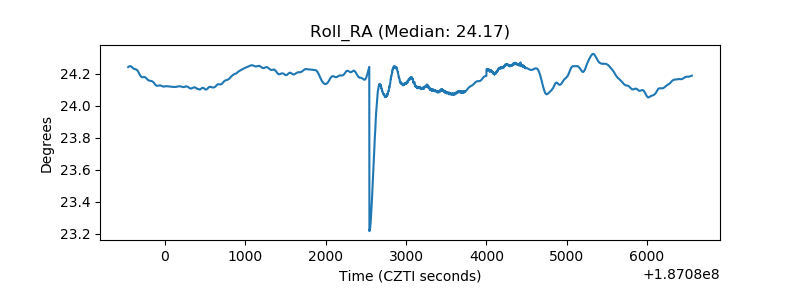

| _Roll_RA |  |
| Veto Counter |  |
