| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01029cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01029cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,031,604,480 | 105,289,920 |
| Size | 983.8 MB | 100.4 MB |
| Events in quadrant A | 7,398,595 | 708,000 |
| Events in quadrant B | 7,372,999 | 711,508 |
| Events in quadrant C | 8,997,873 | 667,129 |
| Events in quadrant D | 7,067,793 | 675,322 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26345 | 1 |
| B | 0 | 26255 | 5 |
| C | 0 | 31086 | 1 |
| D | 0 | 25368 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6113 | 19 | 0.310813% |
| B | 6112 | 11 | 0.179974% |
| C | 6112 | 476 | 7.787958% |
| D | 6112 | 61 | 0.998037% |

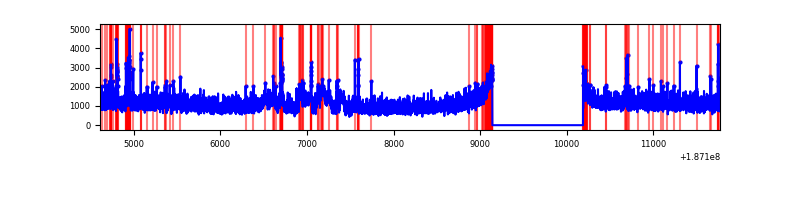

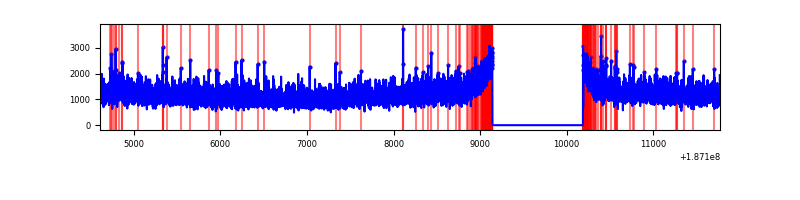

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7163 | 6114 | 239 | 239 | 3.34% | 3.91% |  |
| B | 7162 | 6113 | 203 | 203 | 2.83% | 3.32% |  |
| C | 7162 | 6113 | 1101 | 1101 | 15.37% | 18.01% |  |
| D | 7162 | 6113 | 247 | 247 | 3.45% | 4.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 251767 | 572.95 | 1835 | 1849 | 436.2 |
| A | 0 | 253 | 99464 | 223.79 | 1835 | 1849 | 436.2 |
| A | 11 | 79 | 7559 | 13.09 | 1835 | 1849 | 436.2 |
| B | 5 | 249 | 58577 | 127.32 | 1902 | 1906 | 445.1 |
| B | 15 | 22 | 29696 | 62.44 | 1902 | 1906 | 445.1 |
| B | 4 | 52 | 14027 | 27.23 | 1902 | 1906 | 445.1 |
| C | 8 | 208 | 1774479 | 3676.42 | 1734 | 1798 | 482.2 |
| C | 15 | 241 | 296688 | 611.58 | 1734 | 1798 | 482.2 |
| C | 12 | 254 | 91514 | 186.06 | 1734 | 1798 | 482.2 |
| D | 9 | 65 | 309778 | 586.18 | 1708 | 1766 | 525.5 |
| D | 2 | 54 | 134708 | 253.0 | 1708 | 1766 | 525.5 |
| D | 10 | 85 | 102036 | 190.83 | 1708 | 1766 | 525.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

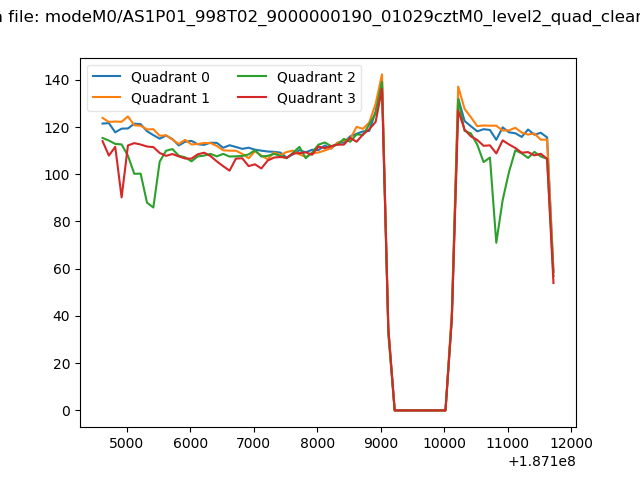

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

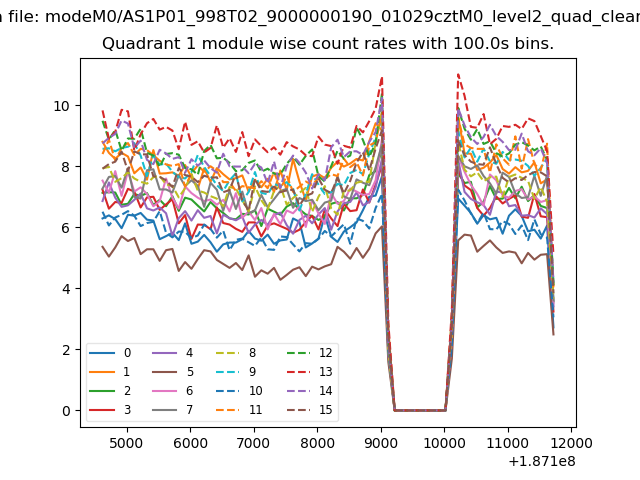

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

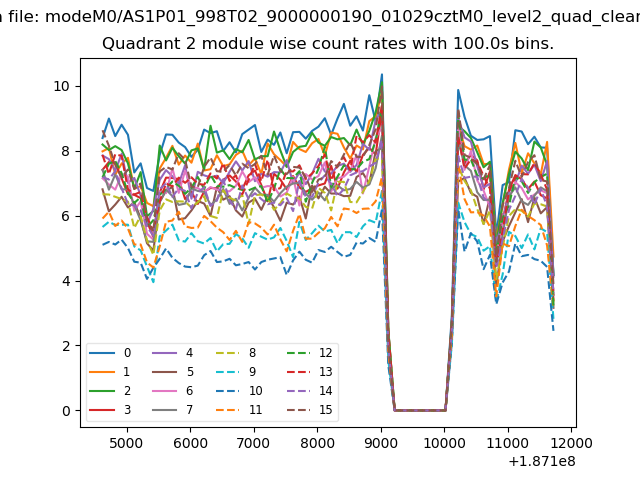

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

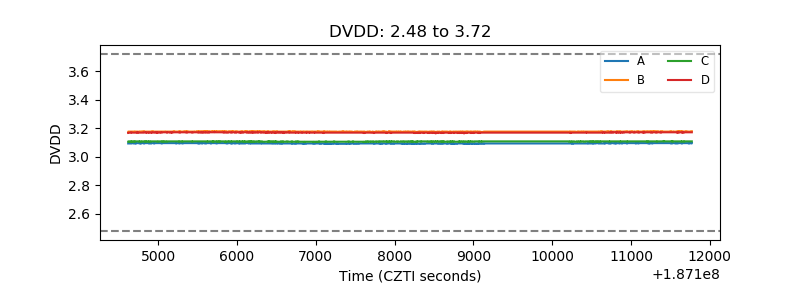

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

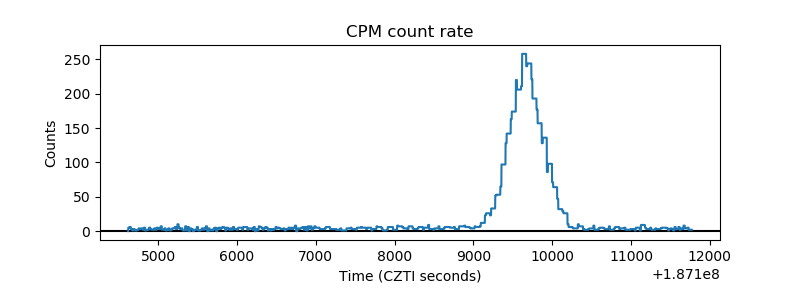

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

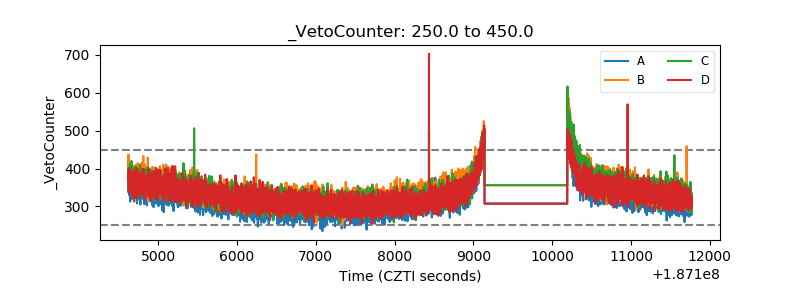

| Veto Counter |  |
