| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01030cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01030cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,115,052,480 | 109,440,000 |
| Size | 1.0 GB | 104.4 MB |
| Events in quadrant A | 7,572,455 | 737,386 |
| Events in quadrant B | 7,685,983 | 737,458 |
| Events in quadrant C | 11,230,760 | 676,908 |
| Events in quadrant D | 6,855,119 | 714,309 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27076 | 1 |
| B | 0 | 27432 | 1 |
| C | 0 | 37980 | 3 |
| D | 0 | 24955 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6425 | 52 | 0.809339% |
| B | 6425 | 8 | 0.124514% |
| C | 6424 | 787 | 12.250934% |
| D | 6424 | 8 | 0.124533% |

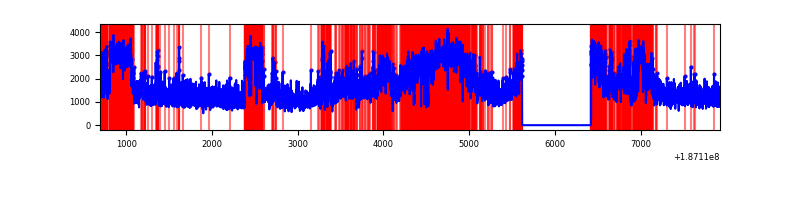

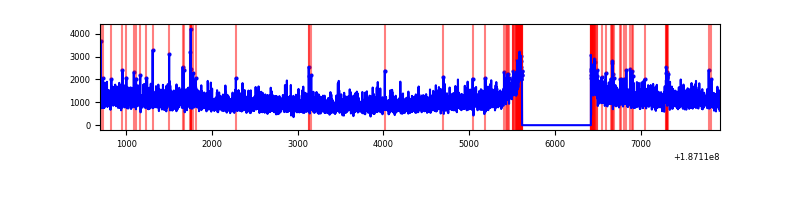

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 6426 | 244 | 244 | 3.37% | 3.80% |  |
| B | 7230 | 6426 | 194 | 194 | 2.68% | 3.02% |  |
| C | 7229 | 6425 | 1972 | 1972 | 27.28% | 30.69% |  |
| D | 7229 | 6425 | 133 | 133 | 1.84% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 181395 | 389.9 | 1922 | 1933 | 460.3 |
| A | 12 | 189 | 8435 | 14.13 | 1922 | 1933 | 460.3 |
| A | 11 | 79 | 7856 | 12.87 | 1922 | 1933 | 460.3 |
| B | 5 | 249 | 28957 | 58.1 | 1981 | 1988 | 464.2 |
| B | 8 | 234 | 28209 | 56.49 | 1981 | 1988 | 464.2 |
| B | 15 | 22 | 26615 | 53.06 | 1981 | 1988 | 464.2 |
| C | 8 | 208 | 3752781 | 7540.4 | 1793 | 1860 | 497.4 |
| C | 15 | 241 | 311666 | 622.8 | 1793 | 1860 | 497.4 |
| C | 12 | 254 | 81232 | 159.56 | 1793 | 1860 | 497.4 |
| D | 9 | 64 | 60567 | 107.59 | 1790 | 1856 | 545.7 |
| D | 1 | 83 | 48101 | 84.74 | 1790 | 1856 | 545.7 |
| D | 9 | 49 | 11163 | 17.06 | 1790 | 1856 | 545.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

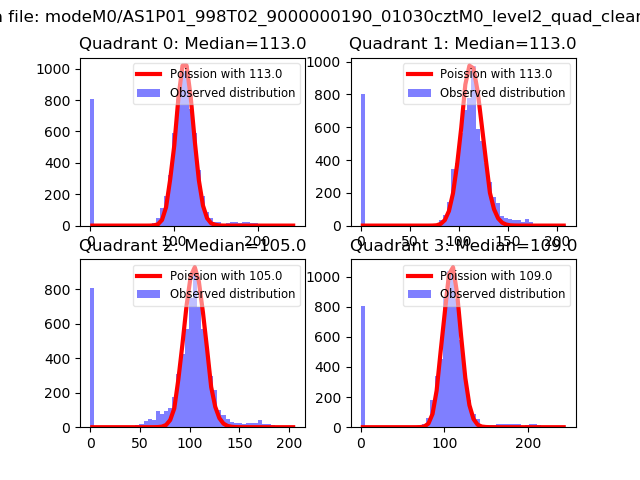

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

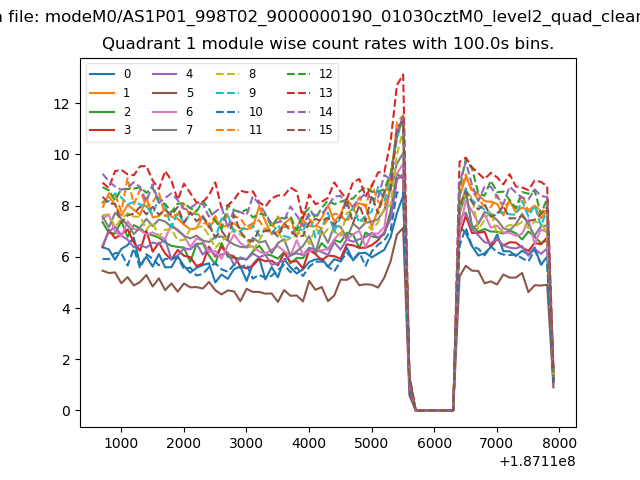

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

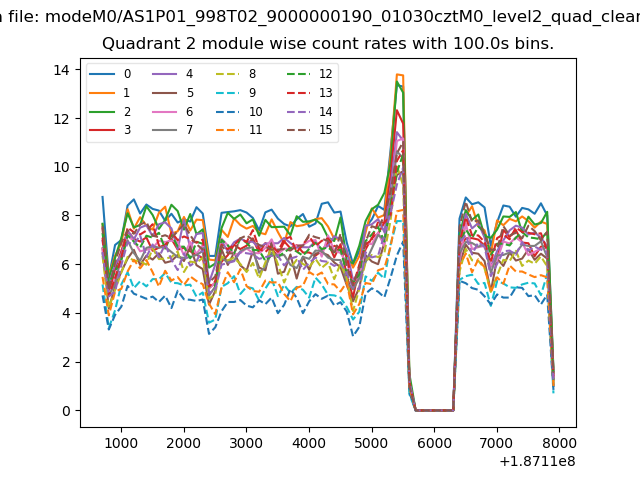

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

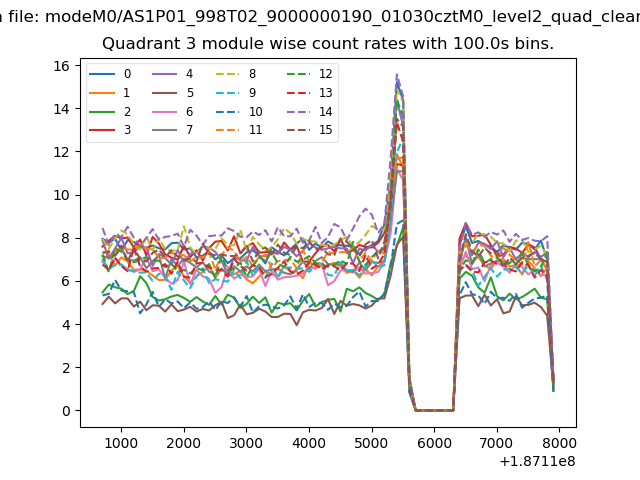

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

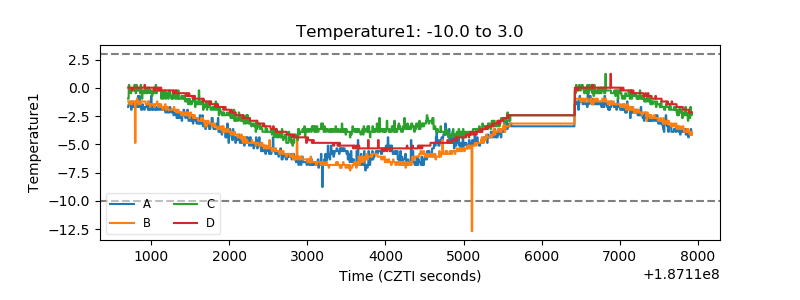

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

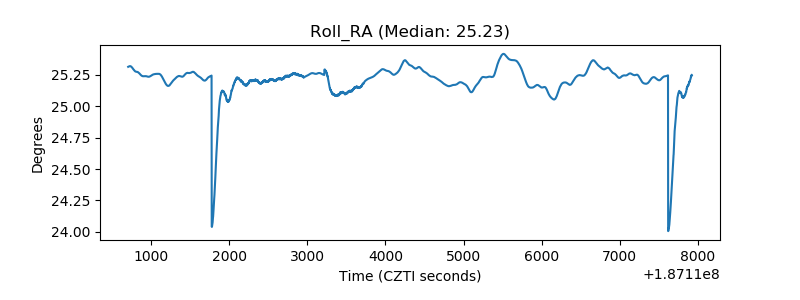

| _Roll_RA |  |
| Veto Counter |  |
