| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01036cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01036cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,012,524,480 | 111,317,760 |
| Size | 965.6 MB | 106.2 MB |
| Events in quadrant A | 7,646,395 | 732,249 |
| Events in quadrant B | 8,083,619 | 739,537 |
| Events in quadrant C | 7,733,523 | 720,422 |
| Events in quadrant D | 6,756,939 | 713,546 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27480 | 1 |
| B | 0 | 28736 | 1 |
| C | 0 | 27701 | 1 |
| D | 0 | 24909 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6685 | 13 | 0.194465% |
| B | 6686 | 14 | 0.209393% |
| C | 6686 | 13 | 0.194436% |
| D | 6686 | 3 | 0.044870% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7505 | 6686 | 115 | 115 | 1.53% | 1.72% |  |
| B | 7506 | 6687 | 157 | 157 | 2.09% | 2.35% |  |
| C | 7506 | 6687 | 130 | 130 | 1.73% | 1.94% |  |
| D | 7506 | 6687 | 44 | 44 | 0.59% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 14 | 62747 | 127.85 | 1974 | 1987 | 475.2 |
| A | 11 | 79 | 8176 | 13.02 | 1974 | 1987 | 475.2 |
| A | 14 | 238 | 6651 | 9.81 | 1974 | 1987 | 475.2 |
| B | 0 | 220 | 65318 | 129.41 | 2070 | 2084 | 488.6 |
| B | 5 | 249 | 35268 | 67.91 | 2070 | 2084 | 488.6 |
| B | 12 | 52 | 35111 | 67.59 | 2070 | 2084 | 488.6 |
| C | 15 | 241 | 314095 | 600.9 | 1858 | 1924 | 519.5 |
| C | 8 | 208 | 85953 | 161.75 | 1858 | 1924 | 519.5 |
| C | 3 | 111 | 25319 | 45.03 | 1858 | 1924 | 519.5 |
| D | 10 | 125 | 42773 | 73.86 | 1786 | 1844 | 554.1 |
| D | 10 | 85 | 25265 | 42.26 | 1786 | 1844 | 554.1 |
| D | 10 | 119 | 9678 | 14.14 | 1786 | 1844 | 554.1 |

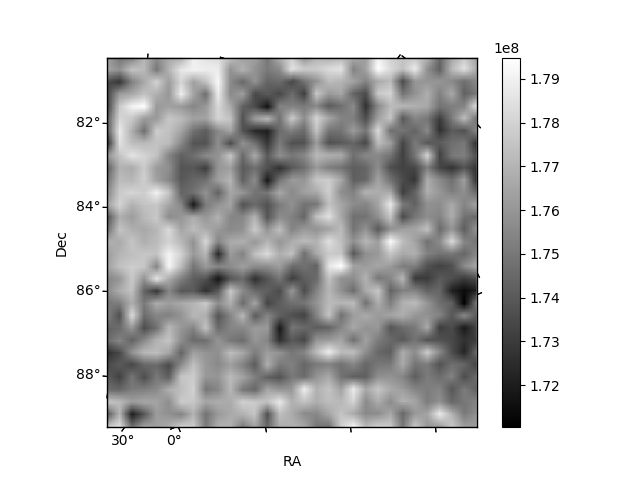

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

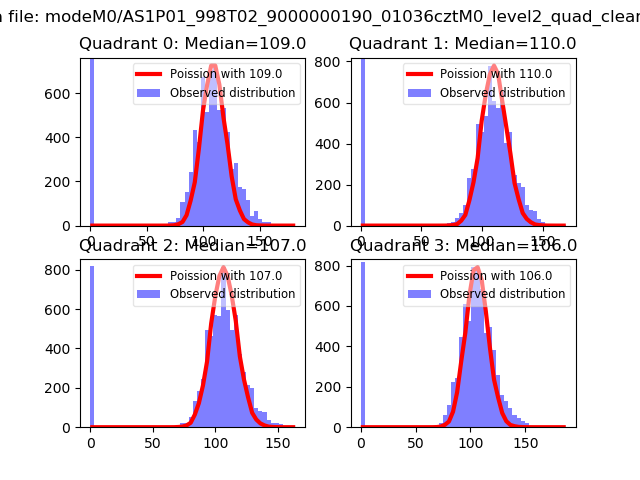

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

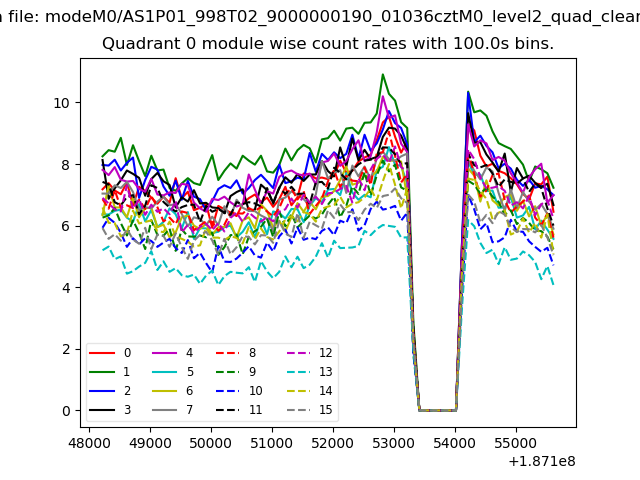

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

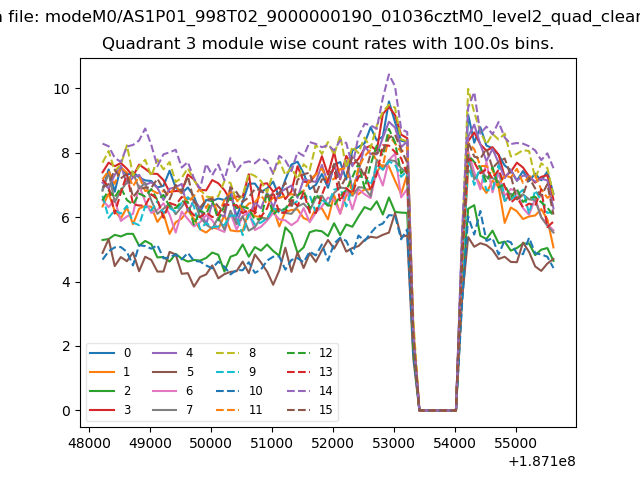

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

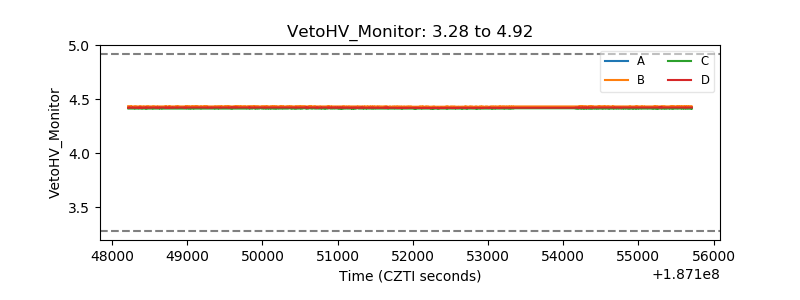

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

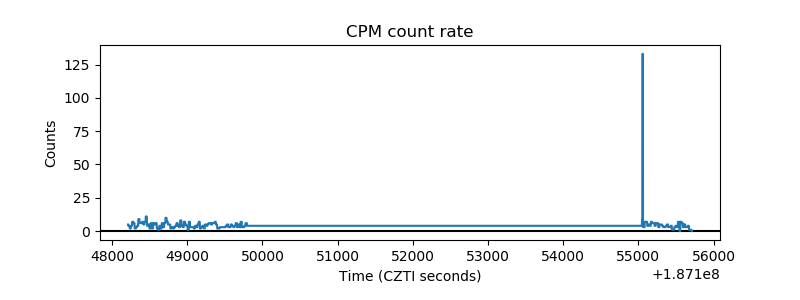

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

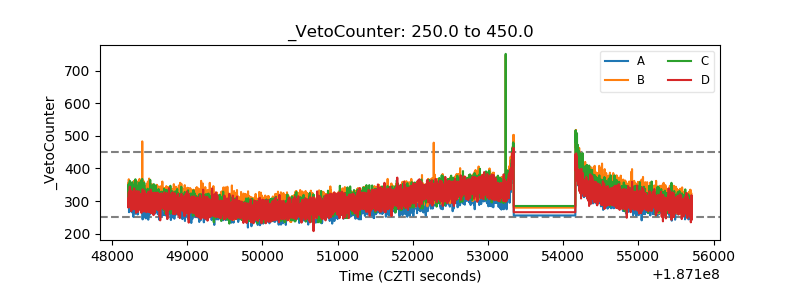

| Veto Counter |  |
