| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01044cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01044cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,089,671,040 | 105,721,920 |
| Size | 1.0 GB | 100.8 MB |
| Events in quadrant A | 7,231,511 | 716,777 |
| Events in quadrant B | 7,561,551 | 715,843 |
| Events in quadrant C | 8,117,884 | 682,467 |
| Events in quadrant D | 9,676,726 | 650,898 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25941 | 1 |
| B | 0 | 26899 | 1 |
| C | 0 | 28614 | 4 |
| D | 0 | 33221 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6244 | 13 | 0.208200% |
| B | 6244 | 7 | 0.112108% |
| C | 6243 | 131 | 2.098350% |
| D | 6243 | 641 | 10.267500% |

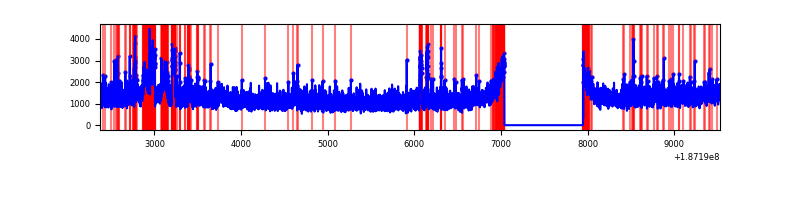

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7154 | 6245 | 178 | 178 | 2.49% | 2.85% |  |
| B | 7154 | 6245 | 223 | 223 | 3.12% | 3.57% |  |
| C | 7153 | 6244 | 468 | 468 | 6.54% | 7.50% |  |
| D | 7153 | 6244 | 1323 | 1323 | 18.50% | 21.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 12983 | 24.59 | 1880 | 1894 | 451.0 |
| A | 11 | 79 | 8862 | 15.45 | 1880 | 1894 | 451.0 |
| A | 12 | 243 | 6656 | 10.56 | 1880 | 1894 | 451.0 |
| B | 5 | 249 | 41089 | 85.31 | 1942 | 1943 | 458.8 |
| B | 15 | 22 | 36388 | 75.07 | 1942 | 1943 | 458.8 |
| B | 15 | 154 | 32851 | 67.36 | 1942 | 1943 | 458.8 |
| C | 8 | 208 | 750687 | 1514.31 | 1777 | 1838 | 494.5 |
| C | 15 | 241 | 305355 | 613.77 | 1777 | 1838 | 494.5 |
| C | 12 | 4 | 53224 | 103.91 | 1777 | 1838 | 494.5 |
| D | 12 | 22 | 2919235 | 5775.88 | 1702 | 1760 | 505.1 |
| D | 2 | 170 | 111838 | 217.93 | 1702 | 1760 | 505.1 |
| D | 10 | 125 | 81963 | 158.78 | 1702 | 1760 | 505.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

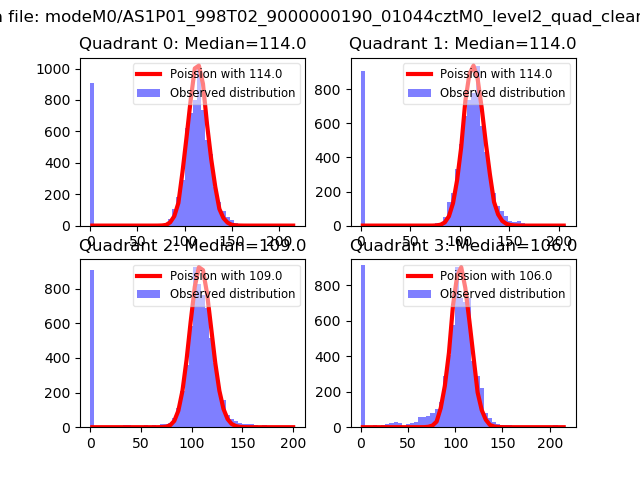

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

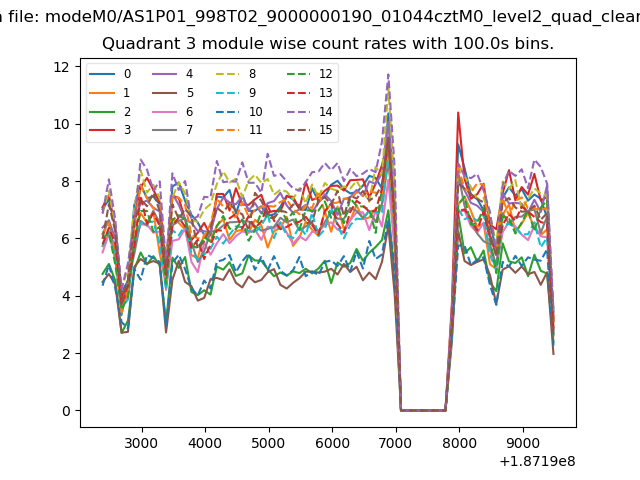

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

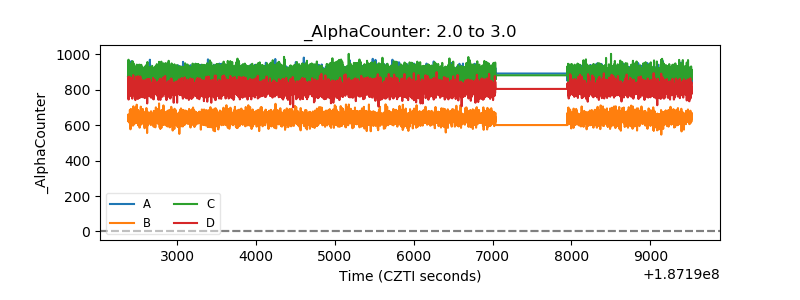

| Alpha Counter |  |
| _CPM_Rate |  |

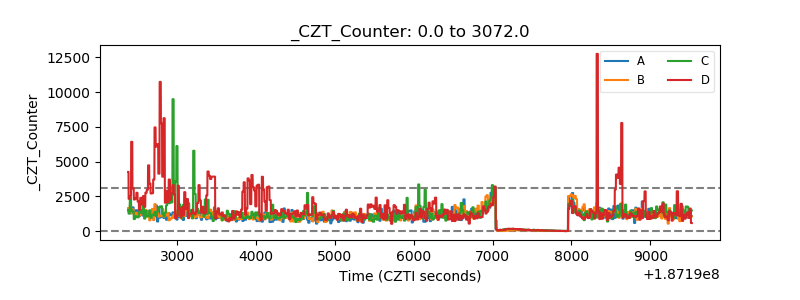

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

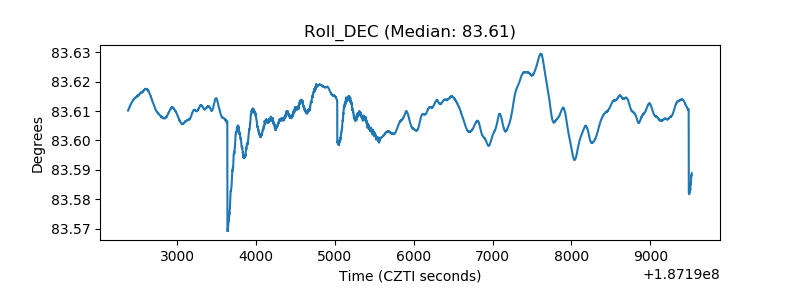

| _Roll_DEC |  |

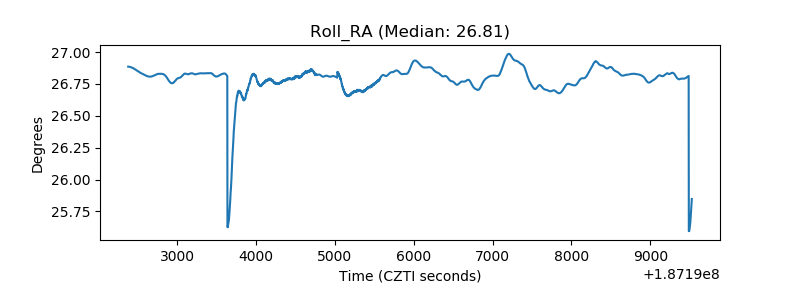

| _Roll_RA |  |
| Veto Counter |  |
