| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01055cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01055cztM0_level2_quad_clean.evt |
| Size (bytes) | 957,807,360 | 110,082,240 |
| Size | 913.4 MB | 105.0 MB |
| Events in quadrant A | 7,248,396 | 741,239 |
| Events in quadrant B | 7,612,902 | 748,790 |
| Events in quadrant C | 7,182,858 | 710,845 |
| Events in quadrant D | 6,554,888 | 704,179 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25867 | 1 |
| B | 0 | 27010 | 1 |
| C | 0 | 25668 | 1 |
| D | 0 | 23838 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6142 | 26 | 0.423315% |
| B | 6142 | 31 | 0.504722% |
| C | 6142 | 19 | 0.309345% |
| D | 6142 | 8 | 0.130251% |

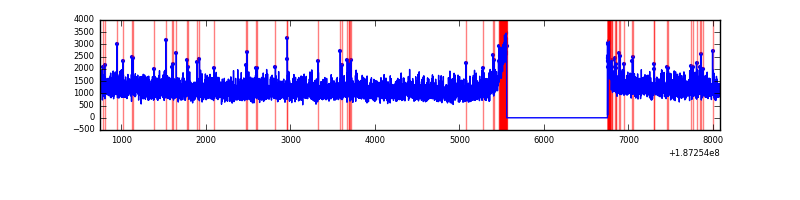

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7337 | 6143 | 149 | 149 | 2.03% | 2.43% |  |
| B | 7337 | 6143 | 194 | 194 | 2.64% | 3.16% |  |
| C | 7337 | 6143 | 140 | 140 | 1.91% | 2.28% |  |
| D | 7337 | 6143 | 87 | 87 | 1.19% | 1.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 9119 | 16.01 | 1884 | 1898 | 451.0 |
| A | 15 | 233 | 8973 | 15.69 | 1884 | 1898 | 451.0 |
| A | 13 | 9 | 6702 | 10.65 | 1884 | 1898 | 451.0 |
| B | 8 | 234 | 81523 | 174.6 | 1950 | 1957 | 455.7 |
| B | 15 | 22 | 31544 | 64.93 | 1950 | 1957 | 455.7 |
| B | 12 | 52 | 26525 | 53.91 | 1950 | 1957 | 455.7 |
| C | 15 | 241 | 324268 | 670.29 | 1739 | 1795 | 481.1 |
| C | 3 | 79 | 24669 | 47.55 | 1739 | 1795 | 481.1 |
| C | 3 | 111 | 24198 | 46.57 | 1739 | 1795 | 481.1 |
| D | 1 | 83 | 60099 | 109.7 | 1720 | 1778 | 531.6 |
| D | 12 | 22 | 39304 | 70.59 | 1720 | 1778 | 531.6 |
| D | 9 | 35 | 19124 | 32.63 | 1720 | 1778 | 531.6 |

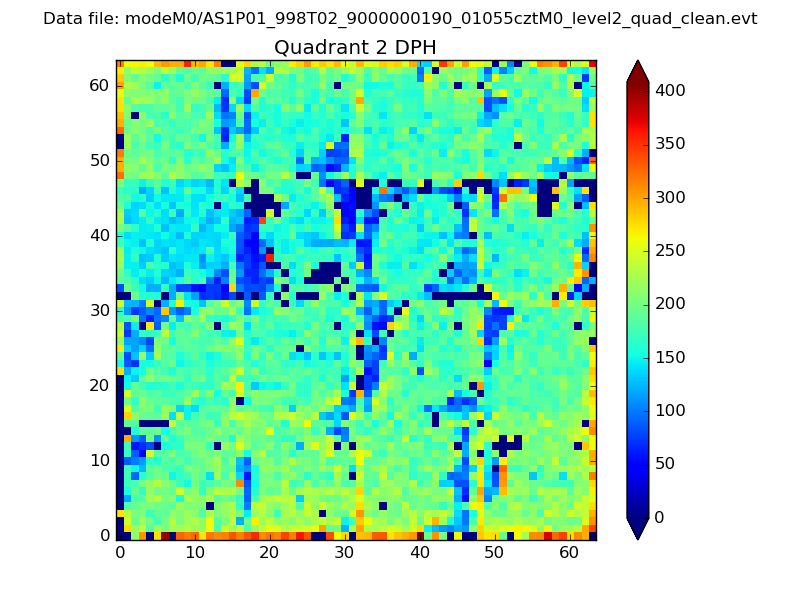

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

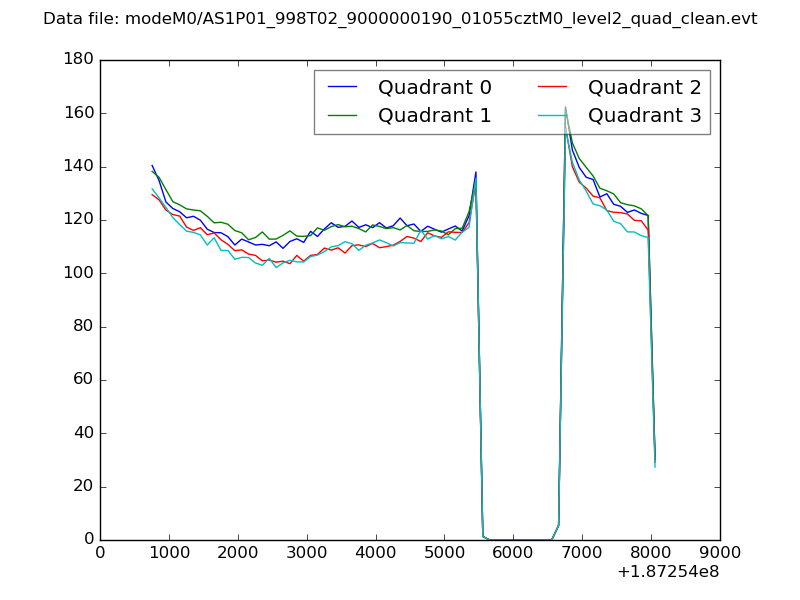

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

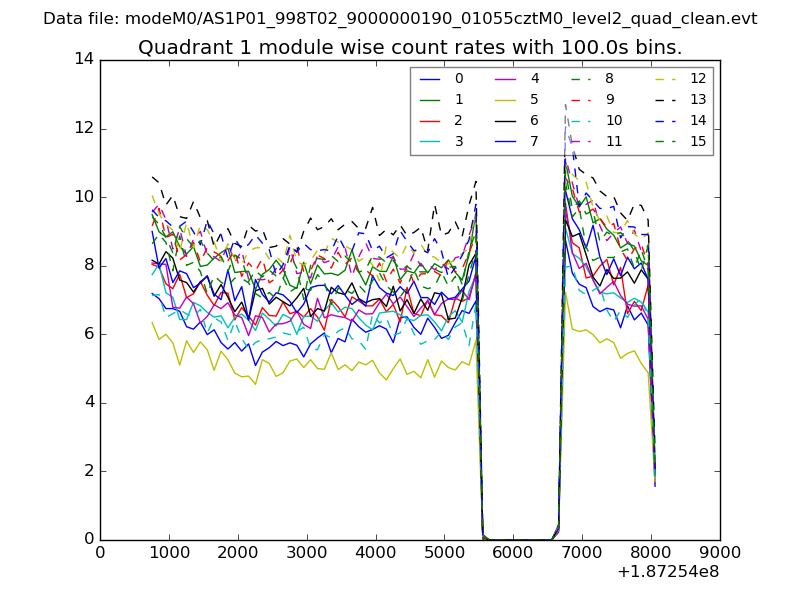

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

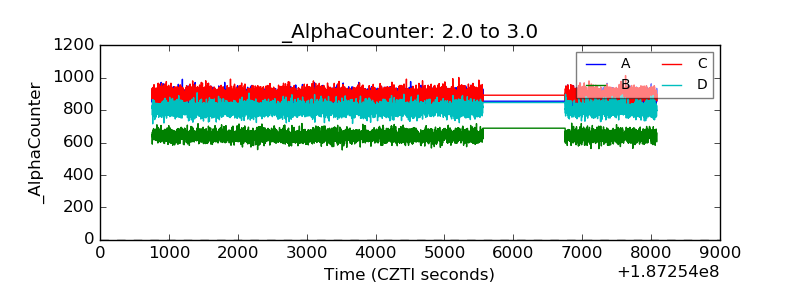

| Alpha Counter |  |

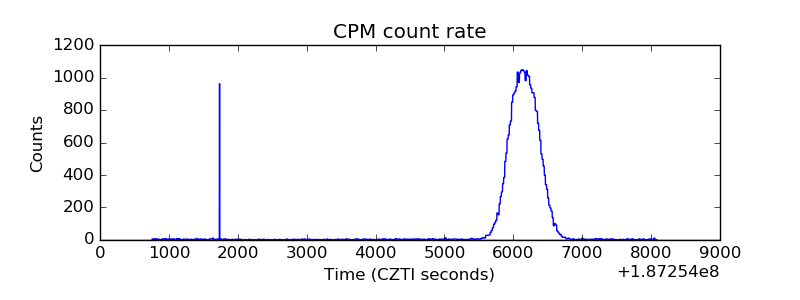

| _CPM_Rate |  |

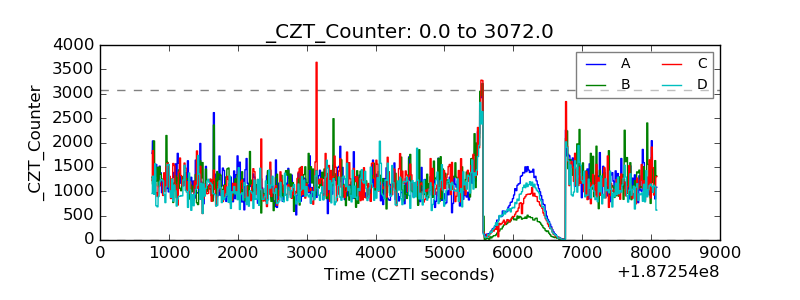

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
