| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01063cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01063cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,168,899,840 | 124,292,160 |
| Size | 1.1 GB | 118.5 MB |
| Events in quadrant A | 8,609,314 | 819,193 |
| Events in quadrant B | 9,101,044 | 827,410 |
| Events in quadrant C | 8,929,747 | 806,459 |
| Events in quadrant D | 8,265,678 | 792,569 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30895 | 6 |
| B | 0 | 32299 | 2 |
| C | 0 | 31814 | 2 |
| D | 0 | 29880 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7462 | 17 | 0.227821% |
| B | 7462 | 6 | 0.080407% |
| C | 7462 | 4 | 0.053605% |
| D | 7463 | 53 | 0.710170% |

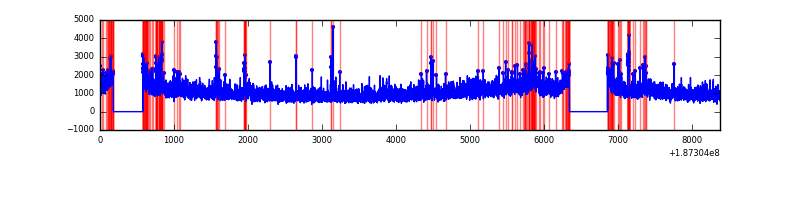

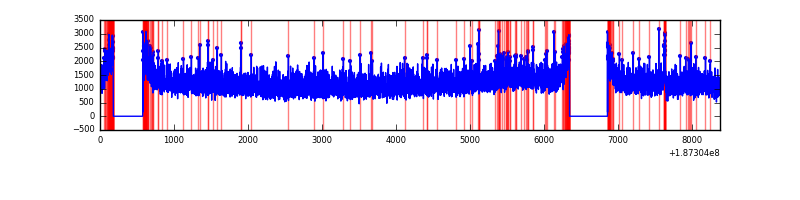

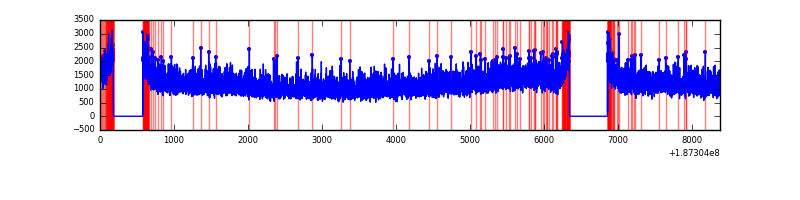

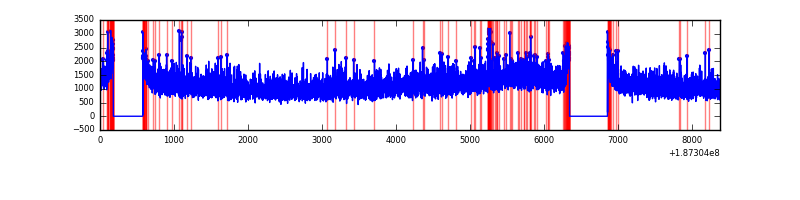

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8377 | 7464 | 181 | 181 | 2.16% | 2.42% |  |
| B | 8377 | 7464 | 236 | 236 | 2.82% | 3.16% |  |
| C | 8377 | 7464 | 238 | 238 | 2.84% | 3.19% |  |
| D | 8378 | 7465 | 247 | 247 | 2.95% | 3.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 52602 | 94.12 | 2230 | 2248 | 535.0 |
| A | 11 | 79 | 8999 | 12.62 | 2230 | 2248 | 535.0 |
| A | 3 | 111 | 7003 | 8.89 | 2230 | 2248 | 535.0 |
| B | 5 | 249 | 34485 | 57.83 | 2359 | 2365 | 555.4 |
| B | 4 | 141 | 33961 | 56.89 | 2359 | 2365 | 555.4 |
| B | 15 | 22 | 31288 | 52.07 | 2359 | 2365 | 555.4 |
| C | 15 | 241 | 385181 | 633.05 | 2168 | 2245 | 604.9 |
| C | 3 | 111 | 30062 | 45.99 | 2168 | 2245 | 604.9 |
| C | 3 | 79 | 28648 | 43.65 | 2168 | 2245 | 604.9 |
| D | 9 | 64 | 168721 | 258.44 | 2077 | 2146 | 644.5 |
| D | 1 | 83 | 81803 | 123.59 | 2077 | 2146 | 644.5 |
| D | 10 | 102 | 56926 | 84.99 | 2077 | 2146 | 644.5 |

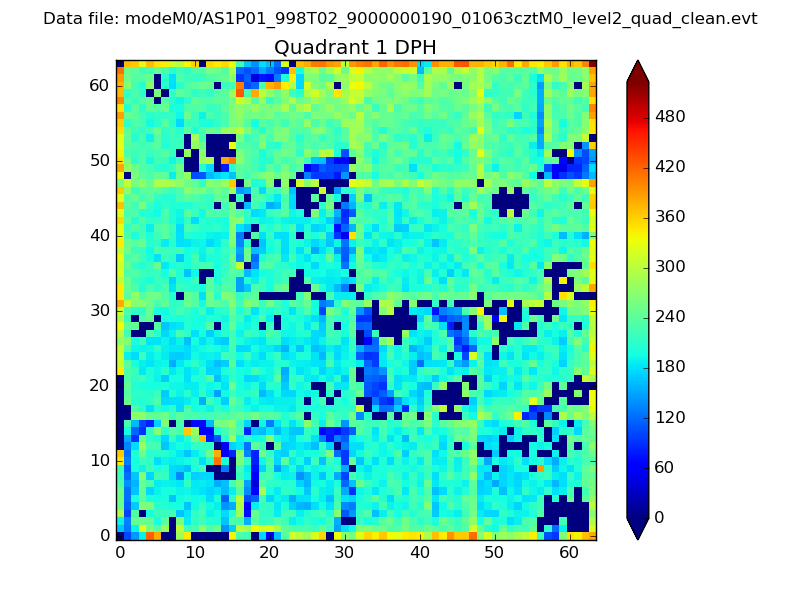

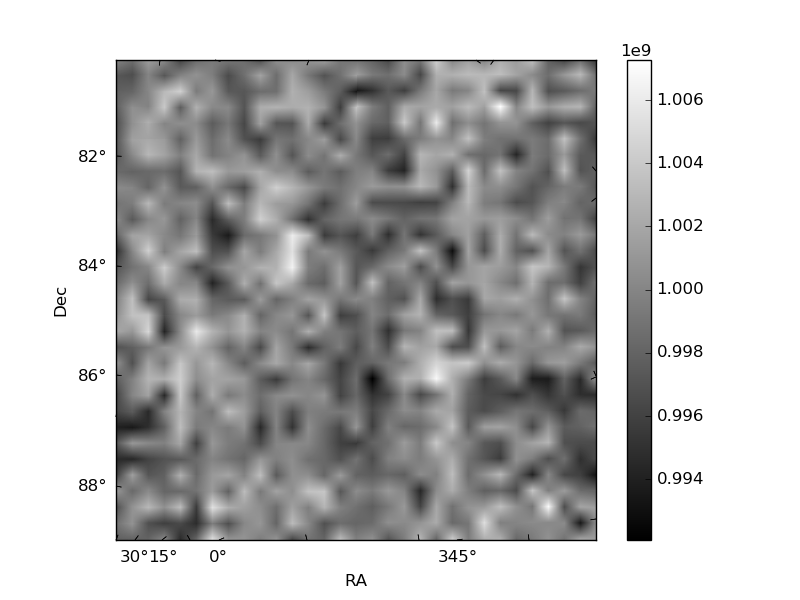

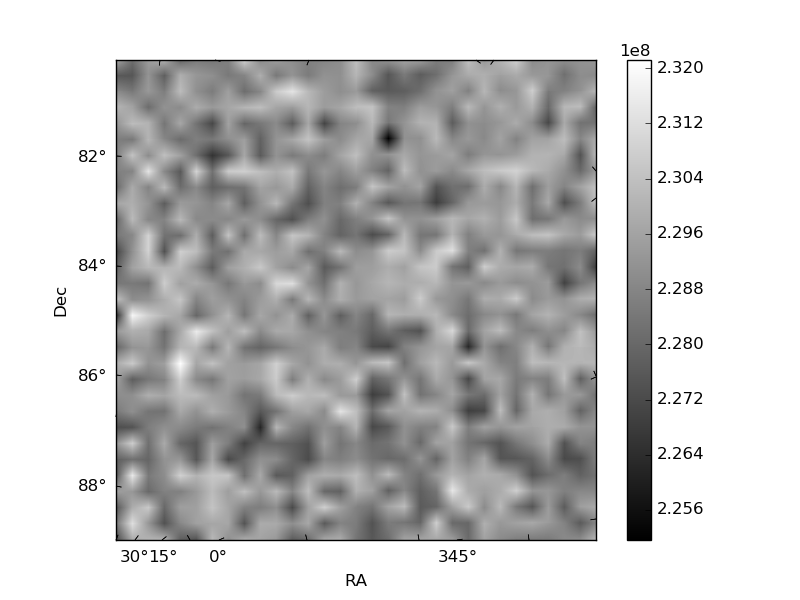

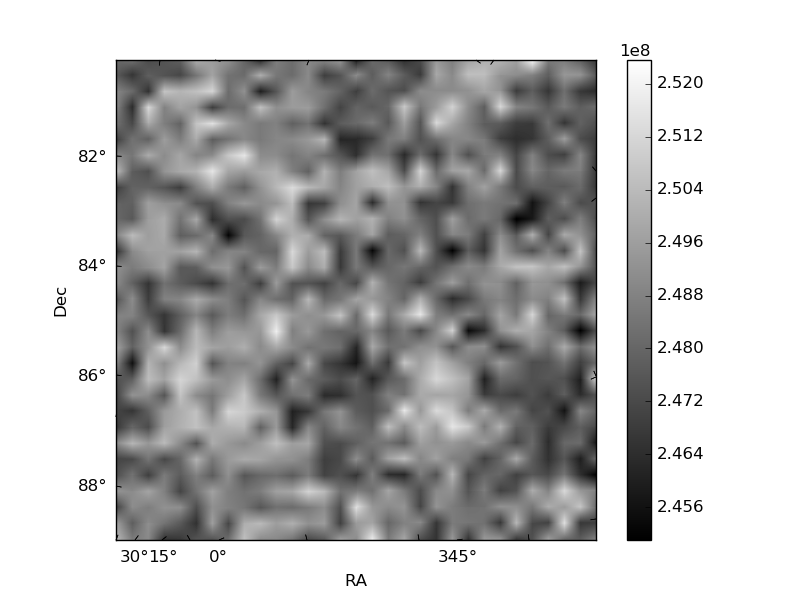

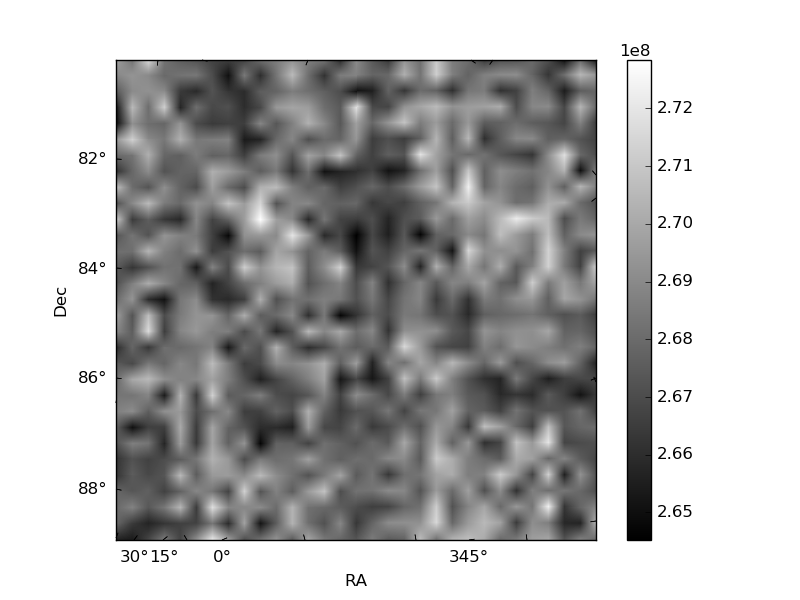

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

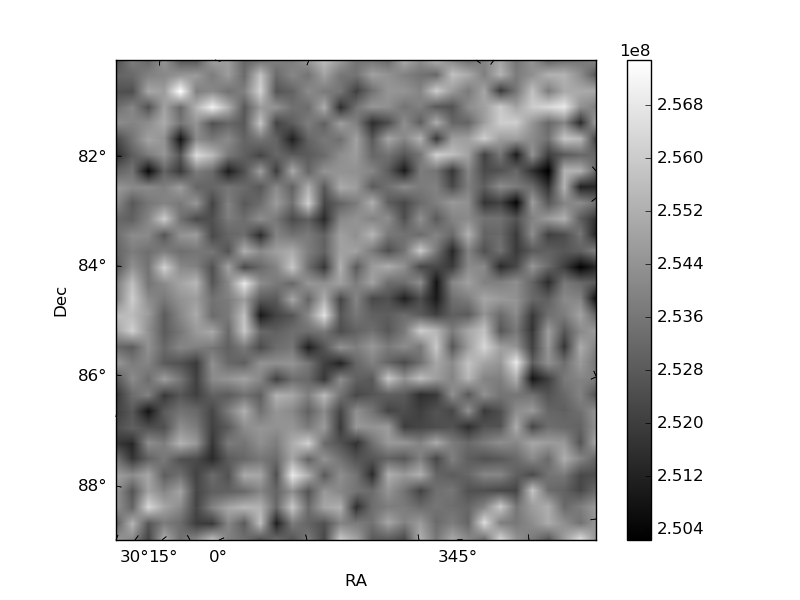

| Plot type | Count rate plots | Images |
|---|---|---|

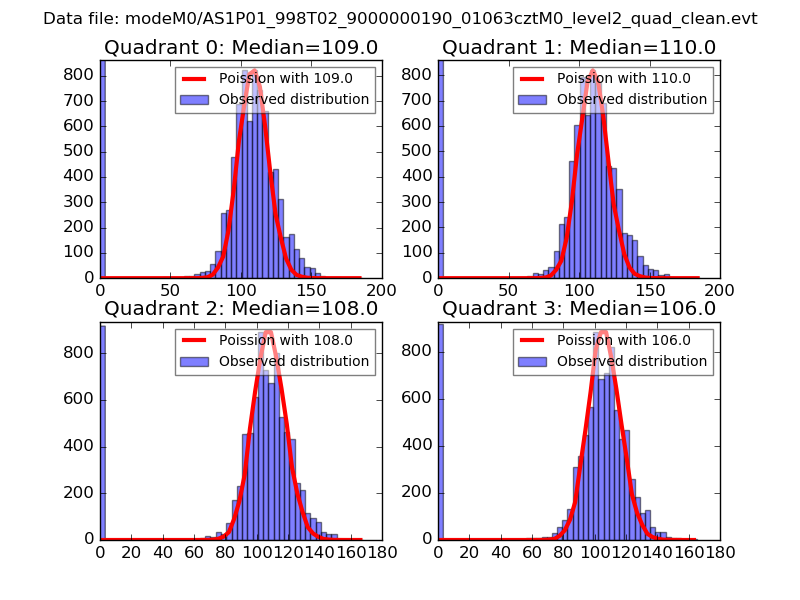

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

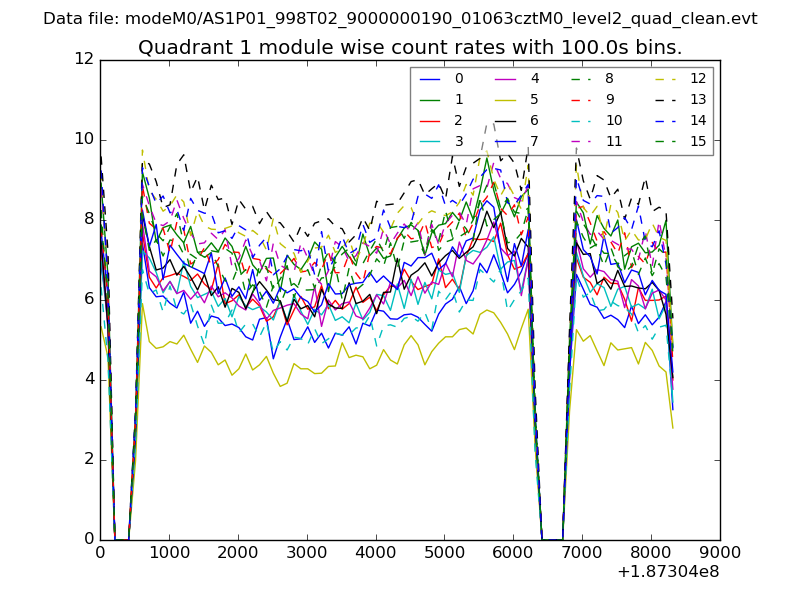

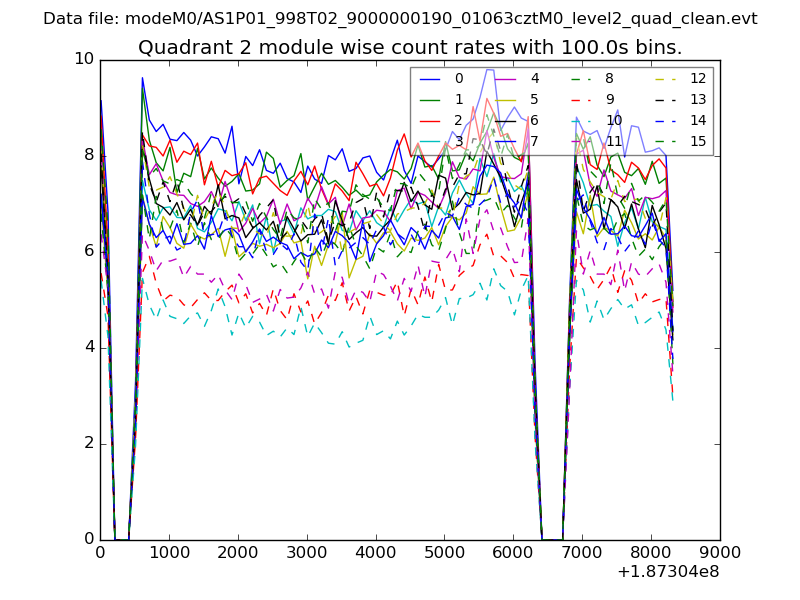

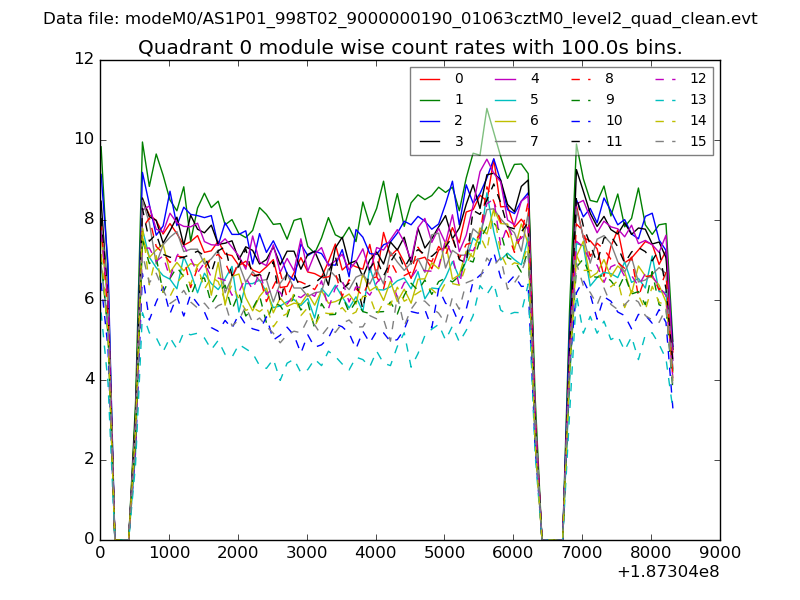

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

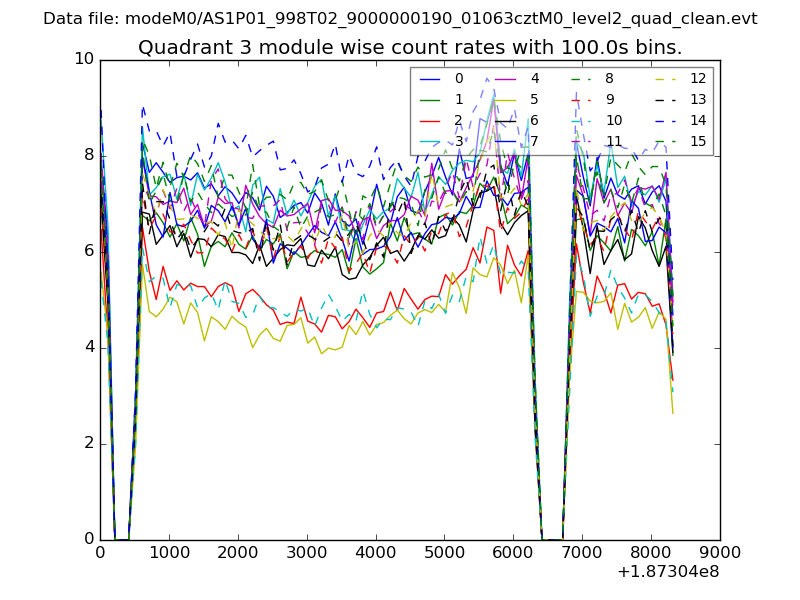

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

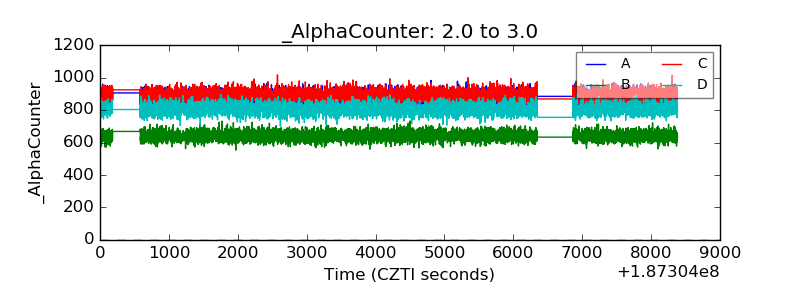

| Alpha Counter |  |

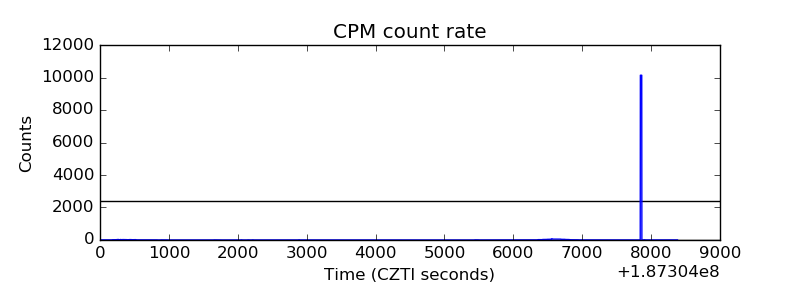

| _CPM_Rate |  |

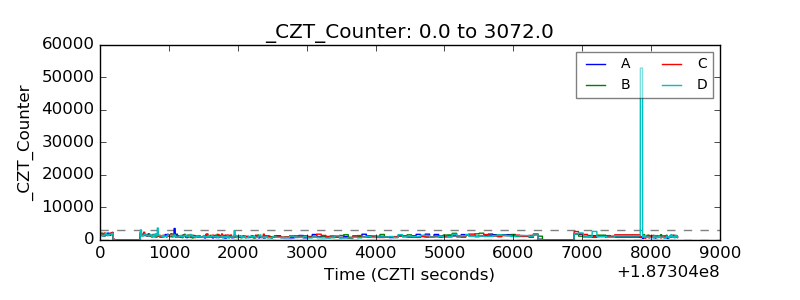

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

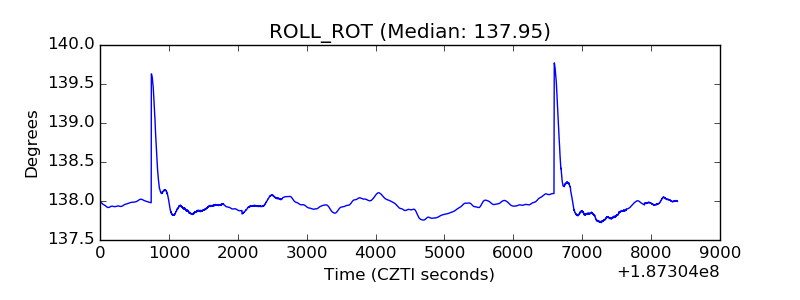

| _ROLL_ROT |  |

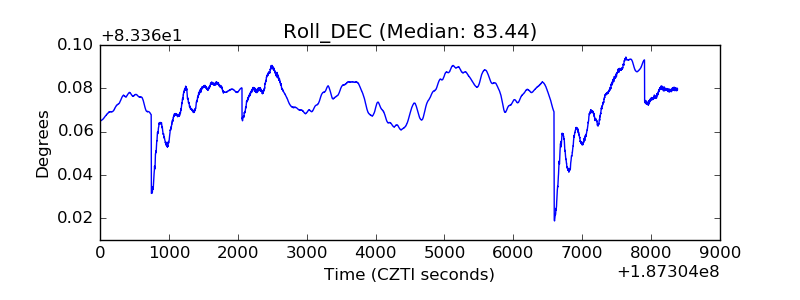

| _Roll_DEC |  |

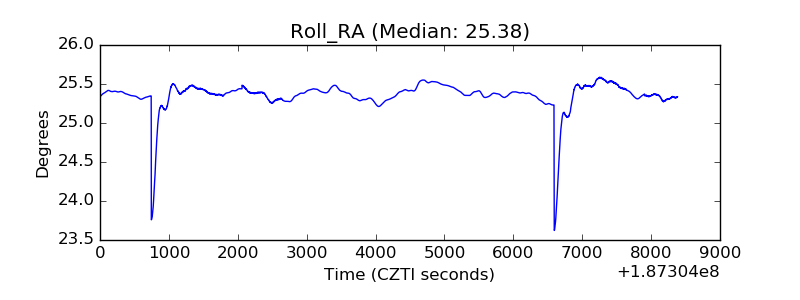

| _Roll_RA |  |

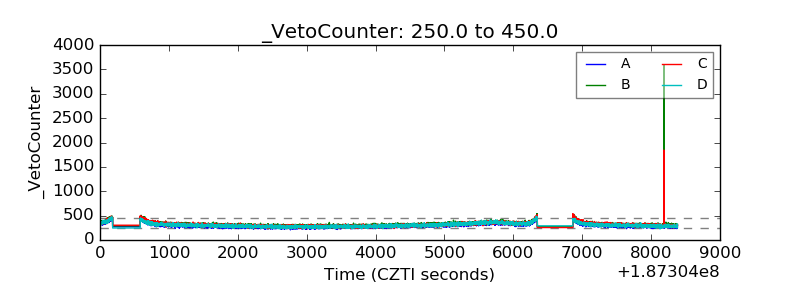

| Veto Counter |  |
