| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01065cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01065cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,202,955,840 | 123,638,400 |
| Size | 1.1 GB | 117.9 MB |
| Events in quadrant A | 8,747,526 | 821,183 |
| Events in quadrant B | 9,264,966 | 830,277 |
| Events in quadrant C | 9,803,939 | 778,210 |
| Events in quadrant D | 8,119,090 | 794,207 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31289 | 5 |
| B | 0 | 32793 | 2 |
| C | 0 | 34529 | 2 |
| D | 0 | 29517 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7488 | 4 | 0.053419% |
| B | 7488 | 31 | 0.413996% |
| C | 7489 | 503 | 6.716518% |
| D | 7489 | 34 | 0.453999% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8998 | 7490 | 157 | 157 | 1.74% | 2.10% |  |
| B | 8998 | 7490 | 269 | 269 | 2.99% | 3.59% |  |
| C | 8999 | 7491 | 684 | 684 | 7.60% | 9.13% |  |
| D | 8999 | 7491 | 204 | 204 | 2.27% | 2.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 84479 | 150.62 | 2258 | 2277 | 545.8 |
| A | 11 | 79 | 7420 | 9.42 | 2258 | 2277 | 545.8 |
| A | 3 | 111 | 7374 | 9.34 | 2258 | 2277 | 545.8 |
| B | 15 | 22 | 94141 | 164.36 | 2369 | 2379 | 558.3 |
| B | 5 | 191 | 47677 | 81.14 | 2369 | 2379 | 558.3 |
| B | 5 | 249 | 43633 | 73.89 | 2369 | 2379 | 558.3 |
| C | 0 | 191 | 1207584 | 2076.02 | 2076 | 2151 | 580.6 |
| C | 15 | 241 | 379721 | 650.26 | 2076 | 2151 | 580.6 |
| C | 3 | 79 | 33355 | 53.74 | 2076 | 2151 | 580.6 |
| D | 1 | 83 | 107295 | 164.21 | 2068 | 2140 | 640.4 |
| D | 2 | 152 | 52805 | 79.12 | 2068 | 2140 | 640.4 |
| D | 2 | 63 | 52409 | 78.5 | 2068 | 2140 | 640.4 |

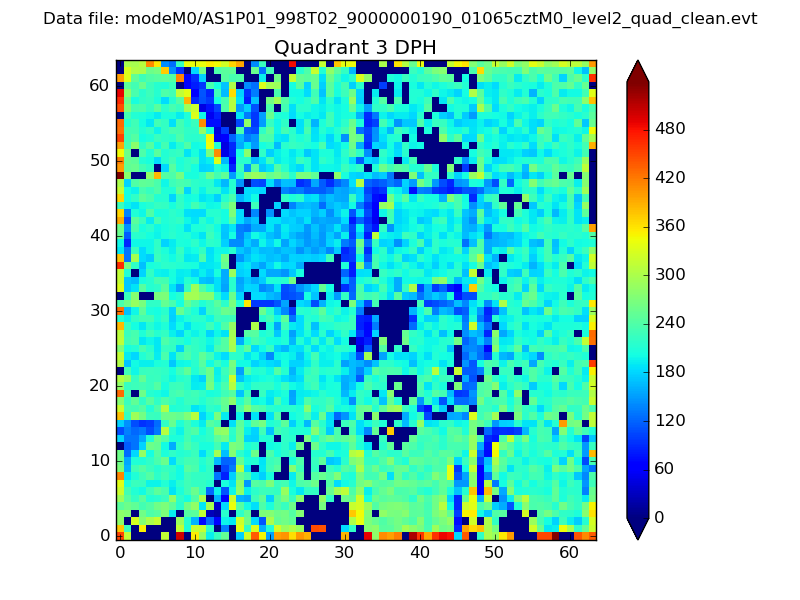

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

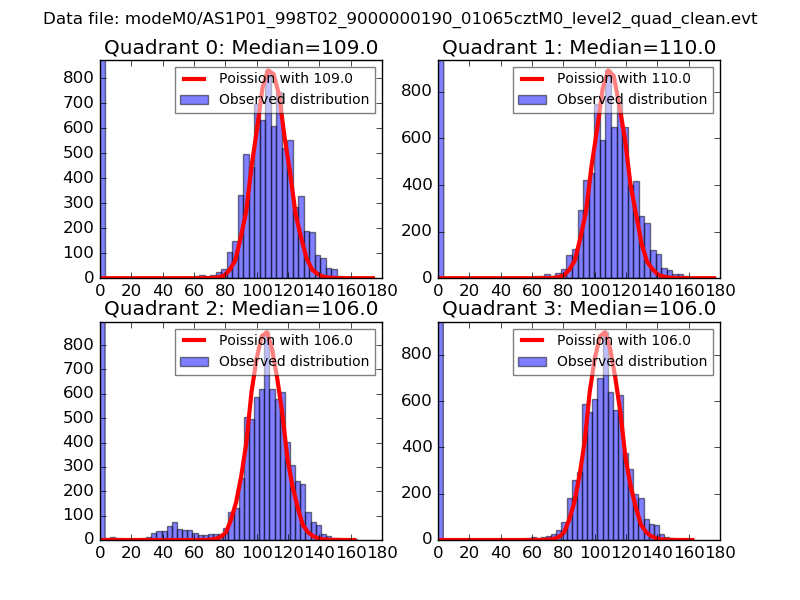

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

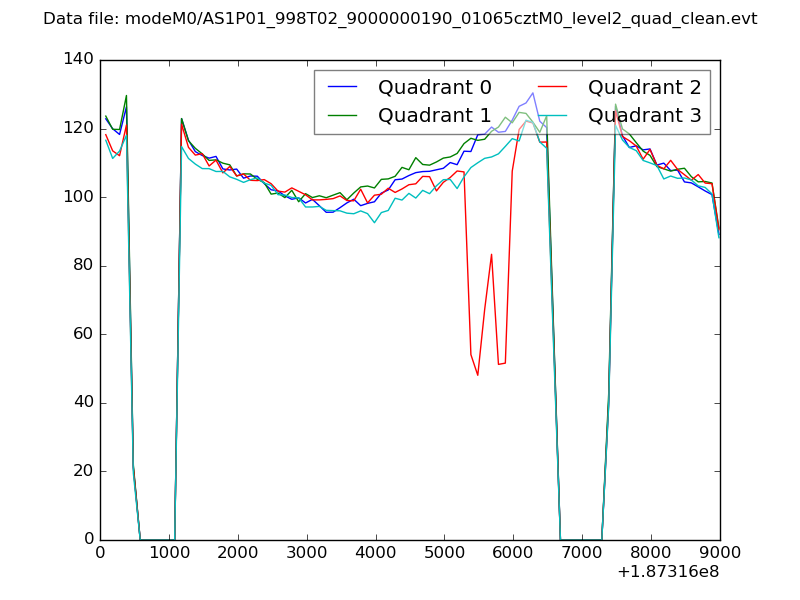

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

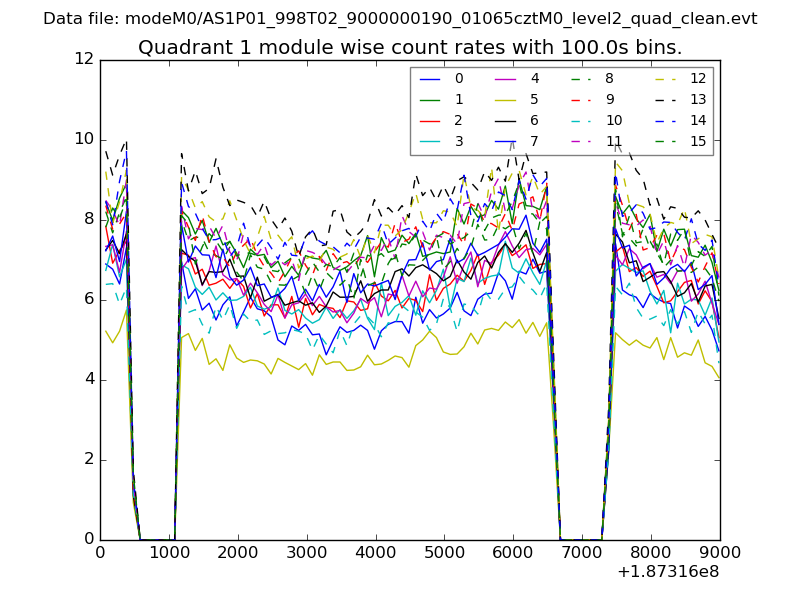

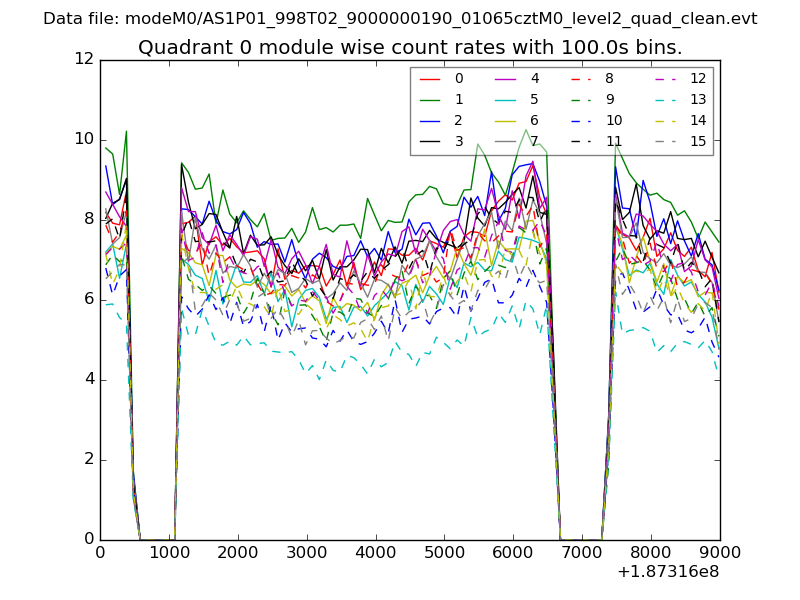

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

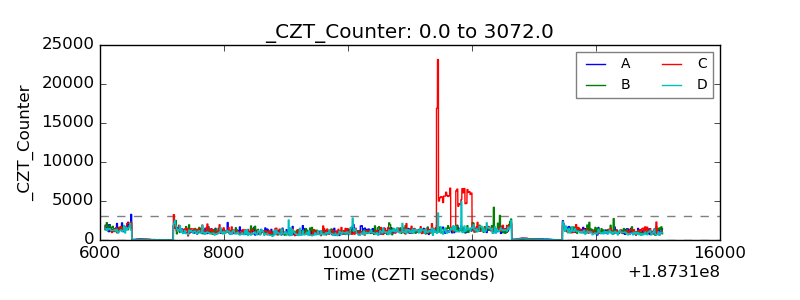

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

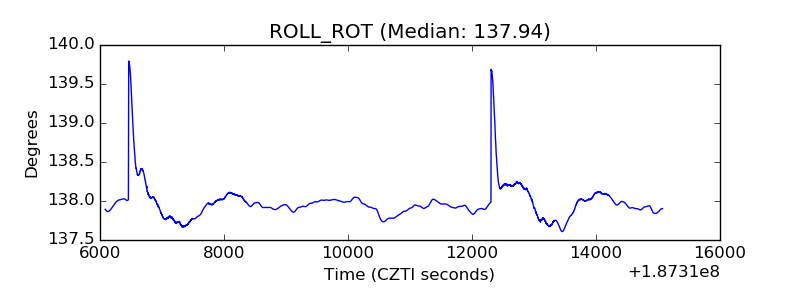

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
