| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_998T02_9000000190_01069cztM0_level2.evt | modeM0/AS1P01_998T02_9000000190_01069cztM0_level2_quad_clean.evt |
| Size (bytes) | 960,560,640 | 107,233,920 |
| Size | 916.1 MB | 102.3 MB |
| Events in quadrant A | 7,173,977 | 719,638 |
| Events in quadrant B | 7,530,685 | 729,870 |
| Events in quadrant C | 7,054,803 | 692,236 |
| Events in quadrant D | 6,928,617 | 682,615 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25601 | 1 |
| B | 0 | 26665 | 1 |
| C | 0 | 25282 | 1 |
| D | 0 | 24933 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6068 | 18 | 0.296638% |
| B | 6068 | 33 | 0.543837% |
| C | 6069 | 7 | 0.115340% |
| D | 6069 | 23 | 0.378975% |

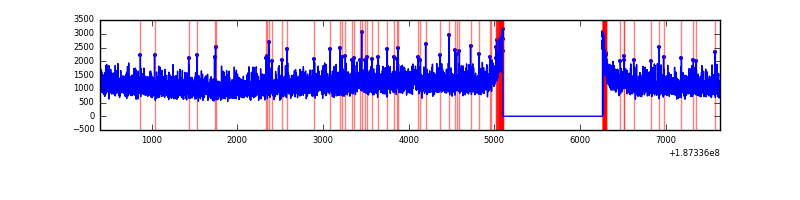

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7233 | 6069 | 169 | 169 | 2.34% | 2.78% |  |
| B | 7233 | 6069 | 243 | 243 | 3.36% | 4.00% |  |
| C | 7234 | 6070 | 129 | 129 | 1.78% | 2.13% |  |
| D | 7234 | 6070 | 258 | 258 | 3.57% | 4.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 40723 | 87.62 | 1859 | 1873 | 443.4 |
| A | 11 | 79 | 6273 | 9.92 | 1859 | 1873 | 443.4 |
| A | 3 | 111 | 5852 | 8.97 | 1859 | 1873 | 443.4 |
| B | 5 | 191 | 90035 | 196.14 | 1908 | 1924 | 449.2 |
| B | 15 | 22 | 70955 | 153.66 | 1908 | 1924 | 449.2 |
| B | 5 | 249 | 53245 | 114.24 | 1908 | 1924 | 449.2 |
| C | 15 | 241 | 303656 | 639.95 | 1711 | 1765 | 471.7 |
| C | 3 | 79 | 24921 | 49.09 | 1711 | 1765 | 471.7 |
| C | 3 | 111 | 23690 | 46.48 | 1711 | 1765 | 471.7 |
| D | 13 | 73 | 353014 | 679.39 | 1683 | 1744 | 517.0 |
| D | 12 | 22 | 97792 | 185.77 | 1683 | 1744 | 517.0 |
| D | 1 | 83 | 47426 | 88.35 | 1683 | 1744 | 517.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

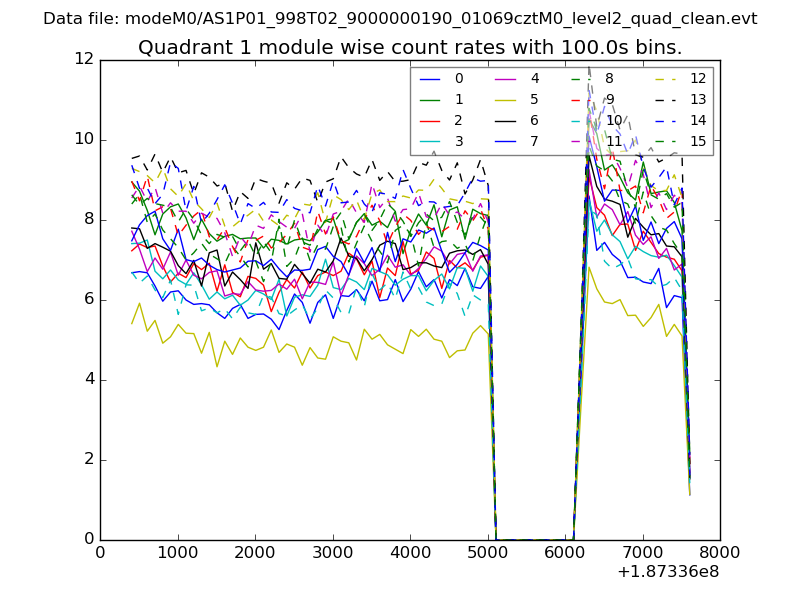

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

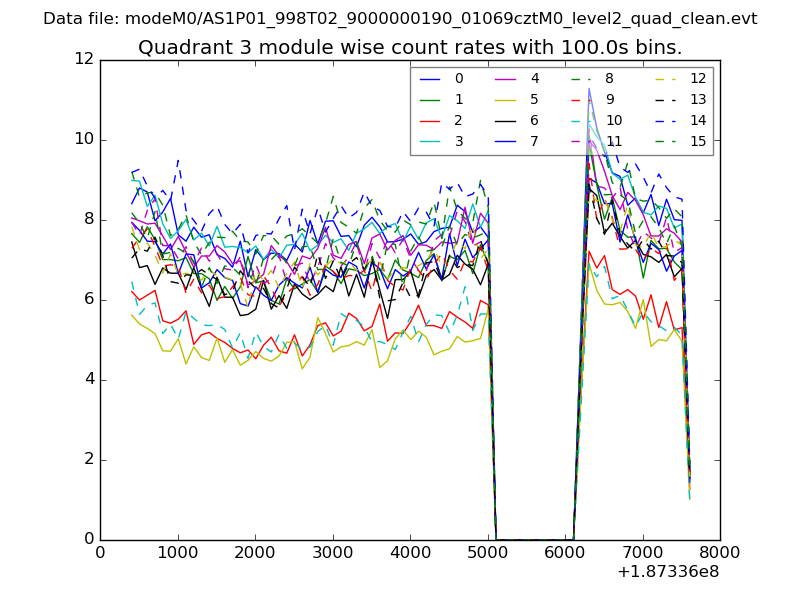

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

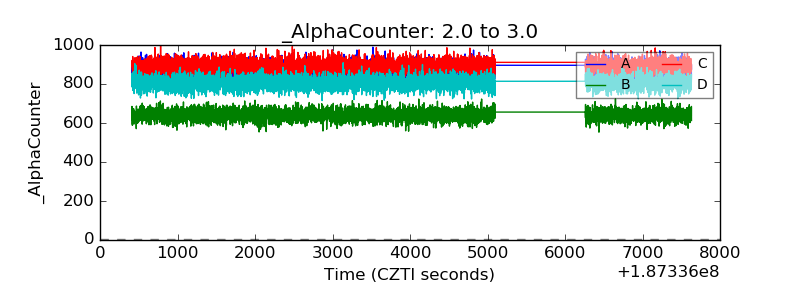

| Alpha Counter |  |

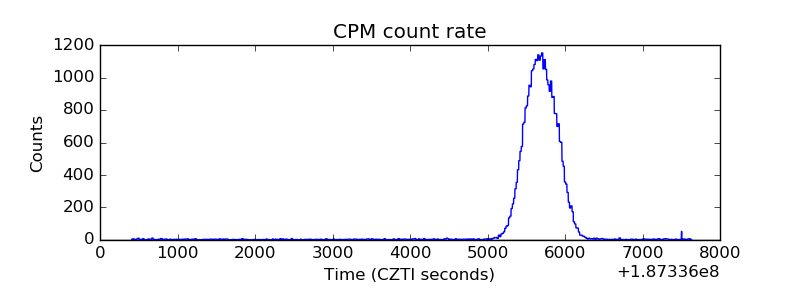

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

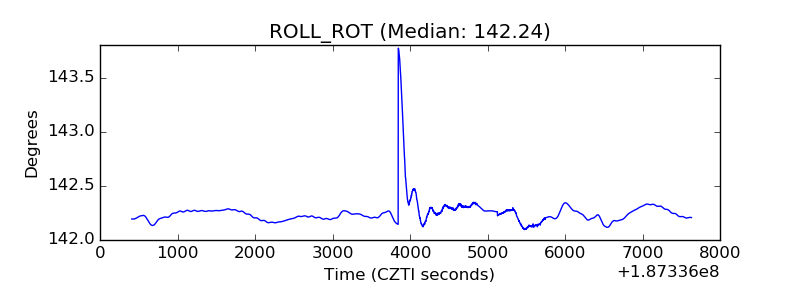

| _ROLL_ROT |  |
| _Roll_DEC |  |

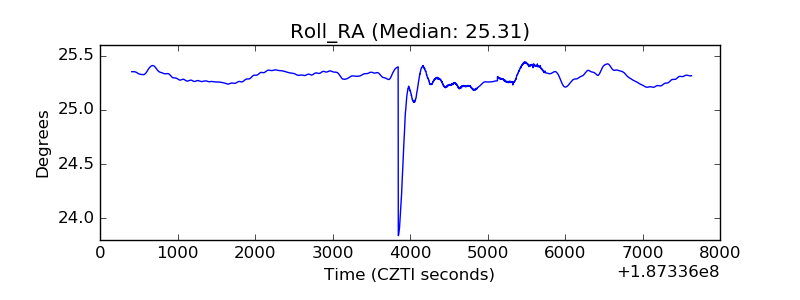

| _Roll_RA |  |

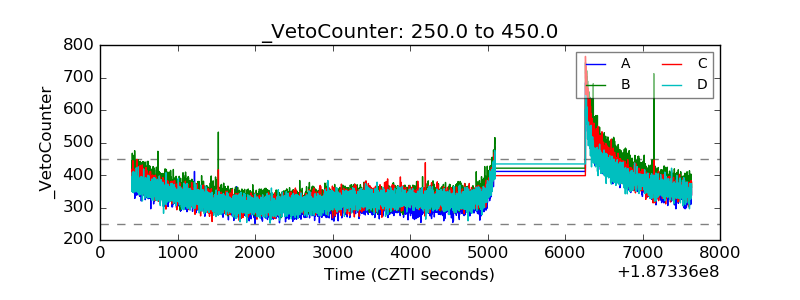

| Veto Counter |  |
