| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_180T10_9000000196_01082cztM0_level2.evt | modeM0/AS1P01_180T10_9000000196_01082cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,253,760 | 49,743,360 |
| Size | 519.0 MB | 47.4 MB |
| Events in quadrant A | 3,939,835 | 332,911 |
| Events in quadrant B | 4,654,830 | 309,735 |
| Events in quadrant C | 3,968,103 | 313,043 |
| Events in quadrant D | 3,699,204 | 315,681 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14074 | 1 |
| B | 0 | 16240 | 1 |
| C | 0 | 14127 | 1 |
| D | 0 | 13369 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3304 | 3 | 0.090799% |
| B | 3304 | 216 | 6.537530% |
| C | 3304 | 3 | 0.090799% |
| D | 3304 | 3 | 0.090799% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4389 | 3305 | 70 | 70 | 1.59% | 2.12% |  |
| B | 4389 | 3305 | 387 | 387 | 8.82% | 11.71% |  |
| C | 4389 | 3305 | 68 | 68 | 1.55% | 2.06% |  |
| D | 4389 | 3305 | 55 | 55 | 1.25% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 4364 | 13.43 | 1026 | 1033 | 248.0 |
| A | 8 | 255 | 3032 | 8.06 | 1026 | 1033 | 248.0 |
| A | 3 | 111 | 2957 | 7.76 | 1026 | 1033 | 248.0 |
| B | 5 | 191 | 696532 | 2892.86 | 1011 | 1017 | 240.4 |
| B | 15 | 22 | 82291 | 338.04 | 1011 | 1017 | 240.4 |
| B | 5 | 249 | 15883 | 61.83 | 1011 | 1017 | 240.4 |
| C | 15 | 241 | 159679 | 587.68 | 963 | 996 | 270.0 |
| C | 3 | 79 | 21399 | 75.56 | 963 | 996 | 270.0 |
| C | 3 | 111 | 15834 | 54.95 | 963 | 996 | 270.0 |
| D | 2 | 216 | 47555 | 158.9 | 957 | 992 | 293.0 |
| D | 13 | 169 | 18287 | 59.02 | 957 | 992 | 293.0 |
| D | 15 | 13 | 14644 | 46.59 | 957 | 992 | 293.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

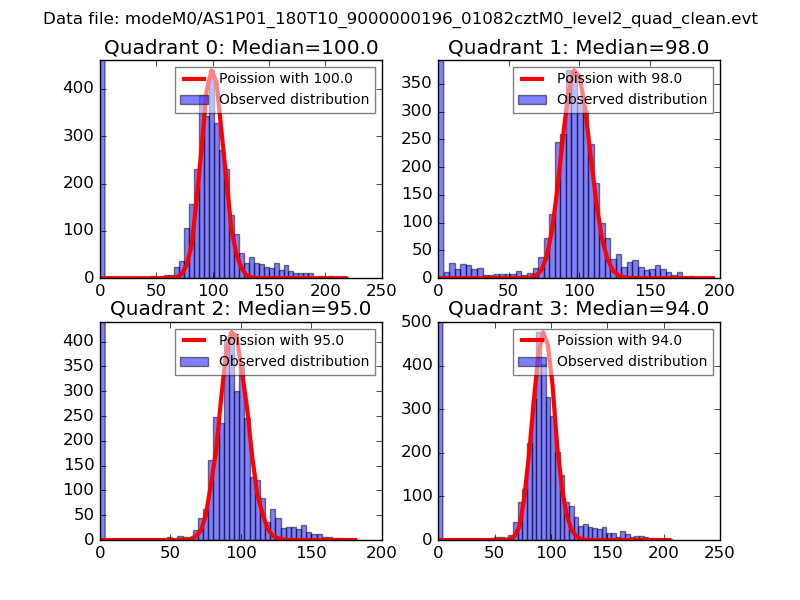

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

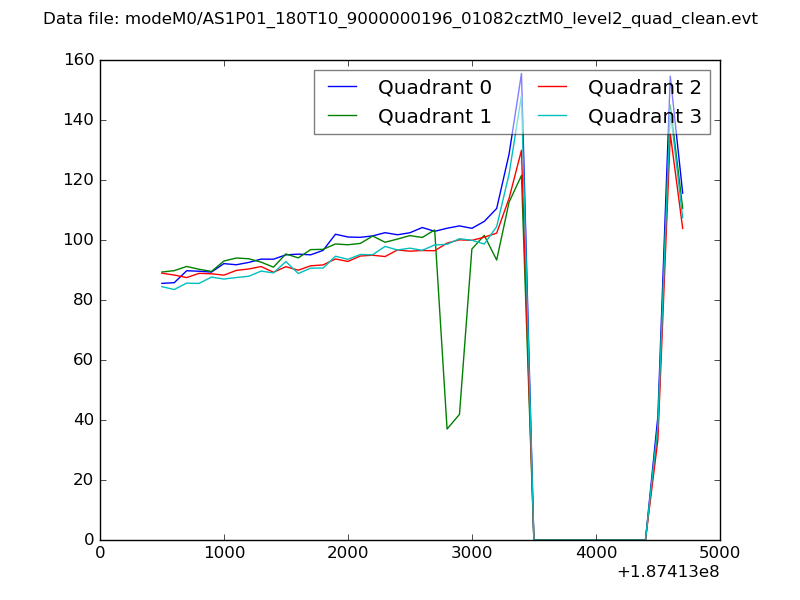

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

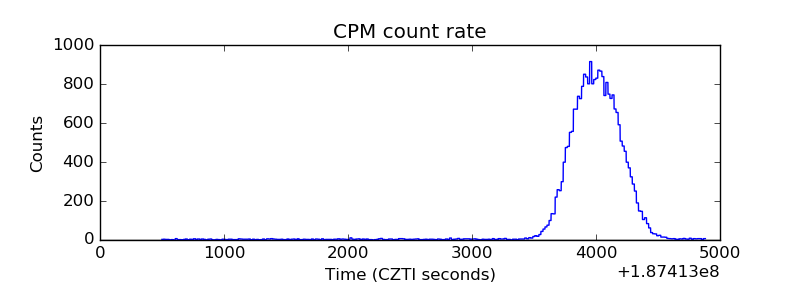

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

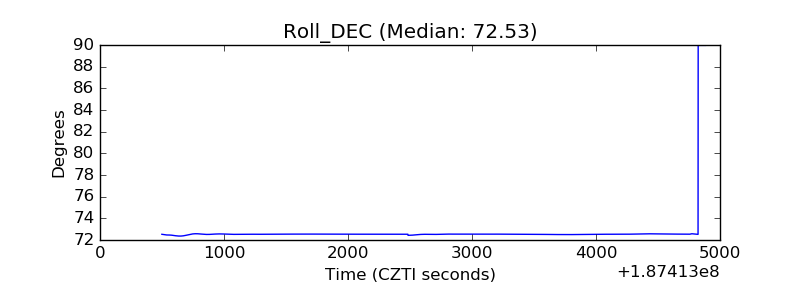

| _Roll_DEC |  |

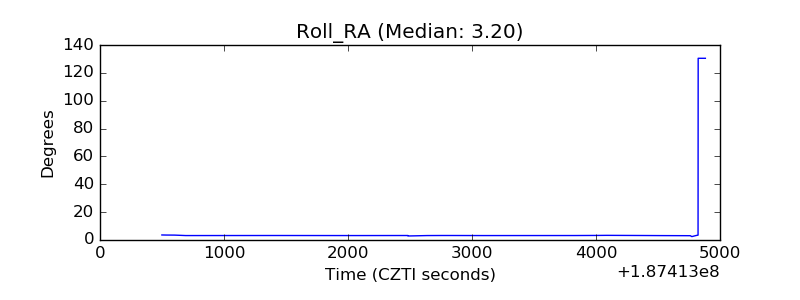

| _Roll_RA |  |
| Veto Counter |  |
