| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_180T10_9000000208_01085cztM0_level2.evt | modeM0/AS1P01_180T10_9000000208_01085cztM0_level2_quad_clean.evt |
| Size (bytes) | 671,149,440 | 63,866,880 |
| Size | 640.1 MB | 60.9 MB |
| Events in quadrant A | 4,774,928 | 427,311 |
| Events in quadrant B | 5,129,288 | 423,411 |
| Events in quadrant C | 4,855,844 | 405,082 |
| Events in quadrant D | 5,294,352 | 390,747 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17065 | 0 |
| B | 0 | 18094 | 0 |
| C | 0 | 17350 | 0 |
| D | 0 | 18653 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4072 | 48 | 1.178782% |
| B | 4072 | 74 | 1.817289% |
| C | 4072 | 42 | 1.031434% |
| D | 4072 | 232 | 5.697446% |

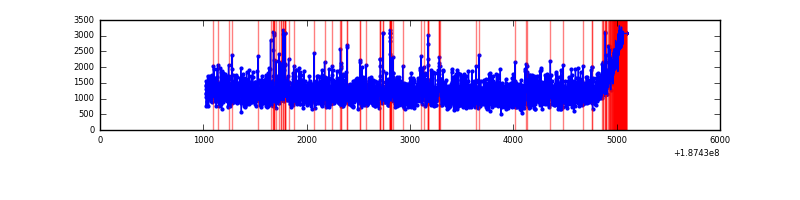

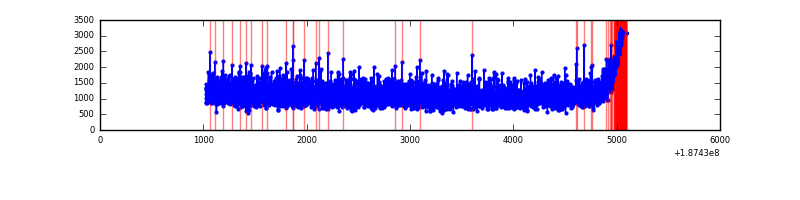

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

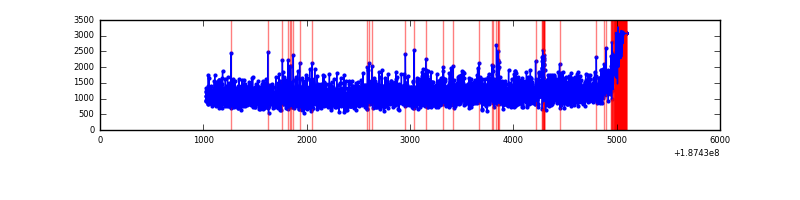

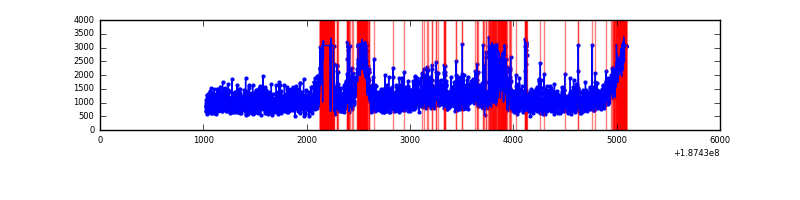

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4071 | 4071 | 138 | 138 | 3.39% | 3.39% |  |
| B | 4071 | 4071 | 207 | 207 | 5.08% | 5.08% |  |
| C | 4071 | 4071 | 150 | 150 | 3.68% | 3.68% |  |
| D | 4071 | 4071 | 454 | 454 | 11.15% | 11.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 4782 | 11.89 | 1242 | 1249 | 297.2 |
| A | 13 | 9 | 3863 | 8.79 | 1242 | 1249 | 297.2 |
| A | 3 | 111 | 3567 | 7.8 | 1242 | 1249 | 297.2 |
| B | 15 | 22 | 91926 | 302.35 | 1280 | 1283 | 299.8 |
| B | 4 | 187 | 35910 | 115.5 | 1280 | 1283 | 299.8 |
| B | 14 | 53 | 33003 | 105.81 | 1280 | 1283 | 299.8 |
| C | 15 | 241 | 195631 | 600.12 | 1171 | 1211 | 324.0 |
| C | 3 | 79 | 26388 | 77.71 | 1171 | 1211 | 324.0 |
| C | 3 | 111 | 19422 | 56.21 | 1171 | 1211 | 324.0 |
| D | 2 | 16 | 593921 | 1687.51 | 1134 | 1179 | 351.3 |
| D | 13 | 73 | 294206 | 834.24 | 1134 | 1179 | 351.3 |
| D | 12 | 22 | 83890 | 235.47 | 1134 | 1179 | 351.3 |

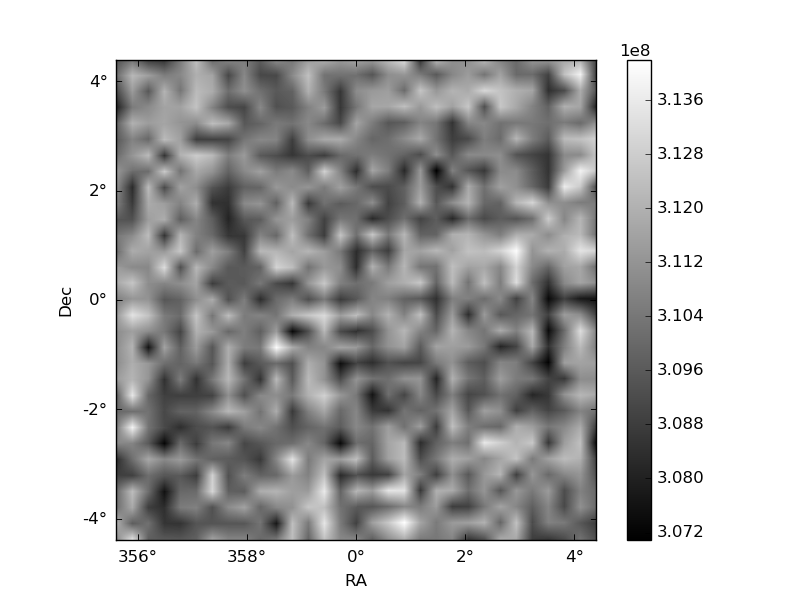

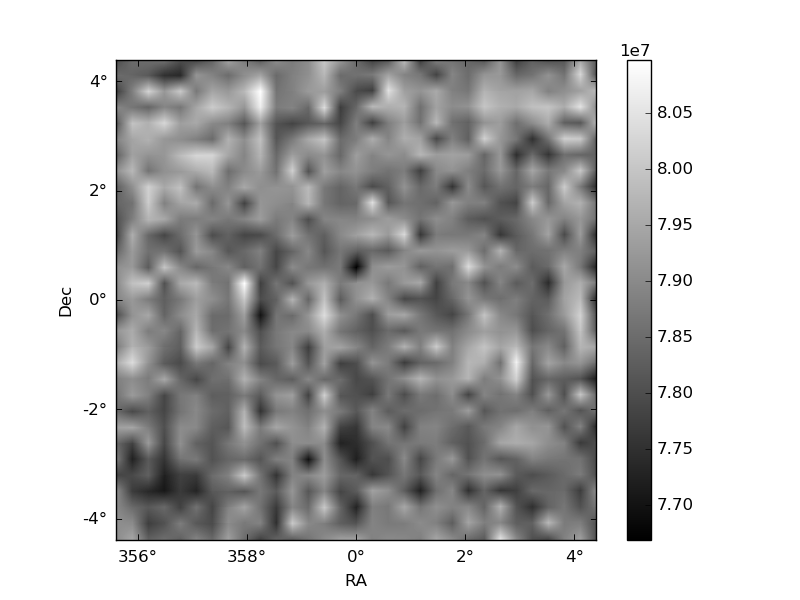

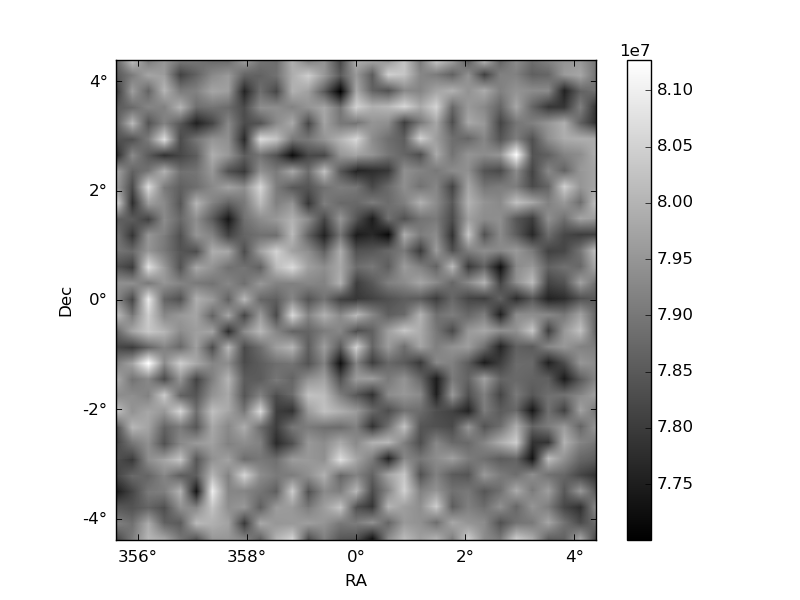

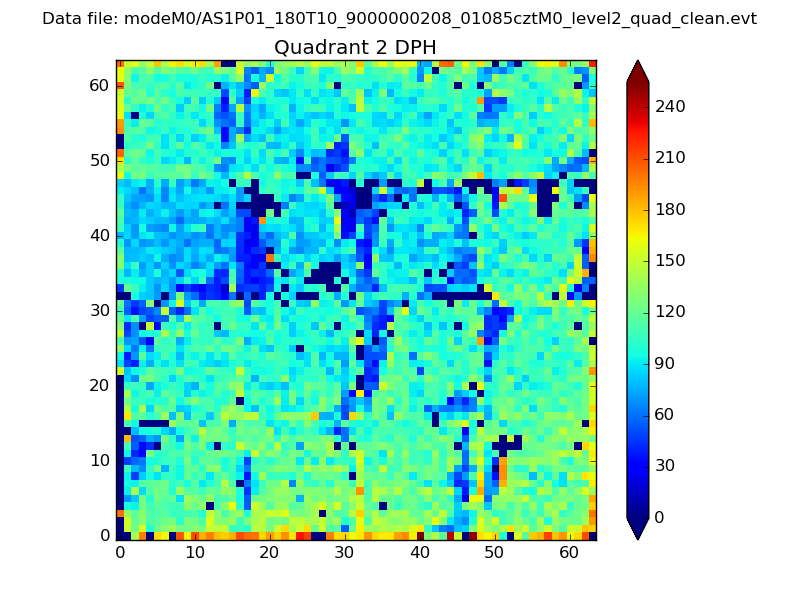

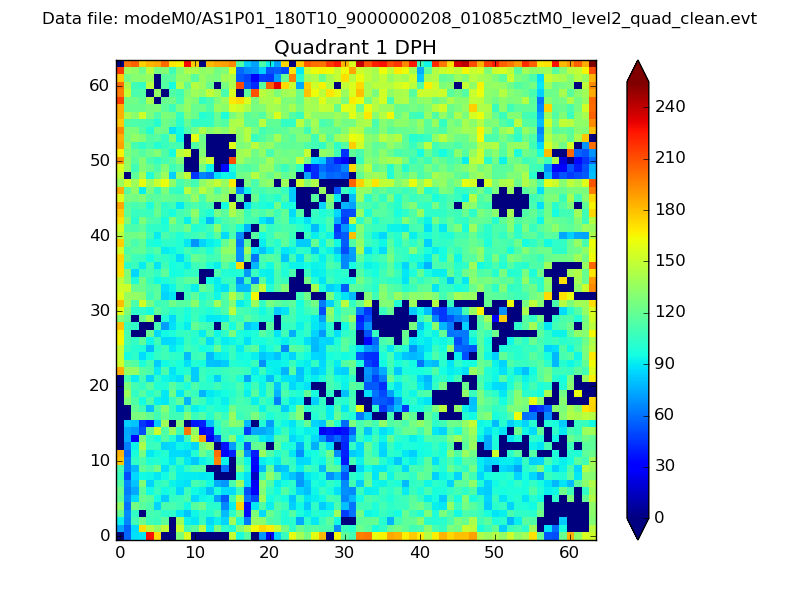

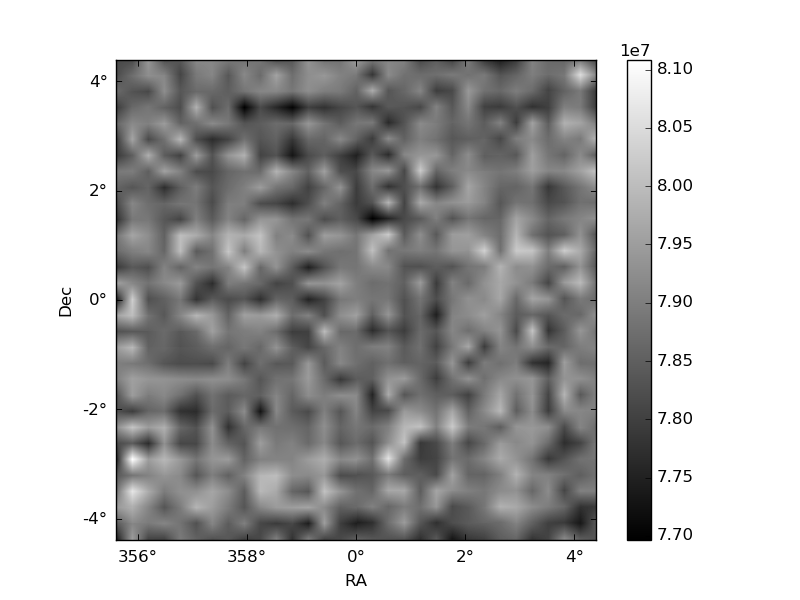

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

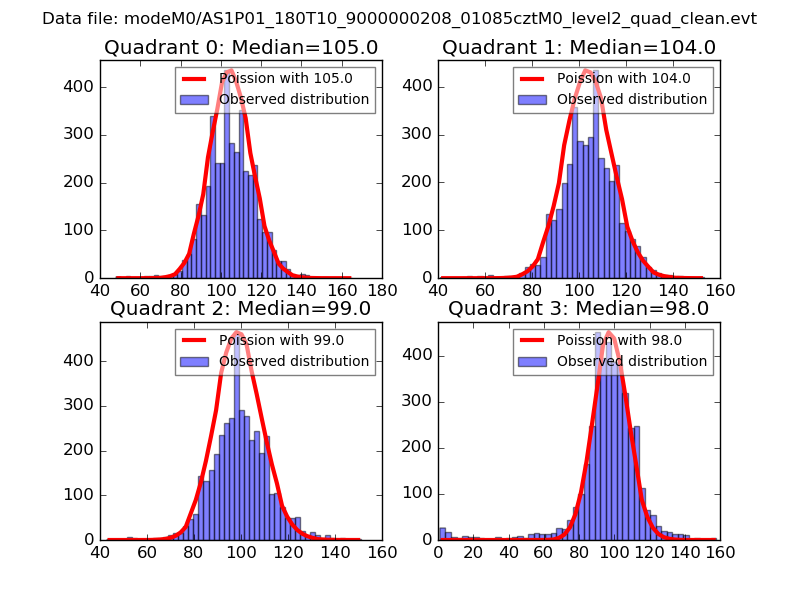

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

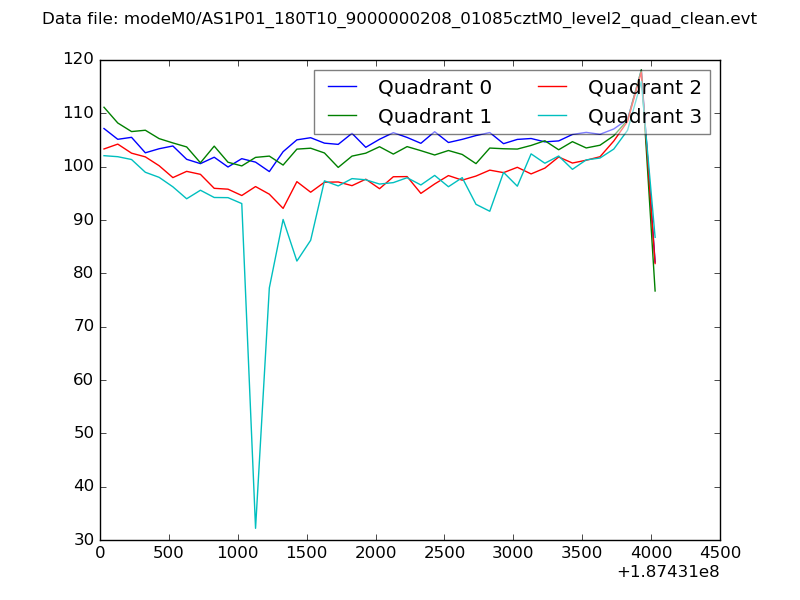

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

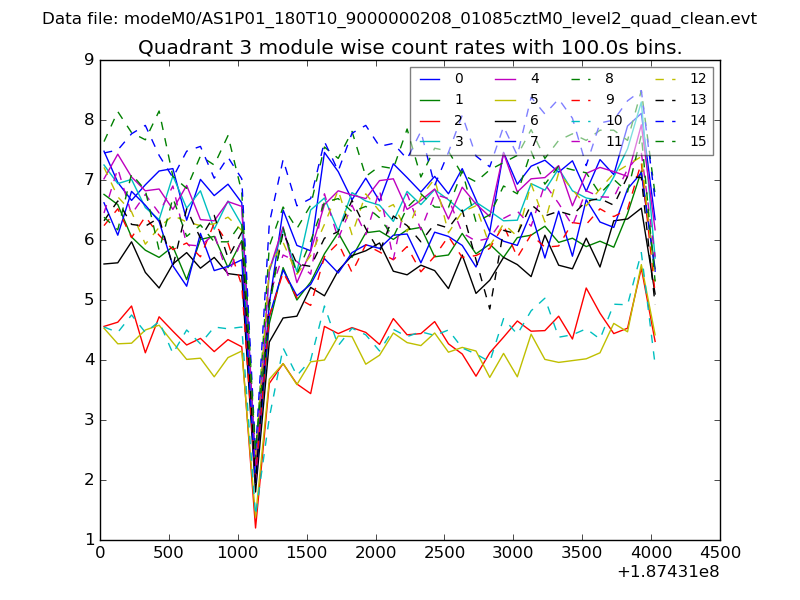

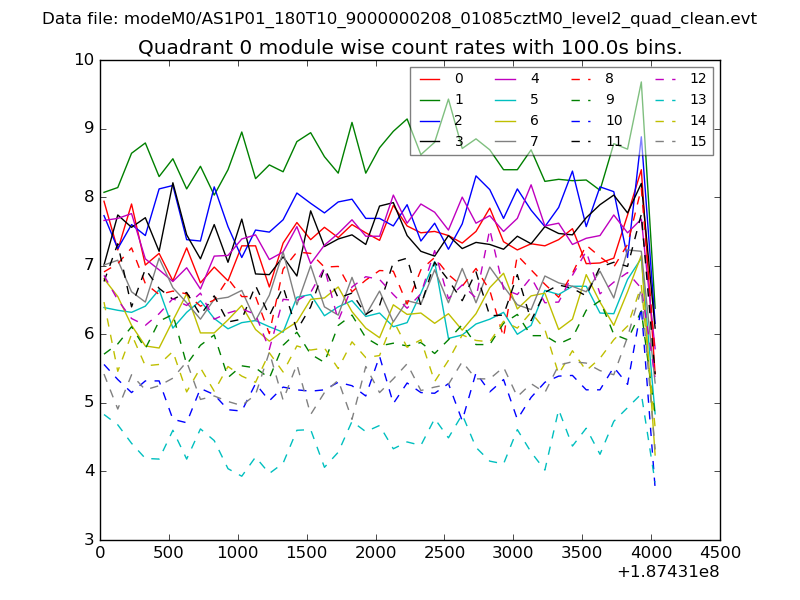

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

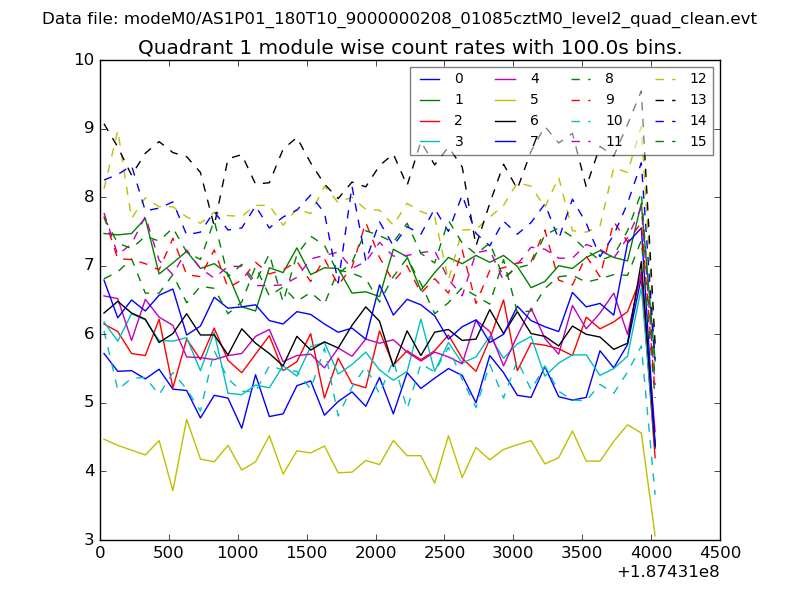

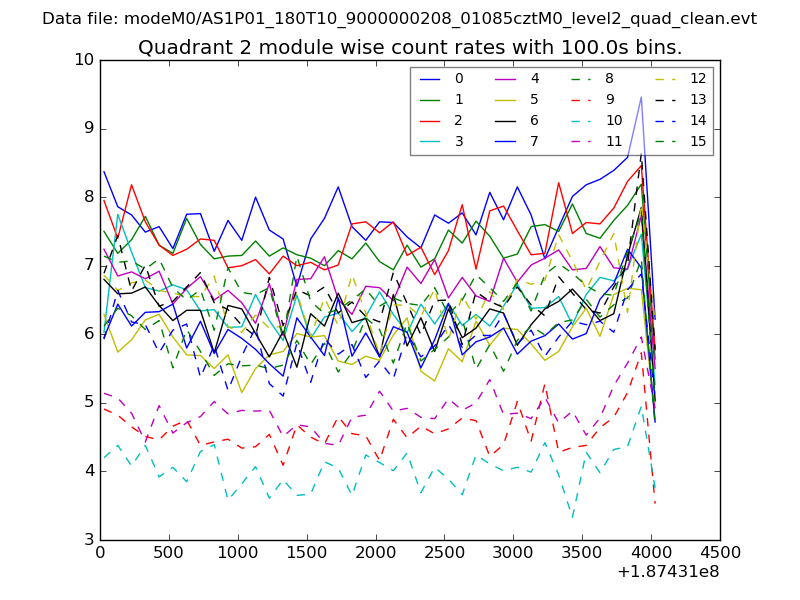

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

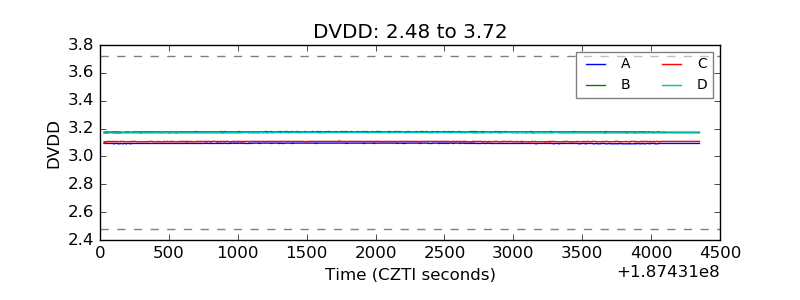

| D_VDD |  |

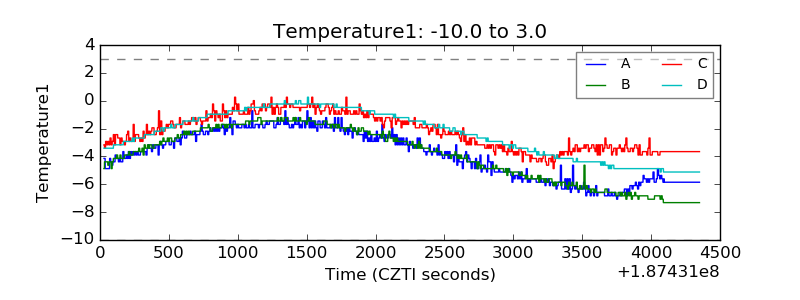

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

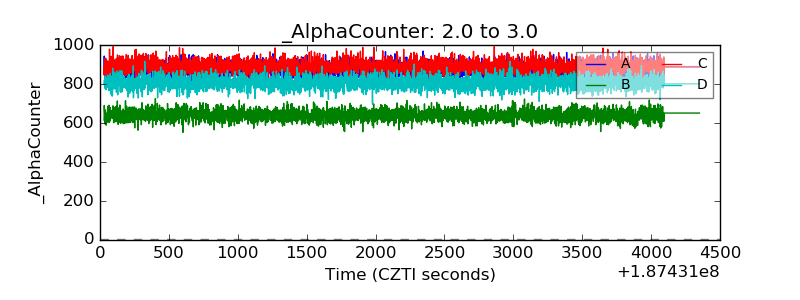

| Alpha Counter |  |

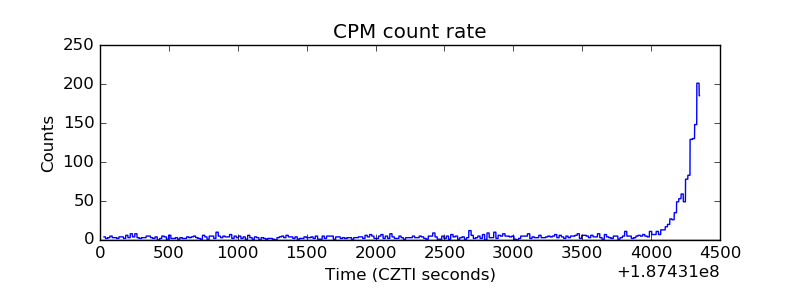

| _CPM_Rate |  |

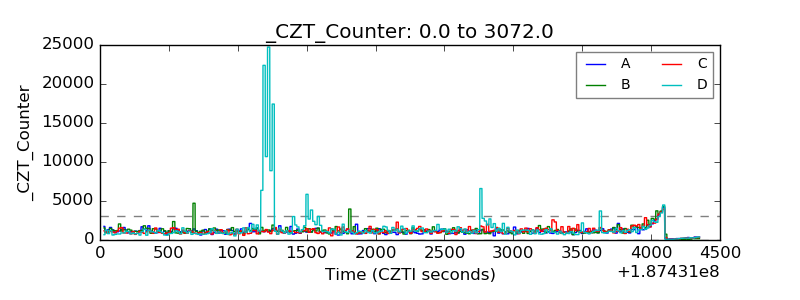

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

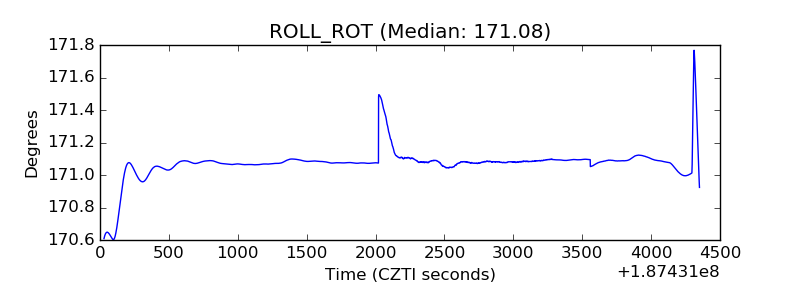

| _ROLL_ROT |  |

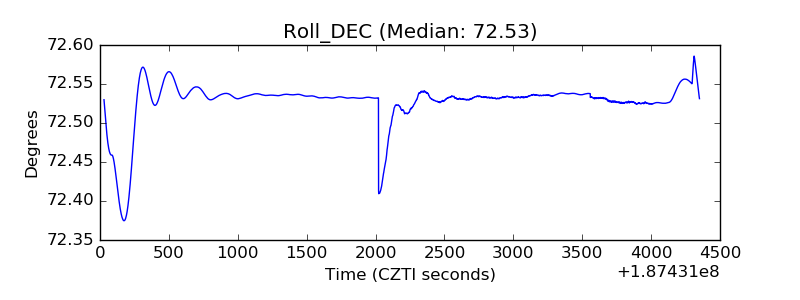

| _Roll_DEC |  |

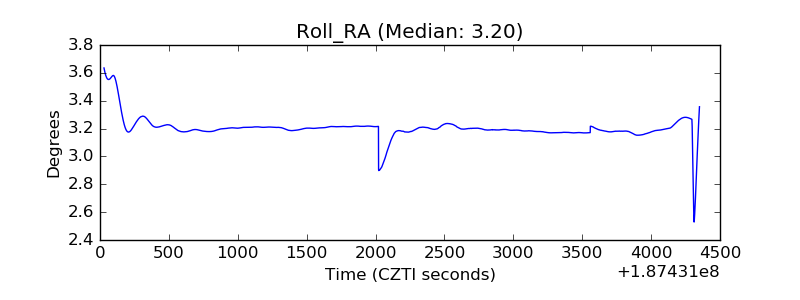

| _Roll_RA |  |

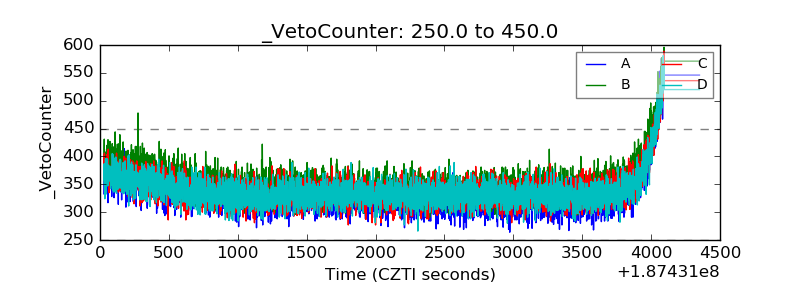

| Veto Counter |  |
