| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T02_9000000212_01095cztM0_level2.evt | modeM0/AS1P01_997T02_9000000212_01095cztM0_level2_quad_clean.evt |
| Size (bytes) | 953,605,440 | 94,927,680 |
| Size | 909.4 MB | 90.5 MB |
| Events in quadrant A | 7,149,924 | 626,643 |
| Events in quadrant B | 7,524,189 | 614,693 |
| Events in quadrant C | 7,214,180 | 600,395 |
| Events in quadrant D | 6,584,703 | 605,275 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25576 | 2 |
| B | 0 | 26714 | 1 |
| C | 0 | 25778 | 1 |
| D | 0 | 23923 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6129 | 18 | 0.293686% |
| B | 6129 | 20 | 0.326318% |
| C | 6129 | 8 | 0.130527% |
| D | 6129 | 17 | 0.277370% |

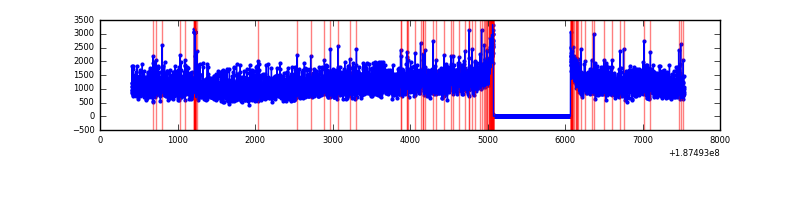

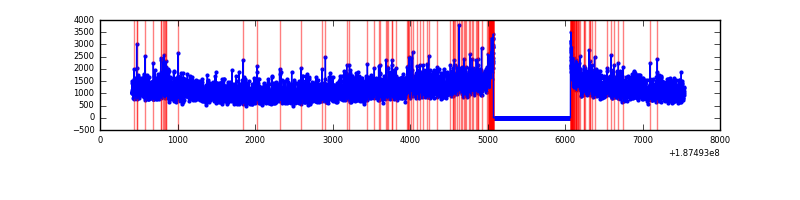

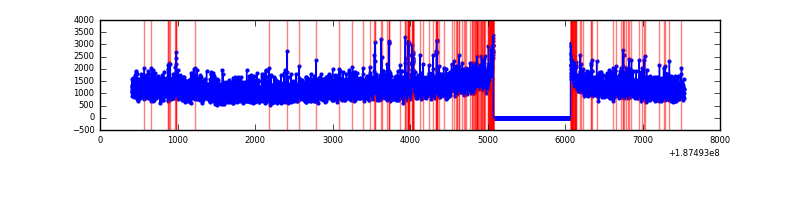

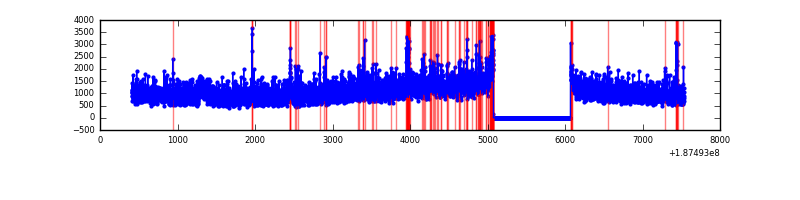

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7124 | 6130 | 126 | 126 | 1.77% | 2.06% |  |
| B | 7124 | 6129 | 196 | 196 | 2.75% | 3.20% |  |
| C | 7124 | 6129 | 156 | 156 | 2.19% | 2.55% |  |
| D | 7124 | 6130 | 128 | 128 | 1.80% | 2.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 51032 | 111.36 | 1837 | 1850 | 441.6 |
| A | 15 | 233 | 44649 | 96.91 | 1837 | 1850 | 441.6 |
| A | 11 | 79 | 7747 | 13.35 | 1837 | 1850 | 441.6 |
| B | 5 | 191 | 167055 | 364.59 | 1916 | 1923 | 452.9 |
| B | 15 | 255 | 23671 | 48.02 | 1916 | 1923 | 452.9 |
| B | 5 | 249 | 18297 | 36.15 | 1916 | 1923 | 452.9 |
| C | 15 | 241 | 289953 | 605.29 | 1719 | 1777 | 476.1 |
| C | 10 | 207 | 163256 | 339.17 | 1719 | 1777 | 476.1 |
| C | 3 | 111 | 20494 | 39.31 | 1719 | 1777 | 476.1 |
| D | 2 | 216 | 187554 | 378.24 | 1679 | 1715 | 491.3 |
| D | 12 | 22 | 37015 | 71.85 | 1679 | 1715 | 491.3 |
| D | 10 | 125 | 30788 | 59.17 | 1679 | 1715 | 491.3 |

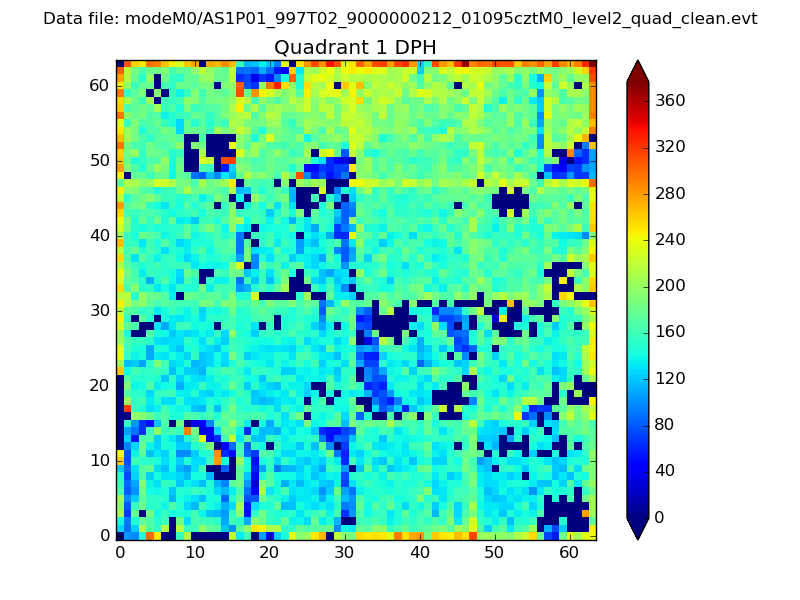

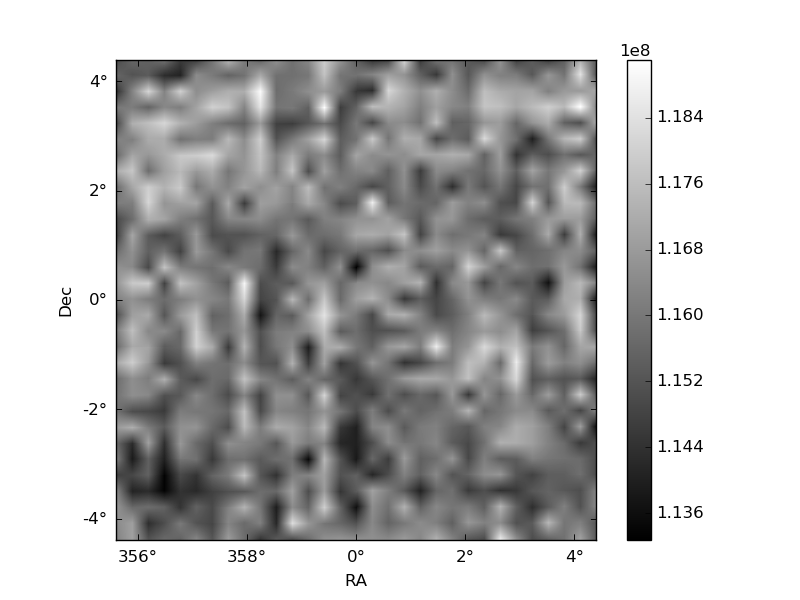

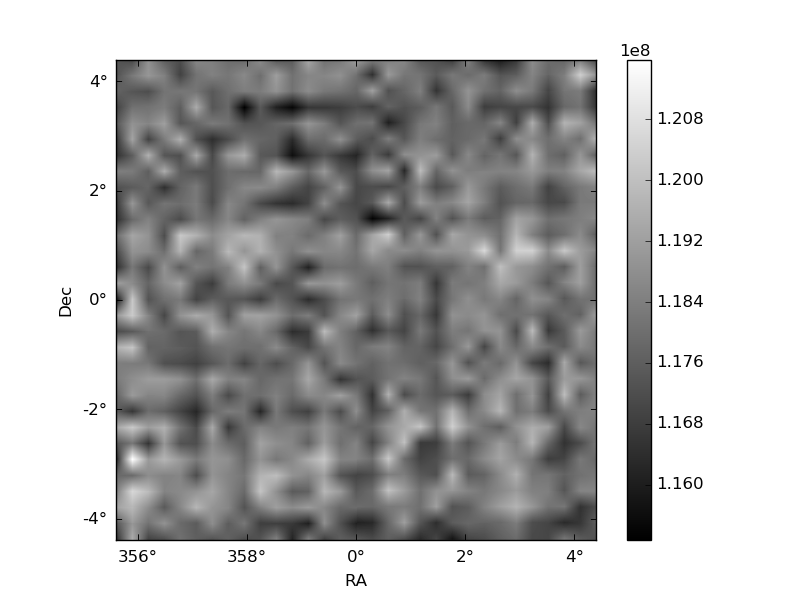

Histogram calculated using DETX and DETY for each event in the final _common_clean file

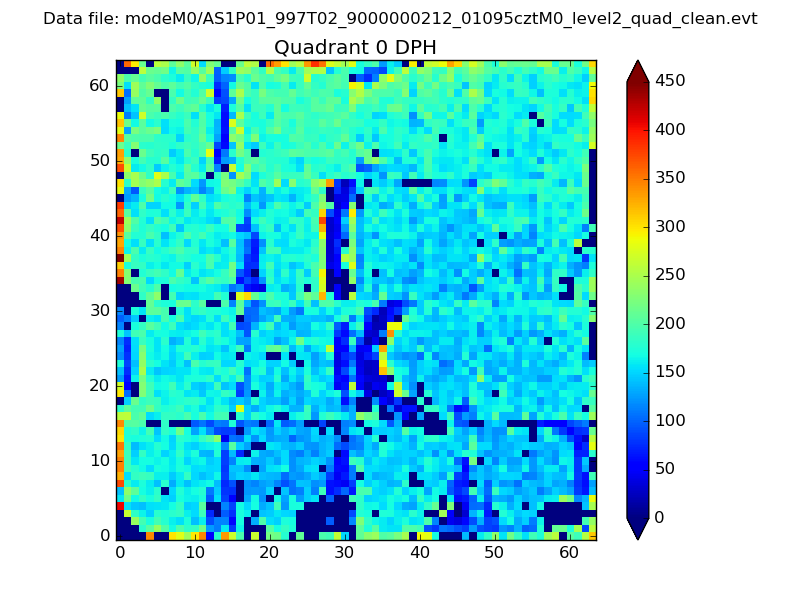

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

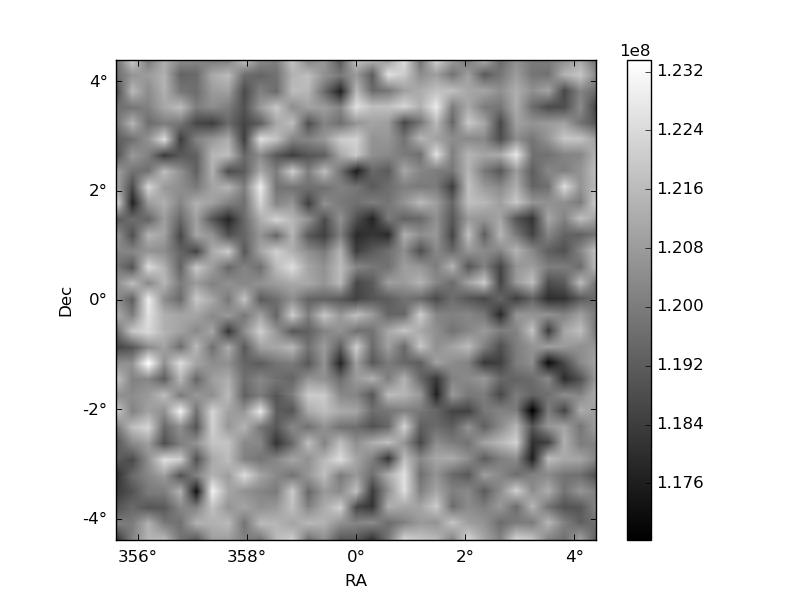

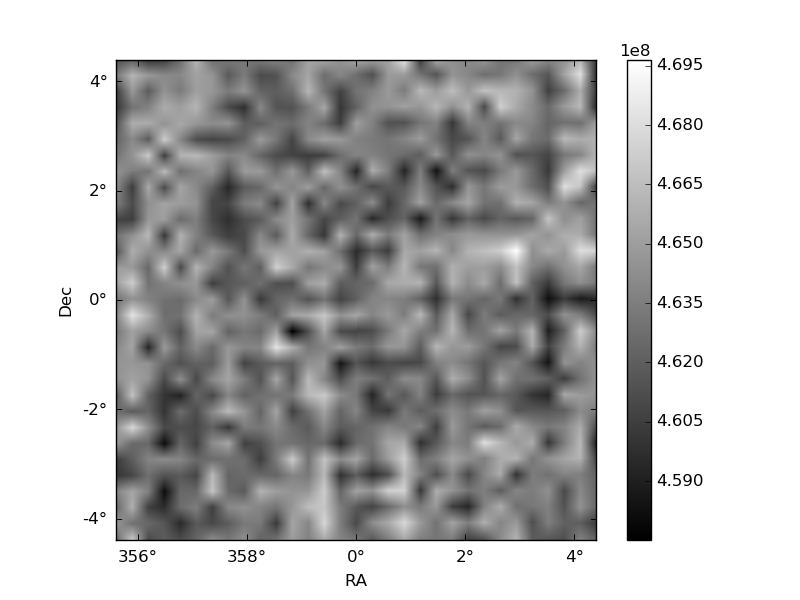

| Plot type | Count rate plots | Images |
|---|---|---|

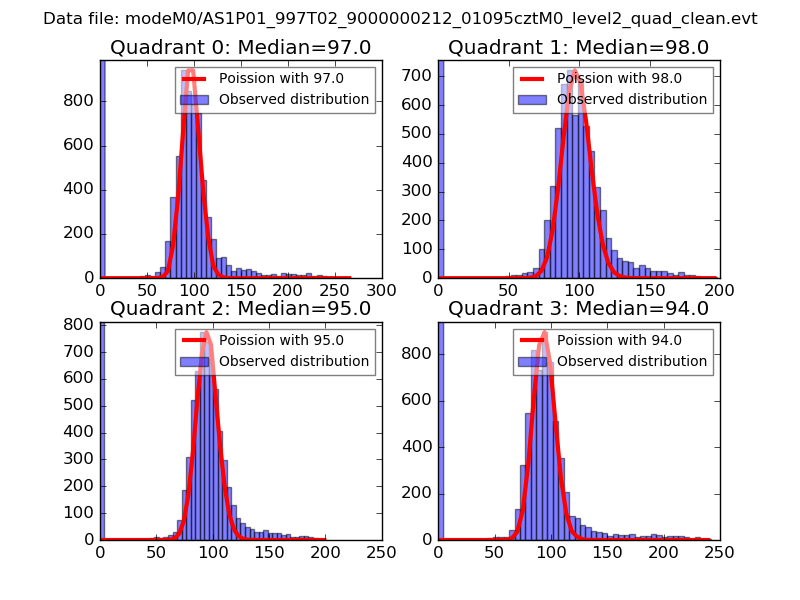

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

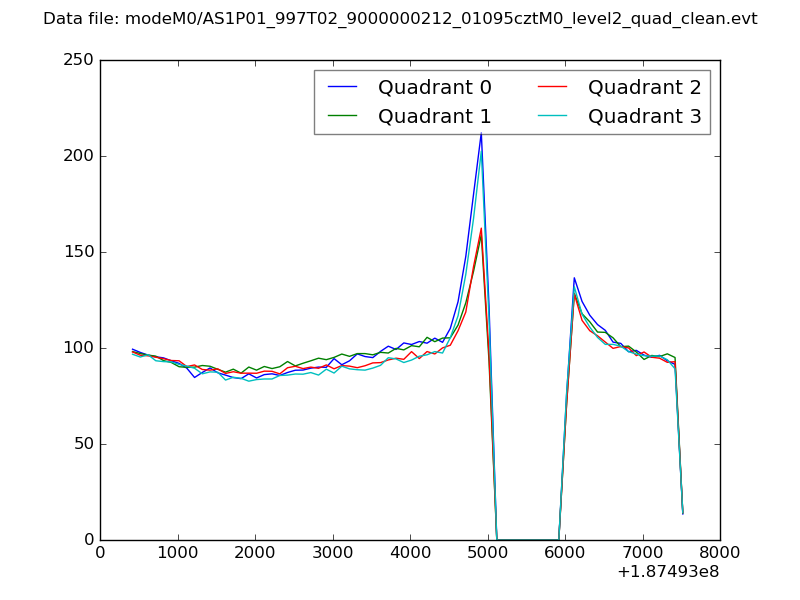

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

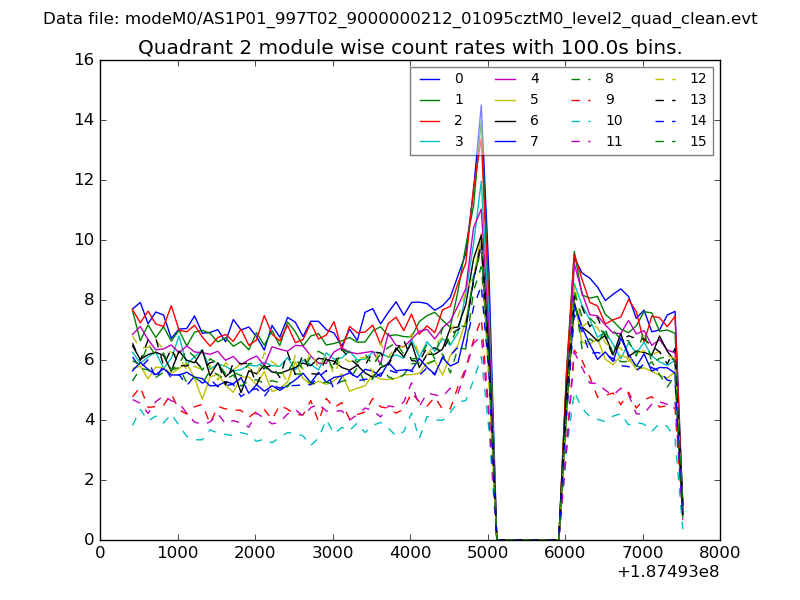

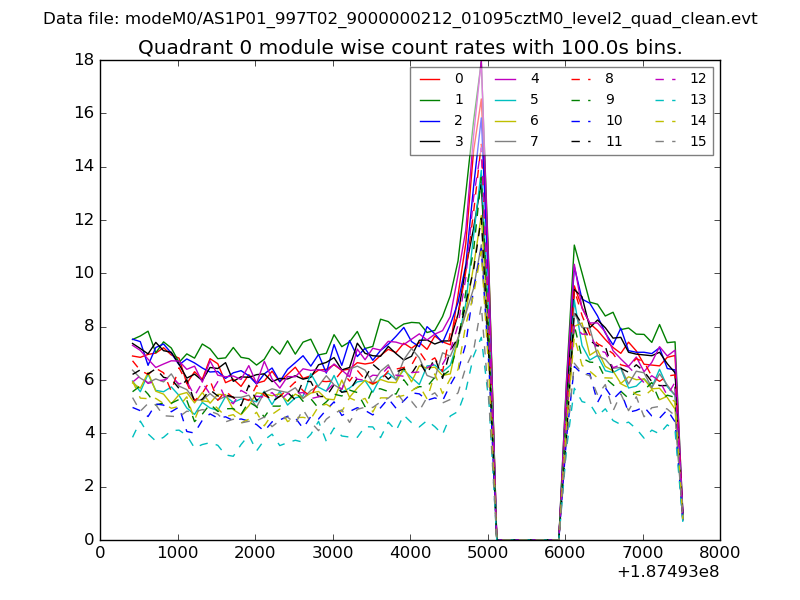

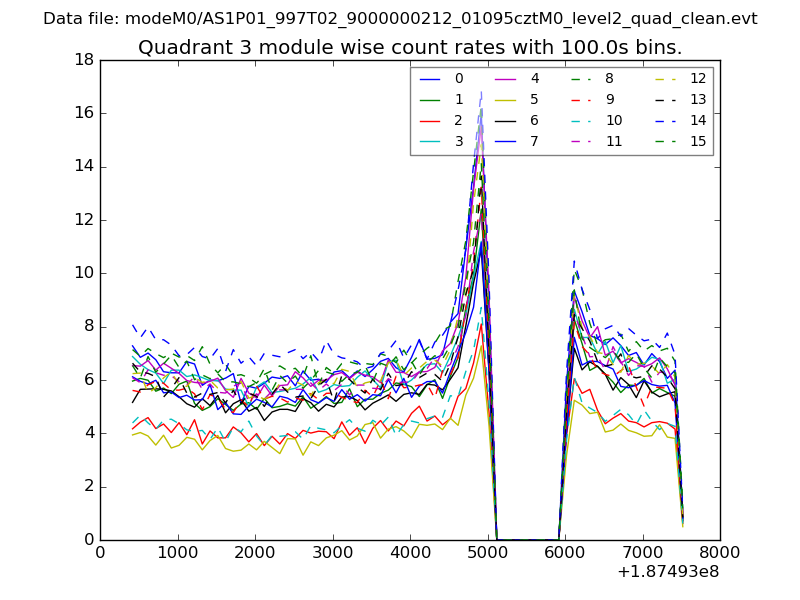

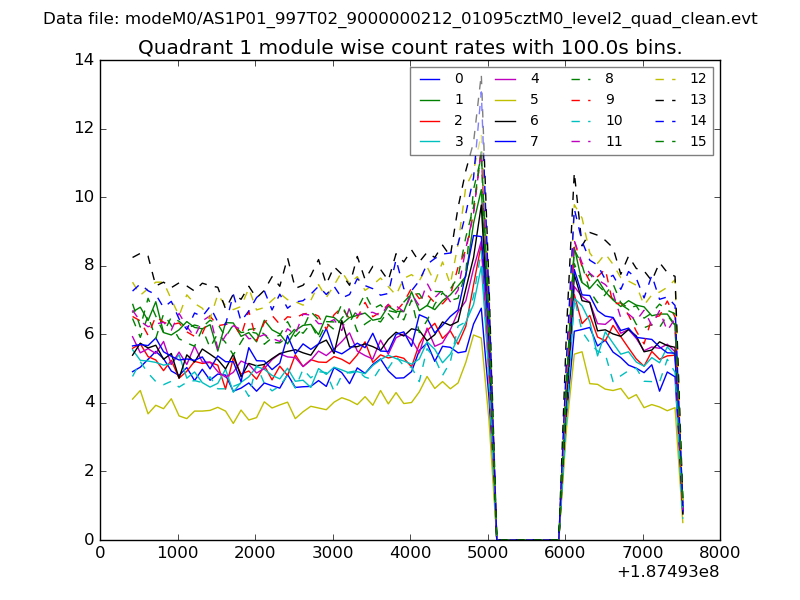

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

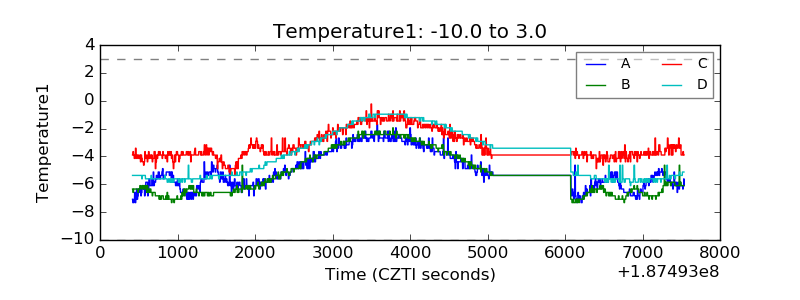

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

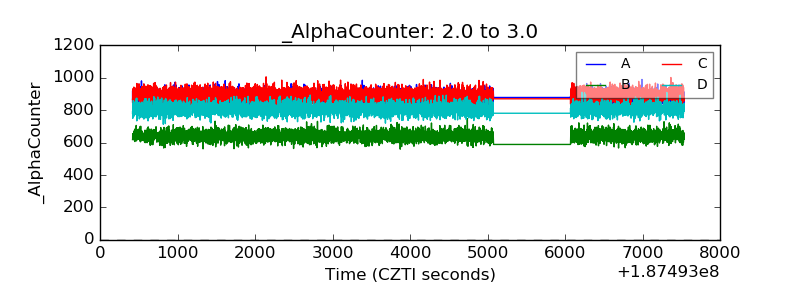

| Alpha Counter |  |
| _CPM_Rate |  |

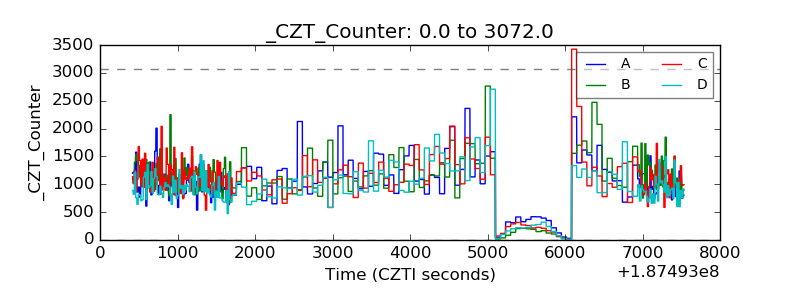

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

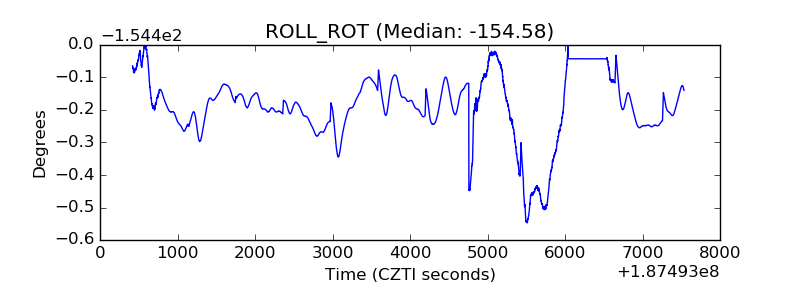

| _ROLL_ROT |  |

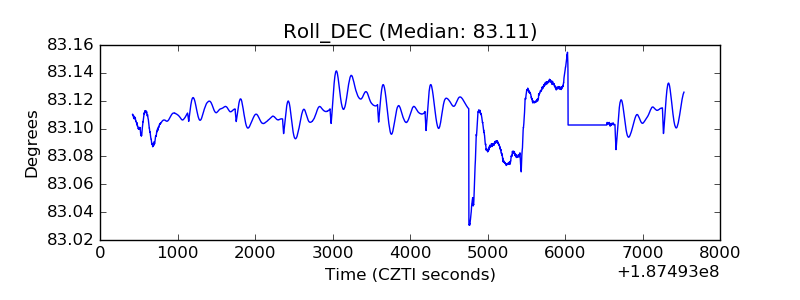

| _Roll_DEC |  |

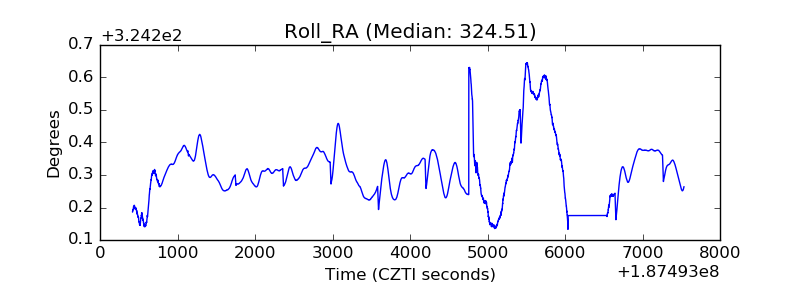

| _Roll_RA |  |

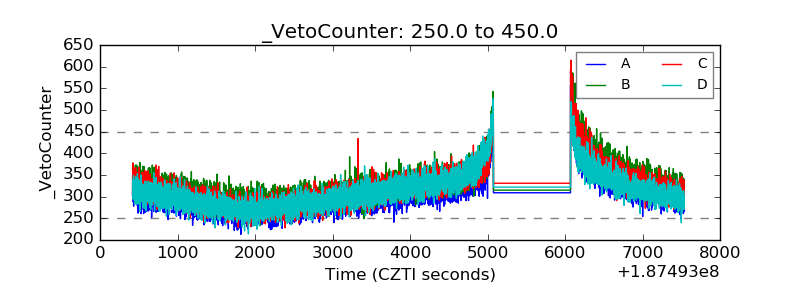

| Veto Counter |  |
