| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T02_9000000212_01097cztM0_level2.evt | modeM0/AS1P01_997T02_9000000212_01097cztM0_level2_quad_clean.evt |
| Size (bytes) | 943,211,520 | 93,899,520 |
| Size | 899.5 MB | 89.5 MB |
| Events in quadrant A | 7,092,488 | 615,473 |
| Events in quadrant B | 7,362,909 | 619,765 |
| Events in quadrant C | 7,075,492 | 594,292 |
| Events in quadrant D | 6,629,287 | 588,547 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25381 | 7 |
| B | 0 | 26190 | 5 |
| C | 0 | 25388 | 8 |
| D | 0 | 24089 | 9 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6096 | 20 | 0.328084% |
| B | 6096 | 21 | 0.344488% |
| C | 6096 | 15 | 0.246063% |
| D | 6095 | 90 | 1.476620% |

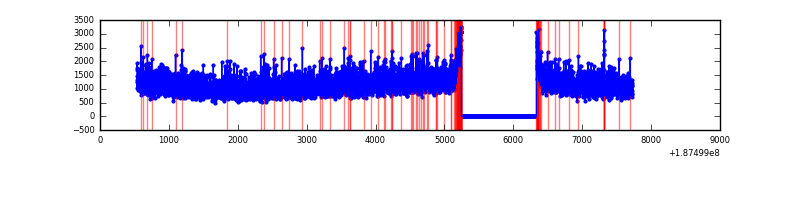

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7186 | 6096 | 144 | 144 | 2.00% | 2.36% |  |
| B | 7186 | 6096 | 163 | 163 | 2.27% | 2.67% |  |
| C | 7186 | 6096 | 131 | 131 | 1.82% | 2.15% |  |
| D | 7185 | 6096 | 199 | 199 | 2.77% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 61456 | 136.49 | 1829 | 1843 | 436.8 |
| A | 0 | 253 | 10977 | 20.91 | 1829 | 1843 | 436.8 |
| A | 11 | 79 | 7825 | 13.7 | 1829 | 1843 | 436.8 |
| B | 15 | 22 | 36337 | 76.57 | 1907 | 1919 | 449.5 |
| B | 5 | 191 | 25200 | 51.8 | 1907 | 1919 | 449.5 |
| B | 5 | 249 | 25008 | 51.37 | 1907 | 1919 | 449.5 |
| C | 15 | 241 | 286860 | 607.94 | 1702 | 1759 | 469.0 |
| C | 10 | 207 | 89451 | 186.99 | 1702 | 1759 | 469.0 |
| C | 3 | 111 | 21836 | 42.81 | 1702 | 1759 | 469.0 |
| D | 14 | 34 | 10743 | 17.38 | 1735 | 1744 | 517.6 |
| D | 10 | 125 | 10510 | 16.93 | 1735 | 1744 | 517.6 |
| D | 2 | 14 | 9117 | 14.24 | 1735 | 1744 | 517.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

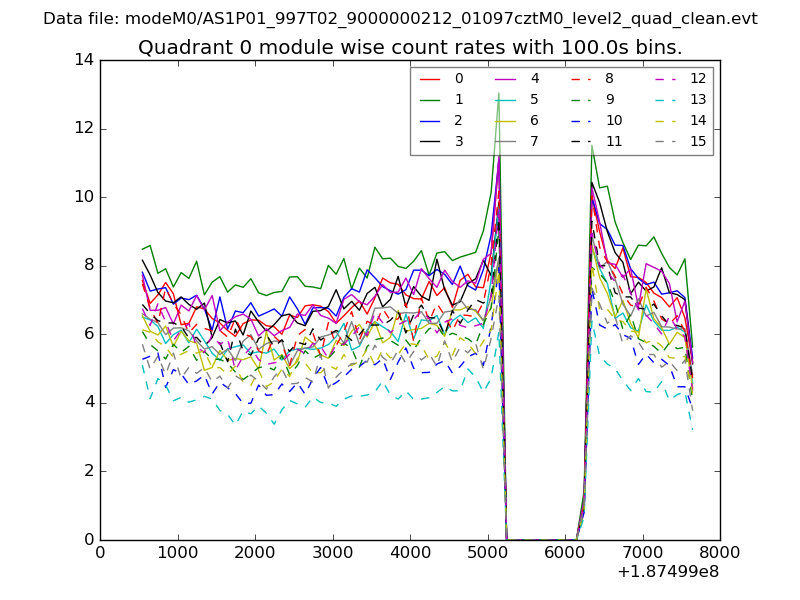

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

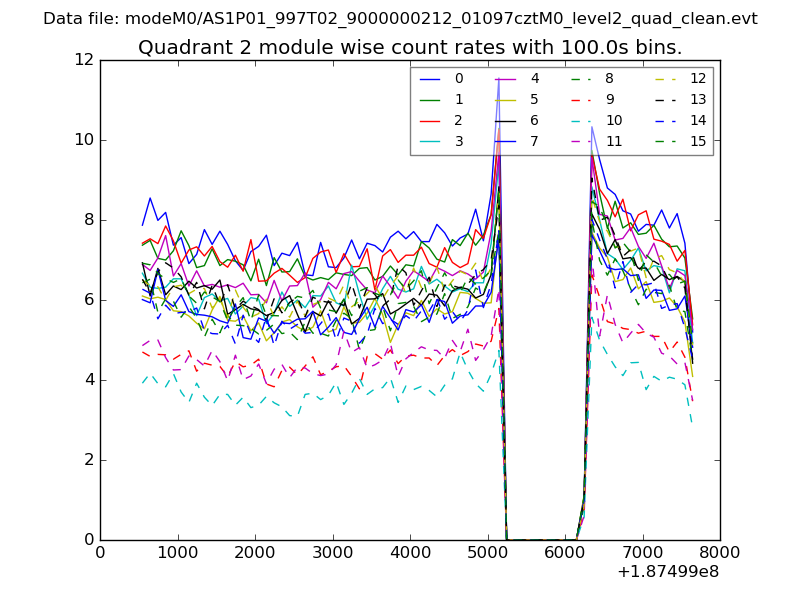

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

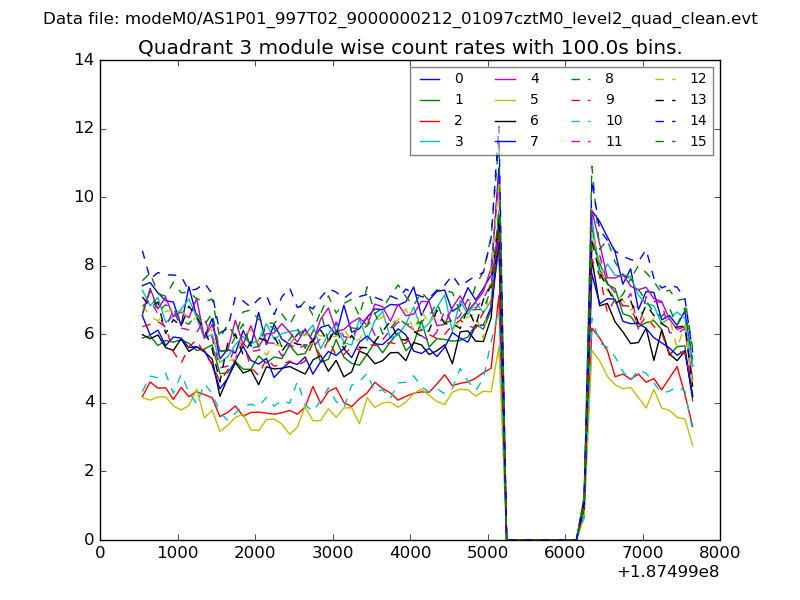

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

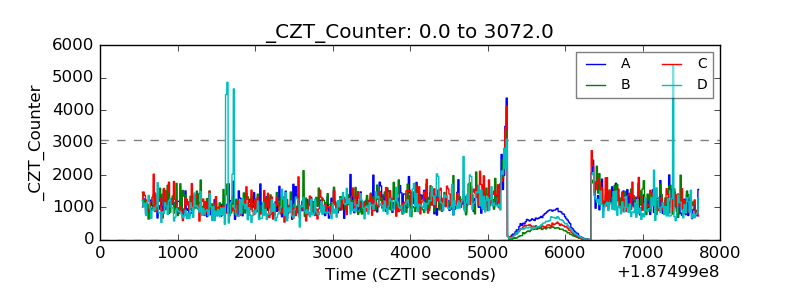

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

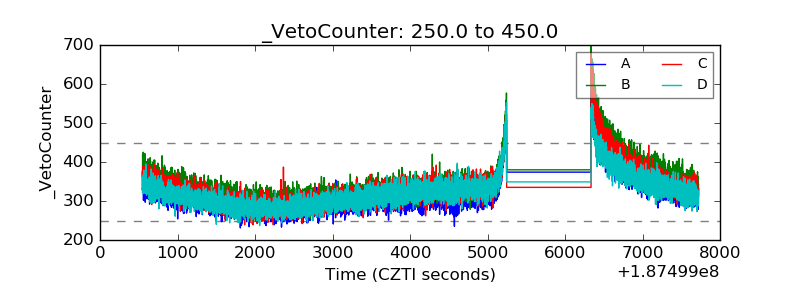

| Veto Counter |  |
