| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T02_9000000212_01099cztM0_level2.evt | modeM0/AS1P01_997T02_9000000212_01099cztM0_level2_quad_clean.evt |
| Size (bytes) | 943,485,120 | 92,145,600 |
| Size | 899.8 MB | 87.9 MB |
| Events in quadrant A | 6,899,533 | 618,032 |
| Events in quadrant B | 7,171,099 | 622,776 |
| Events in quadrant C | 6,966,448 | 583,765 |
| Events in quadrant D | 7,151,241 | 560,405 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24605 | 2 |
| B | 0 | 25430 | 1 |
| C | 0 | 24853 | 1 |
| D | 0 | 25477 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5802 | 22 | 0.379180% |
| B | 5802 | 31 | 0.534299% |
| C | 5802 | 40 | 0.689417% |
| D | 5802 | 375 | 6.463289% |

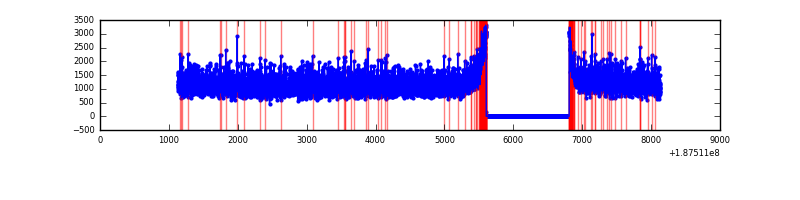

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7007 | 5803 | 167 | 167 | 2.38% | 2.88% |  |
| B | 7007 | 5802 | 202 | 202 | 2.88% | 3.48% |  |
| C | 7007 | 5802 | 232 | 232 | 3.31% | 4.00% |  |
| D | 7007 | 5803 | 545 | 545 | 7.78% | 9.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 15997 | 33.27 | 1793 | 1803 | 426.6 |
| A | 11 | 79 | 6623 | 11.3 | 1793 | 1803 | 426.6 |
| A | 13 | 9 | 6335 | 10.62 | 1793 | 1803 | 426.6 |
| B | 4 | 187 | 32613 | 70.08 | 1858 | 1870 | 438.7 |
| B | 5 | 249 | 30727 | 65.78 | 1858 | 1870 | 438.7 |
| B | 15 | 22 | 25986 | 54.97 | 1858 | 1870 | 438.7 |
| C | 15 | 241 | 274792 | 604.51 | 1640 | 1691 | 451.8 |
| C | 10 | 19 | 93318 | 202.82 | 1640 | 1691 | 451.8 |
| C | 10 | 5 | 73781 | 159.57 | 1640 | 1691 | 451.8 |
| D | 2 | 33 | 35788 | 70.51 | 1631 | 1664 | 484.0 |
| D | 2 | 216 | 26895 | 52.13 | 1631 | 1664 | 484.0 |
| D | 2 | 16 | 24336 | 46.85 | 1631 | 1664 | 484.0 |

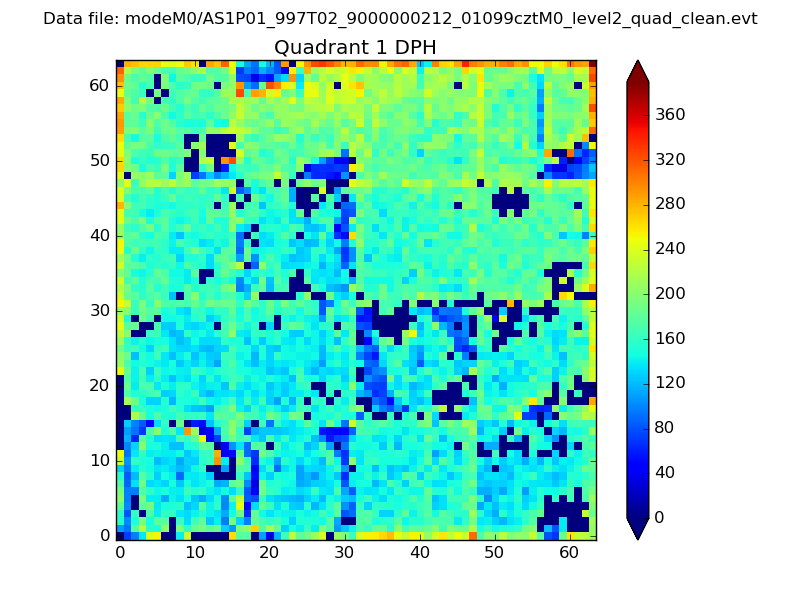

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

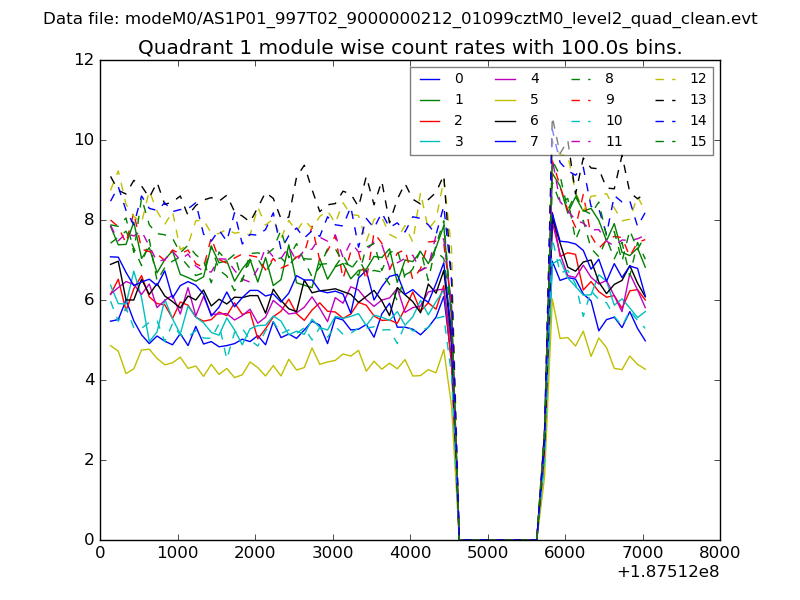

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

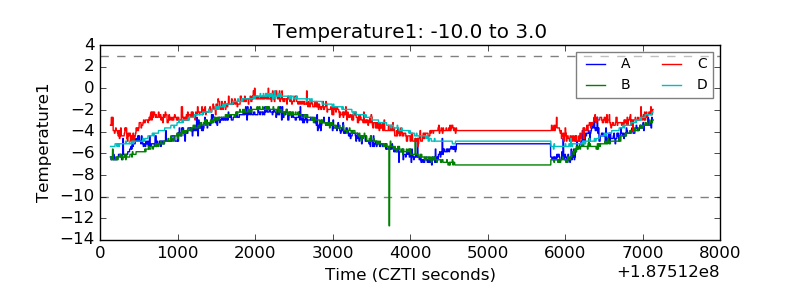

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

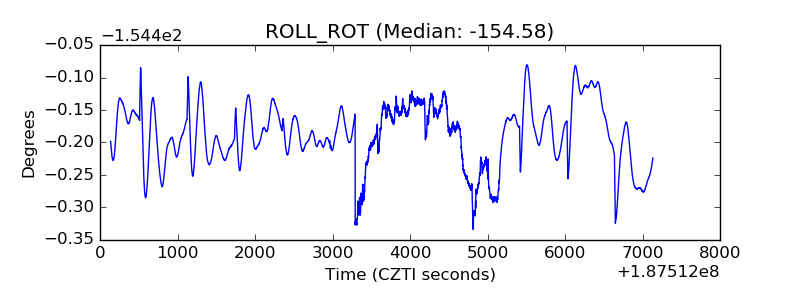

| _ROLL_ROT |  |
| _Roll_DEC |  |

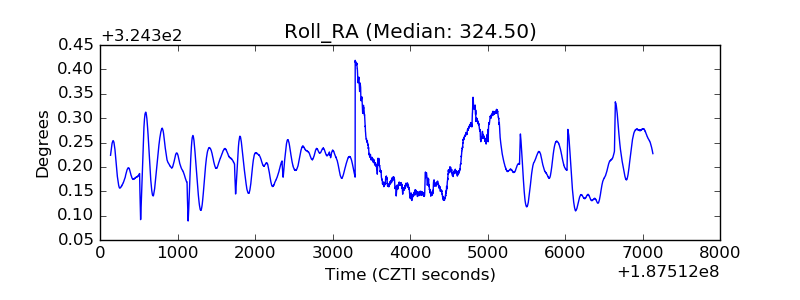

| _Roll_RA |  |
| Veto Counter |  |
