| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T02_9000000212_01106cztM0_level2.evt | modeM0/AS1P01_997T02_9000000212_01106cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,133,979,840 | 106,272,000 |
| Size | 1.1 GB | 101.3 MB |
| Events in quadrant A | 8,506,494 | 691,063 |
| Events in quadrant B | 8,916,218 | 690,153 |
| Events in quadrant C | 8,554,797 | 670,939 |
| Events in quadrant D | 7,889,578 | 666,783 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30420 | 2 |
| B | 0 | 31558 | 1 |
| C | 0 | 30539 | 1 |
| D | 0 | 28547 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7180 | 35 | 0.487465% |
| B | 7180 | 20 | 0.278552% |
| C | 7180 | 4 | 0.055710% |
| D | 7180 | 15 | 0.208914% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

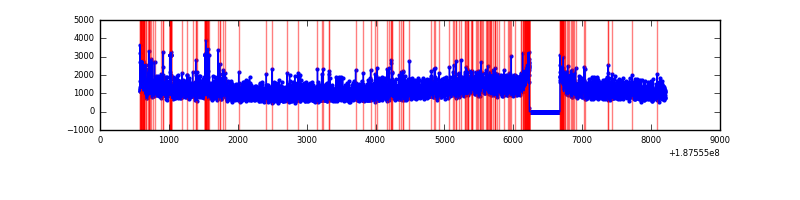

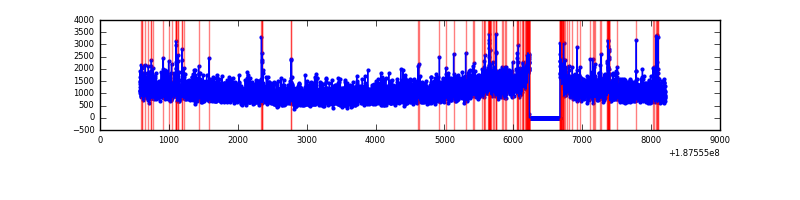

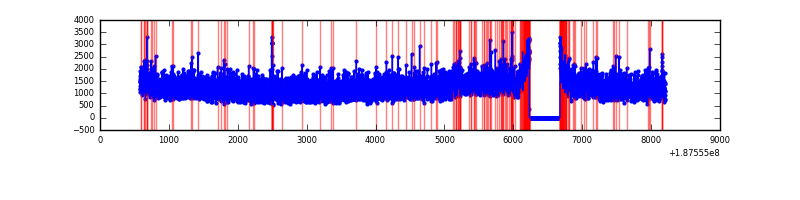

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7625 | 7181 | 240 | 240 | 3.15% | 3.34% |  |
| B | 7625 | 7181 | 232 | 232 | 3.04% | 3.23% |  |
| C | 7625 | 7181 | 166 | 166 | 2.18% | 2.31% |  |
| D | 7625 | 7181 | 153 | 153 | 2.01% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 188119 | 358.25 | 2163 | 2179 | 519.0 |
| A | 12 | 243 | 17903 | 30.3 | 2163 | 2179 | 519.0 |
| A | 11 | 79 | 8220 | 11.64 | 2163 | 2179 | 519.0 |
| B | 2 | 32 | 169440 | 312.61 | 2260 | 2266 | 534.8 |
| B | 0 | 137 | 55511 | 99.57 | 2260 | 2266 | 534.8 |
| B | 5 | 184 | 20991 | 35.02 | 2260 | 2266 | 534.8 |
| C | 15 | 241 | 348571 | 597.2 | 2075 | 2149 | 580.1 |
| C | 10 | 207 | 49820 | 82.18 | 2075 | 2149 | 580.1 |
| C | 3 | 111 | 32142 | 51.7 | 2075 | 2149 | 580.1 |
| D | 2 | 216 | 227599 | 362.46 | 2009 | 2080 | 622.2 |
| D | 2 | 16 | 51855 | 80.0 | 2009 | 2080 | 622.2 |
| D | 10 | 125 | 33188 | 50.0 | 2009 | 2080 | 622.2 |

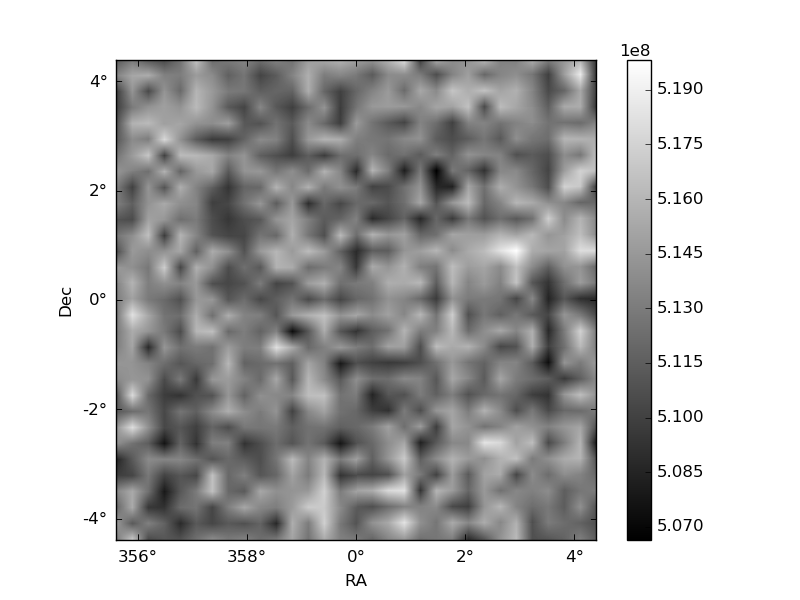

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

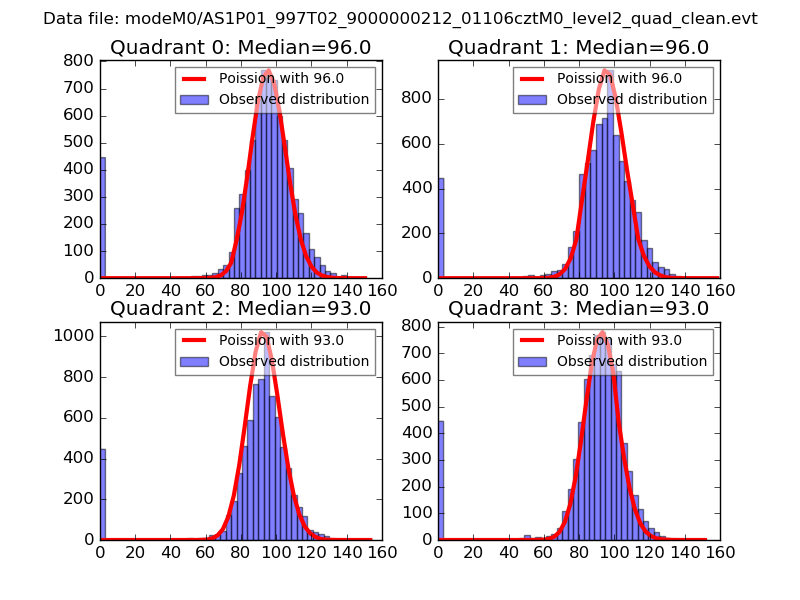

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

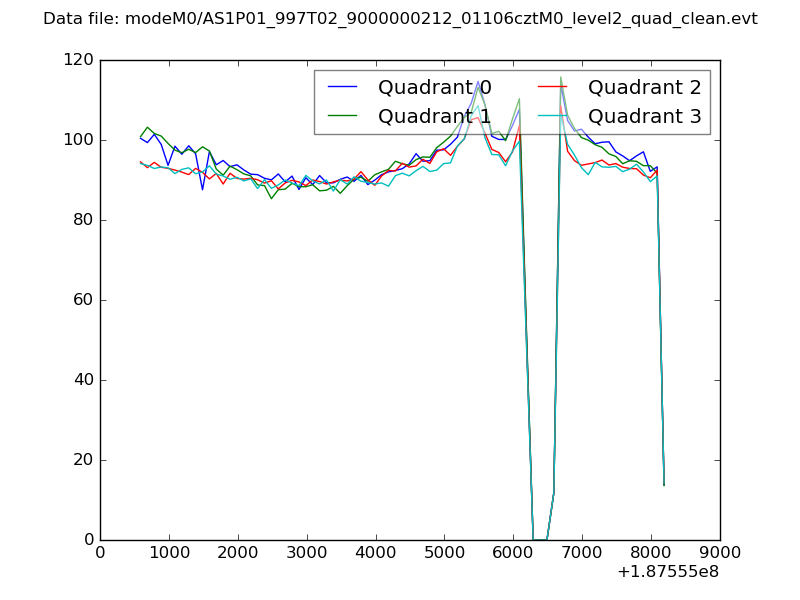

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

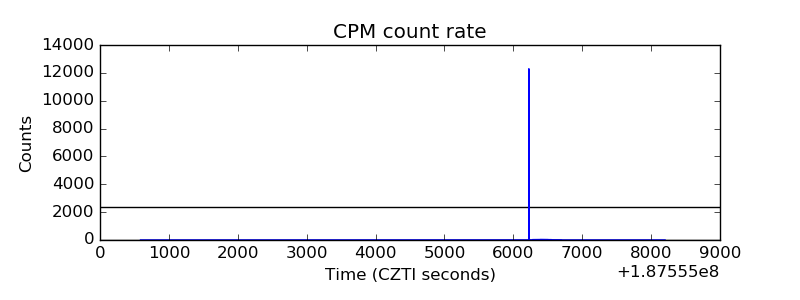

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

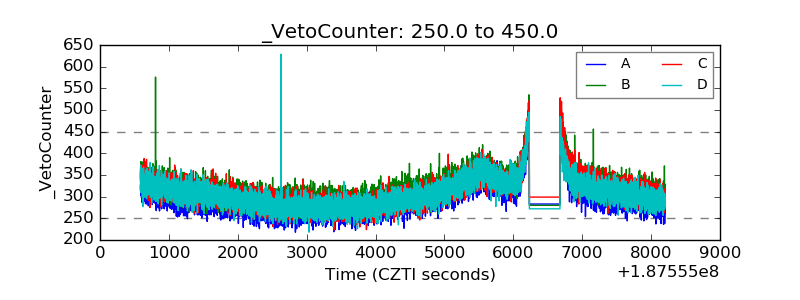

| Veto Counter |  |
