| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T01_9000000214_01114cztM0_level2.evt | modeM0/AS1P01_997T01_9000000214_01114cztM0_level2_quad_clean.evt |
| Size (bytes) | 937,373,760 | 93,752,640 |
| Size | 893.9 MB | 89.4 MB |
| Events in quadrant A | 7,001,419 | 623,725 |
| Events in quadrant B | 7,195,957 | 626,875 |
| Events in quadrant C | 6,940,645 | 593,151 |
| Events in quadrant D | 6,861,232 | 585,958 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24929 | 2 |
| B | 0 | 25550 | 1 |
| C | 0 | 24805 | 1 |
| D | 0 | 24534 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5865 | 26 | 0.443308% |
| B | 5865 | 16 | 0.272805% |
| C | 5865 | 23 | 0.392157% |
| D | 5865 | 94 | 1.602728% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7060 | 5866 | 199 | 199 | 2.82% | 3.39% |  |
| B | 7060 | 5866 | 222 | 222 | 3.14% | 3.78% |  |
| C | 7060 | 5866 | 183 | 183 | 2.59% | 3.12% |  |
| D | 7060 | 5866 | 288 | 288 | 4.08% | 4.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 15416 | 31.18 | 1819 | 1833 | 435.7 |
| A | 11 | 79 | 7236 | 12.4 | 1819 | 1833 | 435.7 |
| A | 0 | 253 | 6777 | 11.35 | 1819 | 1833 | 435.7 |
| B | 5 | 249 | 30956 | 66.31 | 1873 | 1884 | 438.4 |
| B | 15 | 22 | 12557 | 24.34 | 1873 | 1884 | 438.4 |
| B | 12 | 52 | 11139 | 21.11 | 1873 | 1884 | 438.4 |
| C | 15 | 241 | 359613 | 774.83 | 1664 | 1715 | 461.9 |
| C | 3 | 111 | 20971 | 41.69 | 1664 | 1715 | 461.9 |
| C | 9 | 85 | 19688 | 38.91 | 1664 | 1715 | 461.9 |
| D | 13 | 73 | 110179 | 225.08 | 1697 | 1724 | 481.9 |
| D | 2 | 16 | 99722 | 203.37 | 1697 | 1724 | 481.9 |
| D | 10 | 85 | 95770 | 195.17 | 1697 | 1724 | 481.9 |

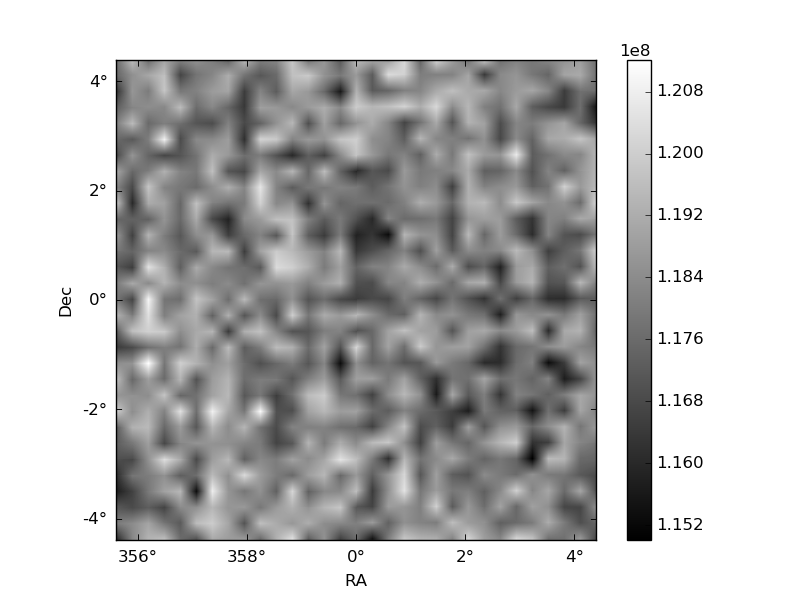

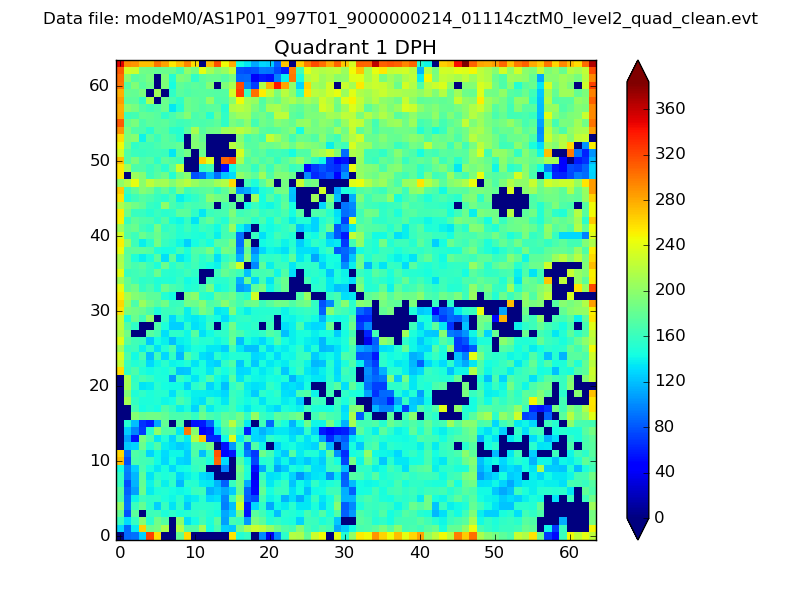

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

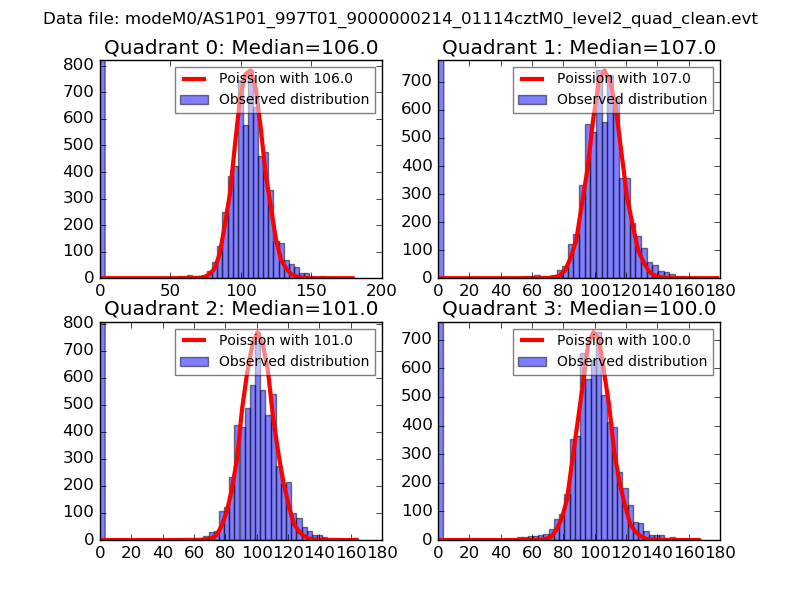

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

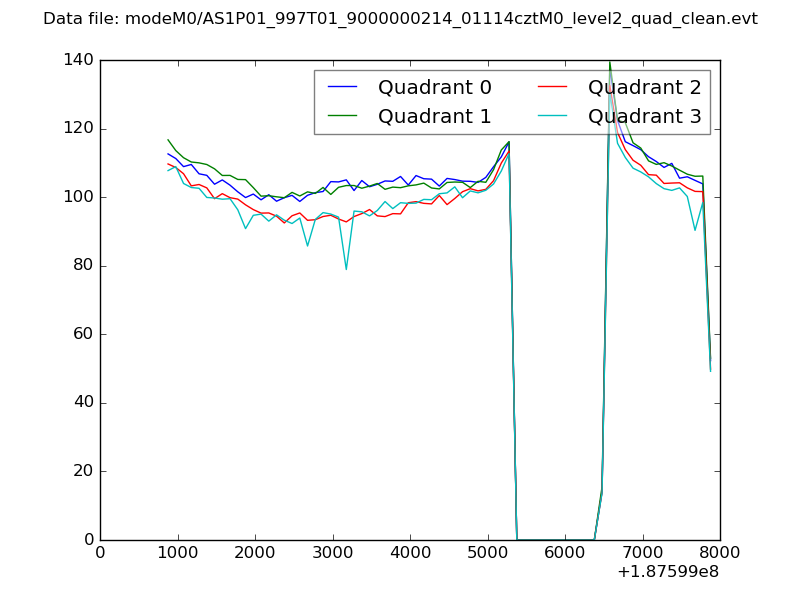

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

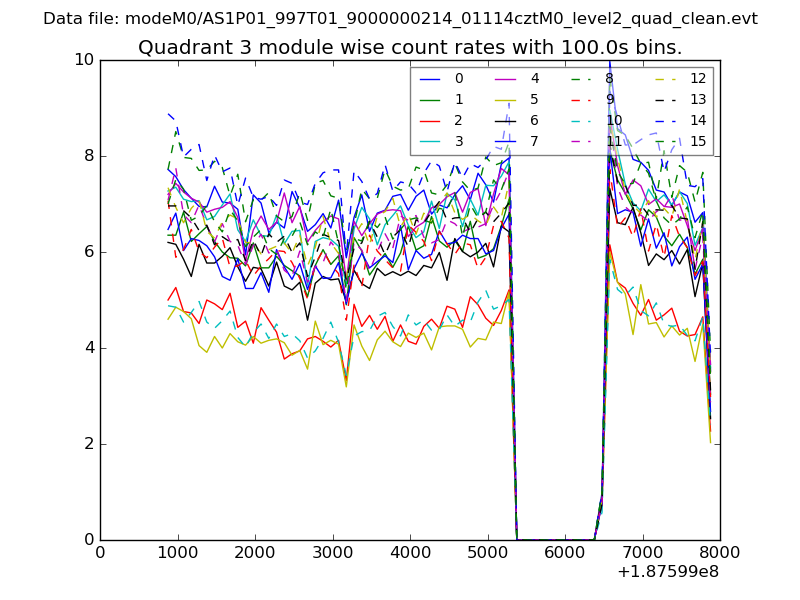

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

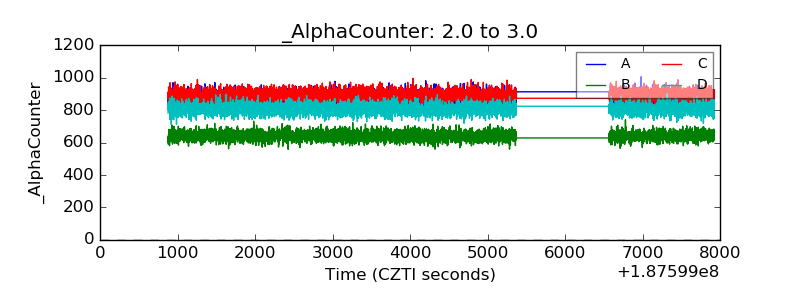

| Alpha Counter |  |

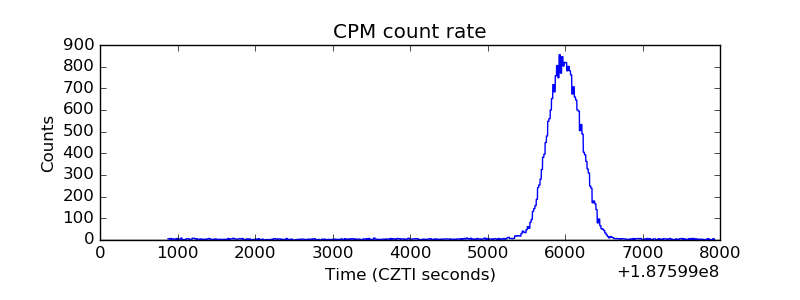

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

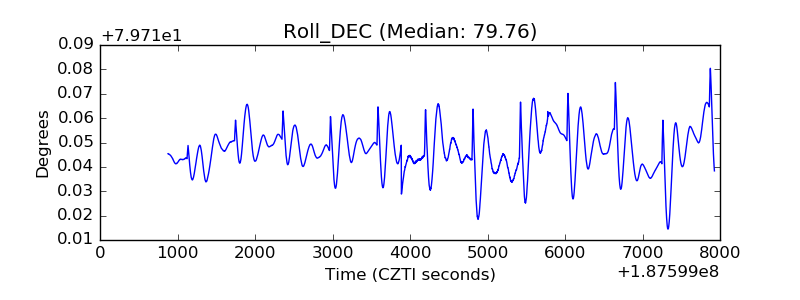

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
