| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T01_9000000214_01122cztM0_level2.evt | modeM0/AS1P01_997T01_9000000214_01122cztM0_level2_quad_clean.evt |
| Size (bytes) | 129,300,480 | 10,725,120 |
| Size | 123.3 MB | 10.2 MB |
| Events in quadrant A | 890,793 | 68,480 |
| Events in quadrant B | 1,020,315 | 68,649 |
| Events in quadrant C | 1,079,398 | 65,237 |
| Events in quadrant D | 877,357 | 67,095 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 2 |
| B | 0 | 8 | 1 |
| C | 0 | 9 | 2 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7341 | 4230 |
| B | 0 | 8169 | 4687 |
| C | 0 | 8520 | 4853 |
| D | 0 | 7013 | 3925 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 17 |
| B | 0 | 38 | 22 |
| C | 0 | 37 | 17 |
| D | 0 | 40 | 20 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 660 | 2 | 0.303030% |
| B | 659 | 5 | 0.758725% |
| C | 660 | 11 | 1.666667% |
| D | 676 | 2 | 0.295858% |

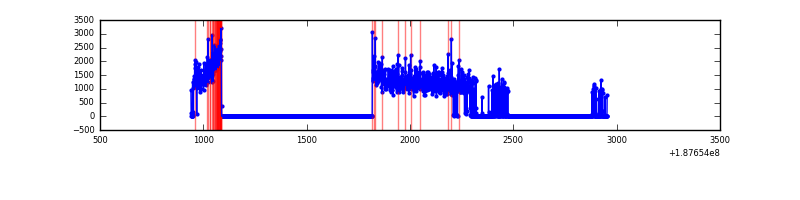

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2015 | 716 | 44 | 44 | 2.18% | 6.15% |  |
| B | 2036 | 719 | 96 | 96 | 4.72% | 13.35% |  |
| C | 2043 | 721 | 116 | 116 | 5.68% | 16.09% |  |
| D | 2067 | 739 | 37 | 37 | 1.79% | 5.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 251 | 2373 | 36.8 | 231 | 232 | 58.2 |
| A | 11 | 79 | 863 | 10.85 | 231 | 232 | 58.2 |
| A | 13 | 9 | 810 | 9.94 | 231 | 232 | 58.2 |
| B | 0 | 216 | 30589 | 514.14 | 246 | 246 | 59.0 |
| B | 8 | 4 | 29462 | 495.05 | 246 | 246 | 59.0 |
| B | 8 | 234 | 10818 | 179.14 | 246 | 246 | 59.0 |
| C | 5 | 234 | 129913 | 1925.96 | 232 | 240 | 67.3 |
| C | 15 | 241 | 33825 | 498.82 | 232 | 240 | 67.3 |
| C | 7 | 159 | 2764 | 37.49 | 232 | 240 | 67.3 |
| D | 2 | 16 | 14011 | 194.69 | 226 | 231 | 70.8 |
| D | 10 | 125 | 5228 | 70.6 | 226 | 231 | 70.8 |
| D | 10 | 85 | 4238 | 56.61 | 226 | 231 | 70.8 |

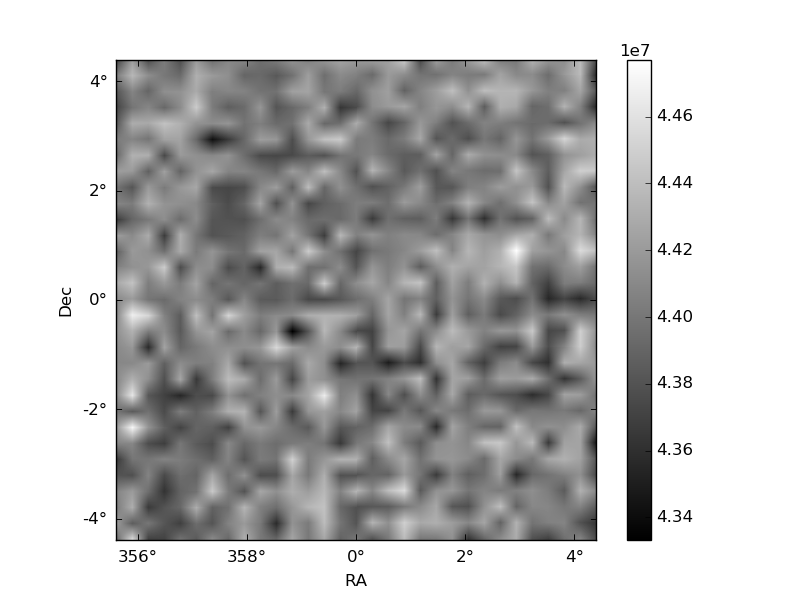

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

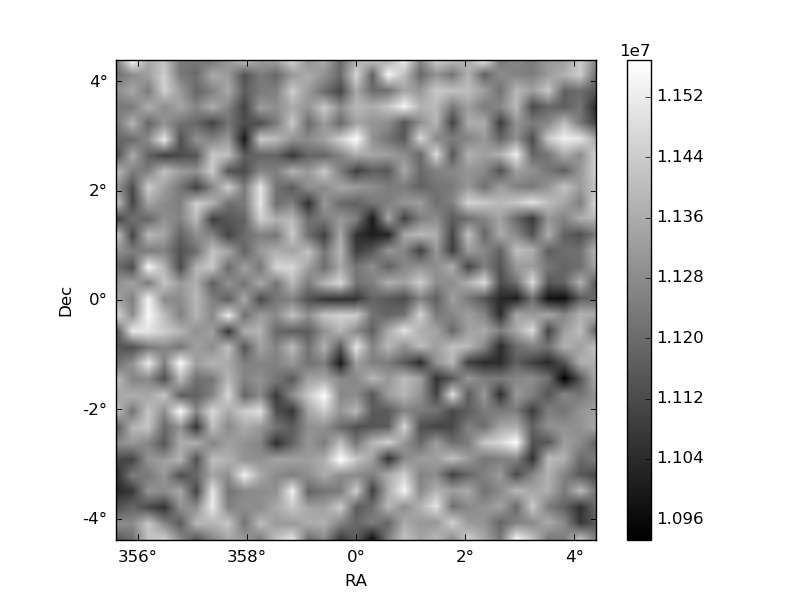

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

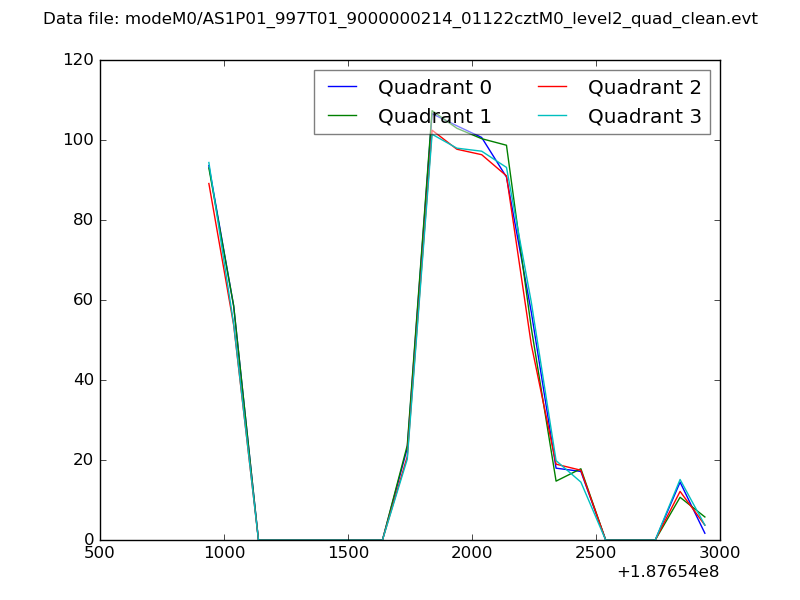

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

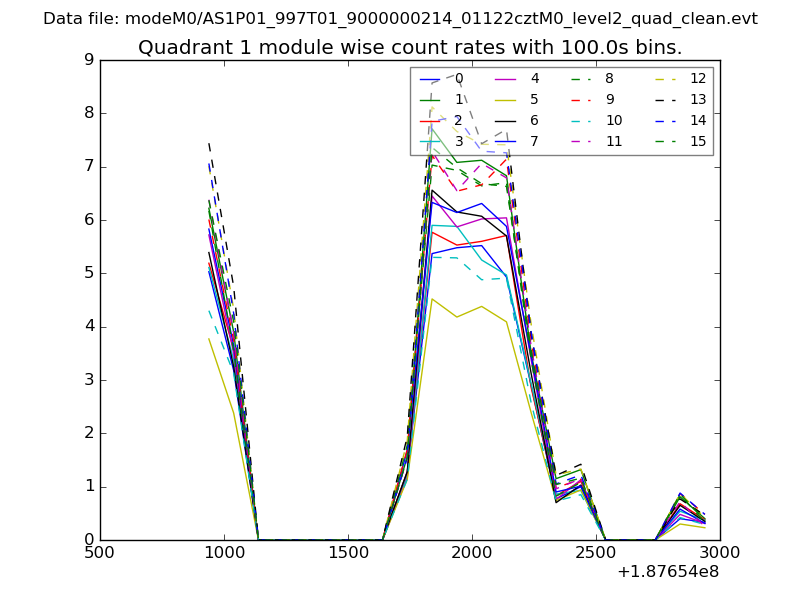

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

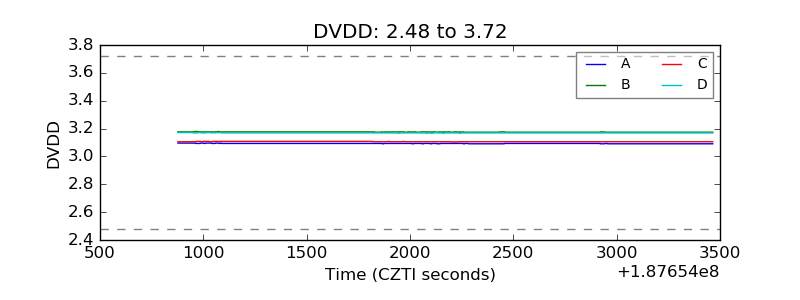

| D_VDD |  |

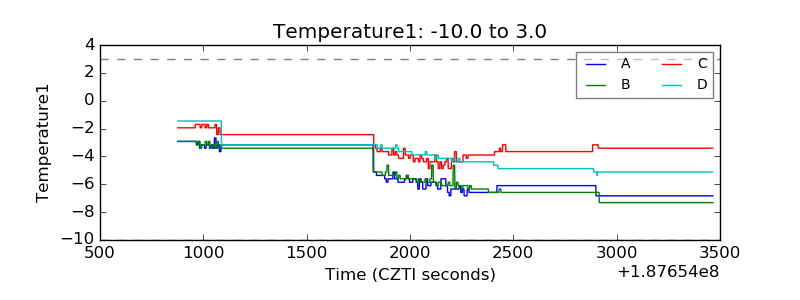

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

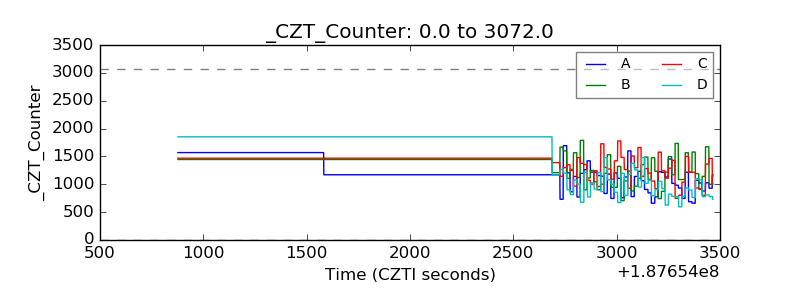

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
