| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T01_9000000214_01124cztM0_level2.evt | modeM0/AS1P01_997T01_9000000214_01124cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,003,622,400 | 98,786,880 |
| Size | 957.1 MB | 94.2 MB |
| Events in quadrant A | 7,513,037 | 640,679 |
| Events in quadrant B | 8,018,560 | 641,978 |
| Events in quadrant C | 7,674,128 | 628,750 |
| Events in quadrant D | 6,752,288 | 621,867 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26983 | 2 |
| B | 0 | 28506 | 1 |
| C | 0 | 27442 | 1 |
| D | 0 | 24787 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6573 | 4 | 0.060855% |
| B | 6573 | 14 | 0.212993% |
| C | 6573 | 3 | 0.045641% |
| D | 6573 | 7 | 0.106496% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 6574 | 95 | 95 | 1.25% | 1.45% |  |
| B | 7588 | 6574 | 176 | 176 | 2.32% | 2.68% |  |
| C | 7588 | 6574 | 116 | 116 | 1.53% | 1.76% |  |
| D | 7588 | 6573 | 58 | 58 | 0.76% | 0.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 6636 | 9.93 | 1956 | 1972 | 469.5 |
| A | 13 | 9 | 6549 | 9.75 | 1956 | 1972 | 469.5 |
| A | 3 | 111 | 6384 | 9.4 | 1956 | 1972 | 469.5 |
| B | 8 | 4 | 92940 | 188.85 | 2061 | 2074 | 481.2 |
| B | 15 | 22 | 39786 | 78.38 | 2061 | 2074 | 481.2 |
| B | 0 | 197 | 14449 | 25.72 | 2061 | 2074 | 481.2 |
| C | 15 | 241 | 341827 | 655.1 | 1859 | 1921 | 518.9 |
| C | 9 | 52 | 28904 | 52.0 | 1859 | 1921 | 518.9 |
| C | 3 | 111 | 19997 | 34.84 | 1859 | 1921 | 518.9 |
| D | 10 | 125 | 31996 | 55.86 | 1789 | 1843 | 539.8 |
| D | 10 | 102 | 13038 | 20.74 | 1789 | 1843 | 539.8 |
| D | 2 | 16 | 10428 | 15.91 | 1789 | 1843 | 539.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

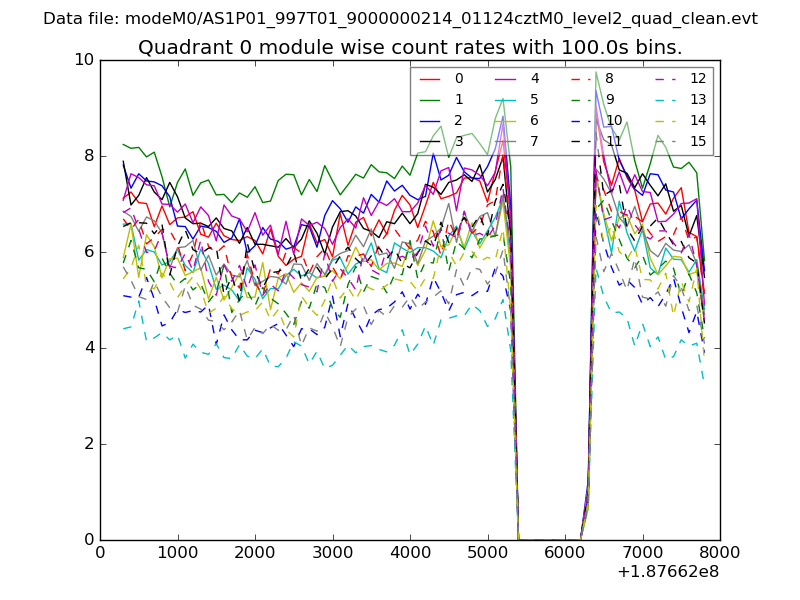

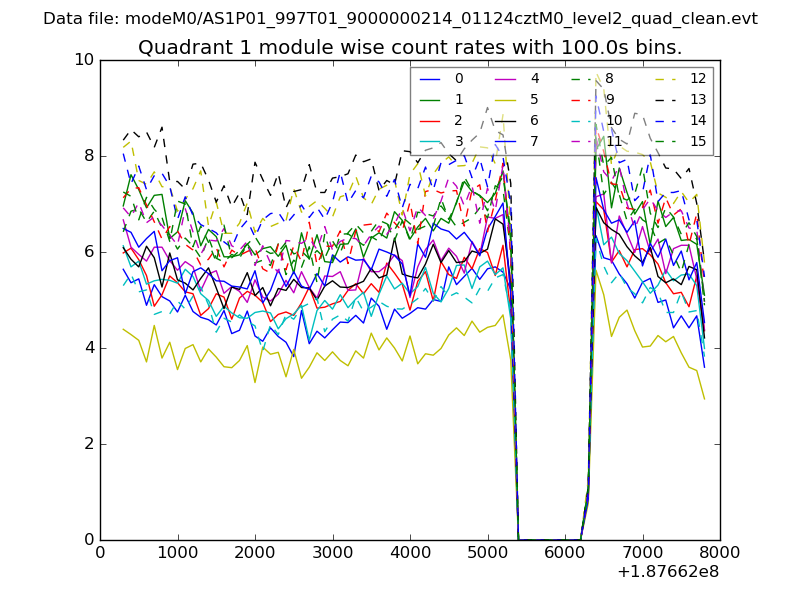

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

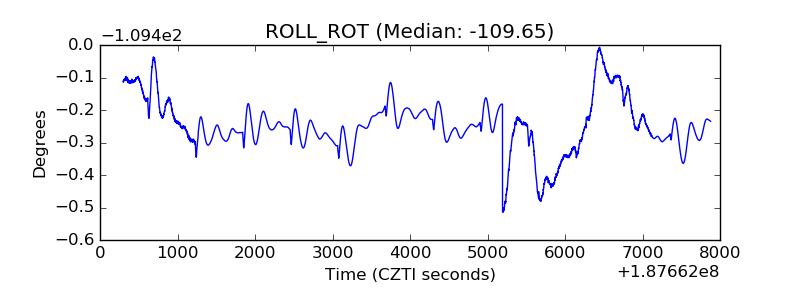

| _ROLL_ROT |  |

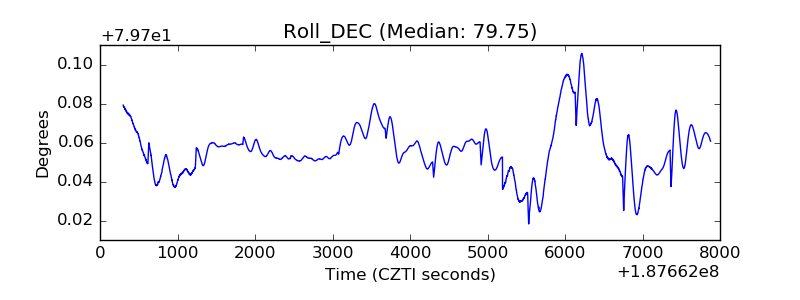

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
