| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T01_9000000214_01126cztM0_level2.evt | modeM0/AS1P01_997T01_9000000214_01126cztM0_level2_quad_clean.evt |
| Size (bytes) | 997,747,200 | 99,924,480 |
| Size | 951.5 MB | 95.3 MB |
| Events in quadrant A | 7,483,834 | 654,162 |
| Events in quadrant B | 8,051,093 | 655,508 |
| Events in quadrant C | 7,498,720 | 637,484 |
| Events in quadrant D | 6,752,646 | 627,016 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26812 | 3 |
| B | 0 | 28551 | 2 |
| C | 0 | 26866 | 2 |
| D | 0 | 24751 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6479 | 3 | 0.046303% |
| B | 6479 | 29 | 0.447600% |
| C | 6479 | 4 | 0.061738% |
| D | 6479 | 27 | 0.416731% |

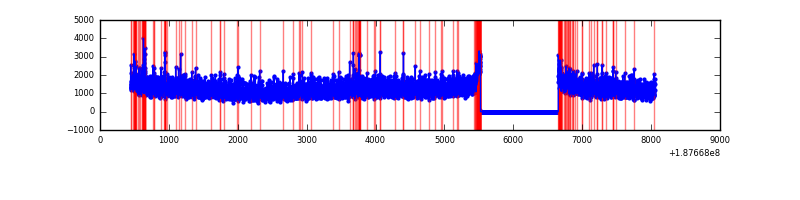

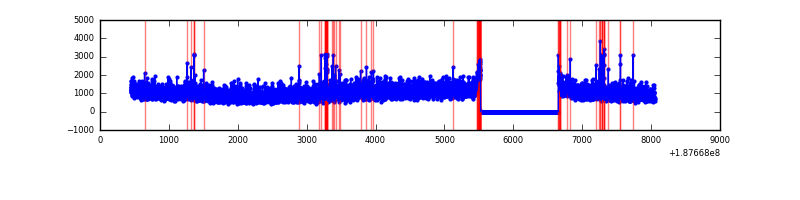

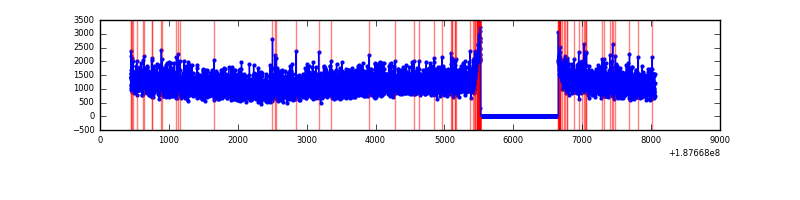

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6480 | 111 | 111 | 1.46% | 1.71% |  |
| B | 7609 | 6480 | 210 | 210 | 2.76% | 3.24% |  |
| C | 7609 | 6480 | 122 | 122 | 1.60% | 1.88% |  |
| D | 7609 | 6480 | 90 | 90 | 1.18% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 243 | 11754 | 20.8 | 1945 | 1961 | 470.8 |
| A | 15 | 233 | 10117 | 17.32 | 1945 | 1961 | 470.8 |
| A | 11 | 79 | 8257 | 13.37 | 1945 | 1961 | 470.8 |
| B | 8 | 4 | 105884 | 216.61 | 2041 | 2054 | 479.4 |
| B | 15 | 22 | 67385 | 136.29 | 2041 | 2054 | 479.4 |
| B | 5 | 249 | 40151 | 79.48 | 2041 | 2054 | 479.4 |
| C | 15 | 241 | 325441 | 640.65 | 1821 | 1882 | 505.0 |
| C | 3 | 111 | 21206 | 38.26 | 1821 | 1882 | 505.0 |
| C | 3 | 79 | 16072 | 28.1 | 1821 | 1882 | 505.0 |
| D | 10 | 125 | 56185 | 106.27 | 1782 | 1825 | 511.5 |
| D | 10 | 85 | 25466 | 46.21 | 1782 | 1825 | 511.5 |
| D | 2 | 16 | 10442 | 16.84 | 1782 | 1825 | 511.5 |

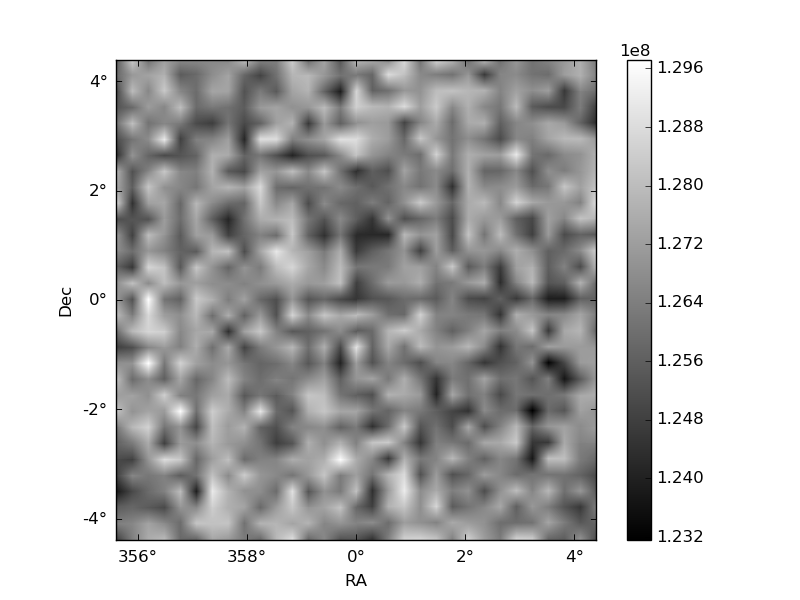

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

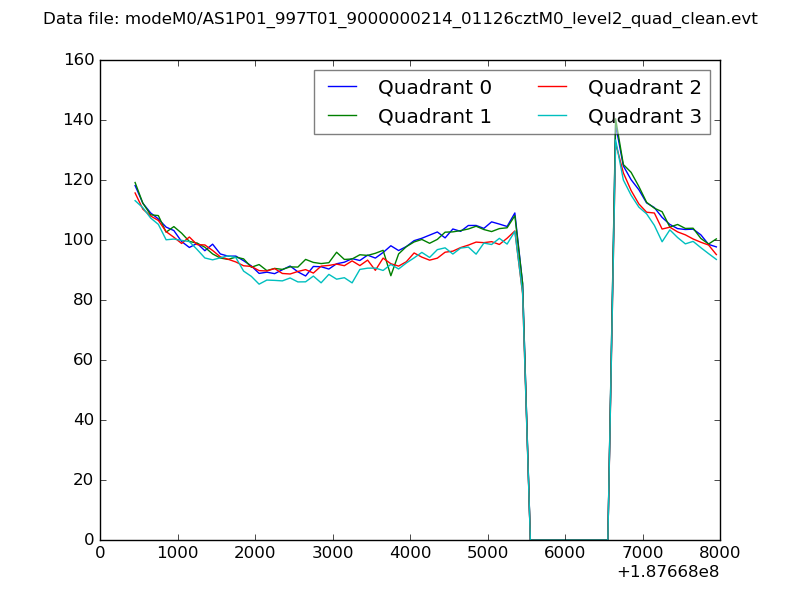

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

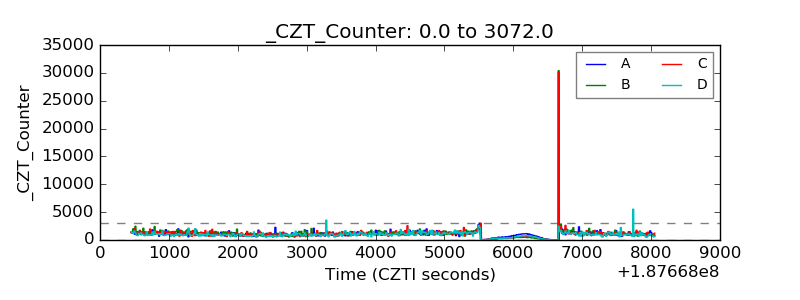

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

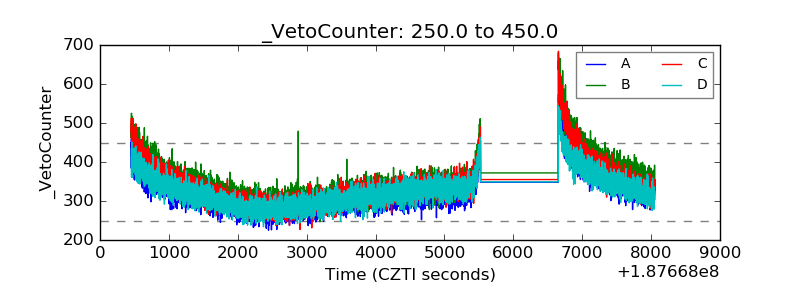

| Veto Counter |  |
