| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T01_9000000214_01132cztM0_level2.evt | modeM0/AS1P01_997T01_9000000214_01132cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,195,692,480 | 123,626,880 |
| Size | 1.1 GB | 117.9 MB |
| Events in quadrant A | 8,892,126 | 828,624 |
| Events in quadrant B | 9,158,079 | 837,410 |
| Events in quadrant C | 9,595,062 | 773,095 |
| Events in quadrant D | 8,077,115 | 791,262 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 3 |
| B | 0 | 6 | 3 |
| C | 0 | 6 | 3 |
| D | 0 | 6 | 3 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 63284 | 31646 |
| B | 0 | 64884 | 32443 |
| C | 0 | 67600 | 33801 |
| D | 0 | 58577 | 29294 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 300 | 150 |
| B | 0 | 300 | 150 |
| C | 0 | 300 | 150 |
| D | 0 | 300 | 150 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7381 | 26 | 0.352256% |
| B | 7382 | 23 | 0.311569% |
| C | 7382 | 453 | 6.136548% |
| D | 7381 | 28 | 0.379352% |

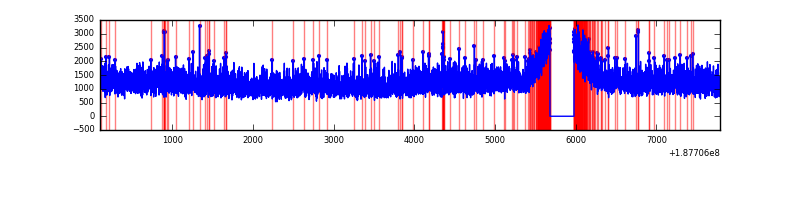

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7682 | 7383 | 342 | 342 | 4.45% | 4.63% |  |
| B | 7682 | 7383 | 336 | 336 | 4.37% | 4.55% |  |
| C | 7682 | 7383 | 632 | 632 | 8.23% | 8.56% |  |
| D | 7682 | 7383 | 238 | 238 | 3.10% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 12127 | 17.55 | 2315 | 2331 | 558.1 |
| A | 3 | 111 | 7403 | 9.09 | 2315 | 2331 | 558.1 |
| A | 12 | 243 | 6542 | 7.54 | 2315 | 2331 | 558.1 |
| B | 15 | 22 | 74722 | 129.97 | 2359 | 2370 | 556.7 |
| B | 15 | 85 | 32379 | 53.91 | 2359 | 2370 | 556.7 |
| B | 5 | 249 | 25808 | 42.1 | 2359 | 2370 | 556.7 |
| C | 9 | 54 | 923854 | 1569.62 | 2098 | 2178 | 587.2 |
| C | 15 | 241 | 370446 | 627.16 | 2098 | 2178 | 587.2 |
| C | 3 | 79 | 34981 | 55.86 | 2098 | 2178 | 587.2 |
| D | 2 | 16 | 59964 | 87.81 | 2131 | 2210 | 657.7 |
| D | 13 | 73 | 18052 | 24.09 | 2131 | 2210 | 657.7 |
| D | 10 | 85 | 15583 | 20.33 | 2131 | 2210 | 657.7 |

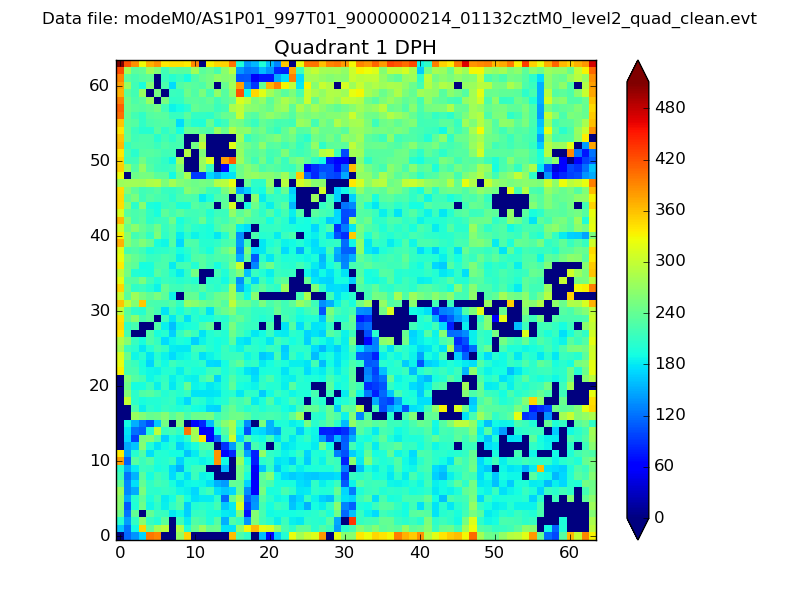

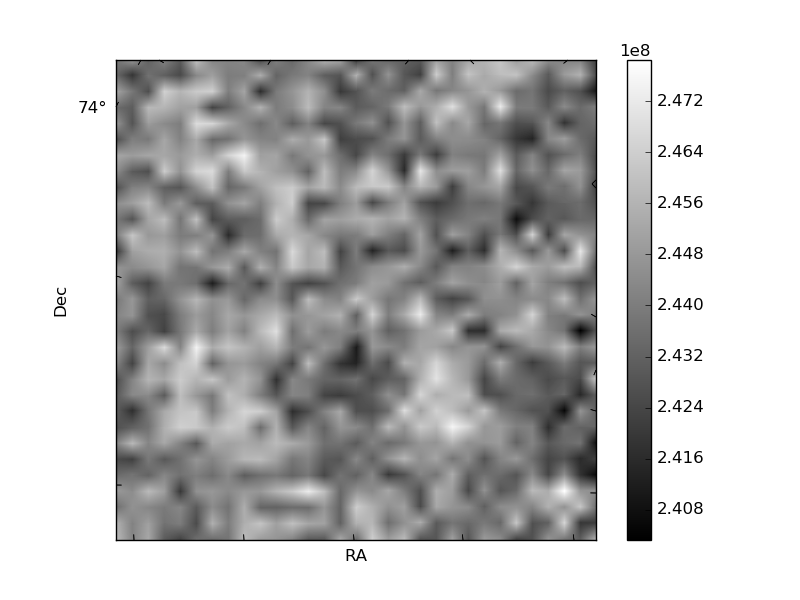

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

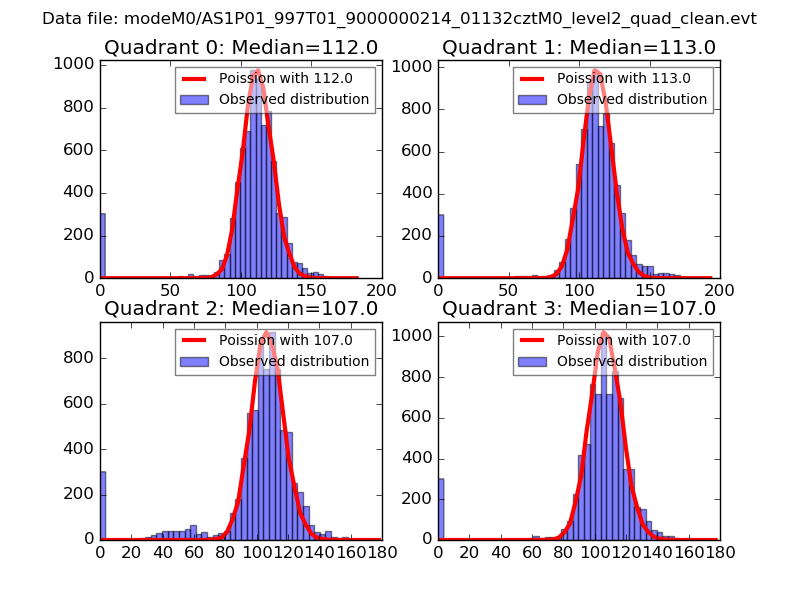

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

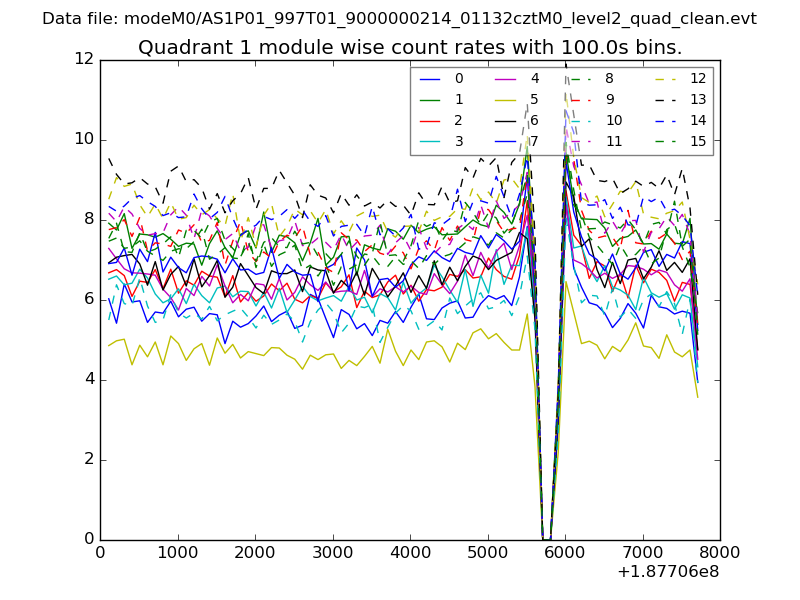

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

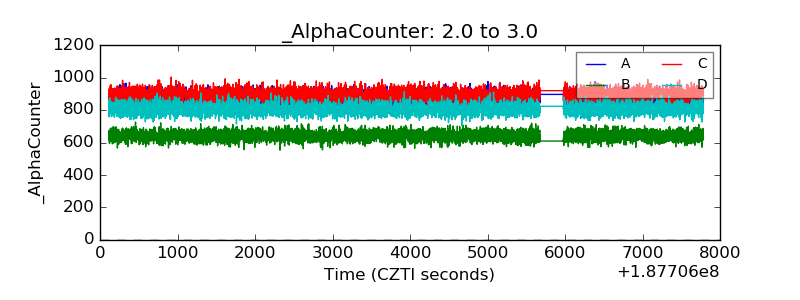

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

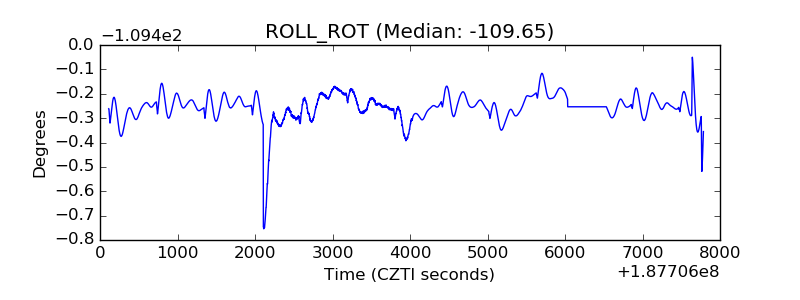

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
