| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T03_9000000216_01161cztM0_level2.evt | modeM0/AS1P01_997T03_9000000216_01161cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,108,226,880 | 102,067,200 |
| Size | 1.0 GB | 97.3 MB |
| Events in quadrant A | 8,321,077 | 671,962 |
| Events in quadrant B | 8,732,390 | 665,237 |
| Events in quadrant C | 8,344,352 | 643,441 |
| Events in quadrant D | 7,717,570 | 639,769 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29509 | 2 |
| B | 0 | 30707 | 1 |
| C | 0 | 29566 | 1 |
| D | 0 | 27753 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6751 | 42 | 0.622130% |
| B | 6751 | 39 | 0.577692% |
| C | 6751 | 56 | 0.829507% |
| D | 6751 | 80 | 1.185010% |

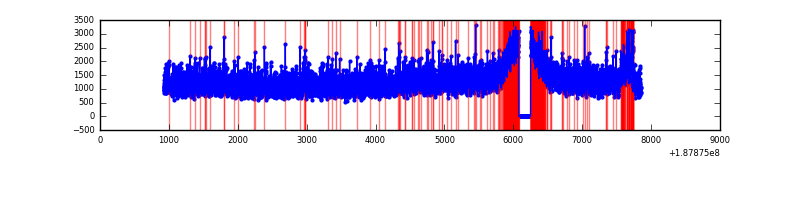

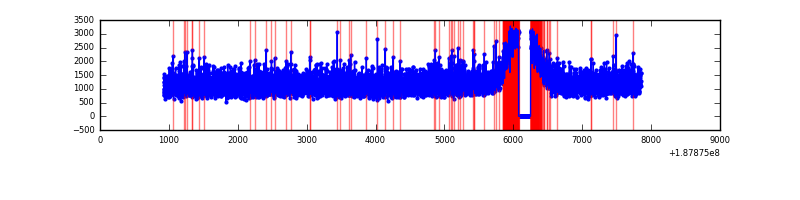

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6926 | 6752 | 404 | 404 | 5.83% | 5.98% |  |
| B | 6926 | 6751 | 469 | 469 | 6.77% | 6.95% |  |
| C | 6926 | 6751 | 343 | 343 | 4.95% | 5.08% |  |
| D | 6926 | 6751 | 370 | 370 | 5.34% | 5.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 76566 | 144.23 | 2138 | 2152 | 516.0 |
| A | 12 | 243 | 33144 | 60.07 | 2138 | 2152 | 516.0 |
| A | 13 | 9 | 11686 | 18.48 | 2138 | 2152 | 516.0 |
| B | 6 | 53 | 119962 | 226.9 | 2192 | 2206 | 519.0 |
| B | 15 | 22 | 66879 | 124.62 | 2192 | 2206 | 519.0 |
| B | 8 | 234 | 48011 | 88.26 | 2192 | 2206 | 519.0 |
| C | 15 | 241 | 332485 | 586.54 | 2018 | 2096 | 563.3 |
| C | 9 | 83 | 53631 | 91.49 | 2018 | 2096 | 563.3 |
| C | 3 | 111 | 28203 | 46.35 | 2018 | 2096 | 563.3 |
| D | 13 | 73 | 120343 | 193.48 | 1977 | 2049 | 611.4 |
| D | 10 | 125 | 112606 | 180.83 | 1977 | 2049 | 611.4 |
| D | 2 | 152 | 37330 | 57.71 | 1977 | 2049 | 611.4 |

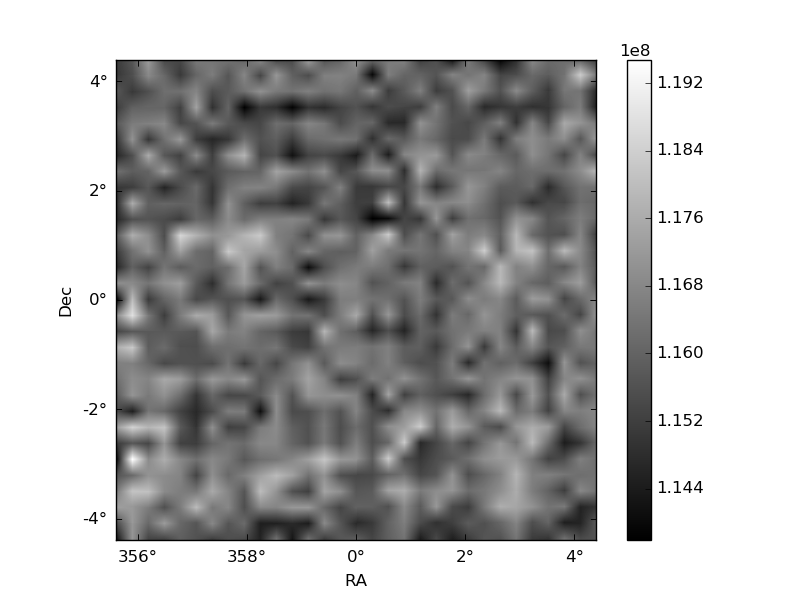

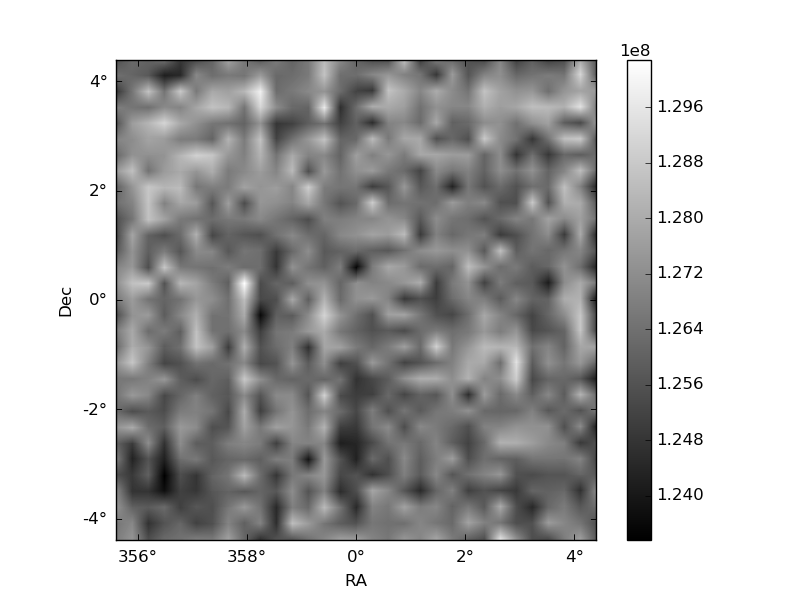

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

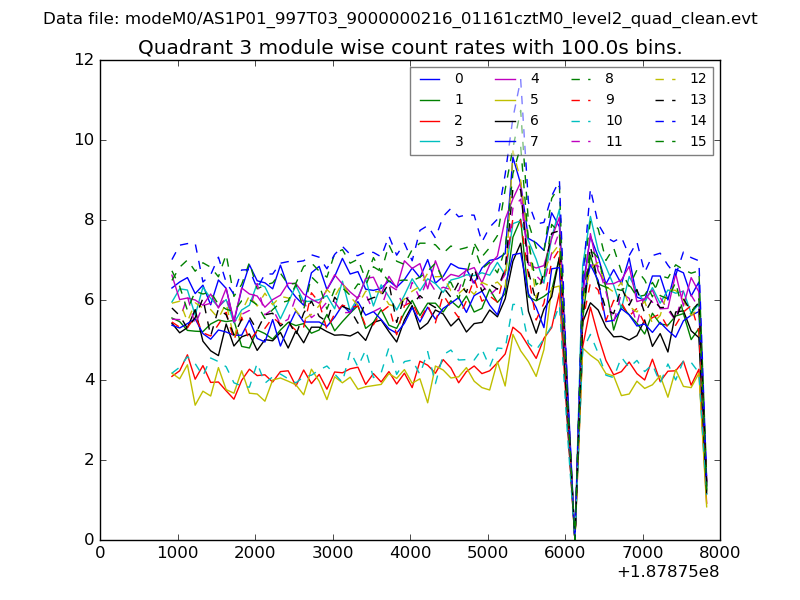

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

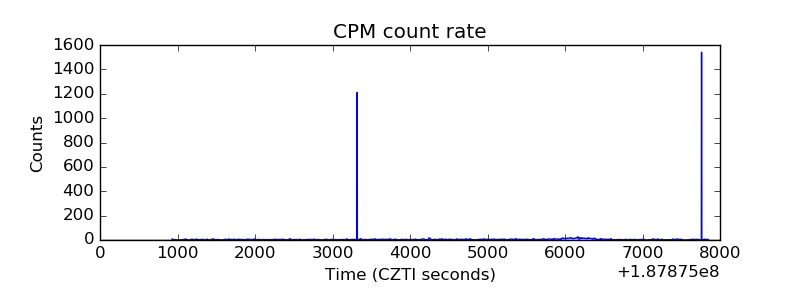

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

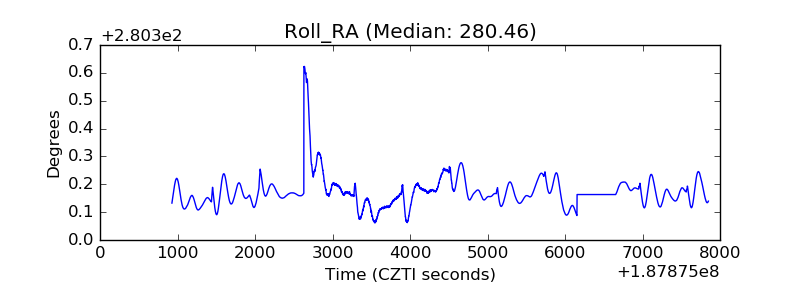

| _Roll_RA |  |

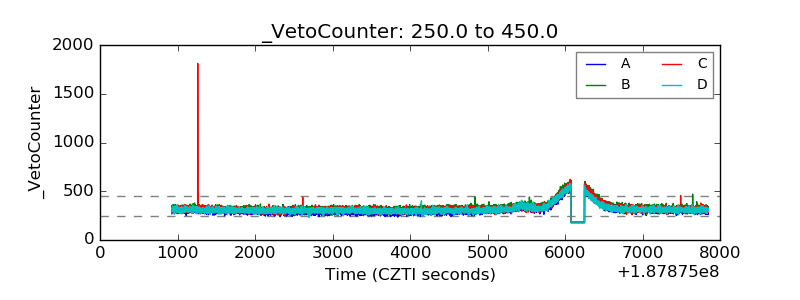

| Veto Counter |  |
