| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_997T02_9000000218_01175cztM0_level2.evt | modeM0/AS1P01_997T02_9000000218_01175cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,074,646,080 | 100,031,040 |
| Size | 1.0 GB | 95.4 MB |
| Events in quadrant A | 8,002,233 | 656,651 |
| Events in quadrant B | 8,543,091 | 651,055 |
| Events in quadrant C | 8,145,774 | 631,790 |
| Events in quadrant D | 7,416,729 | 629,103 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28503 | 2 |
| B | 0 | 30100 | 1 |
| C | 0 | 28892 | 1 |
| D | 0 | 26805 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6609 | 91 | 1.376910% |
| B | 6609 | 31 | 0.469057% |
| C | 6609 | 72 | 1.089424% |
| D | 6609 | 112 | 1.694659% |

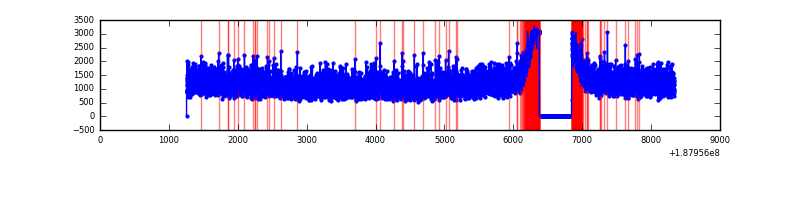

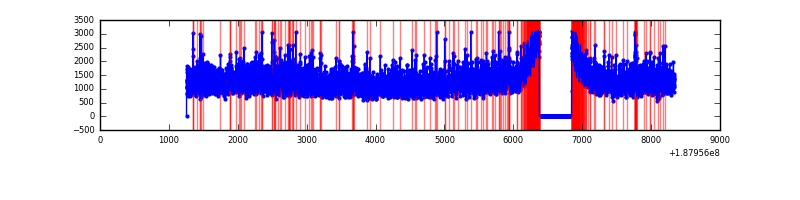

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7079 | 6610 | 324 | 324 | 4.58% | 4.90% |  |
| B | 7079 | 6610 | 386 | 386 | 5.45% | 5.84% |  |
| C | 7079 | 6610 | 293 | 293 | 4.14% | 4.43% |  |
| D | 7079 | 6610 | 292 | 292 | 4.12% | 4.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 79 | 8717 | 13.15 | 2081 | 2098 | 503.5 |
| A | 12 | 251 | 8154 | 12.03 | 2081 | 2098 | 503.5 |
| A | 3 | 111 | 6572 | 8.89 | 2081 | 2098 | 503.5 |
| B | 2 | 32 | 242162 | 475.97 | 2113 | 2121 | 504.3 |
| B | 6 | 53 | 80890 | 156.19 | 2113 | 2121 | 504.3 |
| B | 15 | 22 | 63316 | 121.34 | 2113 | 2121 | 504.3 |
| C | 15 | 241 | 306450 | 568.55 | 1920 | 1986 | 535.5 |
| C | 12 | 254 | 146806 | 270.43 | 1920 | 1986 | 535.5 |
| C | 9 | 83 | 136827 | 251.8 | 1920 | 1986 | 535.5 |
| D | 1 | 239 | 112343 | 187.37 | 1898 | 1965 | 589.1 |
| D | 2 | 16 | 93131 | 154.76 | 1898 | 1965 | 589.1 |
| D | 10 | 215 | 33111 | 52.87 | 1898 | 1965 | 589.1 |

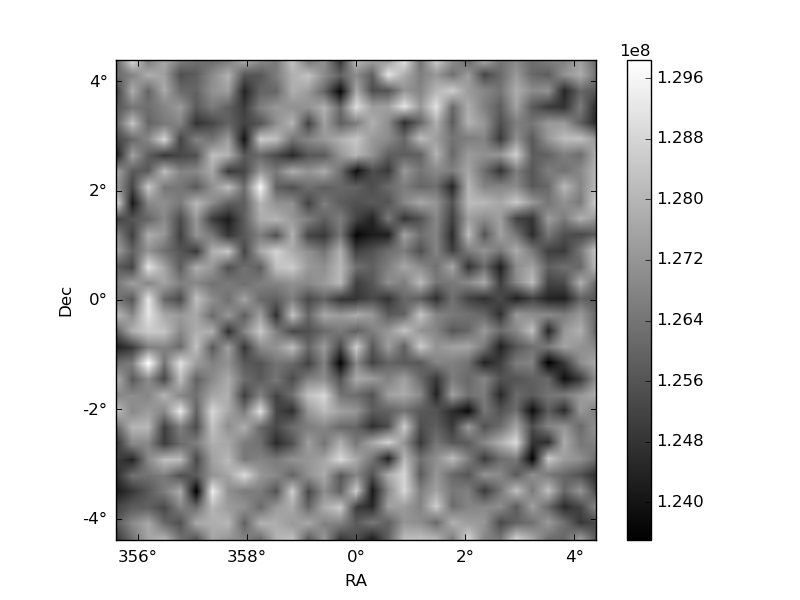

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

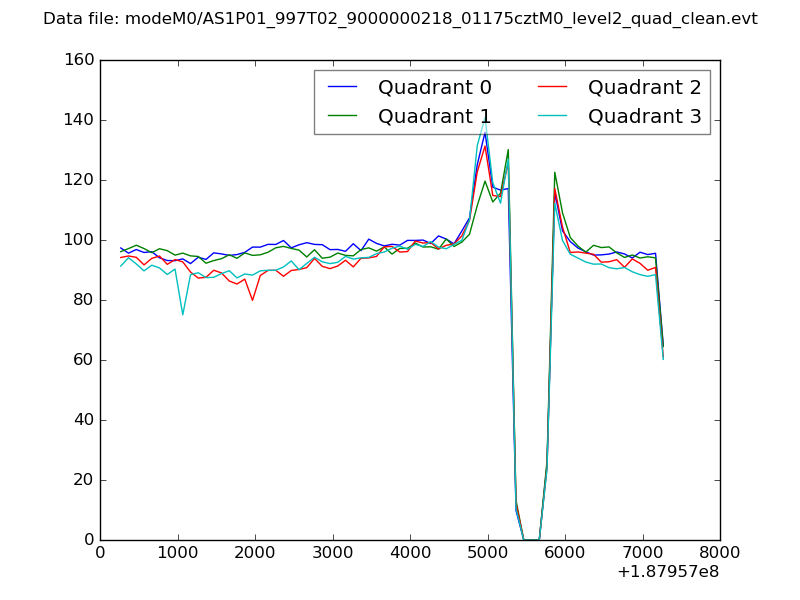

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

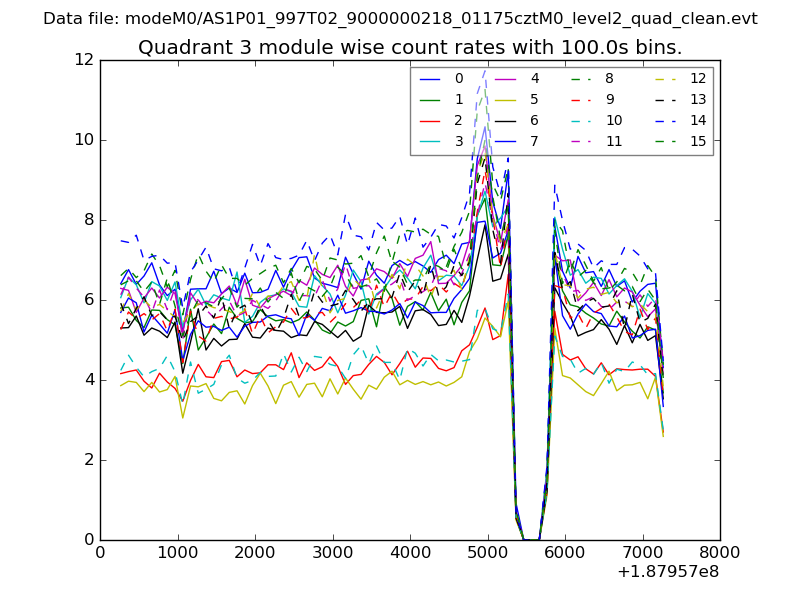

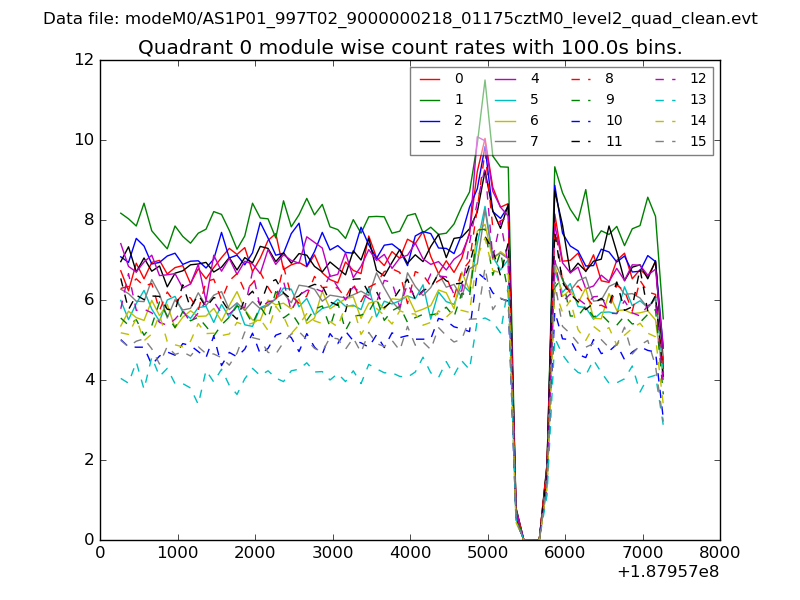

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

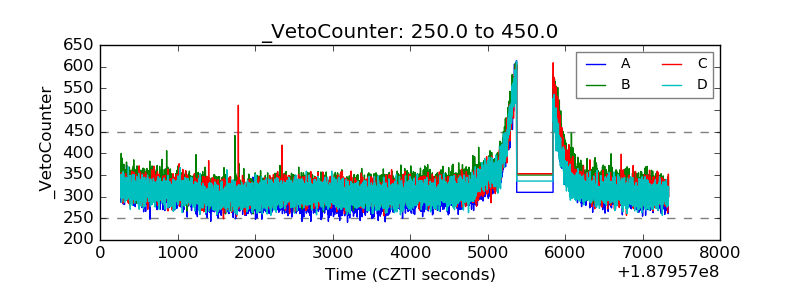

| Veto Counter |  |
