| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_007T02_9000000220_01195cztM0_level2.evt | modeM0/AS1G04_007T02_9000000220_01195cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,113,454,080 | 104,702,400 |
| Size | 1.0 GB | 99.9 MB |
| Events in quadrant A | 8,098,761 | 685,905 |
| Events in quadrant B | 8,663,564 | 677,924 |
| Events in quadrant C | 8,414,460 | 664,389 |
| Events in quadrant D | 8,083,203 | 658,235 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29025 | 3 |
| B | 0 | 30691 | 2 |
| C | 0 | 29934 | 2 |
| D | 0 | 28996 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6960 | 3 | 0.043103% |
| B | 6960 | 9 | 0.129310% |
| C | 6960 | 4 | 0.057471% |
| D | 6960 | 58 | 0.833333% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7809 | 6959 | 140 | 140 | 1.79% | 2.01% |  |
| B | 7809 | 6959 | 220 | 220 | 2.82% | 3.16% |  |
| C | 7810 | 6960 | 189 | 189 | 2.42% | 2.72% |  |
| D | 7810 | 6960 | 235 | 235 | 3.01% | 3.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 10946 | 17.46 | 2104 | 2120 | 505.6 |
| A | 11 | 79 | 8999 | 13.61 | 2104 | 2120 | 505.6 |
| A | 13 | 9 | 7214 | 10.08 | 2104 | 2120 | 505.6 |
| B | 6 | 53 | 104379 | 196.47 | 2211 | 2221 | 520.0 |
| B | 7 | 221 | 41487 | 75.52 | 2211 | 2221 | 520.0 |
| B | 0 | 187 | 22382 | 38.77 | 2211 | 2221 | 520.0 |
| C | 15 | 241 | 396062 | 692.95 | 2035 | 2112 | 568.5 |
| C | 3 | 111 | 28795 | 46.93 | 2035 | 2112 | 568.5 |
| C | 3 | 79 | 23841 | 38.22 | 2035 | 2112 | 568.5 |
| D | 1 | 239 | 305596 | 501.83 | 1953 | 2022 | 604.9 |
| D | 13 | 169 | 186382 | 304.76 | 1953 | 2022 | 604.9 |
| D | 13 | 70 | 103876 | 168.37 | 1953 | 2022 | 604.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

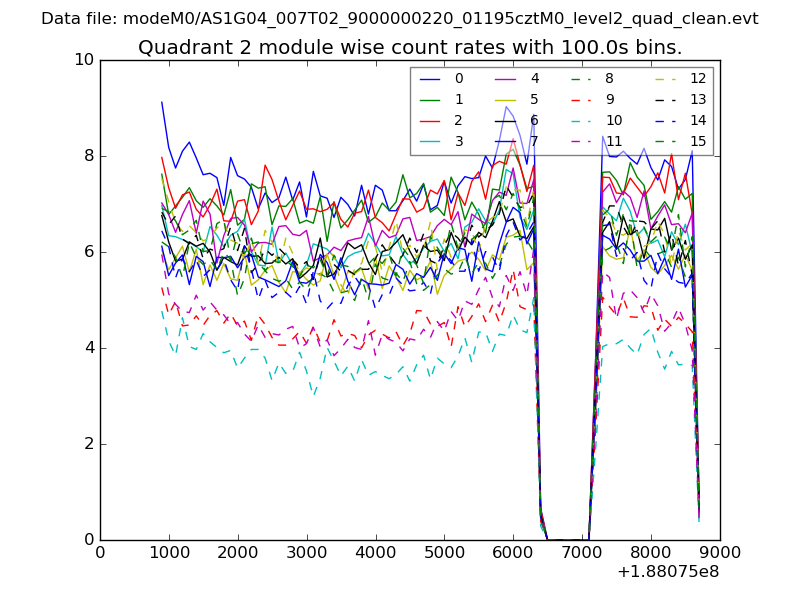

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

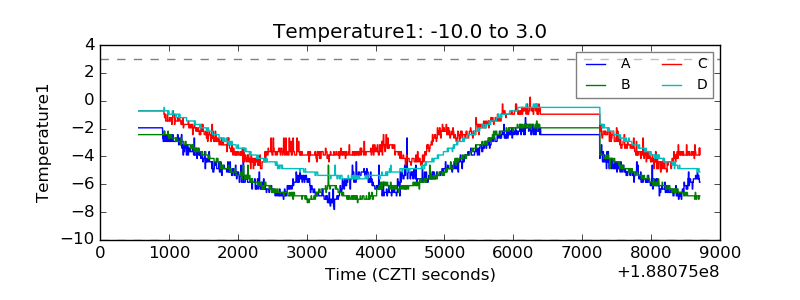

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

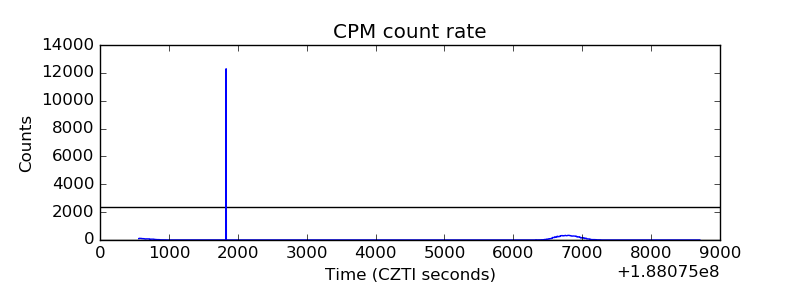

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

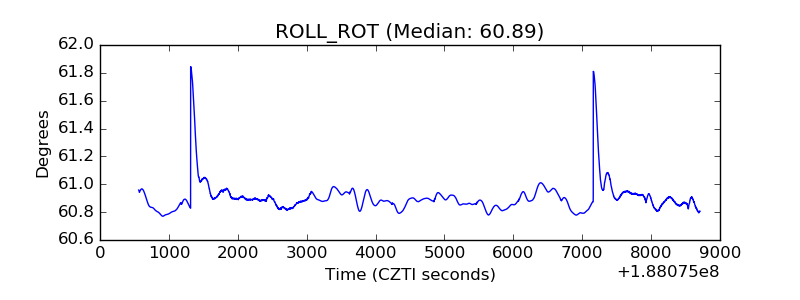

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

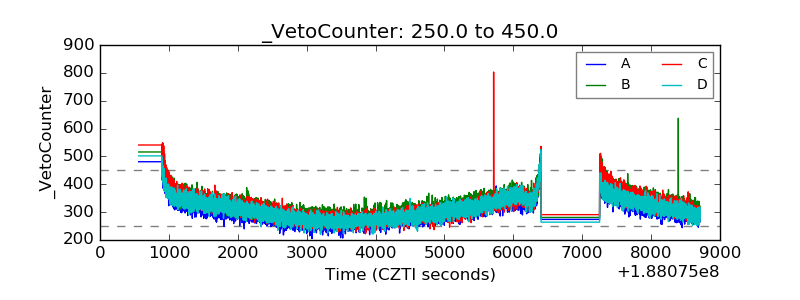

| Veto Counter |  |
