| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_007T02_9000000220_01200cztM0_level2.evt | modeM0/AS1G04_007T02_9000000220_01200cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,025,081,280 | 104,742,720 |
| Size | 977.6 MB | 99.9 MB |
| Events in quadrant A | 7,719,007 | 696,748 |
| Events in quadrant B | 7,861,889 | 702,004 |
| Events in quadrant C | 7,481,740 | 669,485 |
| Events in quadrant D | 7,554,464 | 654,412 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27535 | 2 |
| B | 0 | 27960 | 1 |
| C | 0 | 26836 | 1 |
| D | 0 | 27052 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6448 | 23 | 0.356700% |
| B | 6448 | 2 | 0.031017% |
| C | 6448 | 5 | 0.077543% |
| D | 6448 | 1 | 0.015509% |

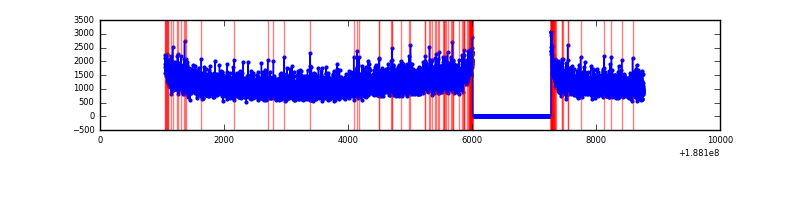

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7712 | 6447 | 208 | 208 | 2.70% | 3.23% |  |
| B | 7712 | 6448 | 183 | 183 | 2.37% | 2.84% |  |
| C | 7713 | 6449 | 122 | 122 | 1.58% | 1.89% |  |
| D | 7712 | 6448 | 105 | 105 | 1.36% | 1.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 164188 | 349.1 | 1943 | 1961 | 464.7 |
| A | 12 | 243 | 75726 | 158.74 | 1943 | 1961 | 464.7 |
| A | 4 | 32 | 15399 | 28.92 | 1943 | 1961 | 464.7 |
| B | 5 | 191 | 45791 | 91.65 | 2035 | 2044 | 477.3 |
| B | 6 | 53 | 32004 | 62.77 | 2035 | 2044 | 477.3 |
| B | 5 | 249 | 29237 | 56.97 | 2035 | 2044 | 477.3 |
| C | 15 | 241 | 334258 | 667.54 | 1802 | 1862 | 497.9 |
| C | 9 | 83 | 65854 | 128.51 | 1802 | 1862 | 497.9 |
| C | 3 | 111 | 21544 | 39.53 | 1802 | 1862 | 497.9 |
| D | 1 | 239 | 827069 | 1512.42 | 1752 | 1810 | 545.7 |
| D | 12 | 22 | 139497 | 252.33 | 1752 | 1810 | 545.7 |
| D | 13 | 205 | 23070 | 38.96 | 1752 | 1810 | 545.7 |

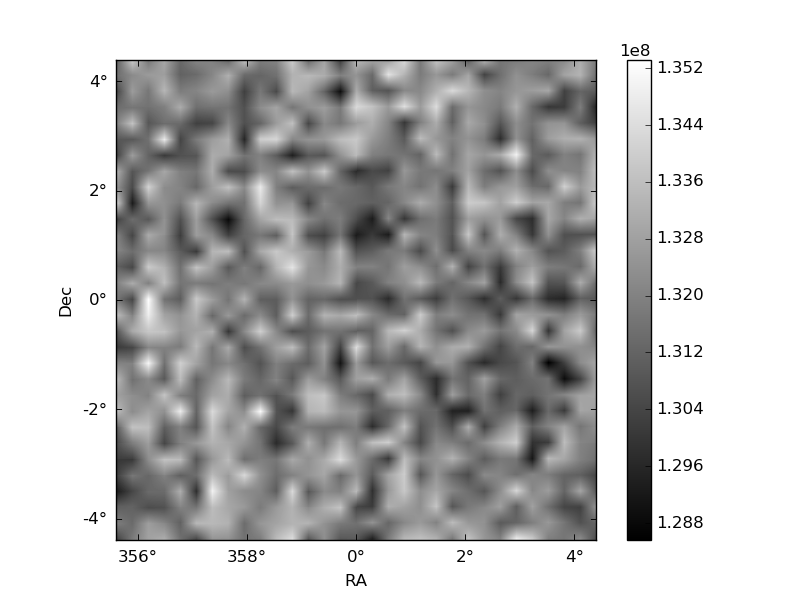

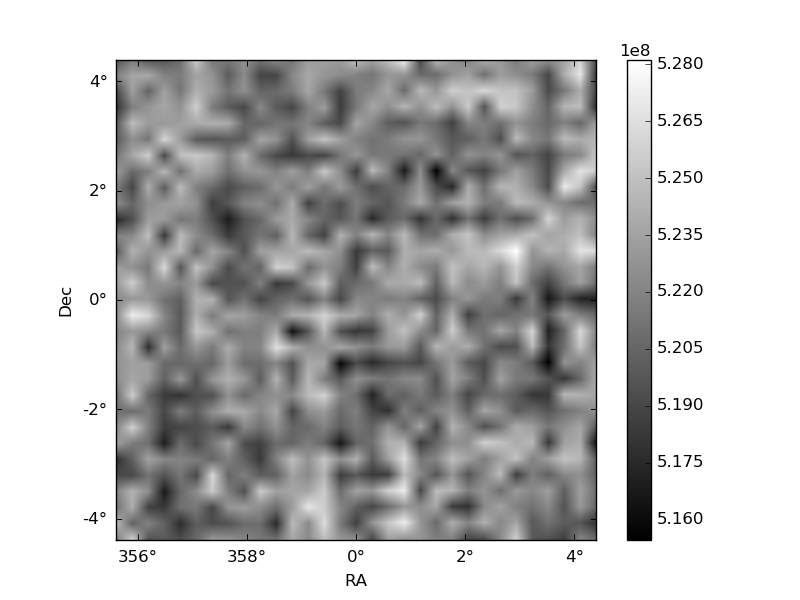

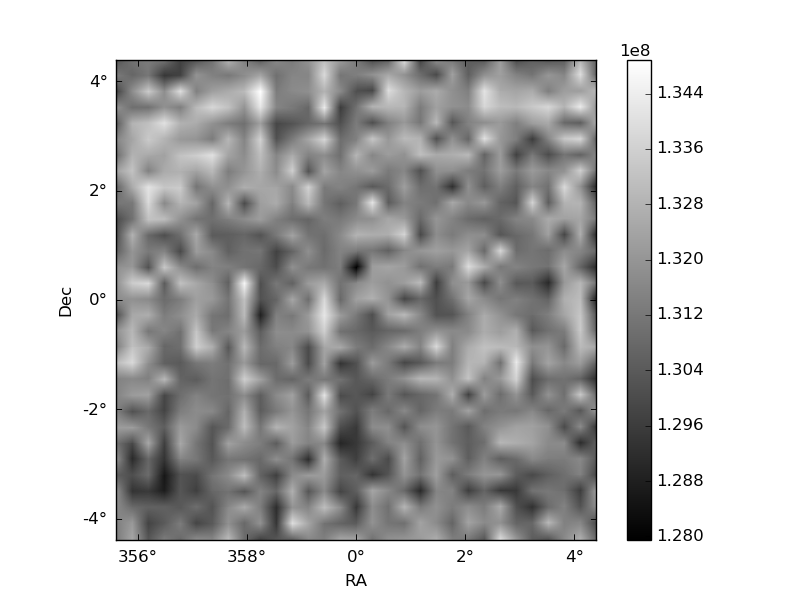

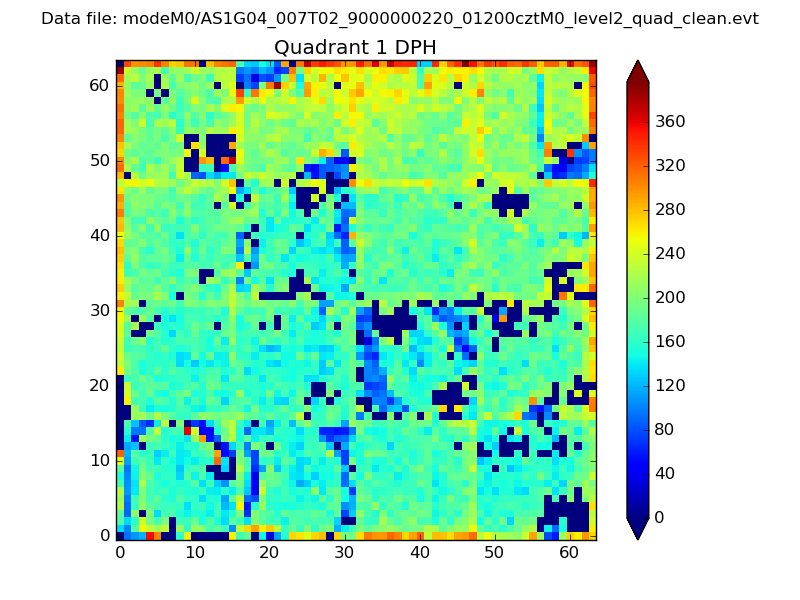

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

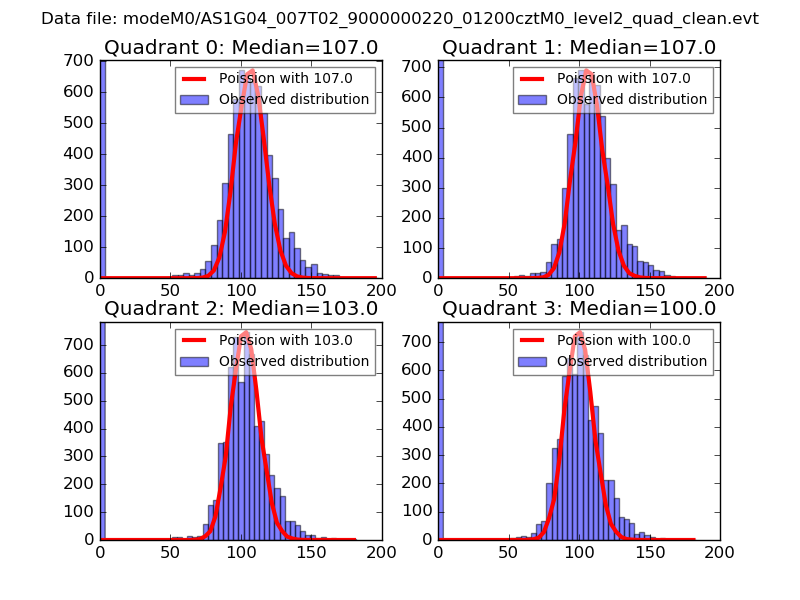

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

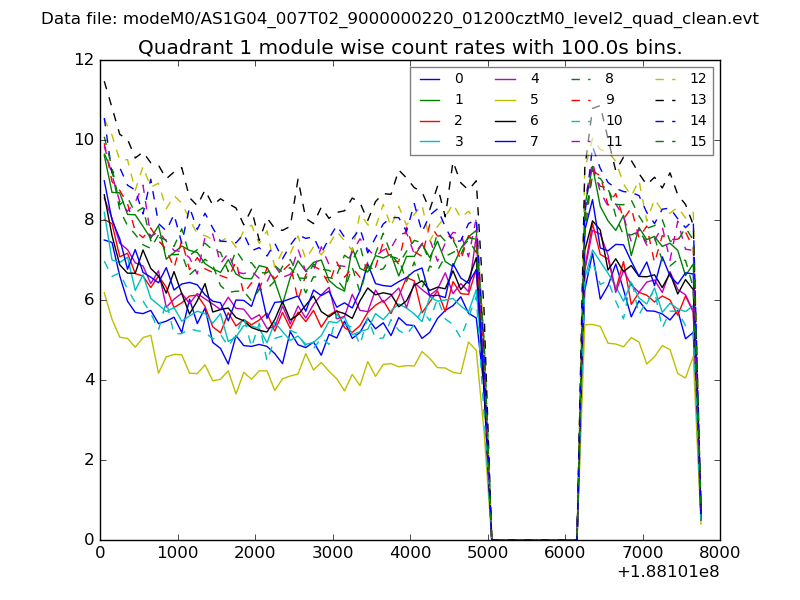

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
