| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_007T02_9000000220_01211cztM0_level2.evt | modeM0/AS1G04_007T02_9000000220_01211cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,000,255,680 | 99,207,360 |
| Size | 953.9 MB | 94.6 MB |
| Events in quadrant A | 7,432,282 | 646,635 |
| Events in quadrant B | 7,957,962 | 645,468 |
| Events in quadrant C | 7,551,738 | 633,954 |
| Events in quadrant D | 6,920,130 | 626,180 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26703 | 2 |
| B | 0 | 28185 | 1 |
| C | 0 | 27038 | 1 |
| D | 0 | 25186 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6476 | 3 | 0.046325% |
| B | 6476 | 5 | 0.077208% |
| C | 6476 | 1 | 0.015442% |
| D | 6476 | 24 | 0.370599% |

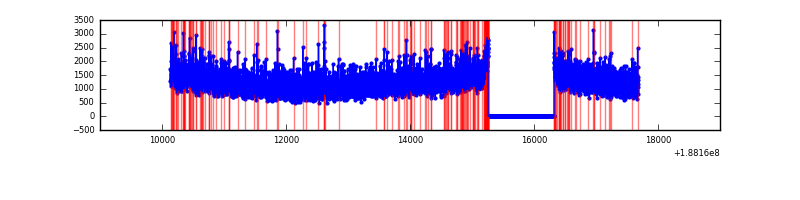

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6477 | 112 | 112 | 1.49% | 1.73% |  |
| B | 7541 | 6477 | 194 | 194 | 2.57% | 3.00% |  |
| C | 7541 | 6477 | 113 | 113 | 1.50% | 1.74% |  |
| D | 7541 | 6477 | 125 | 125 | 1.66% | 1.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 243 | 39469 | 81.4 | 1921 | 1935 | 461.1 |
| A | 0 | 31 | 12083 | 22.01 | 1921 | 1935 | 461.1 |
| A | 11 | 79 | 7894 | 12.92 | 1921 | 1935 | 461.1 |
| B | 6 | 53 | 154777 | 320.86 | 2029 | 2040 | 476.0 |
| B | 15 | 22 | 41387 | 82.66 | 2029 | 2040 | 476.0 |
| B | 5 | 191 | 21909 | 41.74 | 2029 | 2040 | 476.0 |
| C | 15 | 241 | 337585 | 658.33 | 1832 | 1897 | 509.9 |
| C | 3 | 111 | 26178 | 47.62 | 1832 | 1897 | 509.9 |
| C | 3 | 79 | 22118 | 39.66 | 1832 | 1897 | 509.9 |
| D | 2 | 152 | 183271 | 335.25 | 1751 | 1817 | 541.2 |
| D | 13 | 205 | 54903 | 98.08 | 1751 | 1817 | 541.2 |
| D | 1 | 239 | 46689 | 82.91 | 1751 | 1817 | 541.2 |

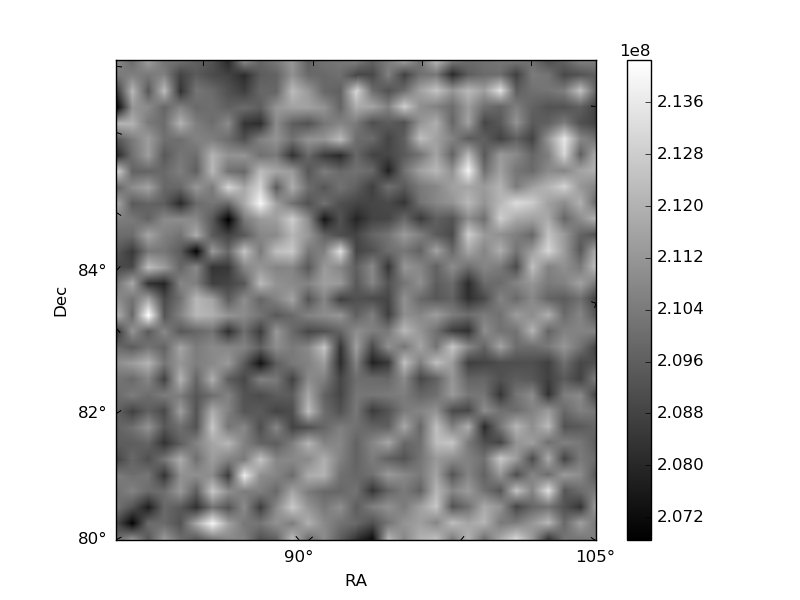

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

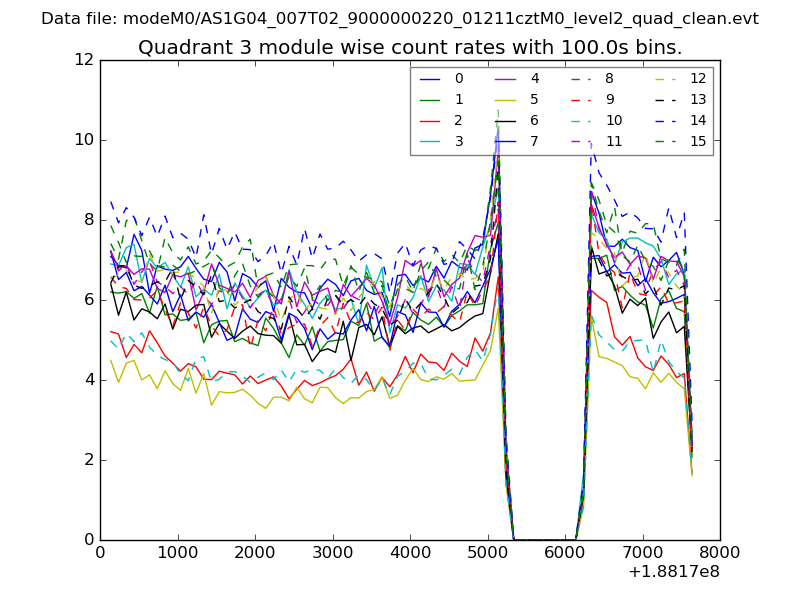

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

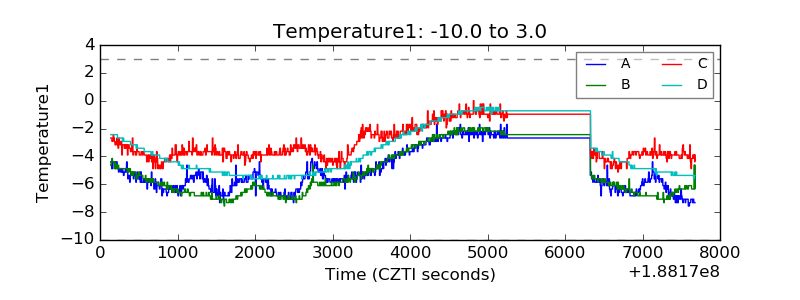

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

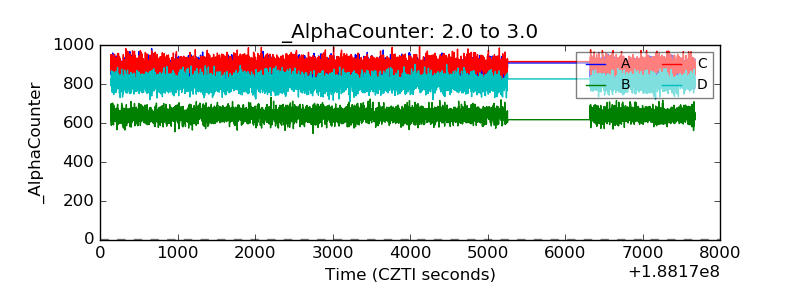

| Alpha Counter |  |

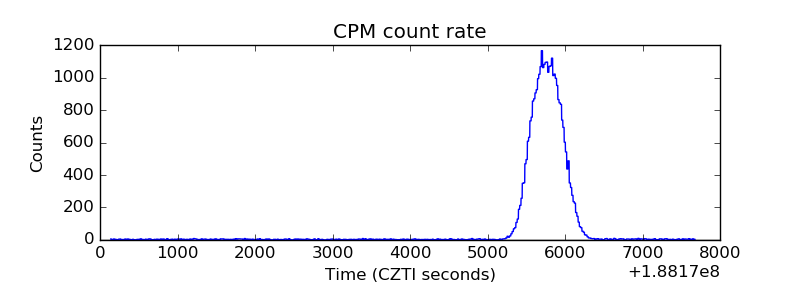

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

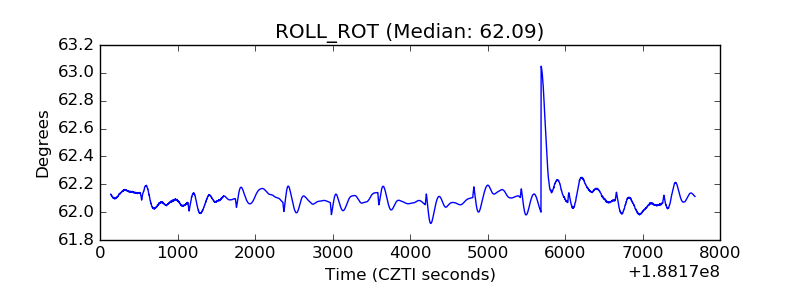

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

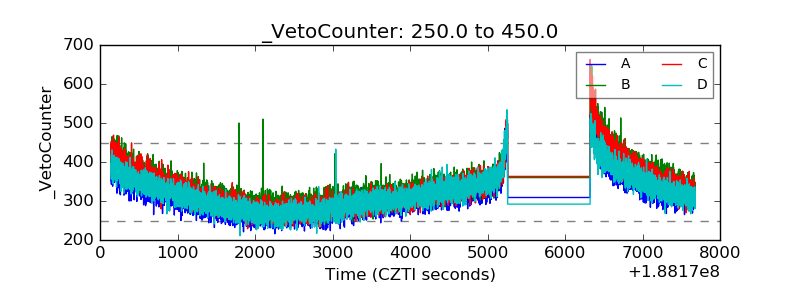

| Veto Counter |  |
