| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_007T02_9000000220_01214cztM0_level2.evt | modeM0/AS1G04_007T02_9000000220_01214cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,010,292,480 | 106,104,960 |
| Size | 963.5 MB | 101.2 MB |
| Events in quadrant A | 7,580,468 | 700,589 |
| Events in quadrant B | 8,042,408 | 708,706 |
| Events in quadrant C | 7,575,361 | 681,393 |
| Events in quadrant D | 6,962,464 | 665,068 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27194 | 3 |
| B | 0 | 28516 | 2 |
| C | 0 | 27189 | 2 |
| D | 0 | 25378 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6562 | 5 | 0.076196% |
| B | 6562 | 20 | 0.304785% |
| C | 6562 | 5 | 0.076196% |
| D | 6562 | 25 | 0.380981% |

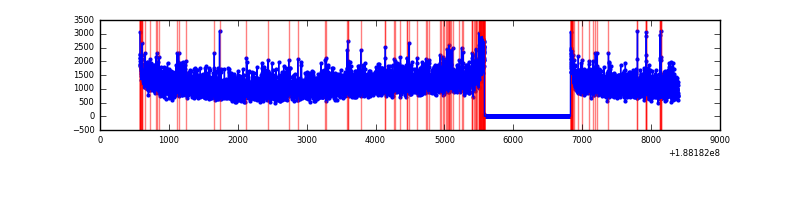

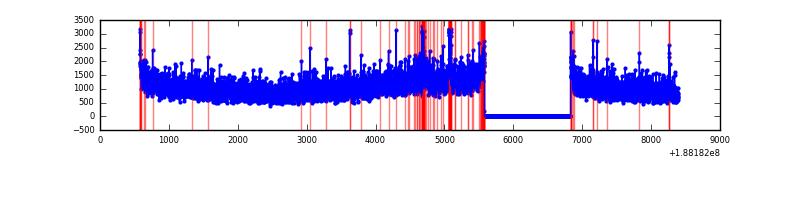

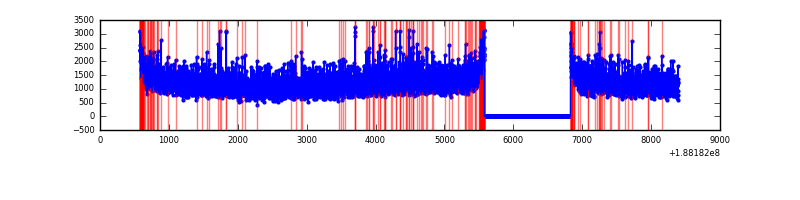

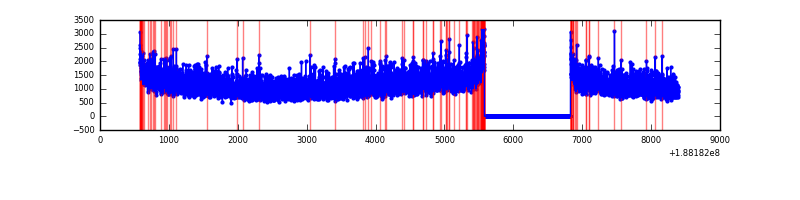

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7812 | 6563 | 136 | 136 | 1.74% | 2.07% |  |
| B | 7812 | 6562 | 220 | 220 | 2.82% | 3.35% |  |
| C | 7812 | 6562 | 133 | 133 | 1.70% | 2.03% |  |
| D | 7812 | 6563 | 125 | 125 | 1.60% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 26217 | 52.32 | 1961 | 1979 | 463.2 |
| A | 12 | 243 | 21005 | 41.07 | 1961 | 1979 | 463.2 |
| A | 11 | 79 | 8740 | 14.59 | 1961 | 1979 | 463.2 |
| B | 15 | 22 | 71288 | 142.75 | 2071 | 2078 | 484.8 |
| B | 7 | 221 | 22650 | 42.43 | 2071 | 2078 | 484.8 |
| B | 6 | 53 | 20690 | 38.39 | 2071 | 2078 | 484.8 |
| C | 15 | 241 | 341924 | 671.1 | 1839 | 1901 | 506.7 |
| C | 3 | 111 | 25964 | 47.49 | 1839 | 1901 | 506.7 |
| C | 3 | 79 | 24038 | 43.69 | 1839 | 1901 | 506.7 |
| D | 1 | 239 | 185192 | 339.66 | 1755 | 1813 | 539.9 |
| D | 1 | 83 | 72972 | 131.8 | 1755 | 1813 | 539.9 |
| D | 10 | 84 | 70598 | 127.41 | 1755 | 1813 | 539.9 |

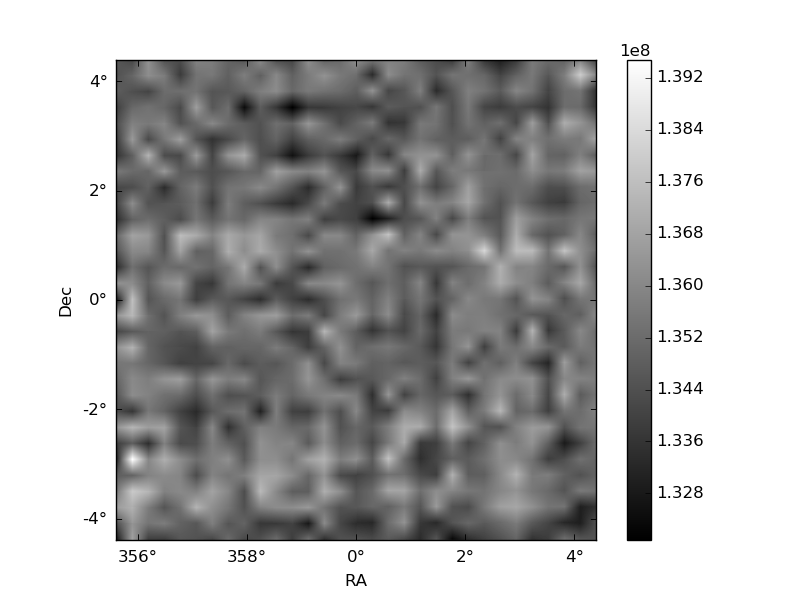

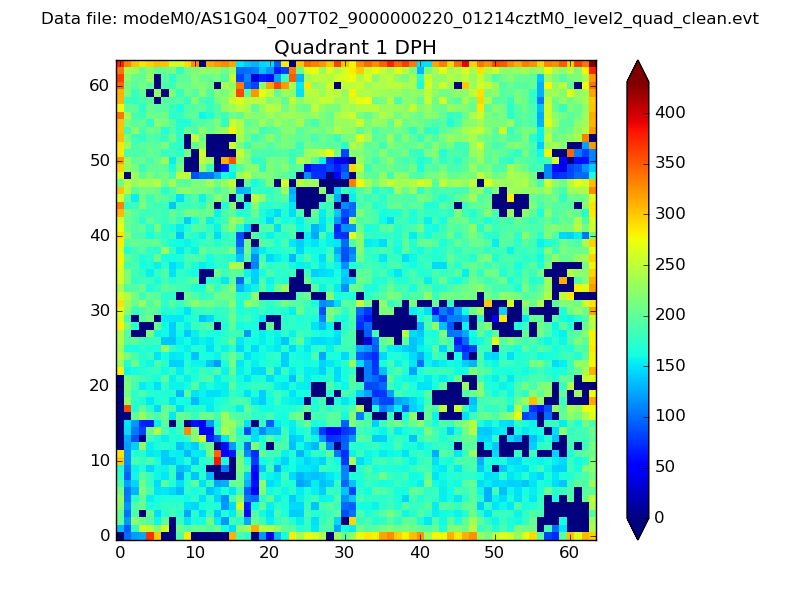

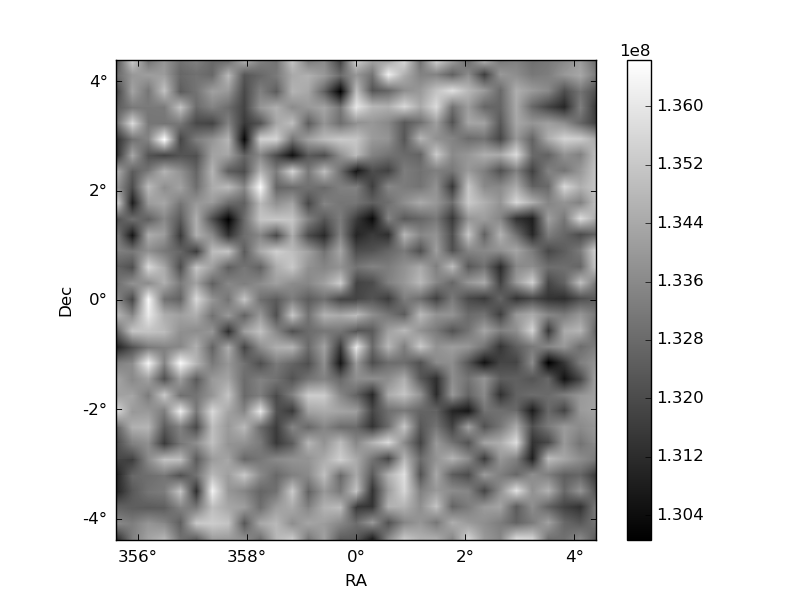

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

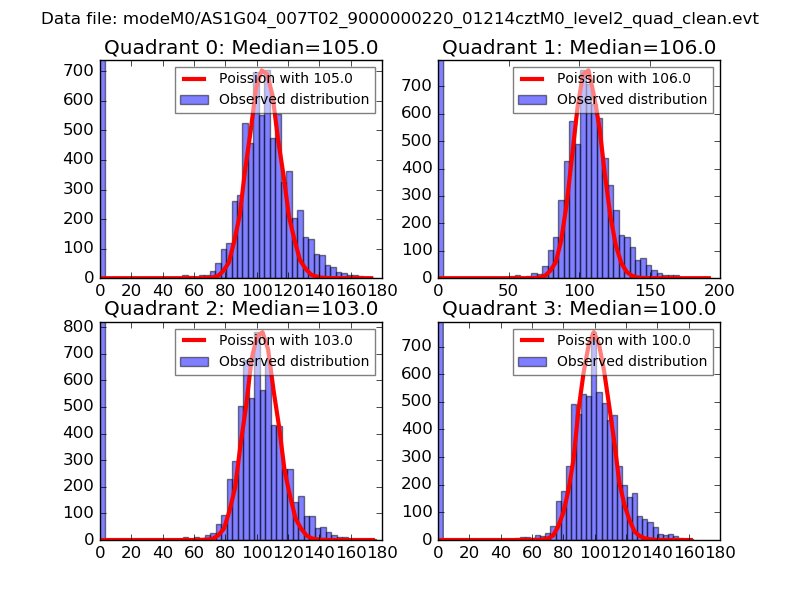

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

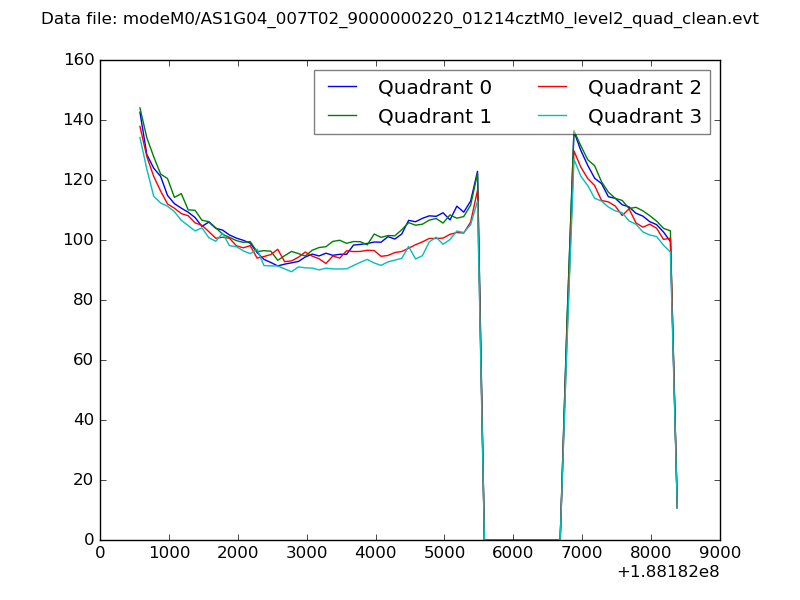

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

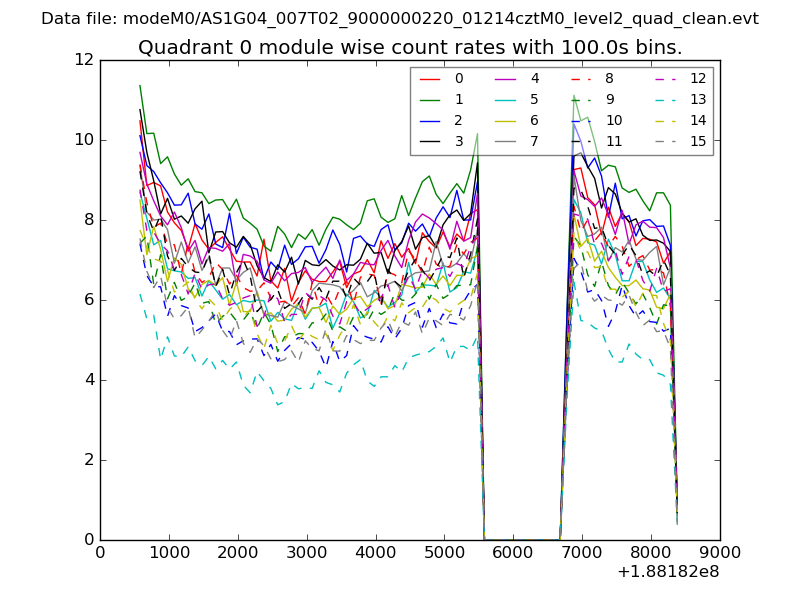

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

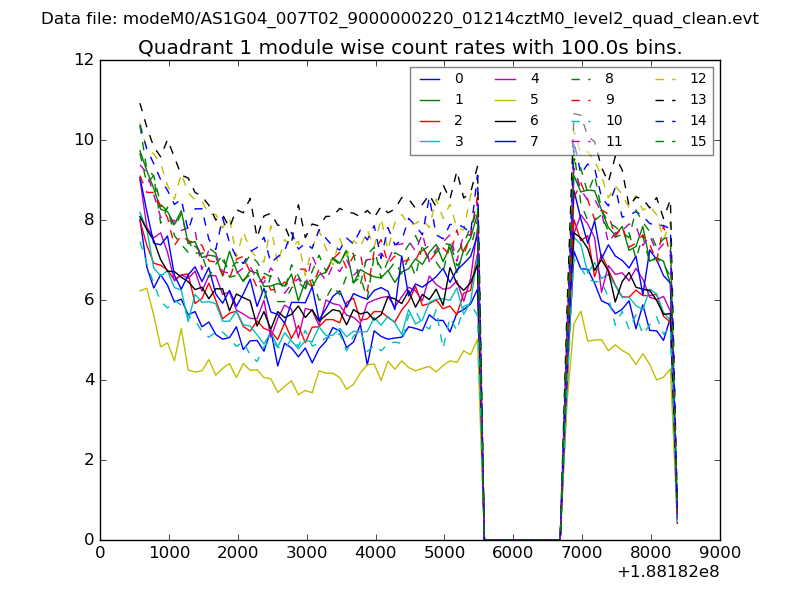

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

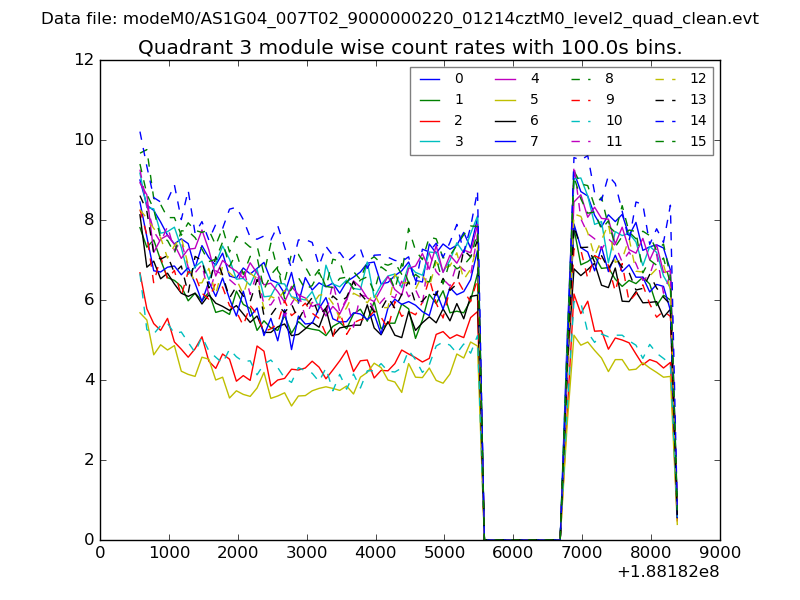

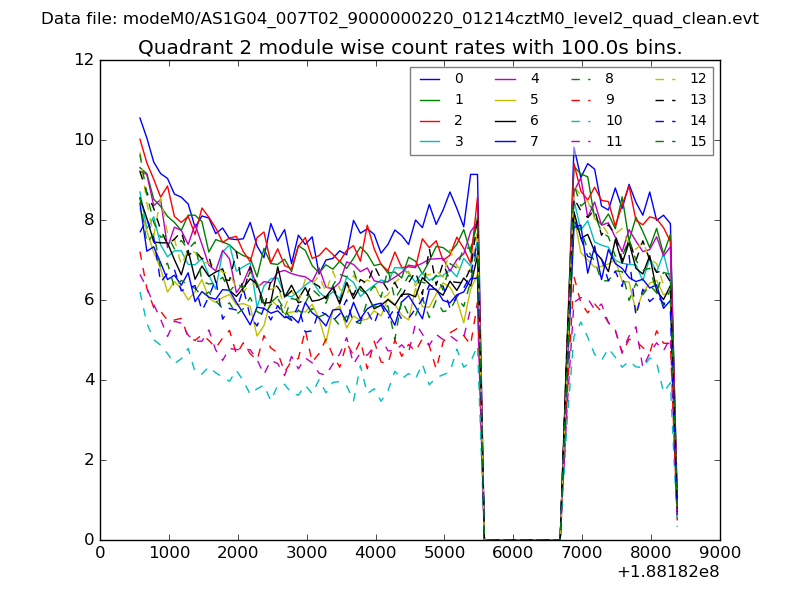

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

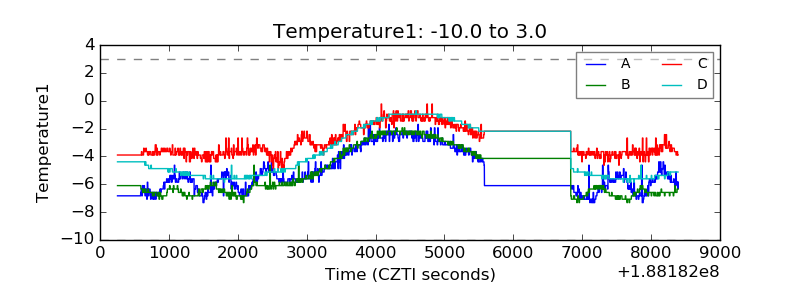

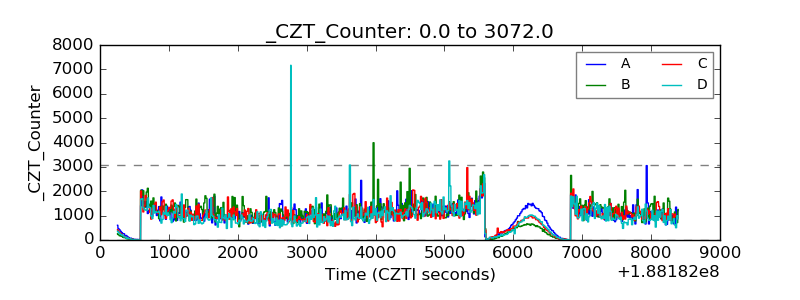

| Temperature 1 |  |

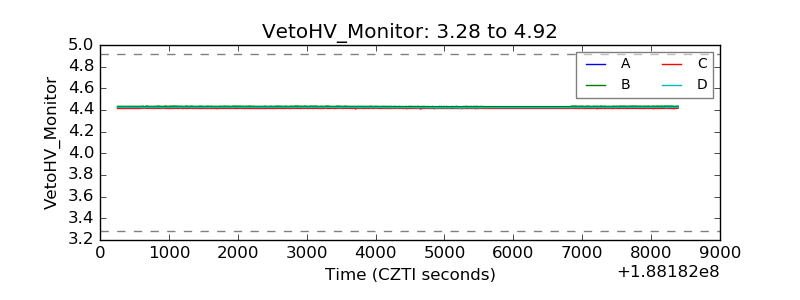

| Veto HV Monitor |  |
| Veto LLD |  |

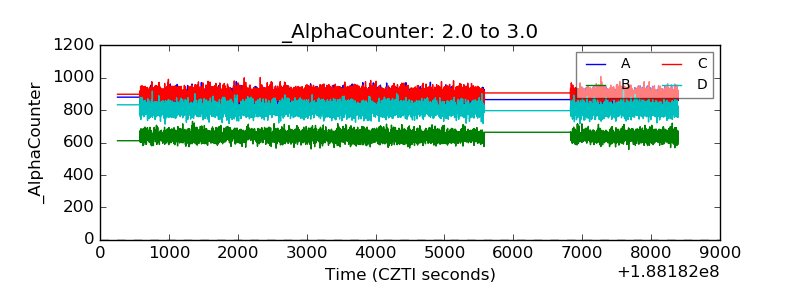

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

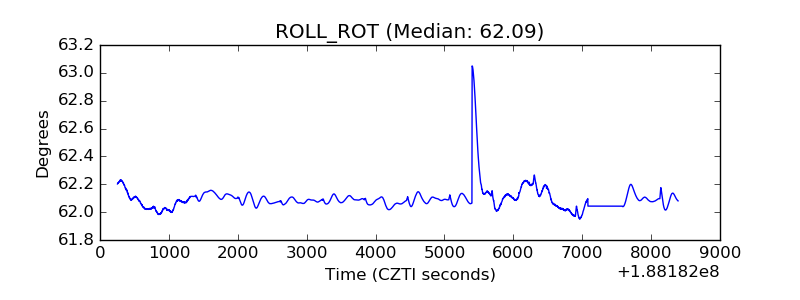

| _ROLL_ROT |  |

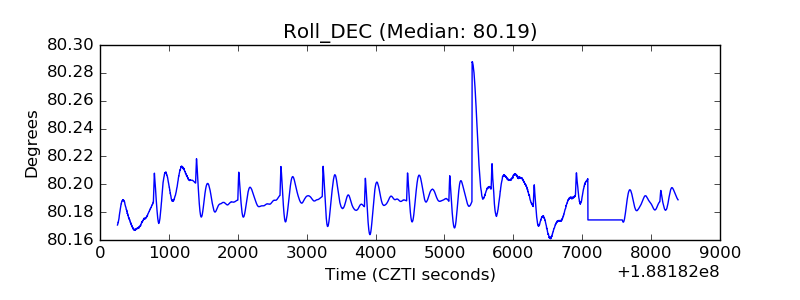

| _Roll_DEC |  |

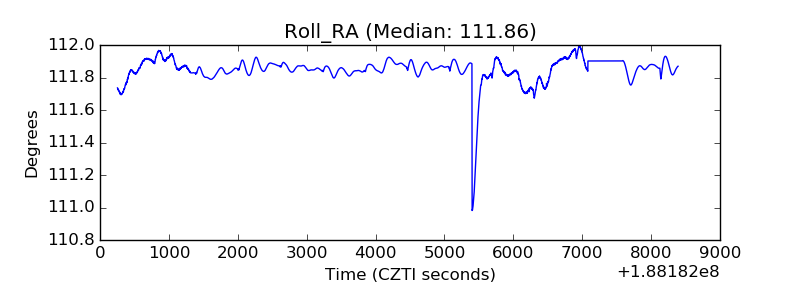

| _Roll_RA |  |

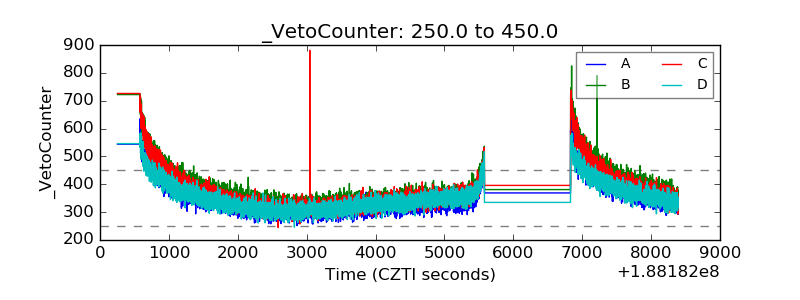

| Veto Counter |  |
