| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_003T01_9000000222_01224cztM0_level2.evt | modeM0/AS1G04_003T01_9000000222_01224cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,108,278,720 | 99,694,080 |
| Size | 1.0 GB | 95.1 MB |
| Events in quadrant A | 7,966,337 | 652,705 |
| Events in quadrant B | 8,257,030 | 648,762 |
| Events in quadrant C | 7,978,710 | 634,193 |
| Events in quadrant D | 8,921,991 | 619,936 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28356 | 2 |
| B | 0 | 29219 | 1 |
| C | 0 | 28402 | 1 |
| D | 0 | 31223 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6648 | 18 | 0.270758% |
| B | 6648 | 35 | 0.526474% |
| C | 6648 | 14 | 0.210590% |
| D | 6648 | 87 | 1.308664% |

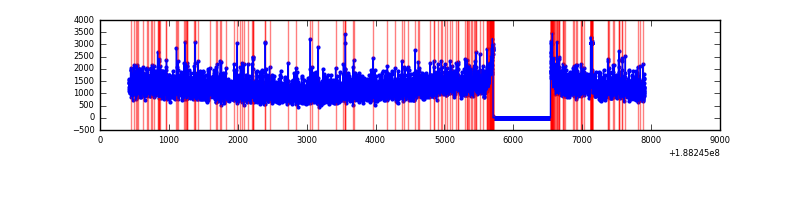

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7483 | 6649 | 224 | 224 | 2.99% | 3.37% |  |
| B | 7483 | 6649 | 213 | 213 | 2.85% | 3.20% |  |
| C | 7483 | 6649 | 155 | 155 | 2.07% | 2.33% |  |
| D | 7483 | 6649 | 909 | 909 | 12.15% | 13.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 245226 | 506.24 | 2001 | 2015 | 480.4 |
| A | 3 | 80 | 23579 | 44.88 | 2001 | 2015 | 480.4 |
| A | 0 | 51 | 14556 | 26.1 | 2001 | 2015 | 480.4 |
| B | 5 | 191 | 76664 | 151.34 | 2090 | 2098 | 492.7 |
| B | 15 | 22 | 58724 | 114.93 | 2090 | 2098 | 492.7 |
| B | 12 | 52 | 55669 | 108.73 | 2090 | 2098 | 492.7 |
| C | 15 | 241 | 341992 | 633.01 | 1931 | 2001 | 537.1 |
| C | 9 | 54 | 49281 | 88.03 | 1931 | 2001 | 537.1 |
| C | 3 | 111 | 25662 | 44.05 | 1931 | 2001 | 537.1 |
| D | 13 | 169 | 1019157 | 1757.71 | 1856 | 1925 | 578.7 |
| D | 10 | 102 | 307634 | 528.25 | 1856 | 1925 | 578.7 |
| D | 12 | 22 | 235469 | 403.55 | 1856 | 1925 | 578.7 |

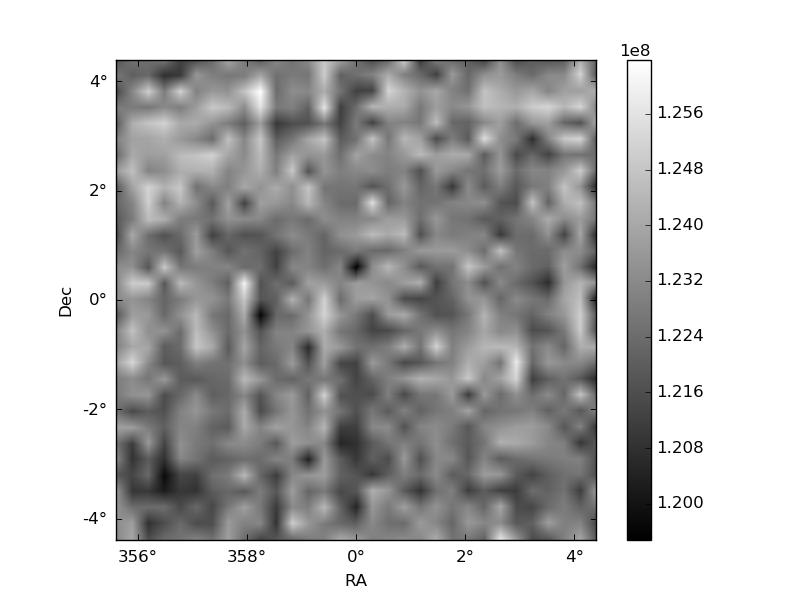

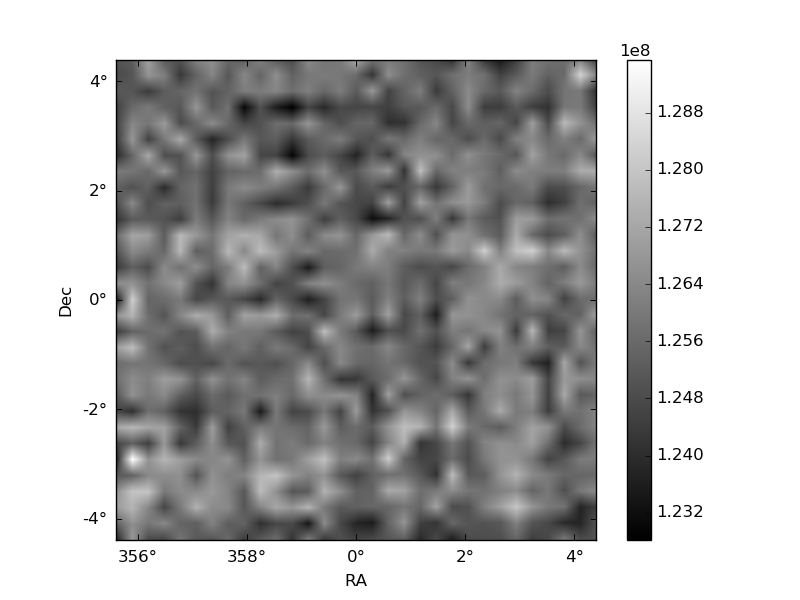

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

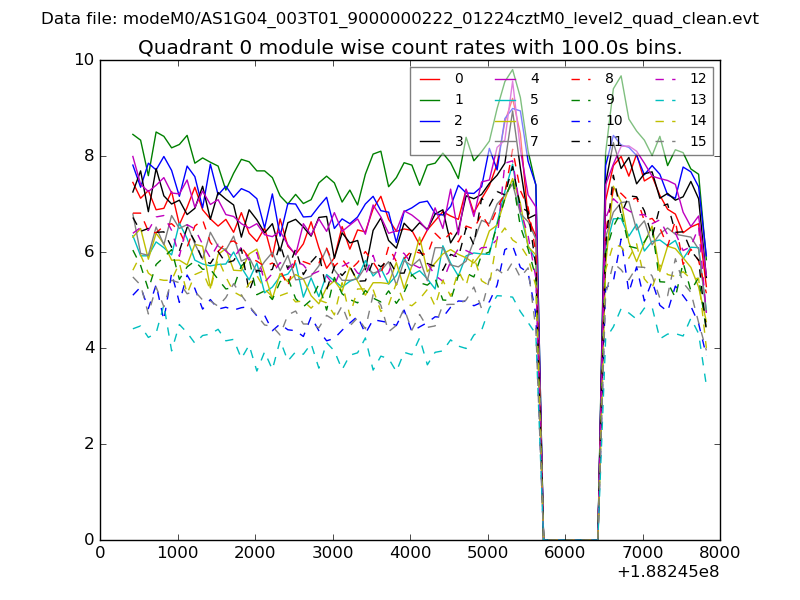

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

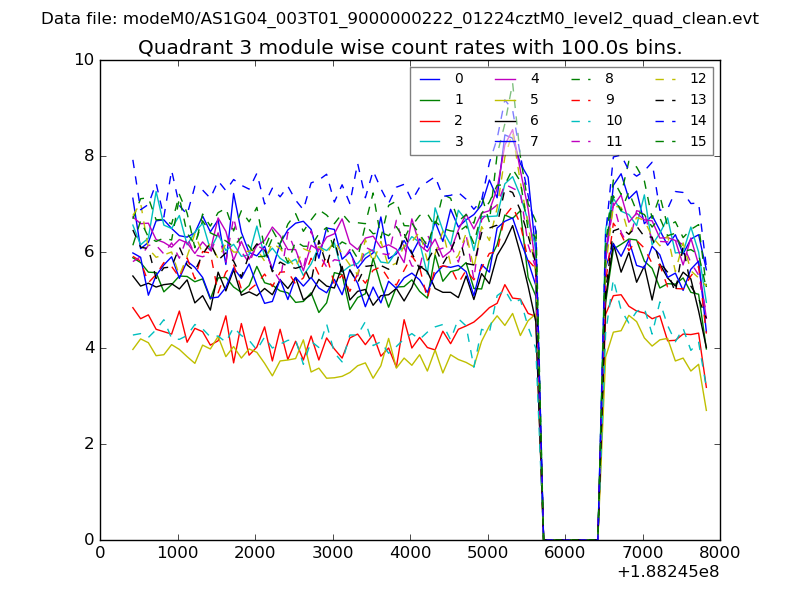

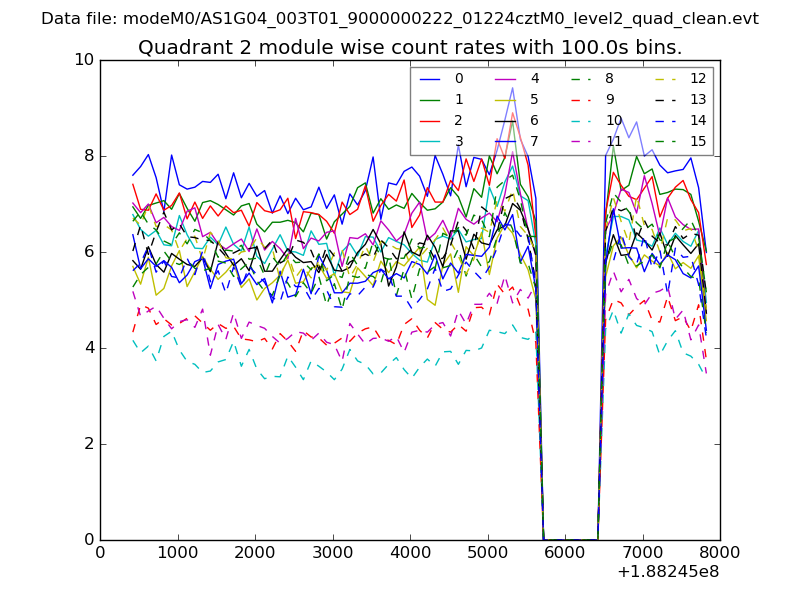

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

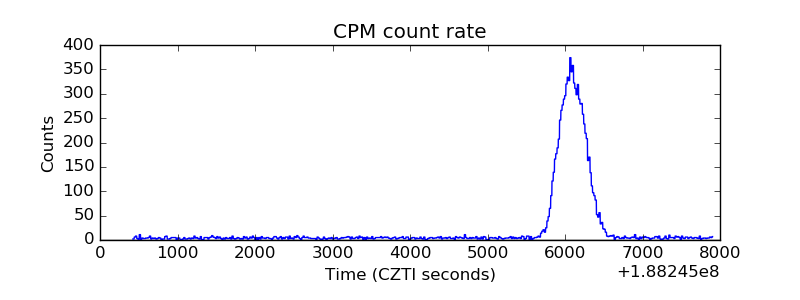

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

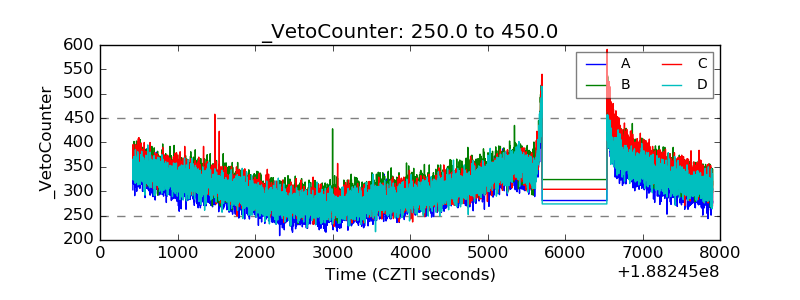

| Veto Counter |  |
