| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_003T01_9000000222_01227cztM0_level2.evt | modeM0/AS1G04_003T01_9000000222_01227cztM0_level2_quad_clean.evt |
| Size (bytes) | 984,407,040 | 101,473,920 |
| Size | 938.8 MB | 96.8 MB |
| Events in quadrant A | 7,416,232 | 663,757 |
| Events in quadrant B | 7,757,827 | 665,204 |
| Events in quadrant C | 7,502,983 | 655,358 |
| Events in quadrant D | 6,713,354 | 644,973 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26533 | 3 |
| B | 0 | 27563 | 2 |
| C | 0 | 26794 | 2 |
| D | 0 | 24504 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6365 | 9 | 0.141398% |
| B | 6365 | 20 | 0.314218% |
| C | 6365 | 15 | 0.235664% |
| D | 6365 | 14 | 0.219953% |

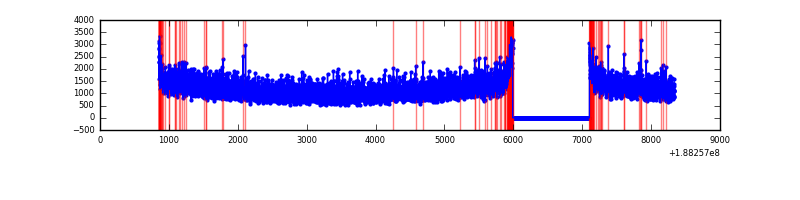

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6366 | 153 | 153 | 2.05% | 2.40% |  |
| B | 7480 | 6366 | 189 | 189 | 2.53% | 2.97% |  |
| C | 7480 | 6365 | 159 | 159 | 2.13% | 2.50% |  |
| D | 7480 | 6366 | 128 | 128 | 1.71% | 2.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 93395 | 201.85 | 1905 | 1918 | 453.2 |
| A | 12 | 243 | 9796 | 17.38 | 1905 | 1918 | 453.2 |
| A | 11 | 79 | 7709 | 12.78 | 1905 | 1918 | 453.2 |
| B | 5 | 191 | 83094 | 175.16 | 1995 | 2002 | 463.0 |
| B | 15 | 22 | 39755 | 81.55 | 1995 | 2002 | 463.0 |
| B | 12 | 52 | 22375 | 44.01 | 1995 | 2002 | 463.0 |
| C | 15 | 241 | 317996 | 627.12 | 1823 | 1888 | 504.1 |
| C | 3 | 111 | 20162 | 36.25 | 1823 | 1888 | 504.1 |
| C | 7 | 159 | 16626 | 29.24 | 1823 | 1888 | 504.1 |
| D | 10 | 84 | 106672 | 196.38 | 1741 | 1805 | 534.0 |
| D | 12 | 22 | 63111 | 114.81 | 1741 | 1805 | 534.0 |
| D | 5 | 171 | 10359 | 16.02 | 1741 | 1805 | 534.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

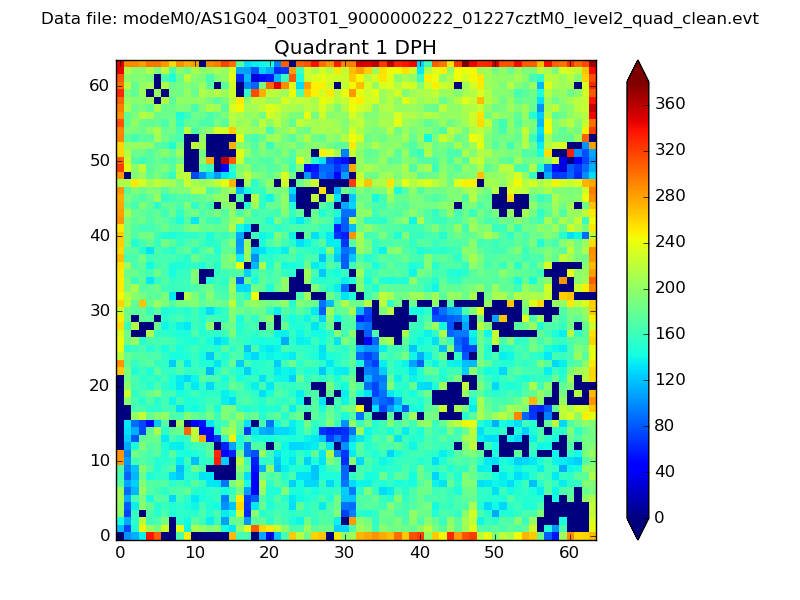

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

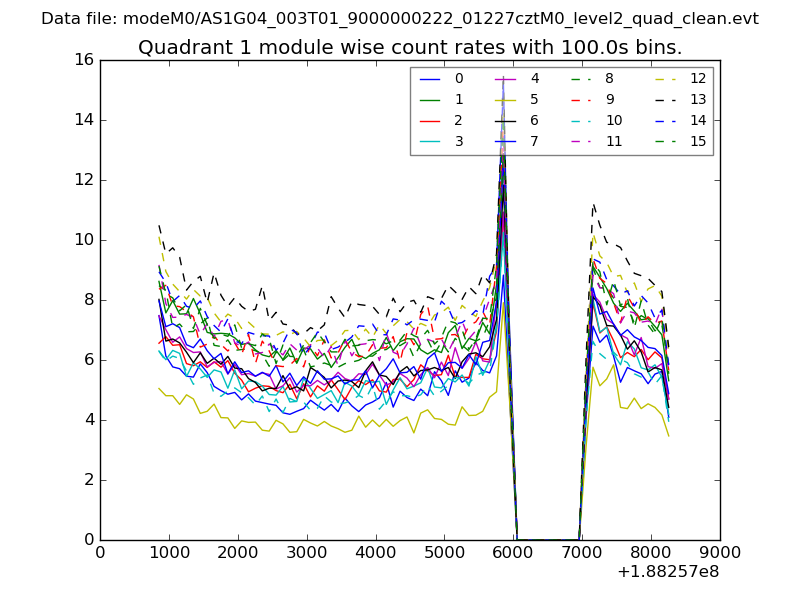

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

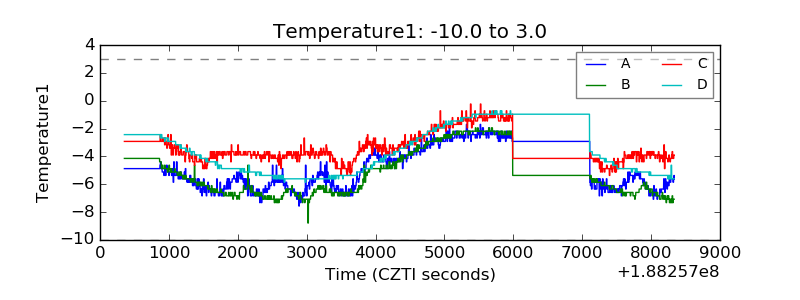

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

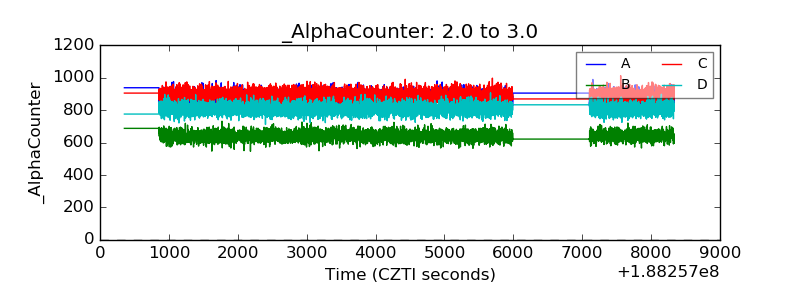

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

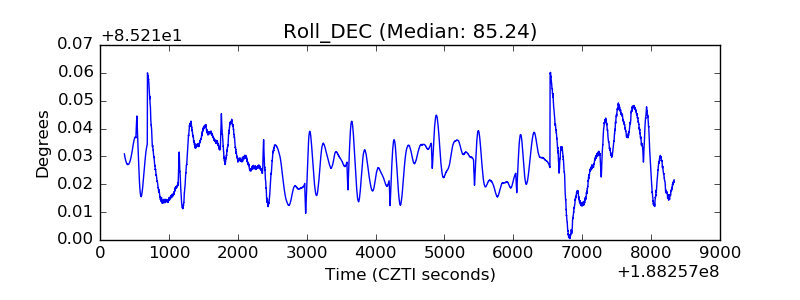

| _Roll_DEC |  |

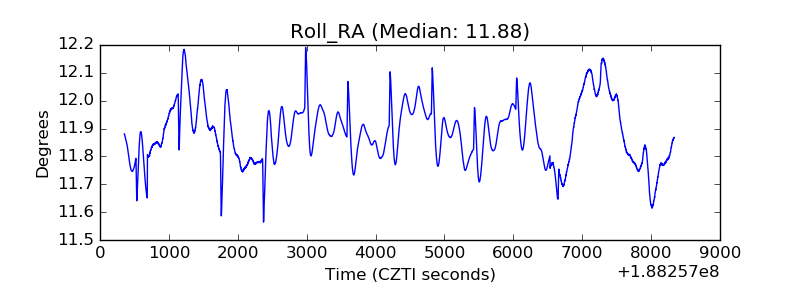

| _Roll_RA |  |

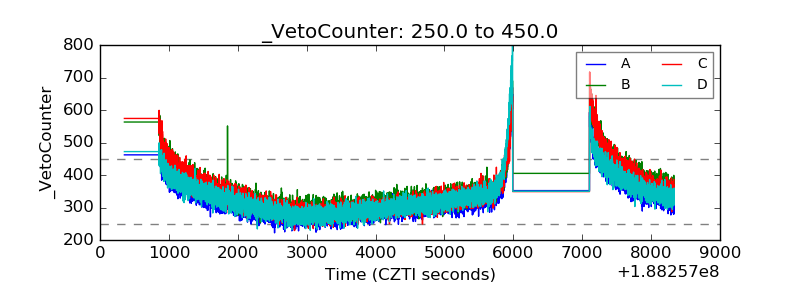

| Veto Counter |  |
