| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_003T02_9000000224_01233cztM0_level2.evt | modeM0/AS1G04_003T02_9000000224_01233cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,104,739,200 | 103,268,160 |
| Size | 1.0 GB | 98.5 MB |
| Events in quadrant A | 8,467,417 | 674,899 |
| Events in quadrant B | 8,837,080 | 676,049 |
| Events in quadrant C | 8,182,084 | 654,259 |
| Events in quadrant D | 7,513,960 | 642,435 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30034 | 3 |
| B | 0 | 31177 | 2 |
| C | 0 | 29201 | 2 |
| D | 0 | 27211 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6879 | 73 | 1.061201% |
| B | 6879 | 54 | 0.784998% |
| C | 6879 | 22 | 0.319814% |
| D | 6879 | 34 | 0.494258% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

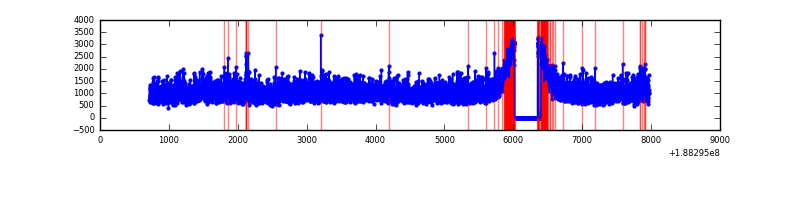

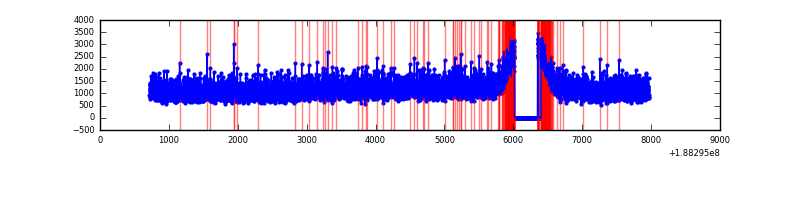

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7249 | 6879 | 362 | 362 | 4.99% | 5.26% |  |
| B | 7249 | 6881 | 427 | 427 | 5.89% | 6.21% |  |
| C | 7249 | 6879 | 275 | 275 | 3.79% | 4.00% |  |
| D | 7249 | 6881 | 238 | 238 | 3.28% | 3.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 243 | 65390 | 119.16 | 2171 | 2180 | 530.5 |
| A | 3 | 80 | 59038 | 107.19 | 2171 | 2180 | 530.5 |
| A | 15 | 233 | 10369 | 15.44 | 2171 | 2180 | 530.5 |
| B | 6 | 53 | 161191 | 301.19 | 2216 | 2223 | 527.8 |
| B | 5 | 191 | 109600 | 203.44 | 2216 | 2223 | 527.8 |
| B | 15 | 22 | 65416 | 119.73 | 2216 | 2223 | 527.8 |
| C | 15 | 241 | 361710 | 651.54 | 1984 | 2048 | 552.0 |
| C | 3 | 111 | 24648 | 40.94 | 1984 | 2048 | 552.0 |
| C | 3 | 79 | 23547 | 38.95 | 1984 | 2048 | 552.0 |
| D | 10 | 84 | 69631 | 110.02 | 1965 | 2034 | 614.4 |
| D | 2 | 170 | 60693 | 95.48 | 1965 | 2034 | 614.4 |
| D | 10 | 85 | 34734 | 53.22 | 1965 | 2034 | 614.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

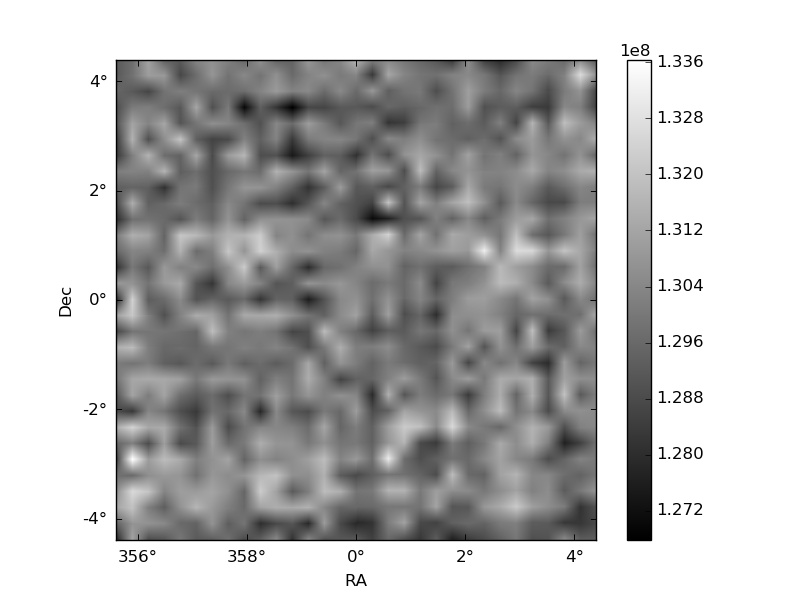

| Plot type | Count rate plots | Images |
|---|---|---|

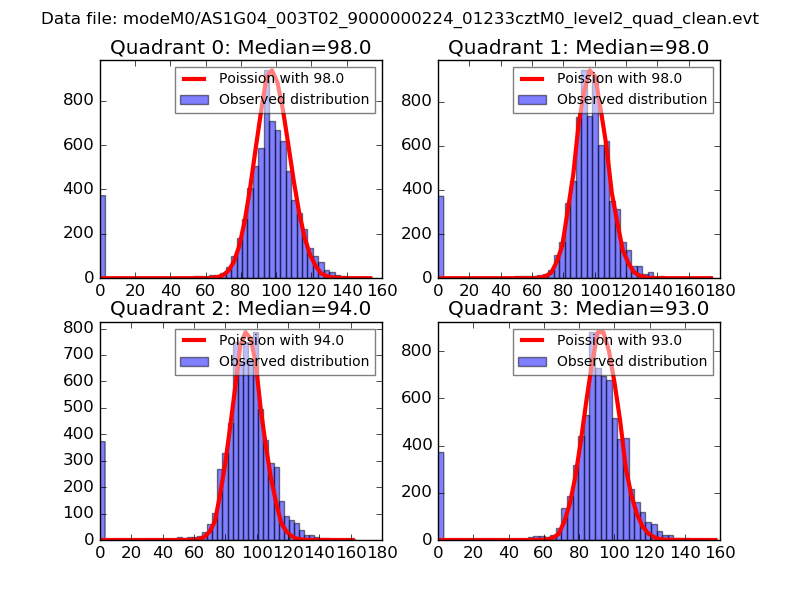

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

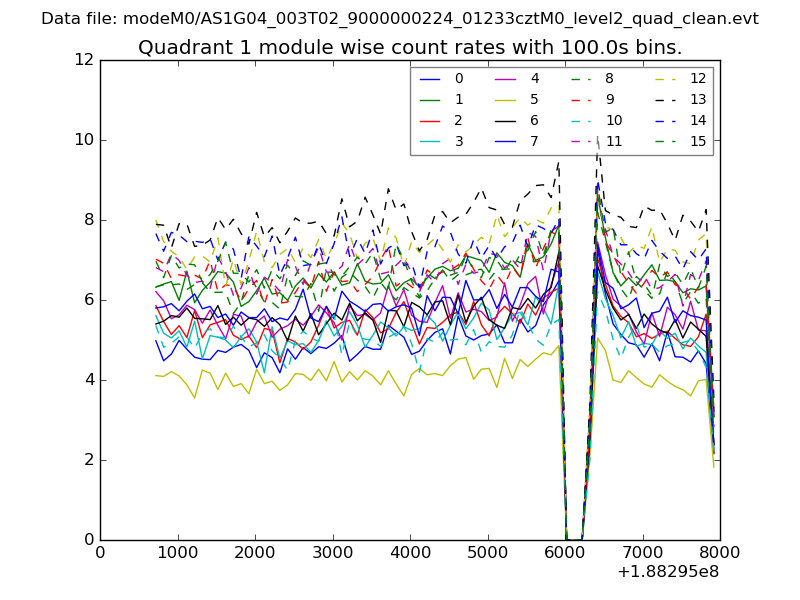

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

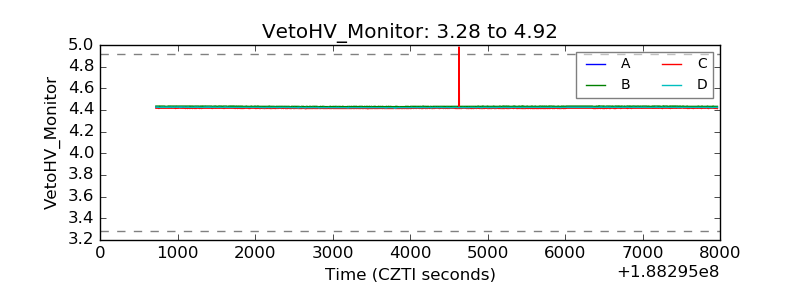

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

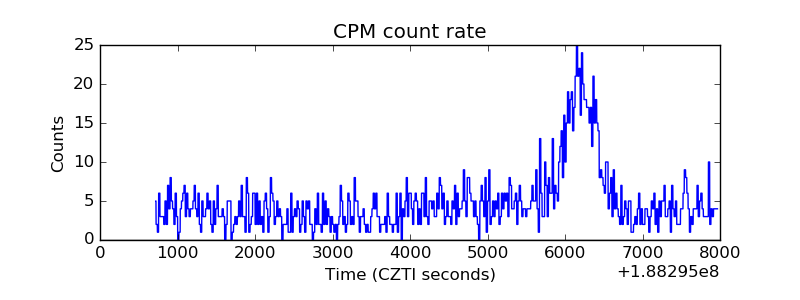

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

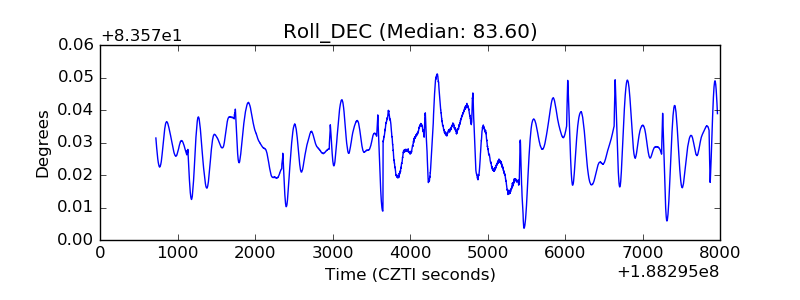

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
