| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01237cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01237cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,339,588,800 | 90,881,280 |
| Size | 1.2 GB | 86.7 MB |
| Events in quadrant A | 7,977,098 | 637,769 |
| Events in quadrant B | 16,257,703 | 432,327 |
| Events in quadrant C | 7,641,831 | 617,685 |
| Events in quadrant D | 8,263,525 | 609,092 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28324 | 2 |
| B | 0 | 53423 | 1 |
| C | 0 | 27310 | 1 |
| D | 0 | 29141 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6505 | 41 | 0.630284% |
| B | 6505 | 3434 | 52.790161% |
| C | 6505 | 5 | 0.076864% |
| D | 6505 | 51 | 0.784012% |

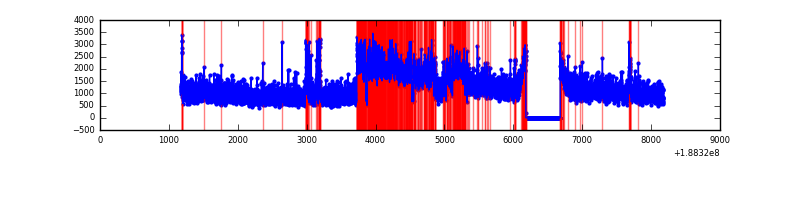

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7005 | 6506 | 233 | 233 | 3.33% | 3.58% |  |
| B | 7004 | 6504 | 4576 | 4576 | 65.33% | 70.36% |  |
| C | 7005 | 6505 | 132 | 132 | 1.88% | 2.03% |  |
| D | 7005 | 6506 | 723 | 723 | 10.32% | 11.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 159251 | 328.11 | 1984 | 2002 | 479.3 |
| A | 12 | 133 | 156939 | 323.29 | 1984 | 2002 | 479.3 |
| A | 12 | 243 | 38304 | 75.75 | 1984 | 2002 | 479.3 |
| B | 2 | 32 | 9483673 | 25696.82 | 1552 | 1556 | 369.0 |
| B | 8 | 4 | 425167 | 1148.0 | 1552 | 1556 | 369.0 |
| B | 5 | 191 | 327367 | 882.96 | 1552 | 1556 | 369.0 |
| C | 15 | 241 | 353692 | 682.9 | 1842 | 1904 | 515.1 |
| C | 9 | 52 | 36467 | 67.09 | 1842 | 1904 | 515.1 |
| C | 3 | 79 | 33552 | 61.44 | 1842 | 1904 | 515.1 |
| D | 1 | 239 | 1288794 | 2296.93 | 1806 | 1876 | 560.3 |
| D | 10 | 84 | 197792 | 349.68 | 1806 | 1876 | 560.3 |
| D | 10 | 215 | 15199 | 23.78 | 1806 | 1876 | 560.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

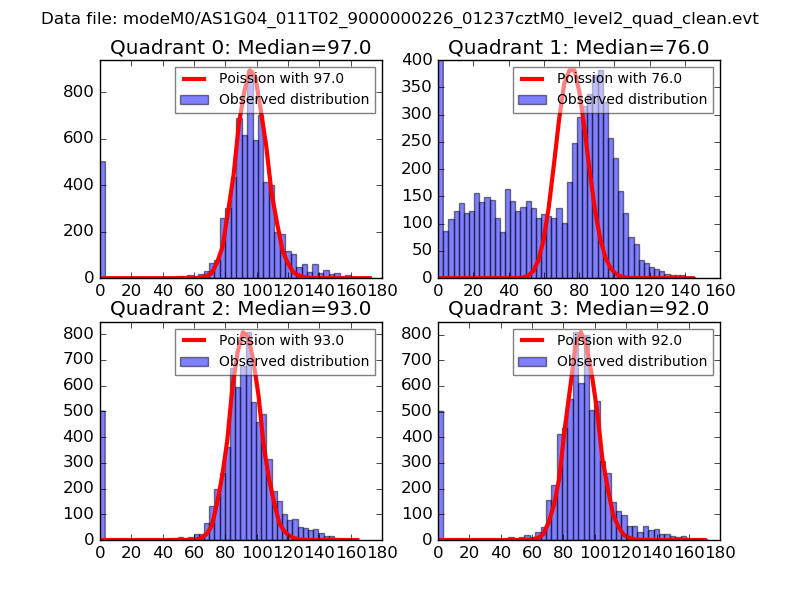

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

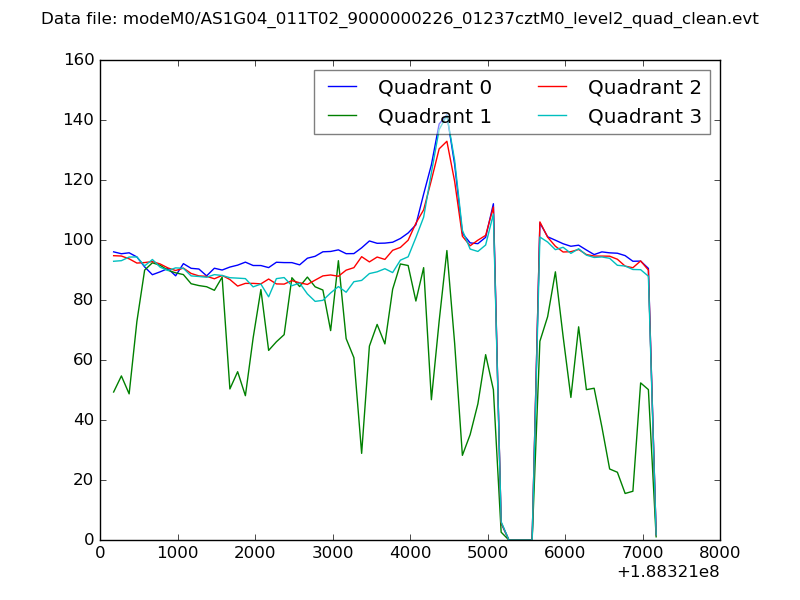

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

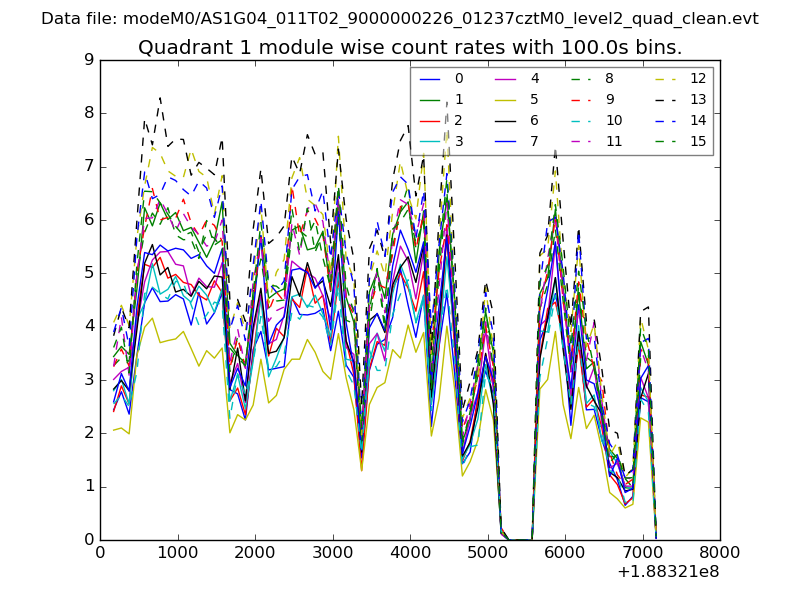

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

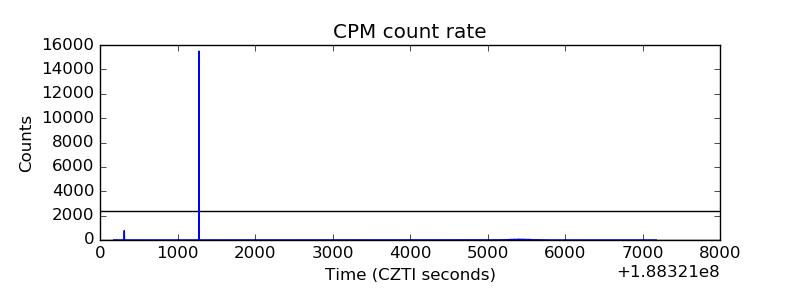

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

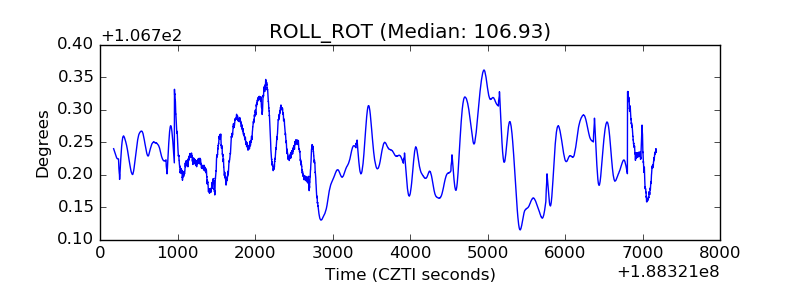

| _ROLL_ROT |  |

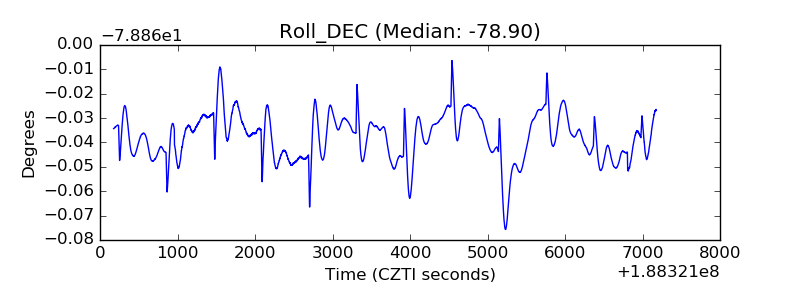

| _Roll_DEC |  |

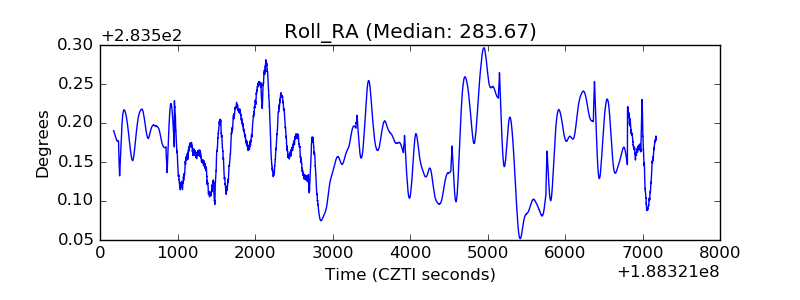

| _Roll_RA |  |
