| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01243cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01243cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,237,006,080 | 87,871,680 |
| Size | 1.2 GB | 83.8 MB |
| Events in quadrant A | 7,142,796 | 638,651 |
| Events in quadrant B | 15,864,995 | 374,388 |
| Events in quadrant C | 7,138,391 | 624,897 |
| Events in quadrant D | 6,928,634 | 611,112 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 14 | 2 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25481 | 105 |
| B | 0 | 52101 | 212 |
| C | 0 | 25460 | 87 |
| D | 0 | 24837 | 84 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5868 | 15 | 0.255624% |
| B | 5867 | 3883 | 66.183740% |
| C | 5871 | 16 | 0.272526% |
| D | 5869 | 35 | 0.596354% |

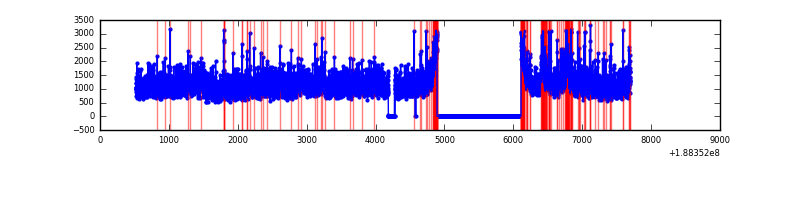

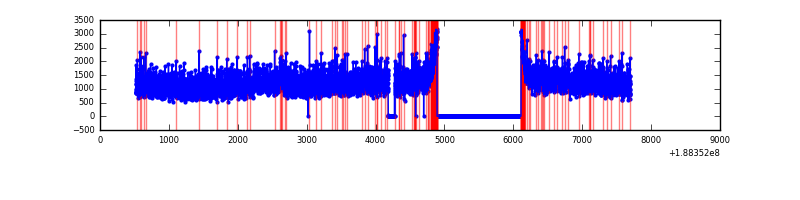

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

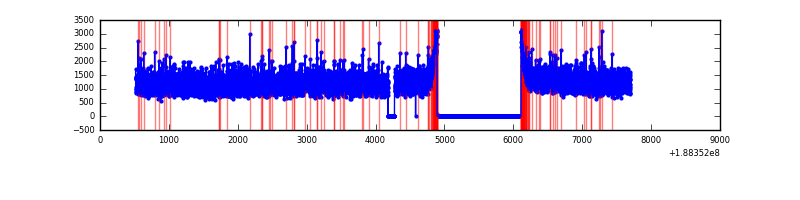

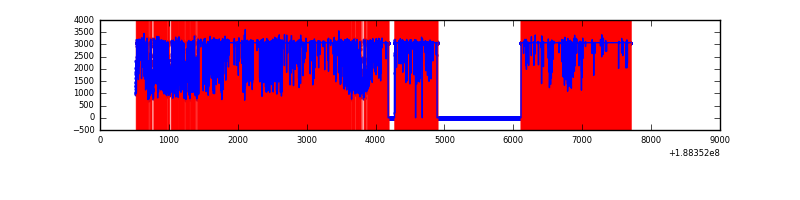

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7184 | 5873 | 177 | 177 | 2.46% | 3.01% |  |
| B | 7183 | 5867 | 4829 | 4829 | 67.23% | 82.31% |  |
| C | 7184 | 5875 | 158 | 158 | 2.20% | 2.69% |  |
| D | 7184 | 5874 | 220 | 220 | 3.06% | 3.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 305400 | 720.59 | 1778 | 1789 | 421.3 |
| A | 12 | 243 | 9092 | 17.33 | 1778 | 1789 | 421.3 |
| A | 11 | 79 | 7575 | 13.73 | 1778 | 1789 | 421.3 |
| B | 2 | 32 | 10889917 | 37924.71 | 1242 | 1245 | 287.1 |
| B | 8 | 4 | 130621 | 450.61 | 1242 | 1245 | 287.1 |
| B | 5 | 191 | 56320 | 191.82 | 1242 | 1245 | 287.1 |
| C | 15 | 241 | 306047 | 633.77 | 1736 | 1800 | 480.1 |
| C | 3 | 111 | 20499 | 38.95 | 1736 | 1800 | 480.1 |
| C | 9 | 52 | 18599 | 34.99 | 1736 | 1800 | 480.1 |
| D | 12 | 79 | 398063 | 780.42 | 1669 | 1728 | 507.8 |
| D | 12 | 22 | 115118 | 223.28 | 1669 | 1728 | 507.8 |
| D | 1 | 239 | 96044 | 185.72 | 1669 | 1728 | 507.8 |

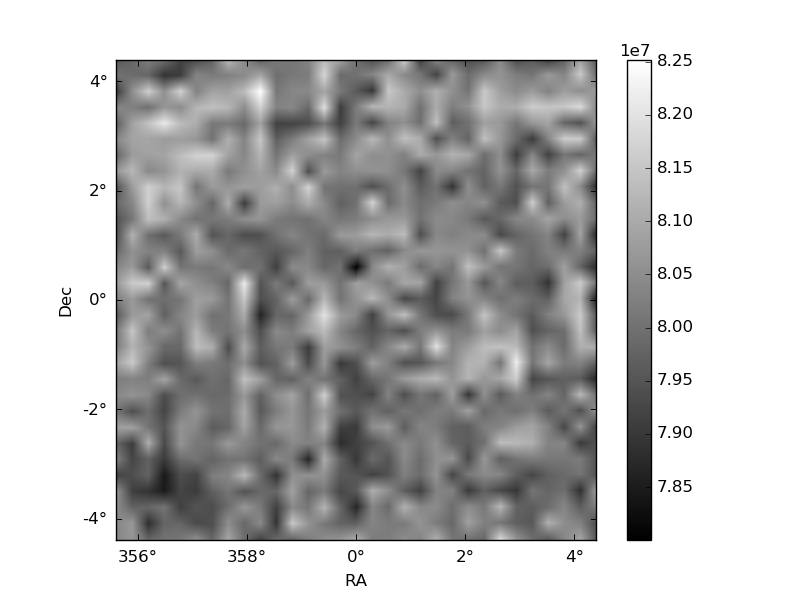

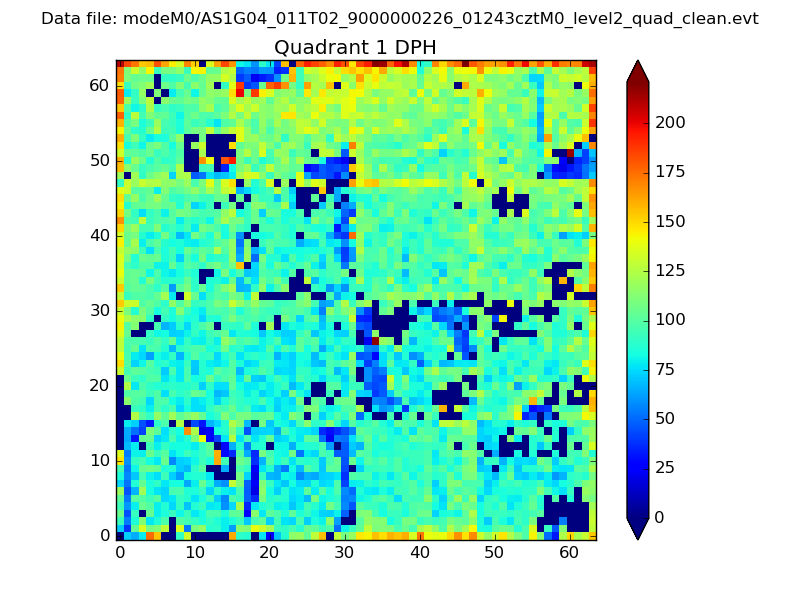

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

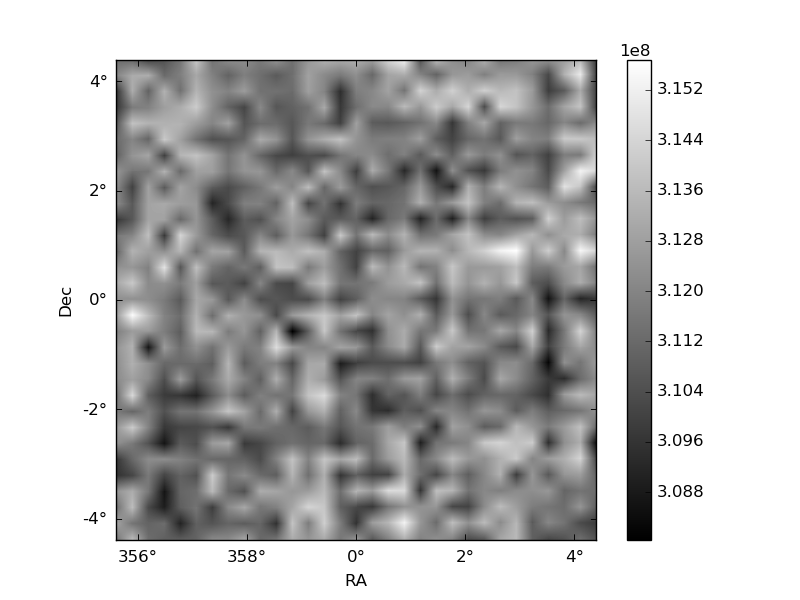

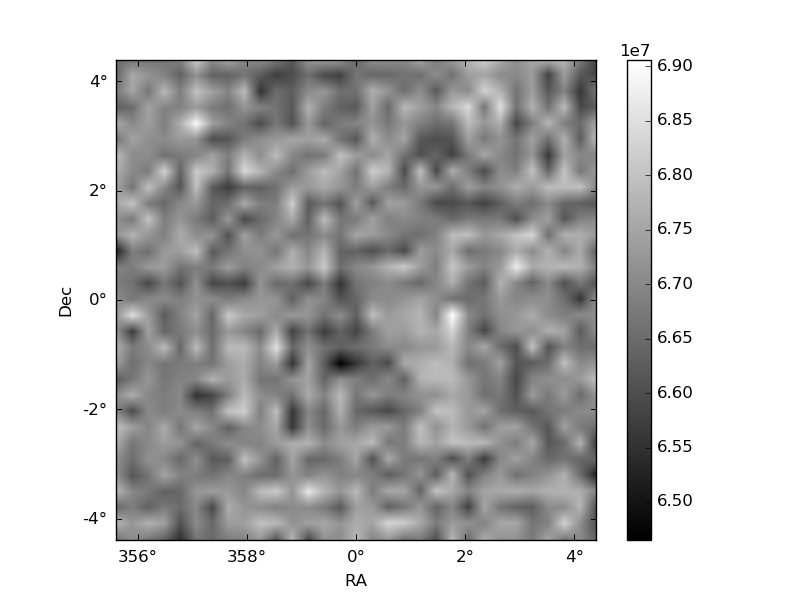

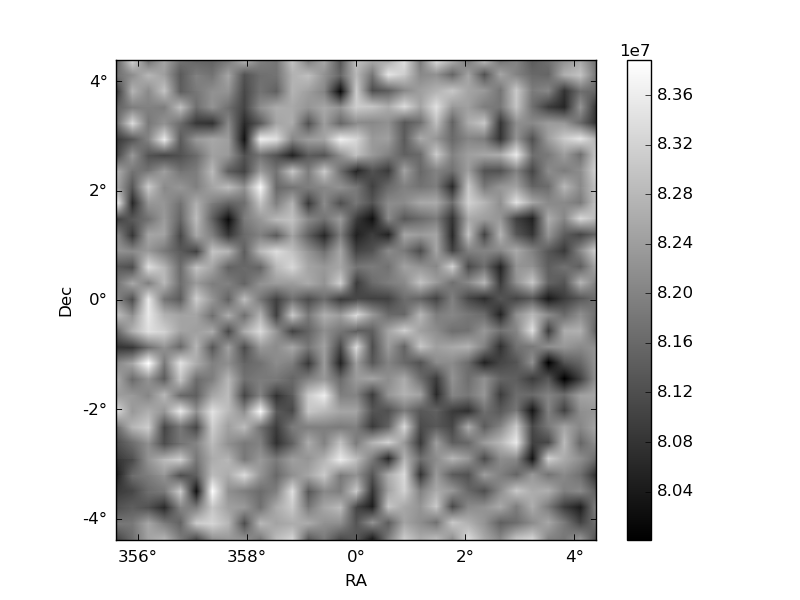

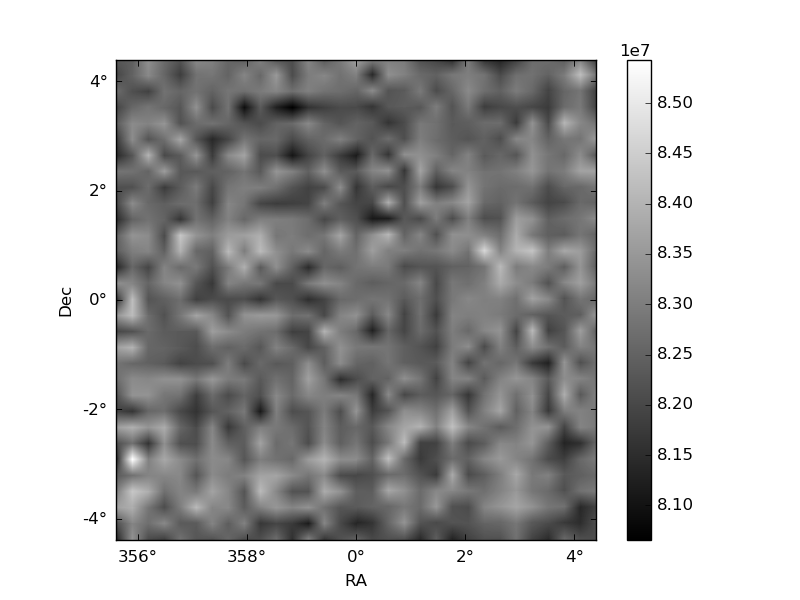

| Plot type | Count rate plots | Images |
|---|---|---|

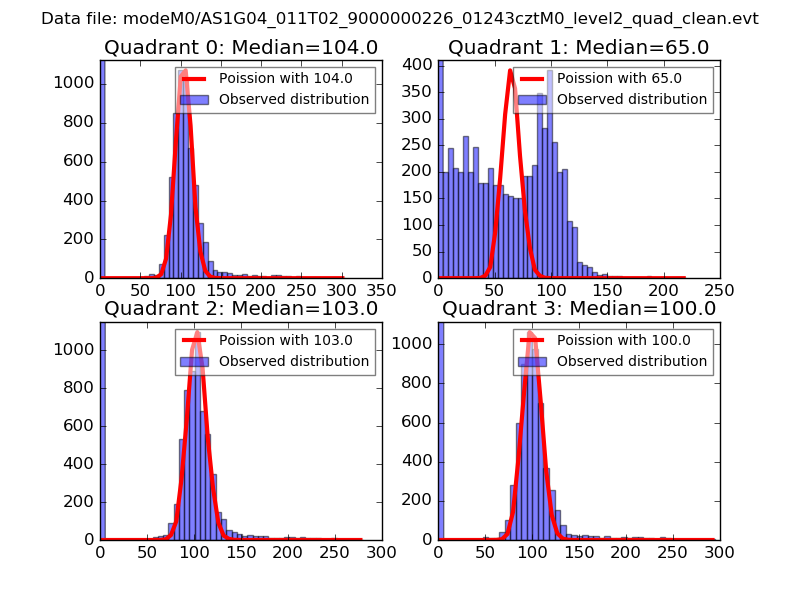

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

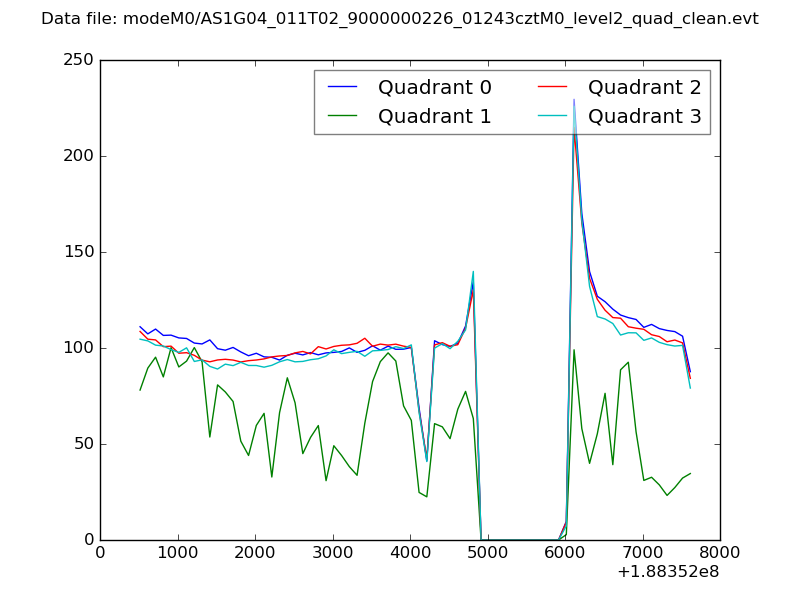

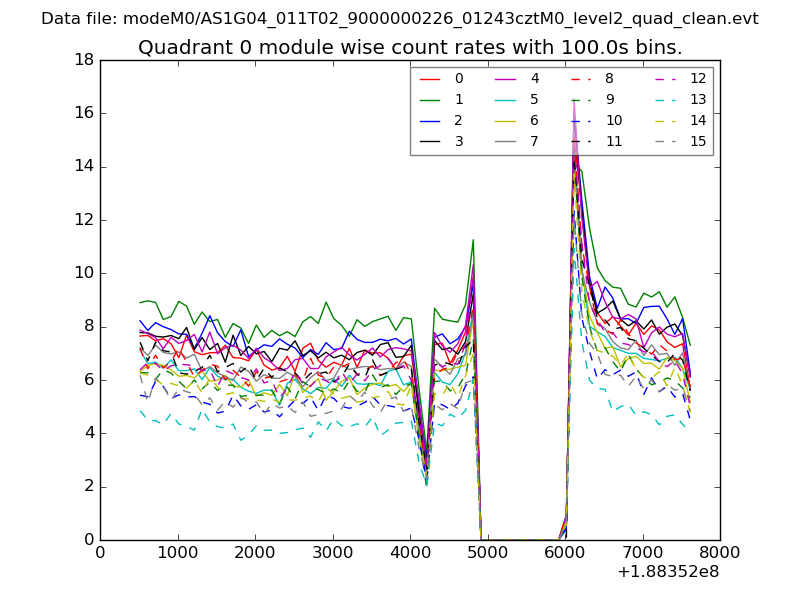

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

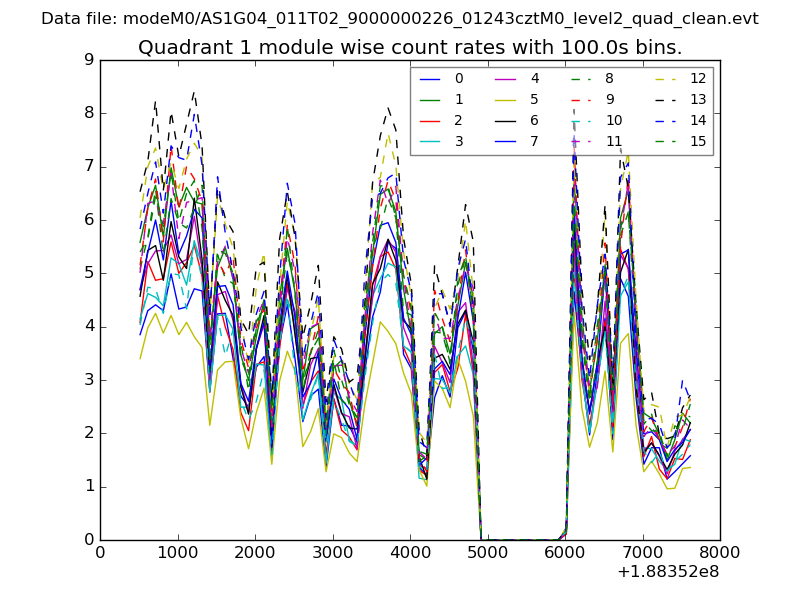

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

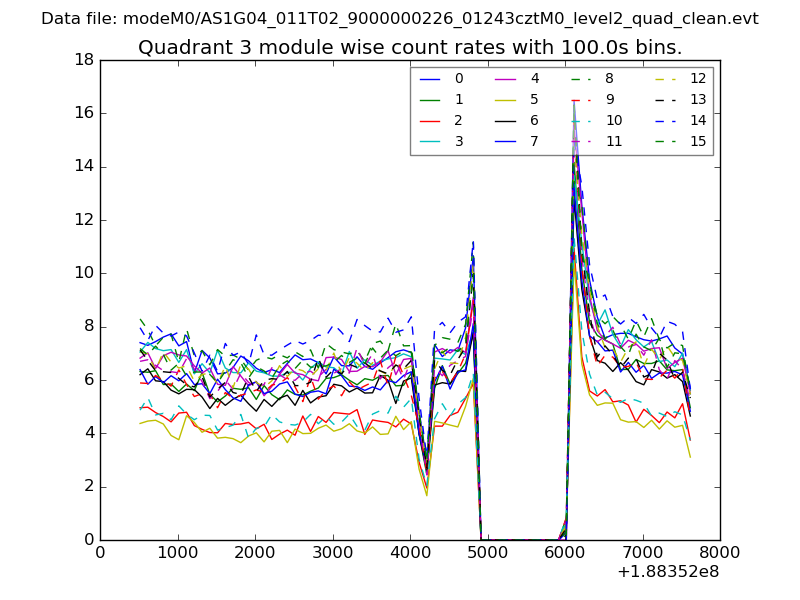

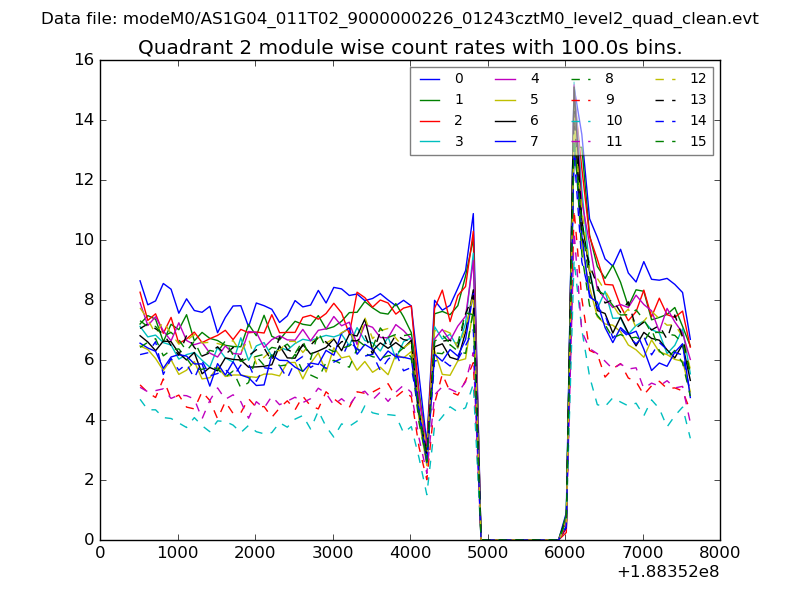

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

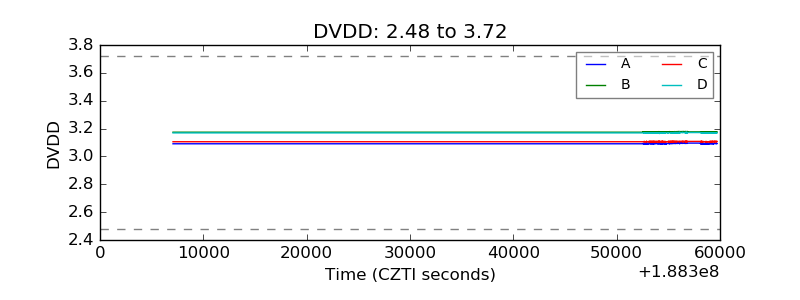

| D_VDD |  |

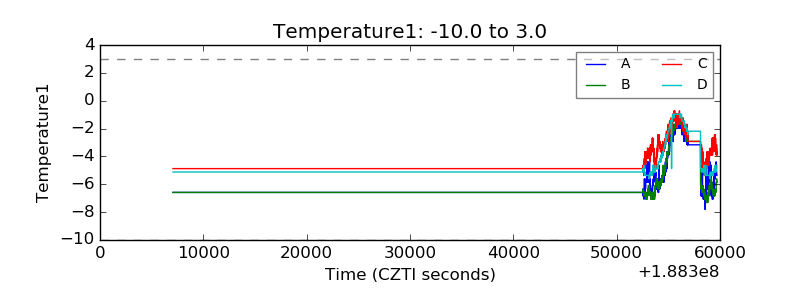

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

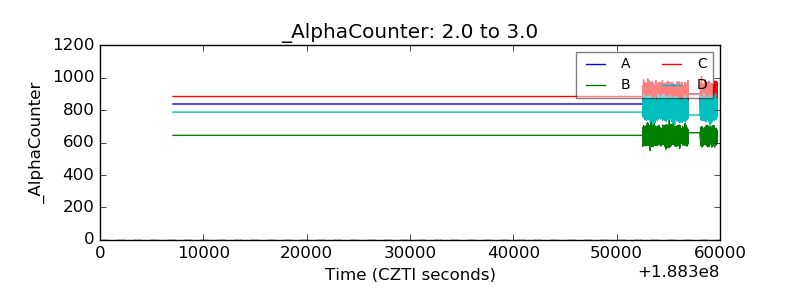

| Alpha Counter |  |

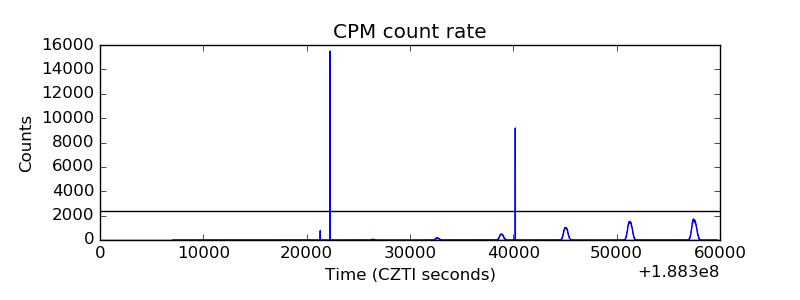

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

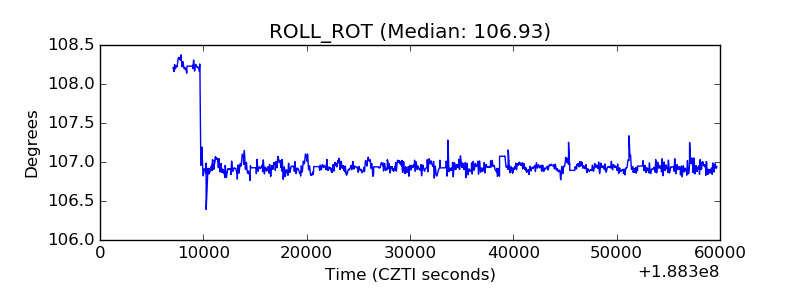

| _ROLL_ROT |  |

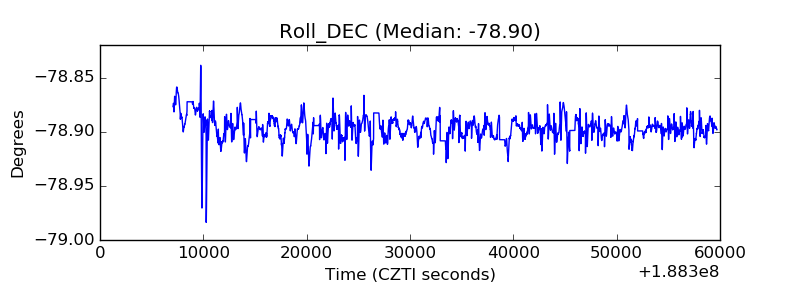

| _Roll_DEC |  |

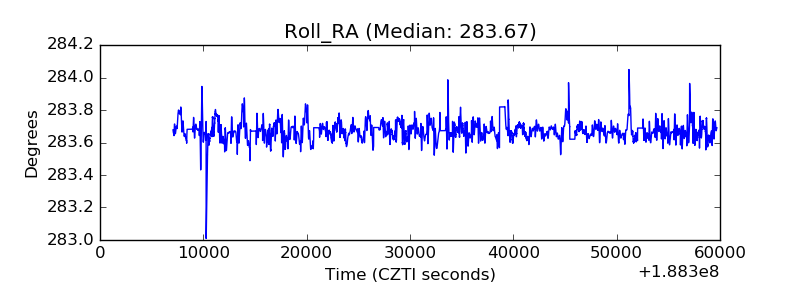

| _Roll_RA |  |

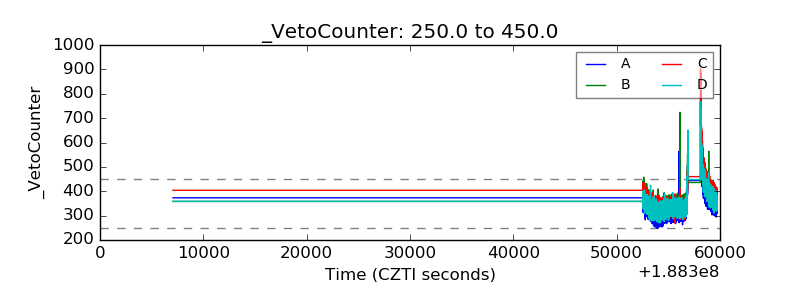

| Veto Counter |  |
