| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01244cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01244cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,175,446,080 | 78,670,080 |
| Size | 1.1 GB | 75.0 MB |
| Events in quadrant A | 6,449,875 | 578,584 |
| Events in quadrant B | 14,228,320 | 341,359 |
| Events in quadrant C | 6,590,579 | 571,133 |
| Events in quadrant D | 7,976,142 | 514,576 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22938 | 2 |
| B | 0 | 46579 | 1 |
| C | 0 | 23341 | 1 |
| D | 0 | 27565 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5356 | 10 | 0.186706% |
| B | 5356 | 3361 | 62.752054% |
| C | 5356 | 13 | 0.242718% |
| D | 5356 | 578 | 10.791636% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6615 | 5356 | 145 | 145 | 2.19% | 2.71% |  |
| B | 6616 | 5356 | 4257 | 4257 | 64.34% | 79.48% |  |
| C | 6616 | 5356 | 152 | 152 | 2.30% | 2.84% |  |
| D | 6616 | 5356 | 983 | 983 | 14.86% | 18.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 75319 | 186.5 | 1657 | 1662 | 394.9 |
| A | 12 | 243 | 14180 | 31.7 | 1657 | 1662 | 394.9 |
| A | 11 | 79 | 7830 | 15.62 | 1657 | 1662 | 394.9 |
| B | 2 | 32 | 9384754 | 34961.16 | 1152 | 1155 | 268.4 |
| B | 8 | 4 | 327917 | 1217.44 | 1152 | 1155 | 268.4 |
| B | 6 | 53 | 49712 | 180.91 | 1152 | 1155 | 268.4 |
| C | 15 | 241 | 278653 | 633.31 | 1597 | 1653 | 437.4 |
| C | 9 | 52 | 30090 | 65.02 | 1597 | 1653 | 437.4 |
| C | 3 | 111 | 19238 | 40.2 | 1597 | 1653 | 437.4 |
| D | 12 | 79 | 1791254 | 4029.13 | 1455 | 1506 | 444.2 |
| D | 1 | 239 | 340871 | 763.99 | 1455 | 1506 | 444.2 |
| D | 10 | 84 | 293566 | 657.49 | 1455 | 1506 | 444.2 |

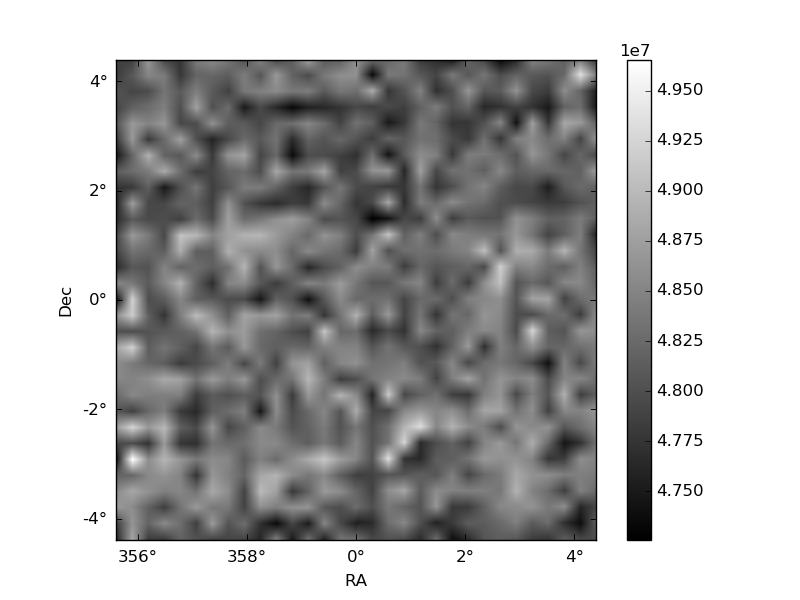

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

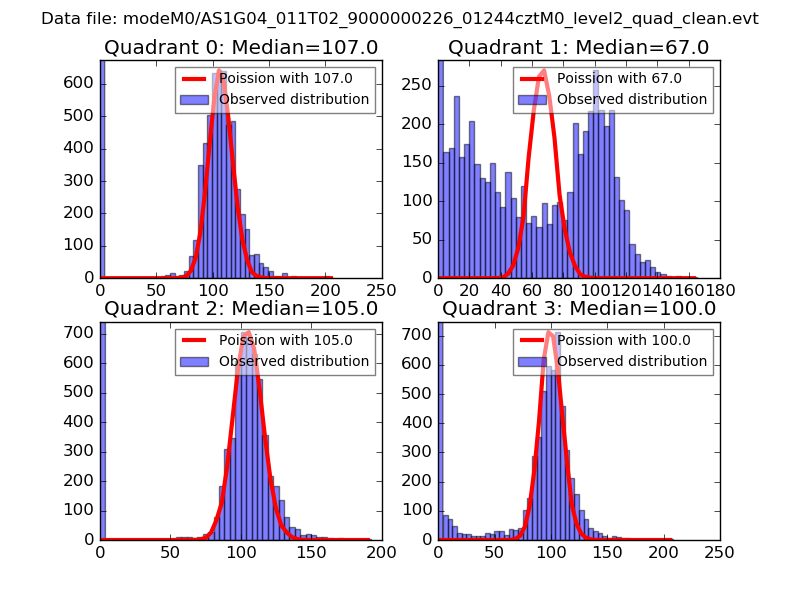

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

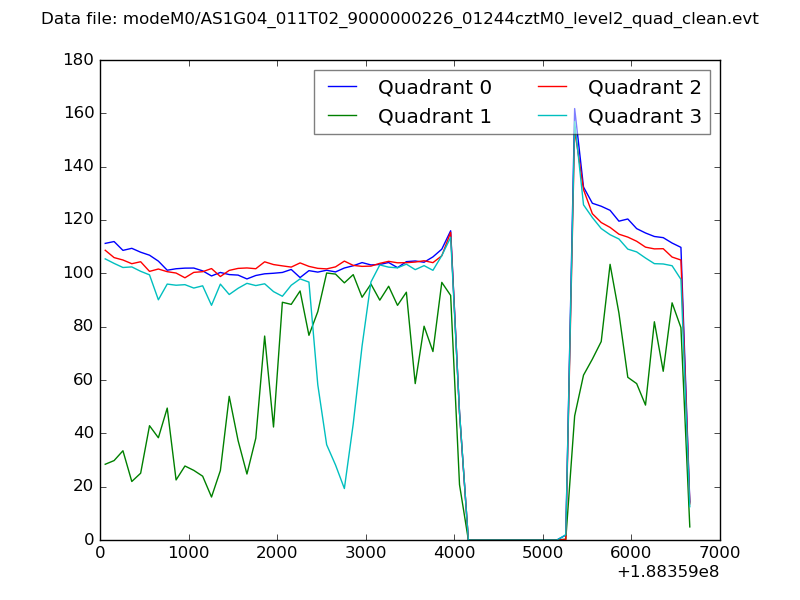

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

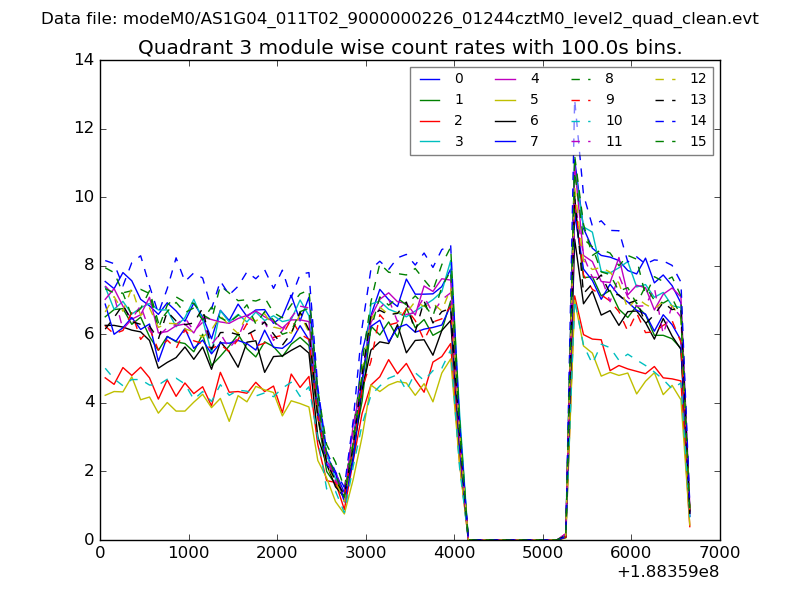

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

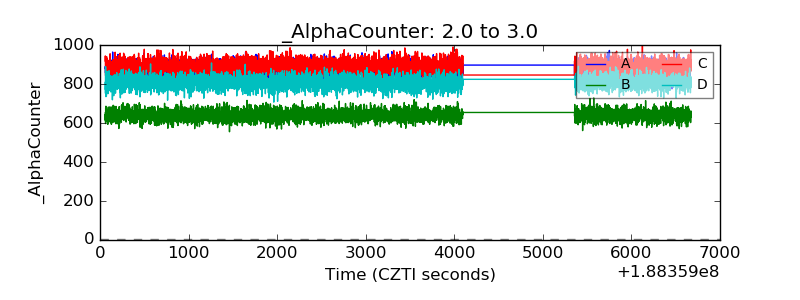

| Alpha Counter |  |
| _CPM_Rate |  |

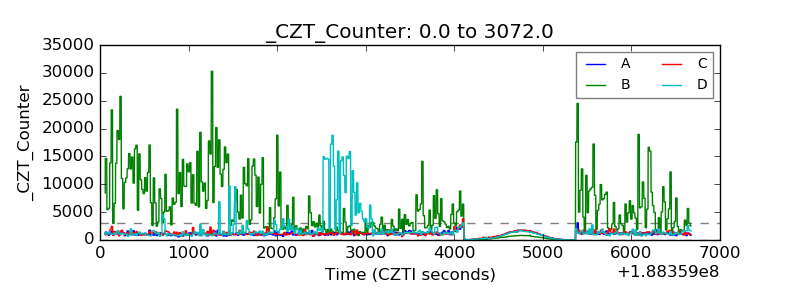

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

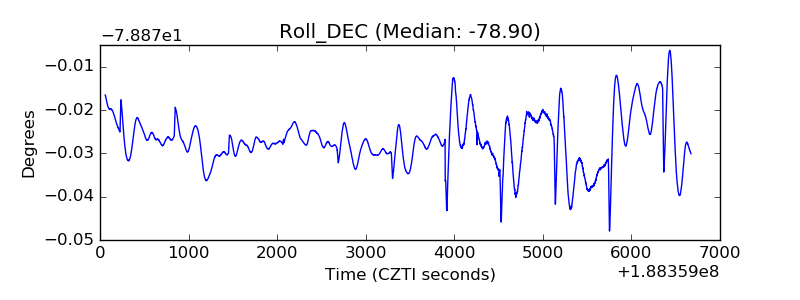

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
