| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01245cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01245cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,287,745,920 | 91,768,320 |
| Size | 1.2 GB | 87.5 MB |
| Events in quadrant A | 7,496,074 | 638,618 |
| Events in quadrant B | 13,897,303 | 502,318 |
| Events in quadrant C | 7,612,202 | 632,681 |
| Events in quadrant D | 9,598,299 | 584,452 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26549 | 2 |
| B | 0 | 45884 | 1 |
| C | 0 | 26872 | 1 |
| D | 0 | 32805 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6010 | 36 | 0.599002% |
| B | 6010 | 2388 | 39.733777% |
| C | 6010 | 41 | 0.682196% |
| D | 6010 | 564 | 9.384359% |

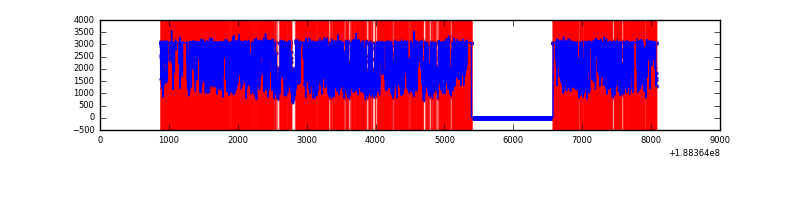

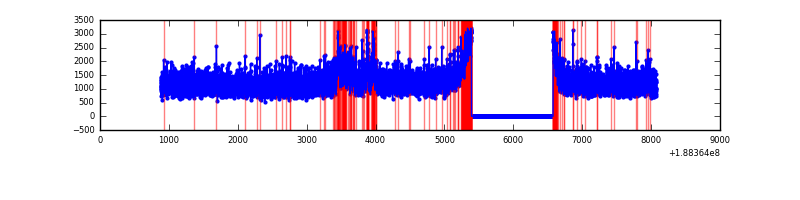

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7195 | 6010 | 289 | 289 | 4.02% | 4.81% |  |
| B | 7195 | 6010 | 3633 | 3633 | 50.49% | 60.45% |  |
| C | 7195 | 6010 | 252 | 252 | 3.50% | 4.19% |  |
| D | 7195 | 6011 | 1271 | 1271 | 17.67% | 21.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 258573 | 569.9 | 1877 | 1886 | 450.4 |
| A | 12 | 243 | 18454 | 36.78 | 1877 | 1886 | 450.4 |
| A | 3 | 80 | 16924 | 33.39 | 1877 | 1886 | 450.4 |
| B | 2 | 32 | 7350833 | 19521.66 | 1615 | 1617 | 376.5 |
| B | 8 | 4 | 185239 | 487.75 | 1615 | 1617 | 376.5 |
| B | 6 | 53 | 68088 | 176.57 | 1615 | 1617 | 376.5 |
| C | 15 | 241 | 317235 | 628.77 | 1816 | 1882 | 501.5 |
| C | 9 | 52 | 143648 | 282.66 | 1816 | 1882 | 501.5 |
| C | 3 | 79 | 25411 | 46.91 | 1816 | 1882 | 501.5 |
| D | 10 | 84 | 1895547 | 3605.86 | 1711 | 1771 | 525.2 |
| D | 1 | 239 | 1034342 | 1966.08 | 1711 | 1771 | 525.2 |
| D | 10 | 85 | 220554 | 416.58 | 1711 | 1771 | 525.2 |

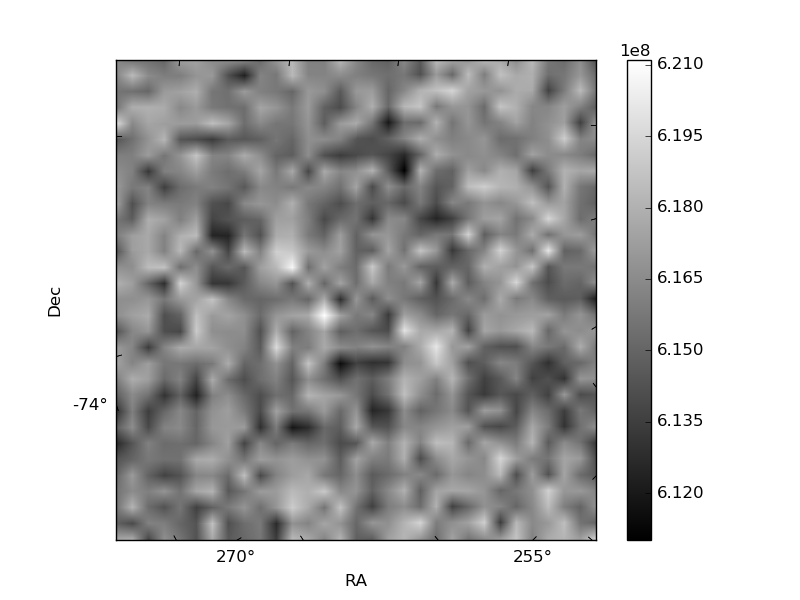

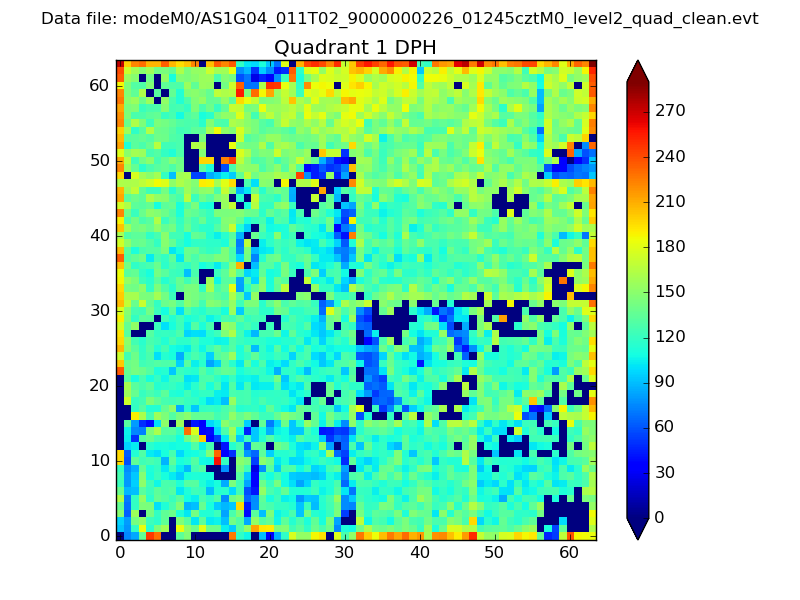

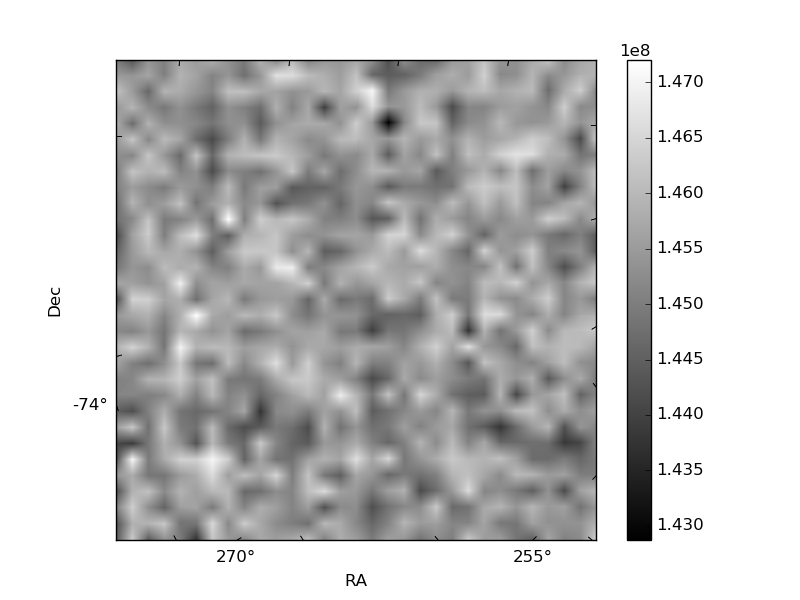

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

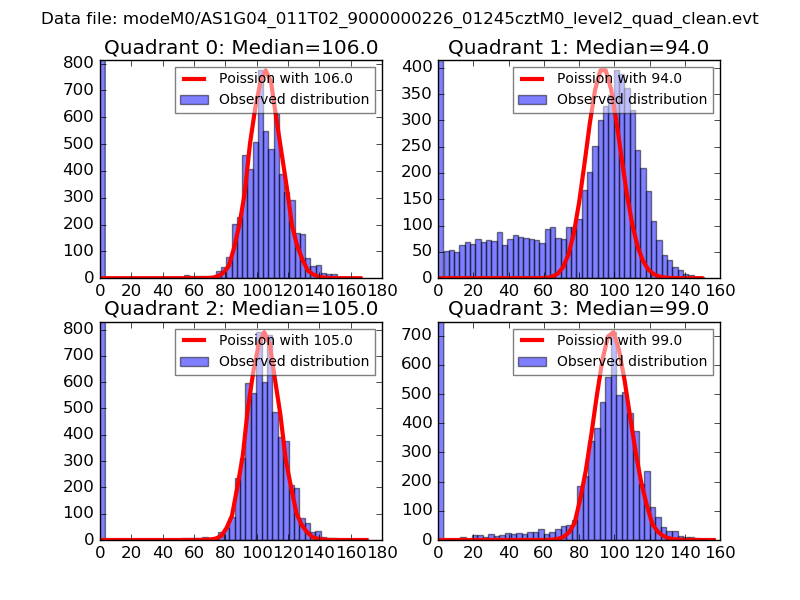

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

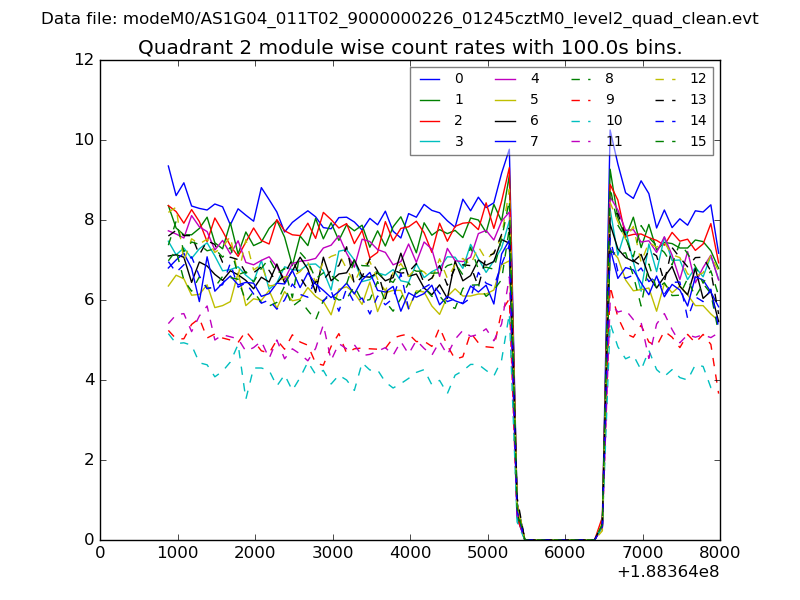

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

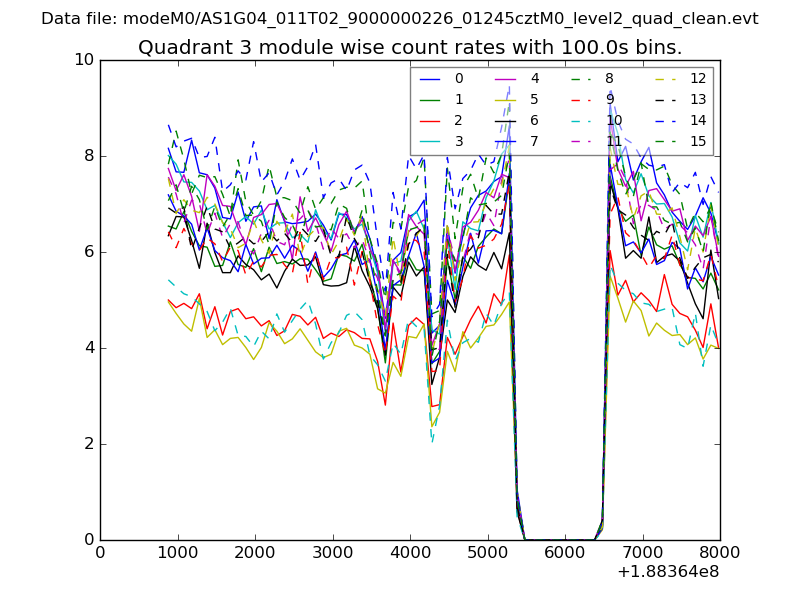

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
