| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01256cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01256cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,124,398,080 | 101,160,000 |
| Size | 1.0 GB | 96.5 MB |
| Events in quadrant A | 7,675,258 | 681,211 |
| Events in quadrant B | 8,792,737 | 660,501 |
| Events in quadrant C | 7,836,086 | 656,609 |
| Events in quadrant D | 9,316,700 | 610,243 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27436 | 3 |
| B | 0 | 30794 | 2 |
| C | 0 | 27965 | 2 |
| D | 0 | 32364 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6520 | 10 | 0.153374% |
| B | 6520 | 196 | 3.006135% |
| C | 6520 | 18 | 0.276074% |
| D | 6520 | 701 | 10.751534% |

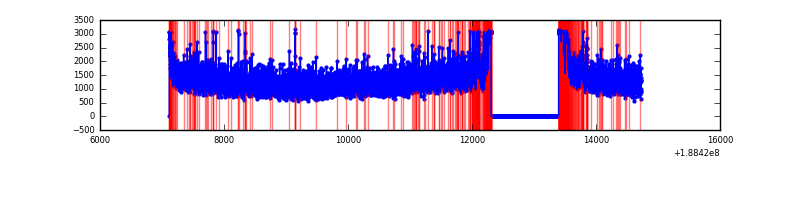

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6520 | 149 | 149 | 1.96% | 2.29% |  |
| B | 7610 | 6520 | 479 | 479 | 6.29% | 7.35% |  |
| C | 7610 | 6520 | 171 | 171 | 2.25% | 2.62% |  |
| D | 7610 | 6520 | 1296 | 1296 | 17.03% | 19.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 9 | 8727 | 13.99 | 1992 | 2004 | 480.6 |
| A | 11 | 79 | 8292 | 13.08 | 1992 | 2004 | 480.6 |
| A | 4 | 32 | 8283 | 13.06 | 1992 | 2004 | 480.6 |
| B | 15 | 188 | 365230 | 754.8 | 2058 | 2066 | 481.1 |
| B | 12 | 52 | 191405 | 393.52 | 2058 | 2066 | 481.1 |
| B | 8 | 4 | 115823 | 236.43 | 2058 | 2066 | 481.1 |
| C | 15 | 241 | 285227 | 540.67 | 1891 | 1956 | 523.9 |
| C | 9 | 52 | 99542 | 186.26 | 1891 | 1956 | 523.9 |
| C | 3 | 79 | 25304 | 44.56 | 1891 | 1956 | 523.9 |
| D | 13 | 169 | 1486166 | 2793.02 | 1719 | 1773 | 531.5 |
| D | 10 | 84 | 1026115 | 1927.39 | 1719 | 1773 | 531.5 |
| D | 13 | 205 | 254625 | 475.76 | 1719 | 1773 | 531.5 |

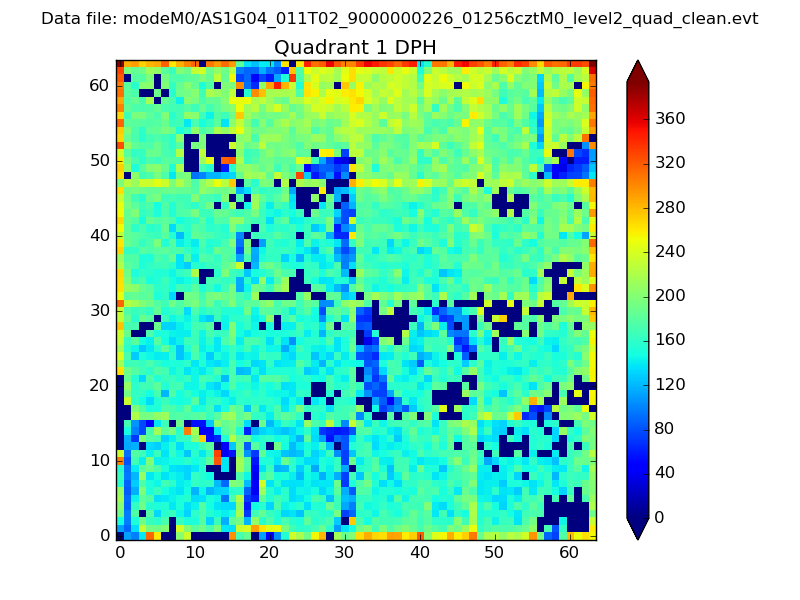

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

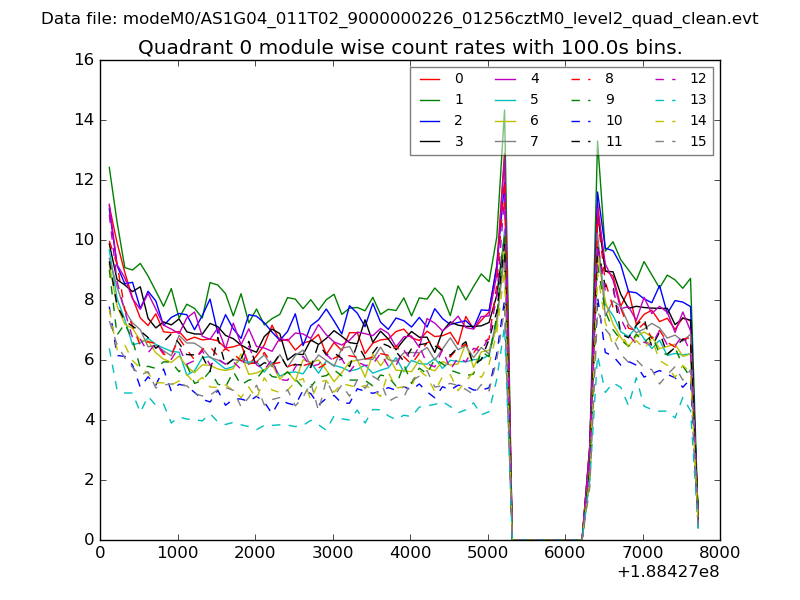

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

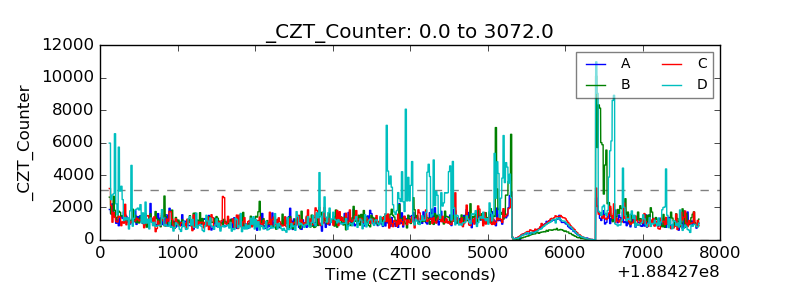

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

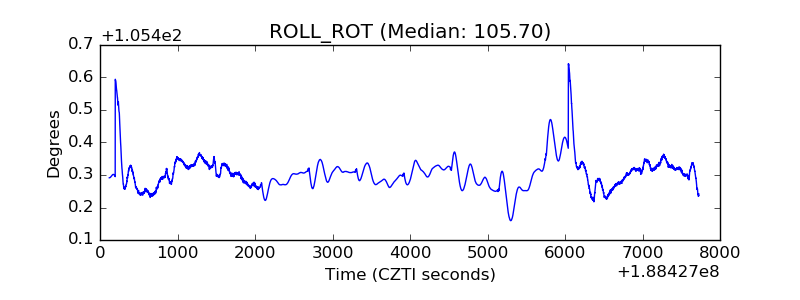

| _ROLL_ROT |  |

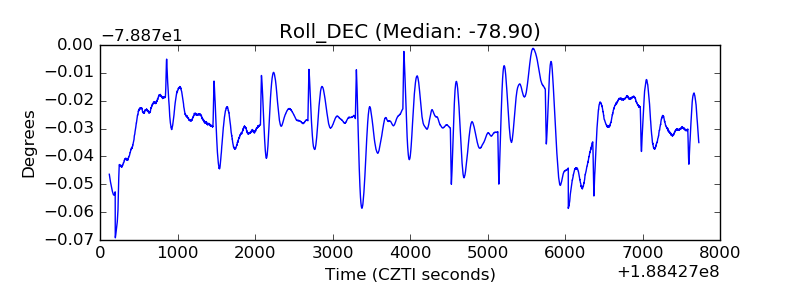

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
