| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01257cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01257cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,171,272,960 | 98,876,160 |
| Size | 1.1 GB | 94.3 MB |
| Events in quadrant A | 7,428,708 | 678,763 |
| Events in quadrant B | 8,830,906 | 666,536 |
| Events in quadrant C | 7,797,403 | 661,570 |
| Events in quadrant D | 10,995,250 | 544,069 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26546 | 3 |
| B | 0 | 30730 | 2 |
| C | 0 | 27662 | 2 |
| D | 0 | 37472 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6345 | 4 | 0.063042% |
| B | 6345 | 221 | 3.483058% |
| C | 6345 | 11 | 0.173365% |
| D | 6345 | 1893 | 29.834515% |

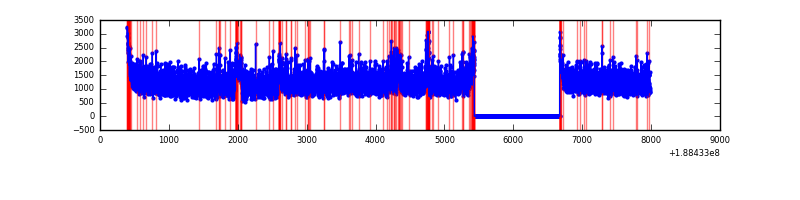

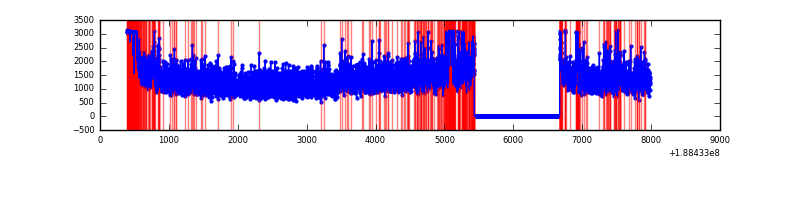

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7585 | 6344 | 124 | 124 | 1.63% | 1.95% |  |
| B | 7585 | 6344 | 550 | 550 | 7.25% | 8.67% |  |
| C | 7585 | 6344 | 182 | 182 | 2.40% | 2.87% |  |
| D | 7585 | 6344 | 2156 | 2156 | 28.42% | 33.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 234 | 17328 | 33.51 | 1925 | 1942 | 459.2 |
| A | 12 | 243 | 11197 | 20.16 | 1925 | 1942 | 459.2 |
| A | 13 | 9 | 9128 | 15.65 | 1925 | 1942 | 459.2 |
| B | 15 | 188 | 492724 | 1056.7 | 2001 | 2011 | 464.4 |
| B | 12 | 52 | 250771 | 535.68 | 2001 | 2011 | 464.4 |
| B | 8 | 4 | 164031 | 348.89 | 2001 | 2011 | 464.4 |
| C | 15 | 241 | 279622 | 541.34 | 1855 | 1917 | 513.0 |
| C | 9 | 52 | 204230 | 394.38 | 1855 | 1917 | 513.0 |
| C | 3 | 79 | 26944 | 48.79 | 1855 | 1917 | 513.0 |
| D | 13 | 169 | 2723316 | 5745.47 | 1552 | 1608 | 473.7 |
| D | 12 | 22 | 1796472 | 3788.92 | 1552 | 1608 | 473.7 |
| D | 10 | 84 | 545821 | 1148.82 | 1552 | 1608 | 473.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

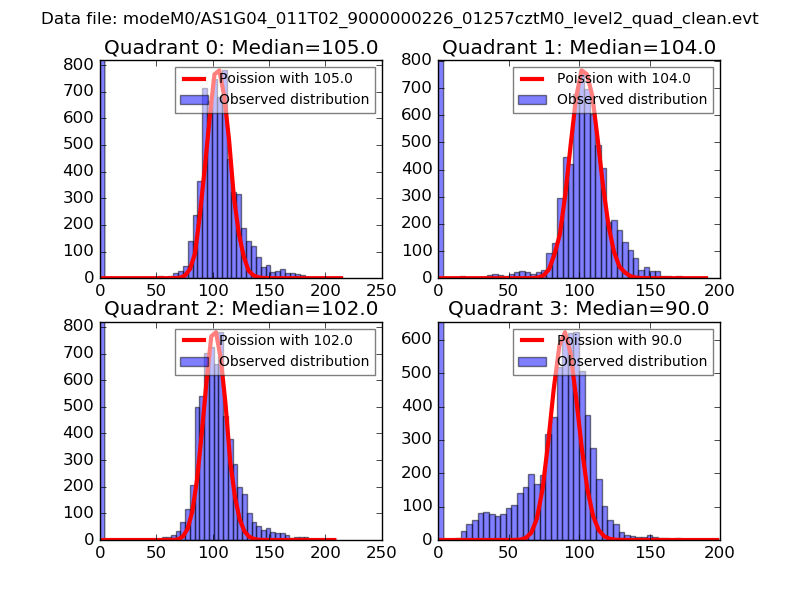

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

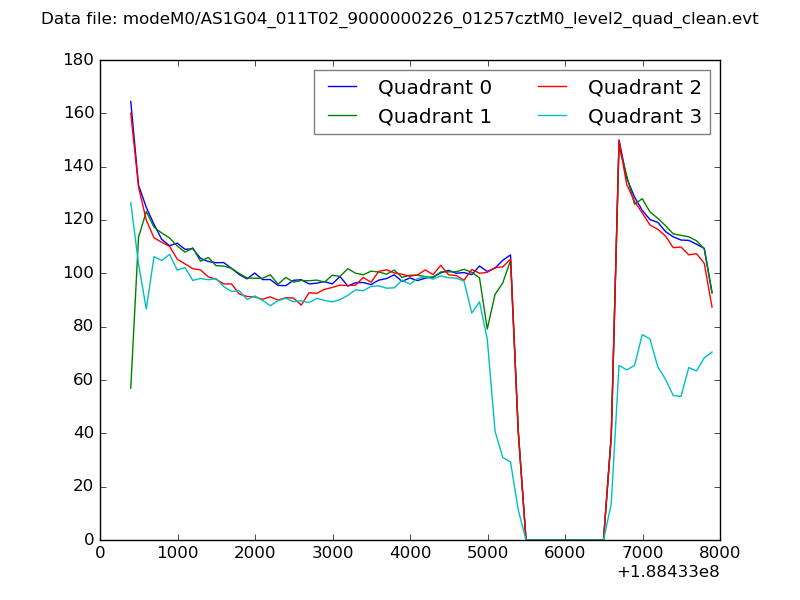

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

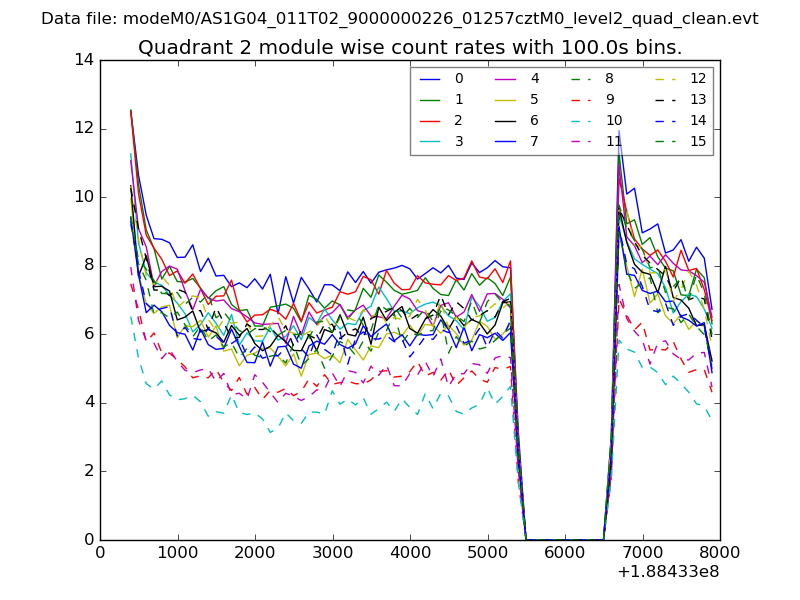

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

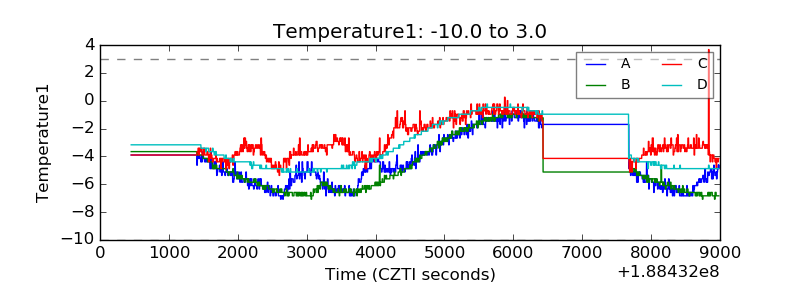

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

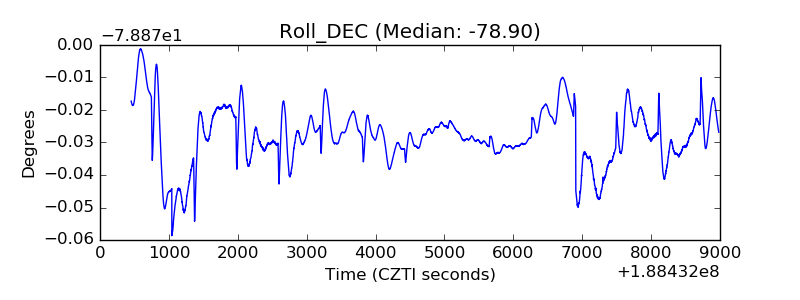

| _Roll_DEC |  |
| _Roll_RA |  |

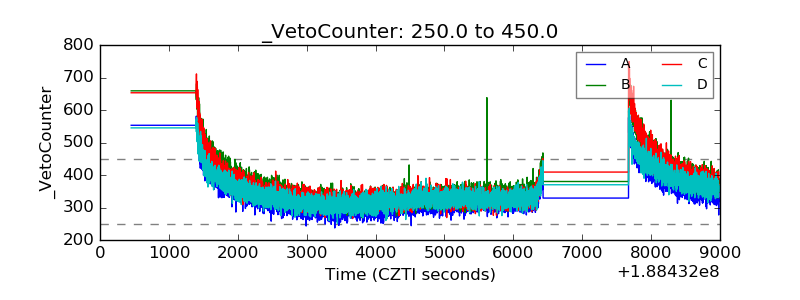

| Veto Counter |  |
