| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01273cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01273cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,125,532,800 | 94,959,360 |
| Size | 1.0 GB | 90.6 MB |
| Events in quadrant A | 6,860,925 | 637,152 |
| Events in quadrant B | 8,115,344 | 641,445 |
| Events in quadrant C | 7,221,470 | 626,037 |
| Events in quadrant D | 11,505,591 | 564,213 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24502 | 2 |
| B | 0 | 28239 | 1 |
| C | 0 | 25545 | 1 |
| D | 0 | 38319 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5821 | 6 | 0.103075% |
| B | 5821 | 110 | 1.889710% |
| C | 5821 | 12 | 0.206150% |
| D | 5821 | 759 | 13.038997% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7101 | 5822 | 143 | 143 | 2.01% | 2.46% |  |
| B | 7101 | 5822 | 506 | 506 | 7.13% | 8.69% |  |
| C | 7101 | 5822 | 171 | 171 | 2.41% | 2.94% |  |
| D | 7101 | 5821 | 2446 | 2446 | 34.45% | 42.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 243 | 7010 | 12.32 | 1784 | 1794 | 423.2 |
| A | 11 | 79 | 6770 | 11.76 | 1784 | 1794 | 423.2 |
| A | 3 | 111 | 5445 | 8.63 | 1784 | 1794 | 423.2 |
| B | 8 | 4 | 747959 | 1742.17 | 1852 | 1859 | 428.3 |
| B | 12 | 52 | 129789 | 298.72 | 1852 | 1859 | 428.3 |
| B | 6 | 53 | 100613 | 230.59 | 1852 | 1859 | 428.3 |
| C | 15 | 241 | 268562 | 555.26 | 1744 | 1805 | 480.4 |
| C | 8 | 208 | 50442 | 101.24 | 1744 | 1805 | 480.4 |
| C | 3 | 79 | 27398 | 53.27 | 1744 | 1805 | 480.4 |
| D | 13 | 169 | 5194001 | 10609.38 | 1614 | 1675 | 489.4 |
| D | 10 | 84 | 177298 | 358.85 | 1614 | 1675 | 489.4 |
| D | 13 | 205 | 49035 | 96.77 | 1614 | 1675 | 489.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

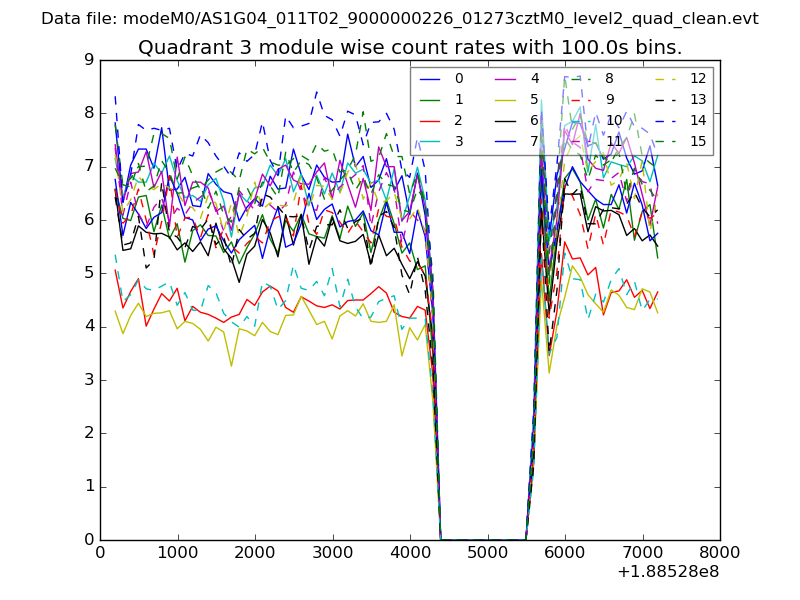

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

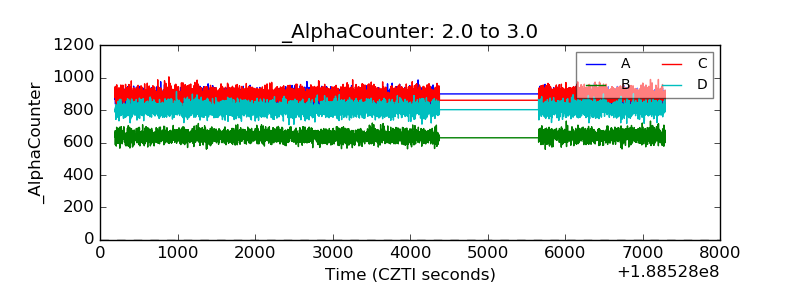

| Alpha Counter |  |

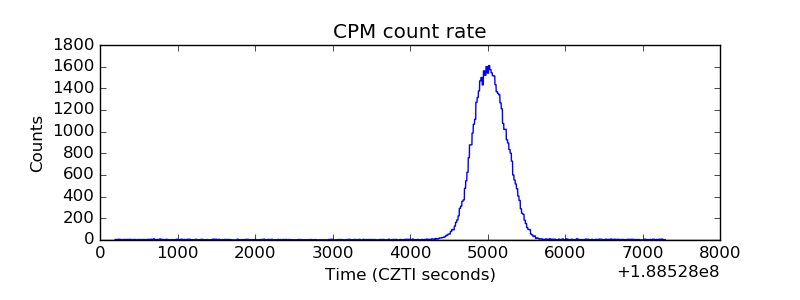

| _CPM_Rate |  |
| CZT Counter |  |

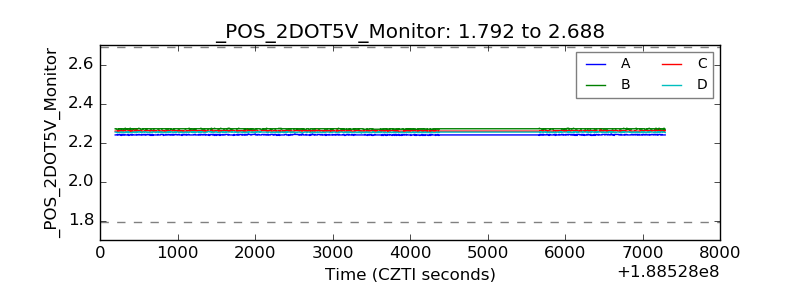

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

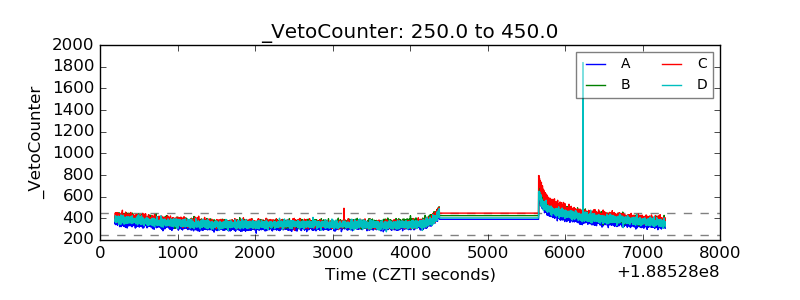

| Veto Counter |  |
