| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01276cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01276cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,318,878,720 | 93,407,040 |
| Size | 1.2 GB | 89.1 MB |
| Events in quadrant A | 7,444,785 | 632,308 |
| Events in quadrant B | 8,802,471 | 628,042 |
| Events in quadrant C | 7,680,400 | 625,471 |
| Events in quadrant D | 15,603,931 | 506,023 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26561 | 2 |
| B | 0 | 30604 | 1 |
| C | 0 | 27195 | 1 |
| D | 0 | 51094 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6247 | 18 | 0.288138% |
| B | 6247 | 73 | 1.168561% |
| C | 6247 | 15 | 0.240115% |
| D | 6247 | 2468 | 39.506963% |

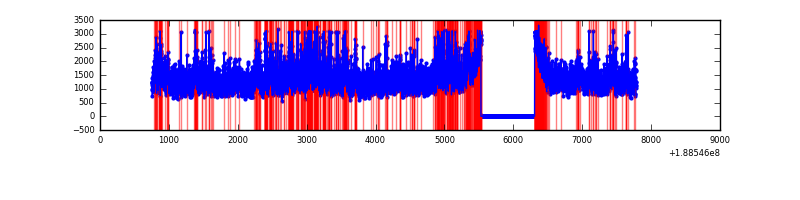

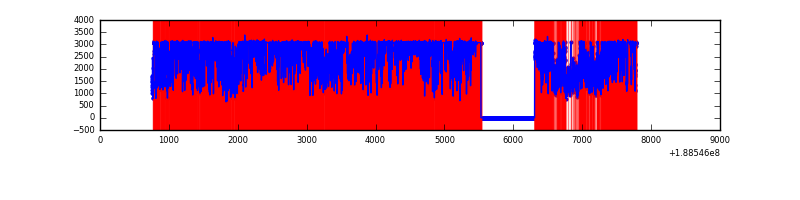

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7027 | 6248 | 211 | 211 | 3.00% | 3.38% |  |
| B | 7027 | 6248 | 666 | 666 | 9.48% | 10.66% |  |
| C | 7027 | 6248 | 240 | 240 | 3.42% | 3.84% |  |
| D | 7026 | 6246 | 4657 | 4657 | 66.28% | 74.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 243 | 10409 | 18.18 | 1932 | 1945 | 465.6 |
| A | 11 | 79 | 9299 | 15.79 | 1932 | 1945 | 465.6 |
| A | 13 | 9 | 7524 | 11.98 | 1932 | 1945 | 465.6 |
| B | 8 | 4 | 831757 | 1768.92 | 1994 | 2001 | 469.1 |
| B | 12 | 52 | 213837 | 451.6 | 1994 | 2001 | 469.1 |
| B | 6 | 53 | 64209 | 132.62 | 1994 | 2001 | 469.1 |
| C | 15 | 241 | 304592 | 594.56 | 1833 | 1891 | 509.1 |
| C | 8 | 208 | 142729 | 276.63 | 1833 | 1891 | 509.1 |
| C | 3 | 79 | 34285 | 63.63 | 1833 | 1891 | 509.1 |
| D | 13 | 169 | 8157046 | 16421.72 | 1601 | 1658 | 496.6 |
| D | 10 | 84 | 1183828 | 2380.42 | 1601 | 1658 | 496.6 |
| D | 1 | 83 | 158894 | 316.61 | 1601 | 1658 | 496.6 |

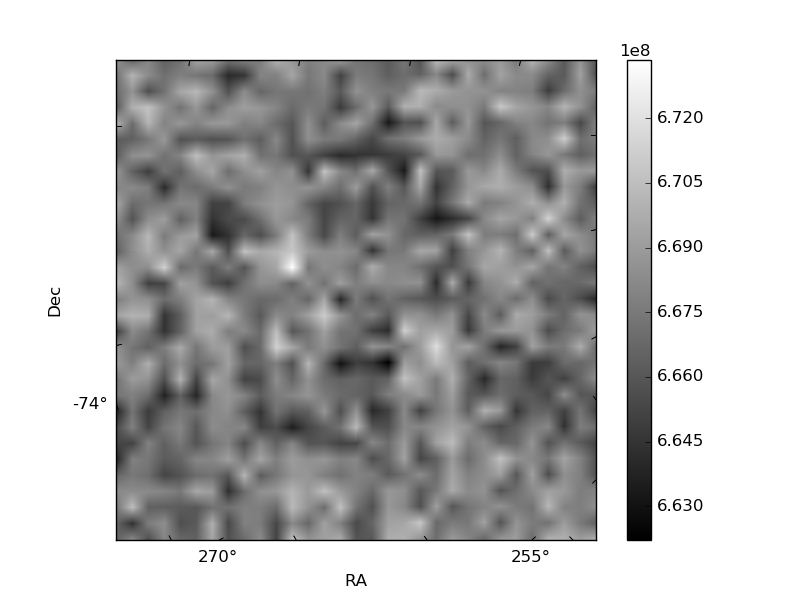

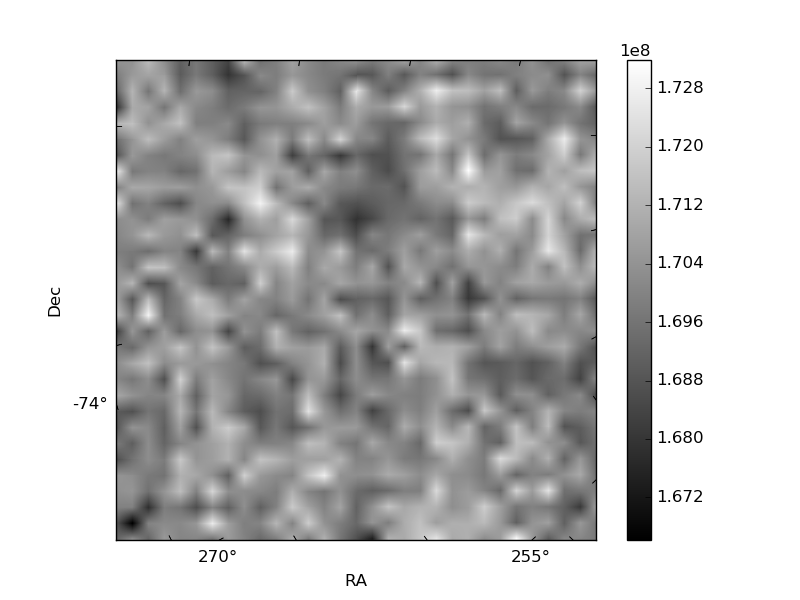

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

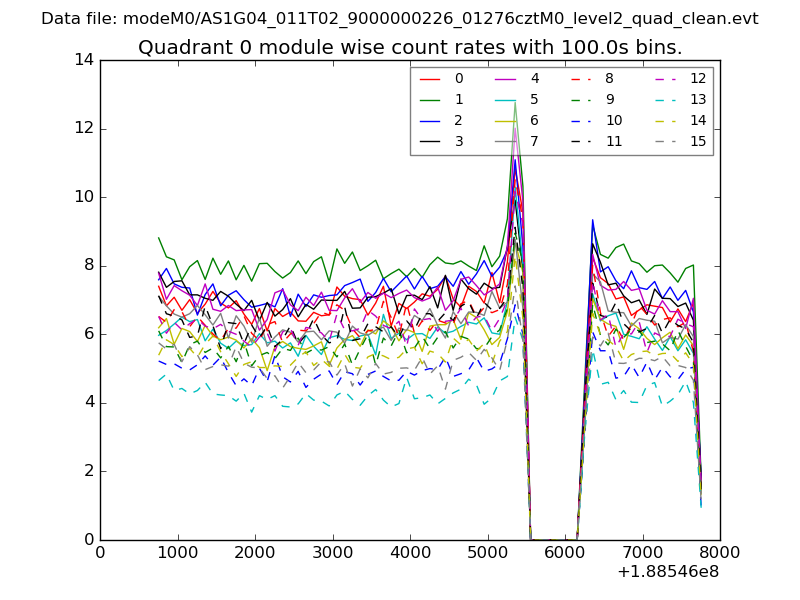

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

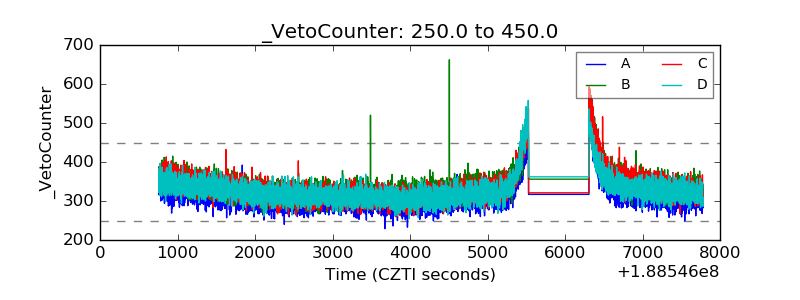

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

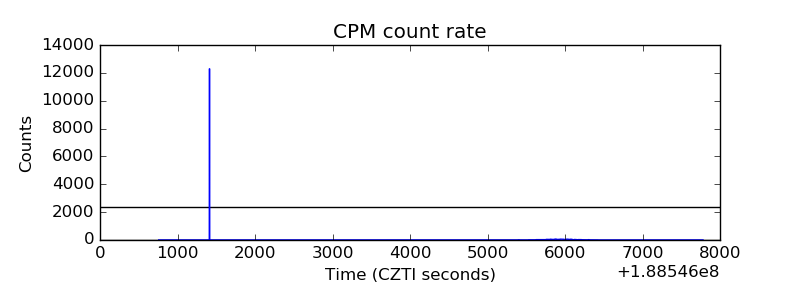

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

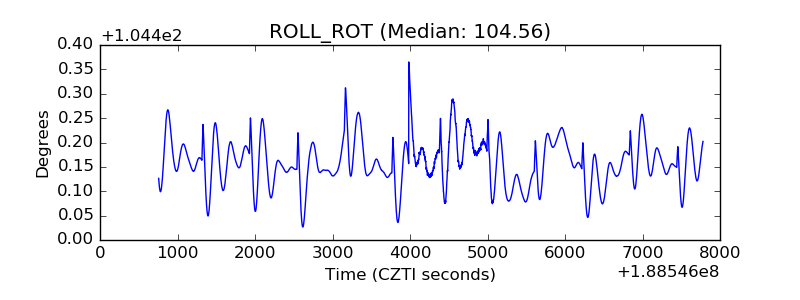

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
