| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_011T02_9000000226_01280cztM0_level2.evt | modeM0/AS1G04_011T02_9000000226_01280cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,492,119,360 | 100,252,800 |
| Size | 1.4 GB | 95.6 MB |
| Events in quadrant A | 8,387,883 | 672,882 |
| Events in quadrant B | 10,279,605 | 656,117 |
| Events in quadrant C | 9,100,412 | 653,208 |
| Events in quadrant D | 16,968,415 | 571,978 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29833 | 2 |
| B | 0 | 35464 | 1 |
| C | 0 | 31918 | 1 |
| D | 0 | 55496 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6903 | 53 | 0.767782% |
| B | 6903 | 244 | 3.534695% |
| C | 6903 | 76 | 1.100971% |
| D | 6903 | 2004 | 29.030856% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7228 | 6903 | 273 | 273 | 3.78% | 3.95% |  |
| B | 7228 | 6903 | 1036 | 1036 | 14.33% | 15.01% |  |
| C | 7228 | 6903 | 531 | 531 | 7.35% | 7.69% |  |
| D | 7228 | 6903 | 5143 | 5143 | 71.15% | 74.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 243 | 62530 | 115.88 | 2162 | 2173 | 520.8 |
| A | 10 | 2 | 13023 | 20.83 | 2162 | 2173 | 520.8 |
| A | 8 | 14 | 12351 | 19.54 | 2162 | 2173 | 520.8 |
| B | 8 | 4 | 1254024 | 2386.97 | 2208 | 2213 | 524.4 |
| B | 5 | 191 | 209294 | 394.86 | 2208 | 2213 | 524.4 |
| B | 6 | 53 | 151351 | 284.38 | 2208 | 2213 | 524.4 |
| C | 9 | 52 | 527036 | 941.33 | 1996 | 2064 | 557.7 |
| C | 15 | 241 | 357175 | 636.75 | 1996 | 2064 | 557.7 |
| C | 8 | 208 | 323554 | 576.47 | 1996 | 2064 | 557.7 |
| D | 13 | 169 | 9420072 | 16551.19 | 1841 | 1908 | 569.0 |
| D | 13 | 70 | 335566 | 586.36 | 1841 | 1908 | 569.0 |
| D | 10 | 84 | 205969 | 358.61 | 1841 | 1908 | 569.0 |

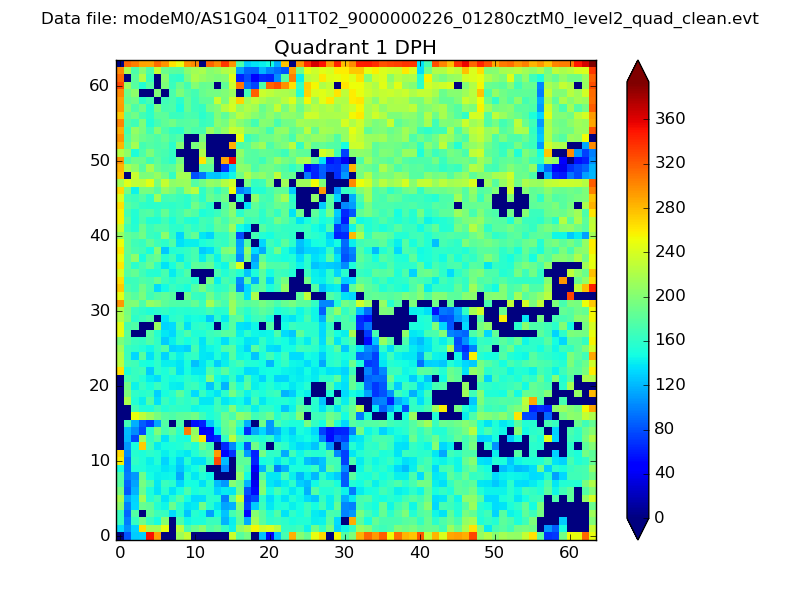

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

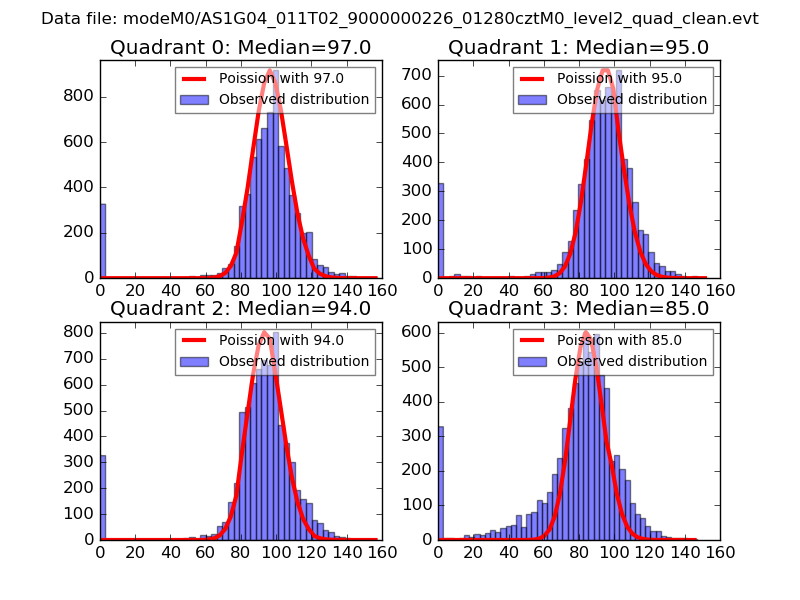

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

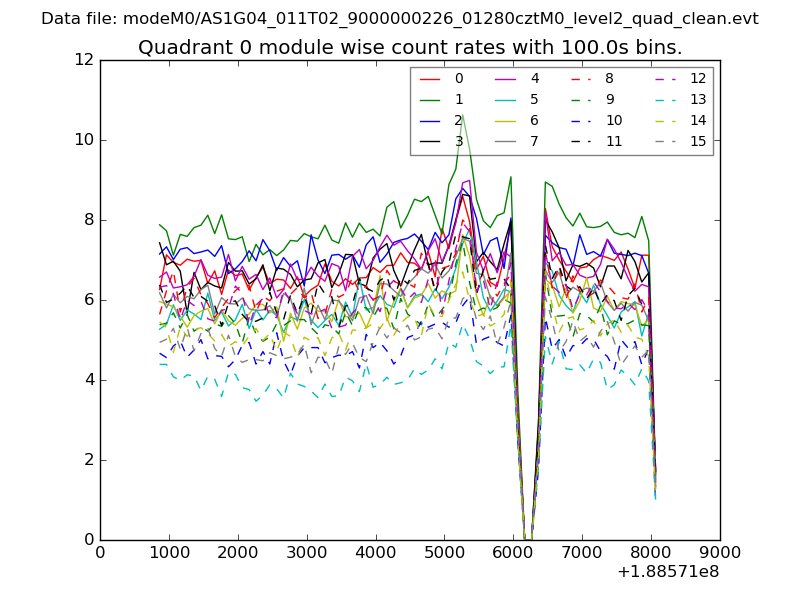

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

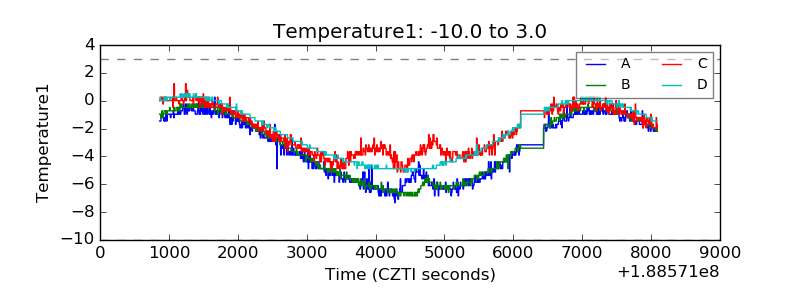

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

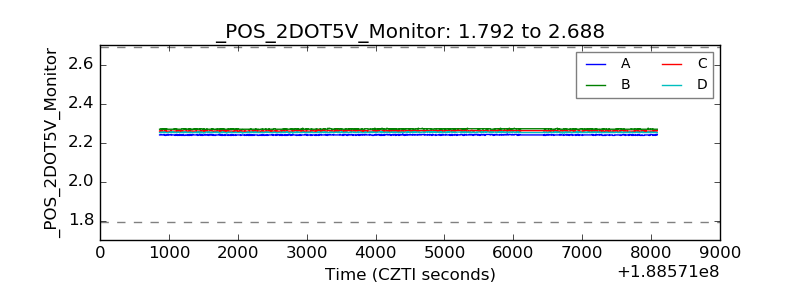

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

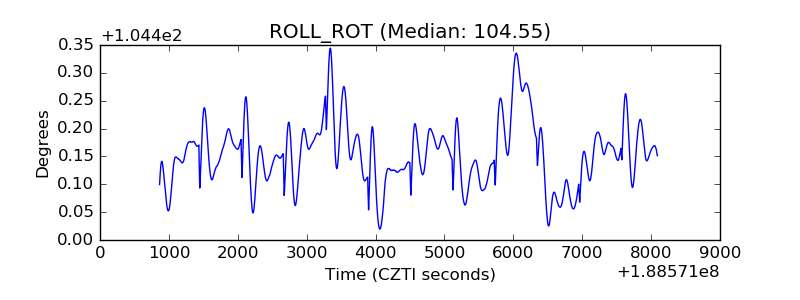

| _ROLL_ROT |  |

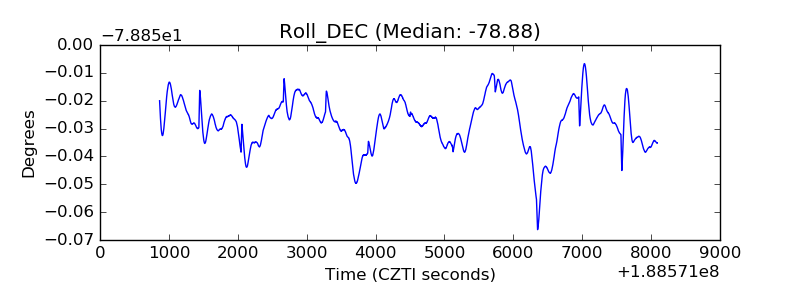

| _Roll_DEC |  |

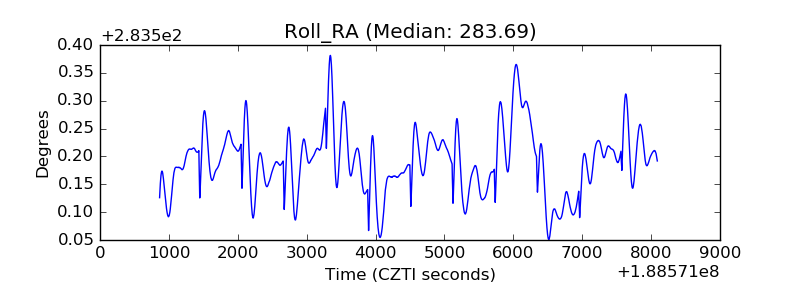

| _Roll_RA |  |
| Veto Counter |  |
