| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_014T02_9000000228_01259cztM0_level2.evt | modeM0/AS1G04_014T02_9000000228_01259cztM0_level2_quad_clean.evt |
| Size (bytes) | 261,792,000 | 23,607,360 |
| Size | 249.7 MB | 22.5 MB |
| Events in quadrant A | 1,620,967 | 158,586 |
| Events in quadrant B | 1,888,867 | 161,483 |
| Events in quadrant C | 1,751,945 | 154,496 |
| Events in quadrant D | 2,575,204 | 139,237 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5766 | 2 |
| B | 0 | 6569 | 1 |
| C | 0 | 6173 | 1 |
| D | 0 | 8571 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1340 | 1 | 0.074627% |
| B | 1340 | 17 | 1.268657% |
| C | 1340 | 2 | 0.149254% |
| D | 1340 | 89 | 6.641791% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1339 | 1339 | 42 | 42 | 3.14% | 3.14% |  |
| B | 1339 | 1339 | 110 | 110 | 8.22% | 8.22% |  |
| C | 1339 | 1339 | 55 | 55 | 4.11% | 4.11% |  |
| D | 1340 | 1340 | 433 | 433 | 32.31% | 32.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 8598 | 81.97 | 418 | 420 | 99.8 |
| A | 8 | 14 | 3061 | 26.47 | 418 | 420 | 99.8 |
| A | 13 | 9 | 2462 | 20.47 | 418 | 420 | 99.8 |
| B | 6 | 53 | 65835 | 610.24 | 458 | 458 | 107.1 |
| B | 8 | 4 | 59095 | 547.32 | 458 | 458 | 107.1 |
| B | 15 | 22 | 12227 | 109.85 | 458 | 458 | 107.1 |
| C | 15 | 241 | 55649 | 463.56 | 431 | 446 | 119.1 |
| C | 3 | 111 | 3833 | 28.44 | 431 | 446 | 119.1 |
| C | 7 | 159 | 3159 | 22.78 | 431 | 446 | 119.1 |
| D | 12 | 22 | 844975 | 7004.36 | 388 | 398 | 120.6 |
| D | 10 | 84 | 144564 | 1195.62 | 388 | 398 | 120.6 |
| D | 13 | 169 | 116620 | 963.87 | 388 | 398 | 120.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

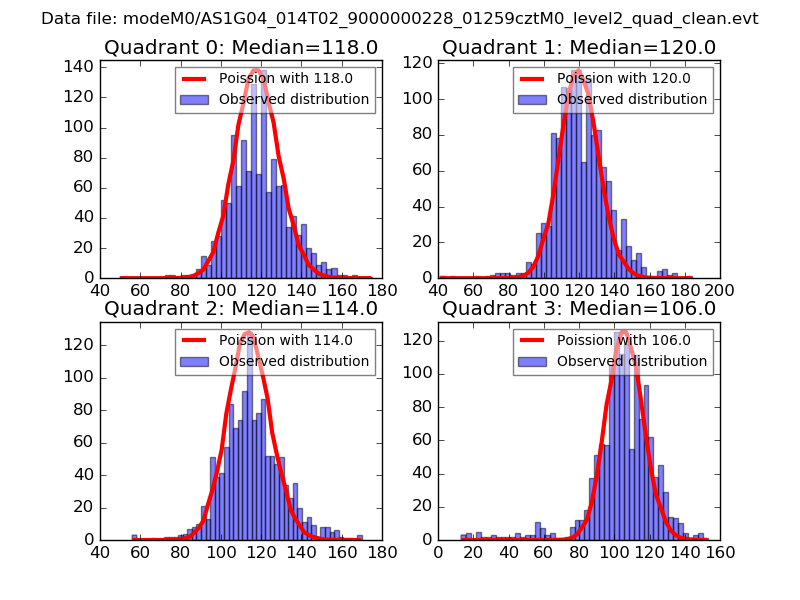

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

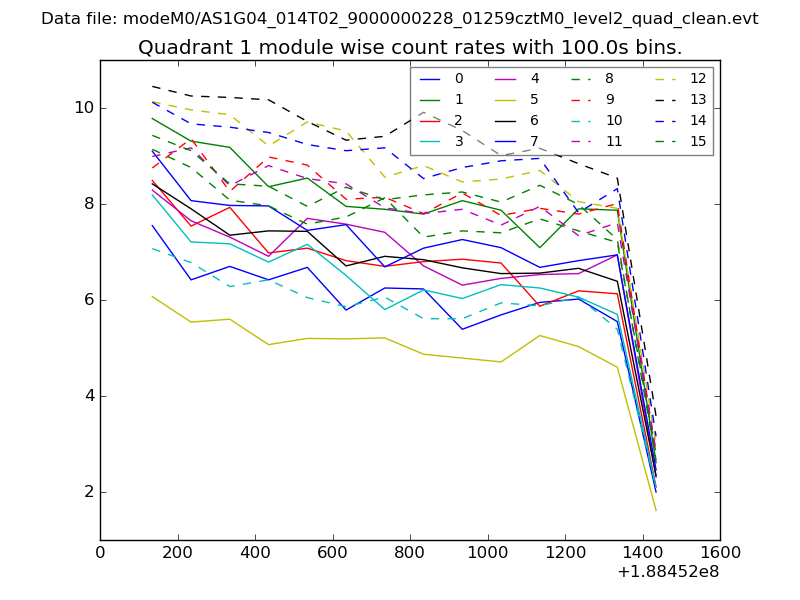

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

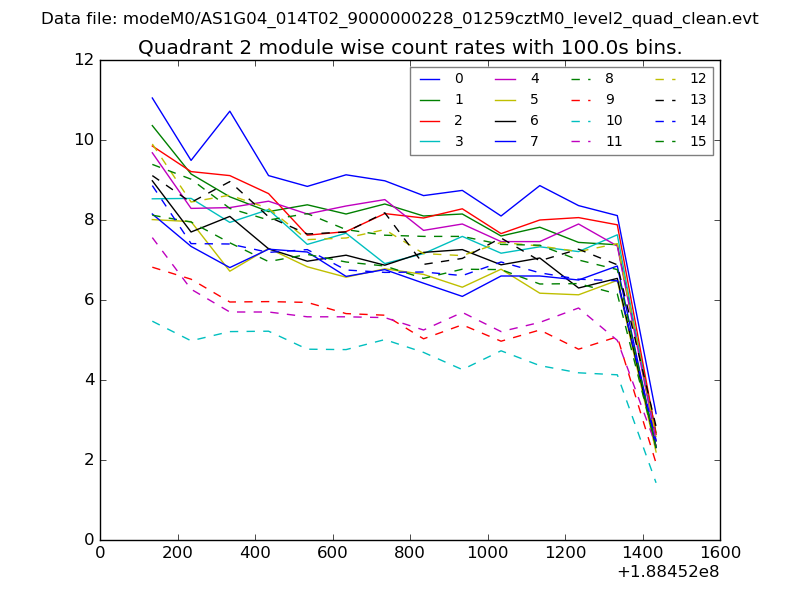

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

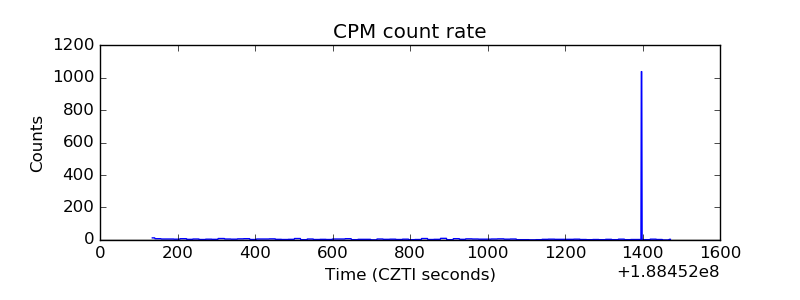

| _CPM_Rate |  |

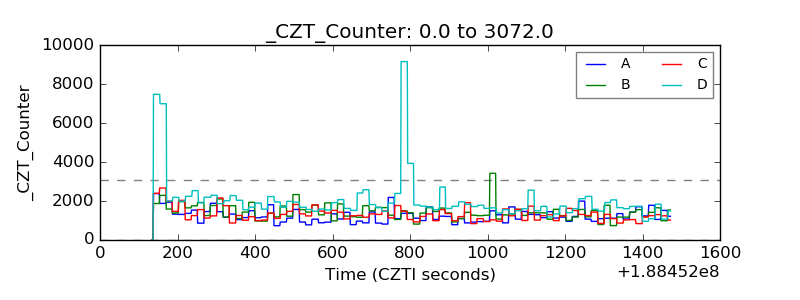

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

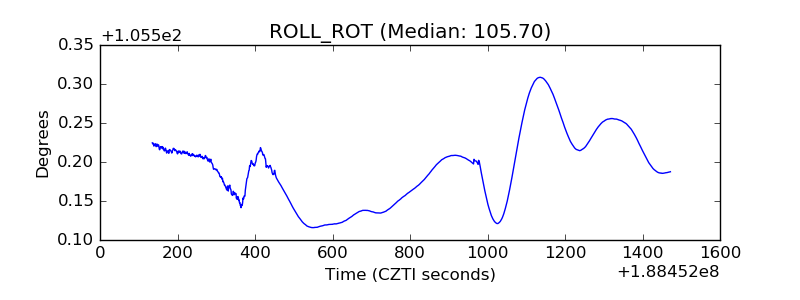

| _ROLL_ROT |  |

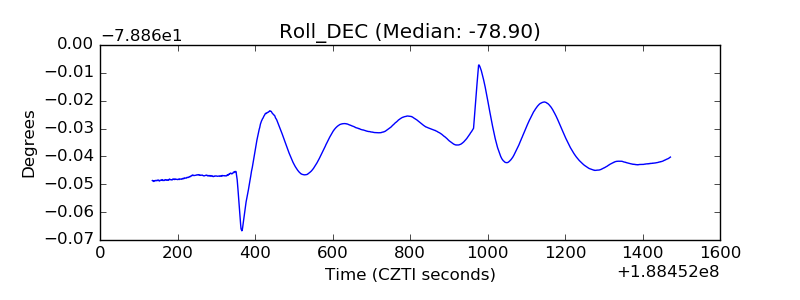

| _Roll_DEC |  |

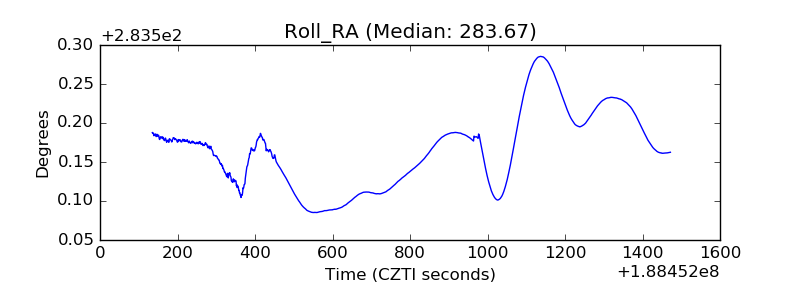

| _Roll_RA |  |
| Veto Counter |  |
