| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01298cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01298cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,325,073,600 | 97,390,080 |
| Size | 1.2 GB | 92.9 MB |
| Events in quadrant A | 8,033,287 | 656,630 |
| Events in quadrant B | 8,640,554 | 654,509 |
| Events in quadrant C | 7,813,303 | 649,071 |
| Events in quadrant D | 15,213,354 | 533,577 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28499 | 2 |
| B | 0 | 30259 | 1 |
| C | 0 | 27851 | 1 |
| D | 0 | 50118 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6511 | 134 | 2.058056% |
| B | 6511 | 41 | 0.629704% |
| C | 6511 | 18 | 0.276455% |
| D | 6511 | 2359 | 36.230994% |

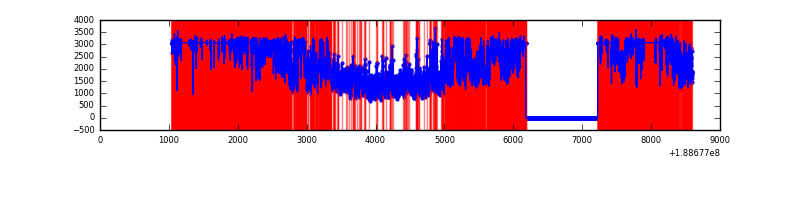

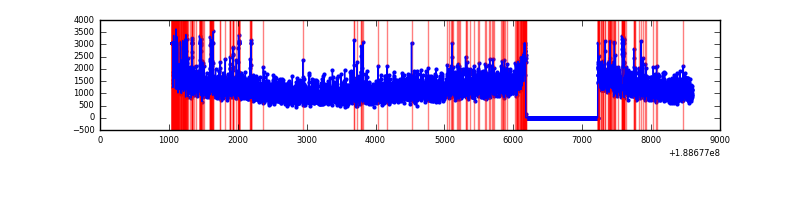

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7556 | 6512 | 362 | 362 | 4.79% | 5.56% |  |
| B | 7556 | 6512 | 485 | 485 | 6.42% | 7.45% |  |
| C | 7556 | 6512 | 161 | 161 | 2.13% | 2.47% |  |
| D | 7556 | 6511 | 4107 | 4107 | 54.35% | 63.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 562839 | 1205.27 | 1939 | 1950 | 465.4 |
| A | 15 | 233 | 15839 | 29.85 | 1939 | 1950 | 465.4 |
| A | 15 | 127 | 15455 | 29.02 | 1939 | 1950 | 465.4 |
| B | 8 | 4 | 518222 | 1091.57 | 2042 | 2050 | 472.9 |
| B | 12 | 52 | 126745 | 263.7 | 2042 | 2050 | 472.9 |
| B | 6 | 53 | 98002 | 202.91 | 2042 | 2050 | 472.9 |
| C | 15 | 241 | 330756 | 623.42 | 1895 | 1967 | 527.4 |
| C | 8 | 208 | 27719 | 48.83 | 1895 | 1967 | 527.4 |
| C | 3 | 111 | 23174 | 40.21 | 1895 | 1967 | 527.4 |
| D | 13 | 169 | 8548052 | 17339.58 | 1602 | 1662 | 492.9 |
| D | 10 | 84 | 606241 | 1226.62 | 1602 | 1662 | 492.9 |
| D | 12 | 22 | 19048 | 35.27 | 1602 | 1662 | 492.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

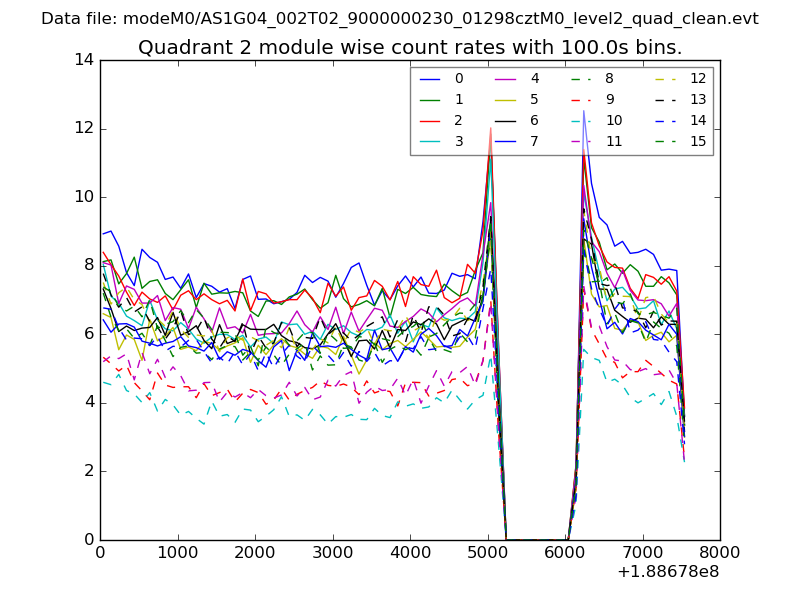

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

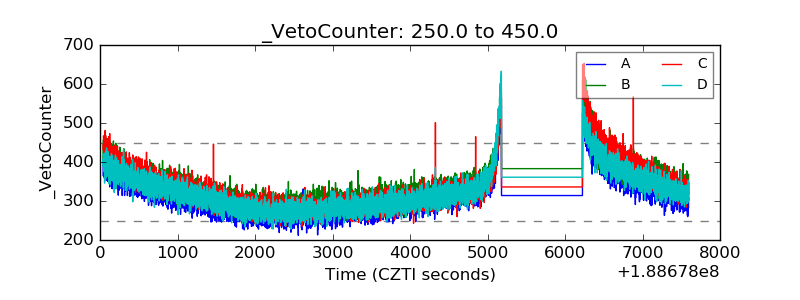

| Veto Counter |  |
