| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01318cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01318cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,069,813,440 | 91,238,400 |
| Size | 1020.3 MB | 87.0 MB |
| Events in quadrant A | 10,661,067 | 559,510 |
| Events in quadrant B | 8,007,489 | 608,569 |
| Events in quadrant C | 6,998,212 | 594,940 |
| Events in quadrant D | 6,334,747 | 579,664 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36071 | 2 |
| B | 0 | 28017 | 1 |
| C | 0 | 25048 | 1 |
| D | 0 | 23112 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6012 | 908 | 15.103127% |
| B | 6012 | 74 | 1.230872% |
| C | 6012 | 4 | 0.066534% |
| D | 6012 | 15 | 0.249501% |

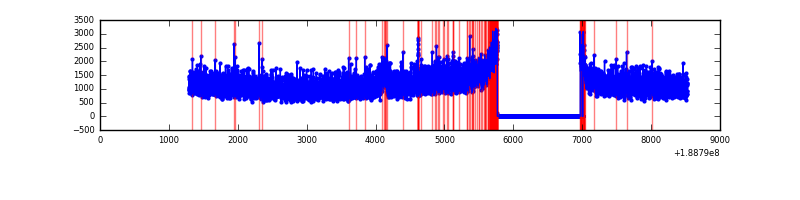

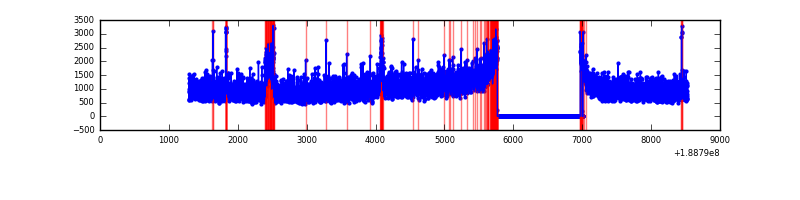

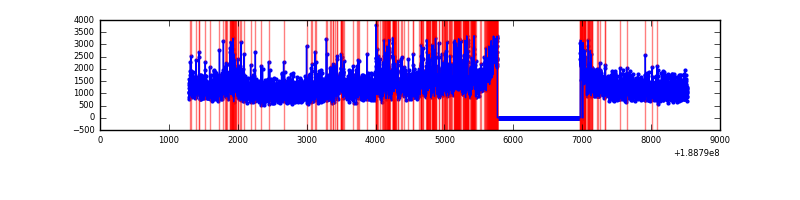

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7232 | 6013 | 1955 | 1955 | 27.03% | 32.51% |  |
| B | 7232 | 6013 | 473 | 473 | 6.54% | 7.87% |  |
| C | 7232 | 6014 | 169 | 169 | 2.34% | 2.81% |  |
| D | 7232 | 6014 | 180 | 180 | 2.49% | 2.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 3986658 | 9594.1 | 1728 | 1736 | 415.4 |
| A | 15 | 233 | 15166 | 32.33 | 1728 | 1736 | 415.4 |
| A | 12 | 243 | 14177 | 29.95 | 1728 | 1736 | 415.4 |
| B | 8 | 4 | 623742 | 1409.53 | 1878 | 1886 | 441.2 |
| B | 6 | 53 | 141060 | 315.46 | 1878 | 1886 | 441.2 |
| B | 12 | 52 | 62598 | 137.61 | 1878 | 1886 | 441.2 |
| C | 15 | 241 | 303415 | 648.59 | 1670 | 1722 | 465.2 |
| C | 9 | 52 | 64515 | 134.99 | 1670 | 1722 | 465.2 |
| C | 3 | 9 | 51137 | 106.23 | 1670 | 1722 | 465.2 |
| D | 15 | 13 | 127454 | 253.45 | 1608 | 1665 | 496.3 |
| D | 9 | 66 | 80629 | 159.1 | 1608 | 1665 | 496.3 |
| D | 10 | 84 | 37680 | 72.57 | 1608 | 1665 | 496.3 |

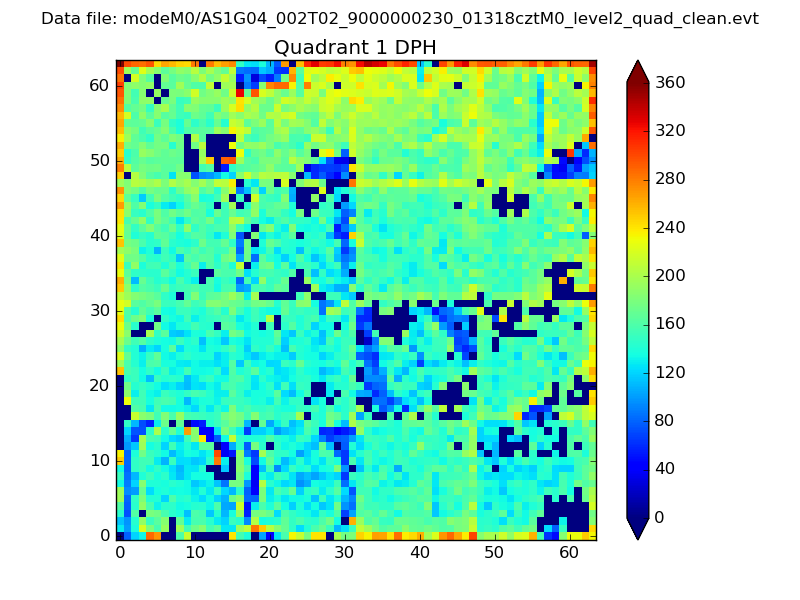

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

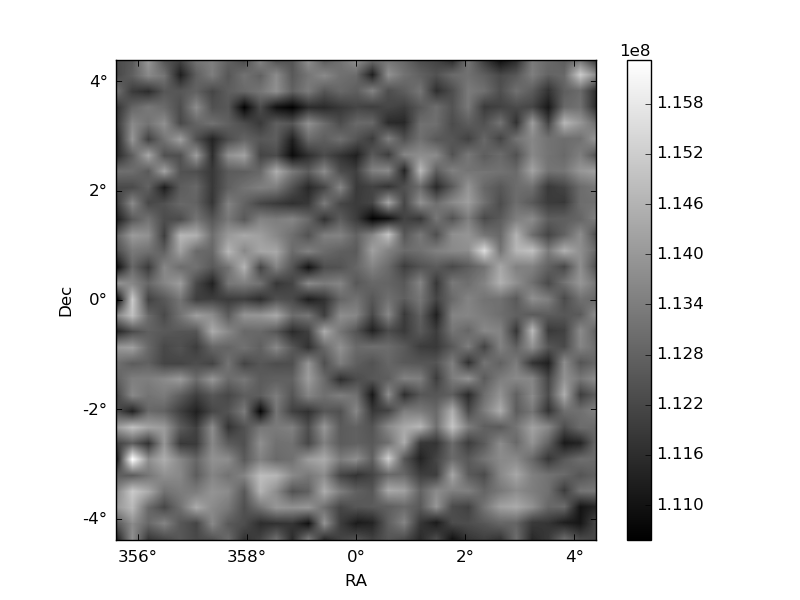

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

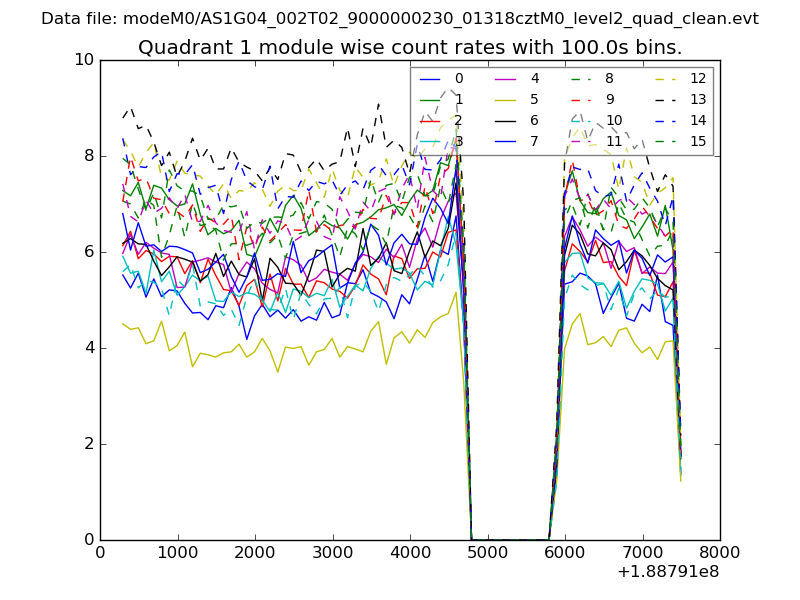

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

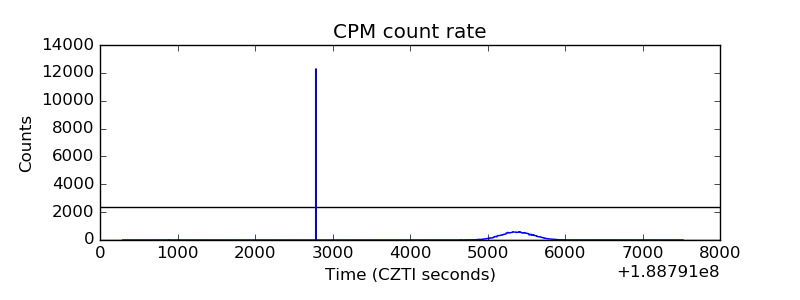

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

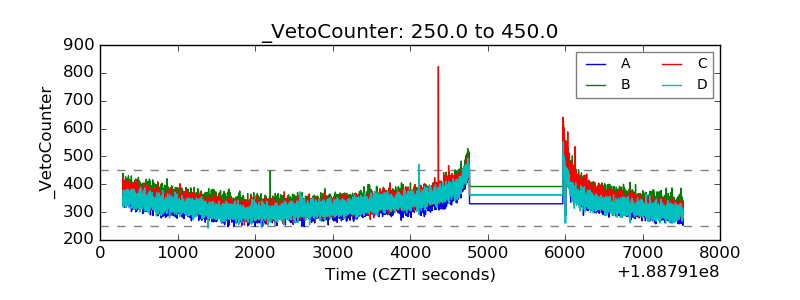

| Veto Counter |  |
