| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01326cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01326cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,042,257,600 | 90,921,600 |
| Size | 994.0 MB | 86.7 MB |
| Events in quadrant A | 7,505,869 | 597,708 |
| Events in quadrant B | 7,886,715 | 595,502 |
| Events in quadrant C | 7,431,042 | 582,708 |
| Events in quadrant D | 8,335,963 | 550,189 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26634 | 2 |
| B | 0 | 27746 | 1 |
| C | 0 | 26396 | 1 |
| D | 0 | 29229 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6119 | 5 | 0.081713% |
| B | 6119 | 23 | 0.375878% |
| C | 6119 | 8 | 0.130740% |
| D | 6119 | 603 | 9.854551% |

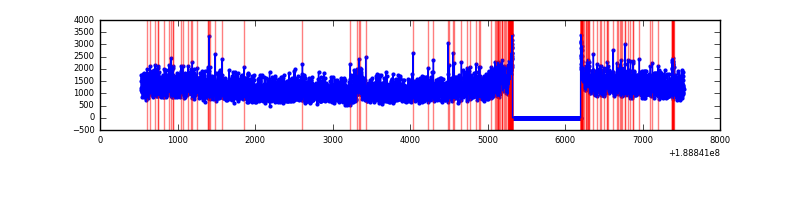

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

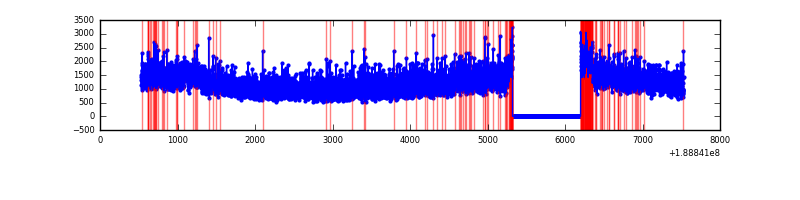

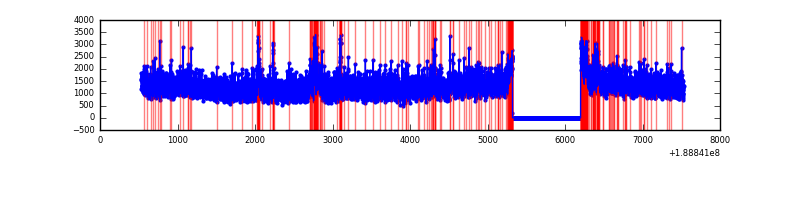

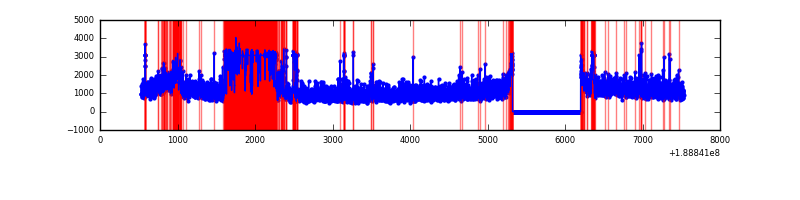

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6999 | 6119 | 193 | 193 | 2.76% | 3.15% |  |
| B | 6999 | 6120 | 302 | 302 | 4.31% | 4.93% |  |
| C | 6999 | 6119 | 153 | 153 | 2.19% | 2.50% |  |
| D | 6999 | 6119 | 888 | 888 | 12.69% | 14.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 14 | 146664 | 327.54 | 1835 | 1847 | 442.1 |
| A | 14 | 5 | 94682 | 209.97 | 1835 | 1847 | 442.1 |
| A | 8 | 15 | 66842 | 147.0 | 1835 | 1847 | 442.1 |
| B | 8 | 4 | 359307 | 792.8 | 1925 | 1931 | 450.8 |
| B | 5 | 6 | 48028 | 102.26 | 1925 | 1931 | 450.8 |
| B | 6 | 53 | 43796 | 92.87 | 1925 | 1931 | 450.8 |
| C | 15 | 241 | 301815 | 603.07 | 1783 | 1849 | 497.4 |
| C | 3 | 9 | 123332 | 244.24 | 1783 | 1849 | 497.4 |
| C | 3 | 111 | 22721 | 41.96 | 1783 | 1849 | 497.4 |
| D | 7 | 207 | 1526728 | 2926.85 | 1668 | 1724 | 521.0 |
| D | 10 | 84 | 375499 | 717.36 | 1668 | 1724 | 521.0 |
| D | 10 | 85 | 67762 | 126.74 | 1668 | 1724 | 521.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

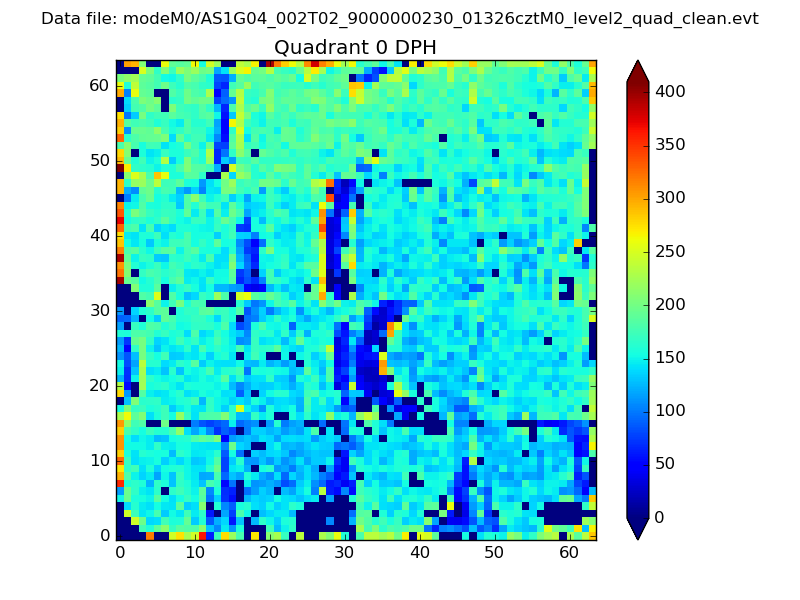

| Quadrant A |  |
 |

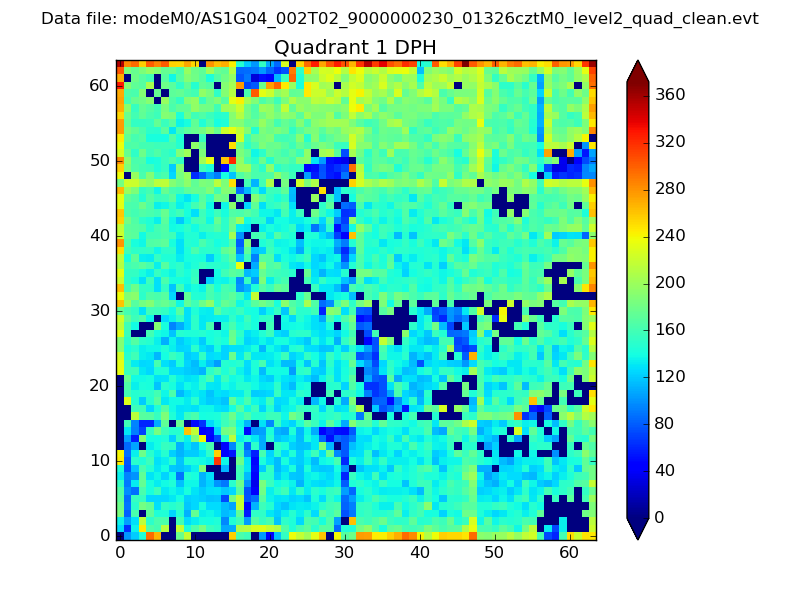

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

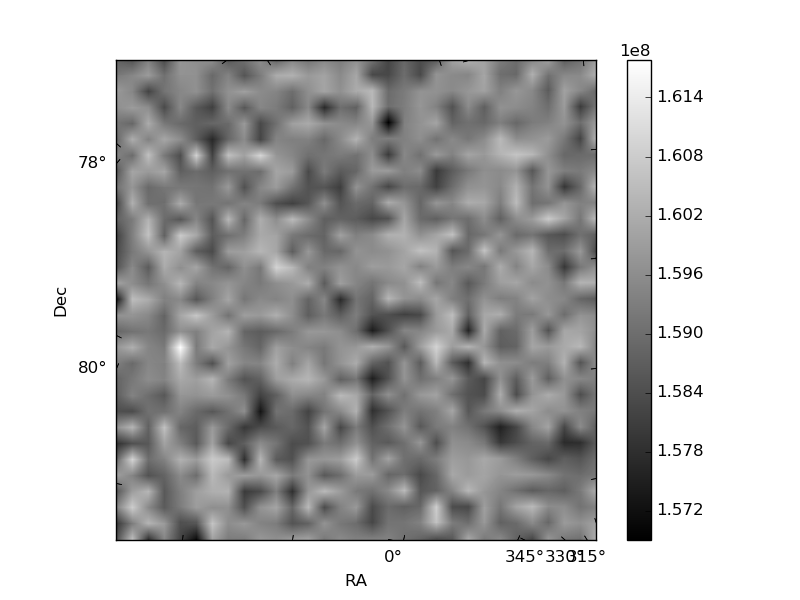

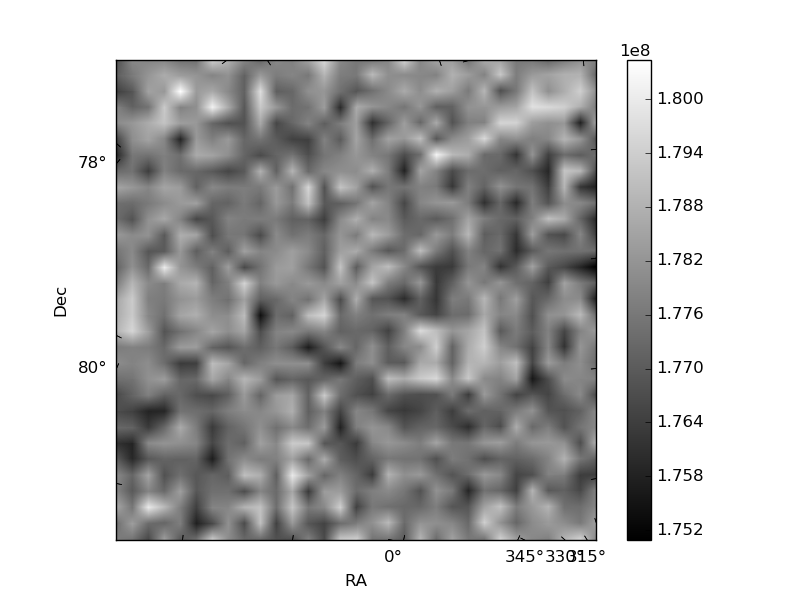

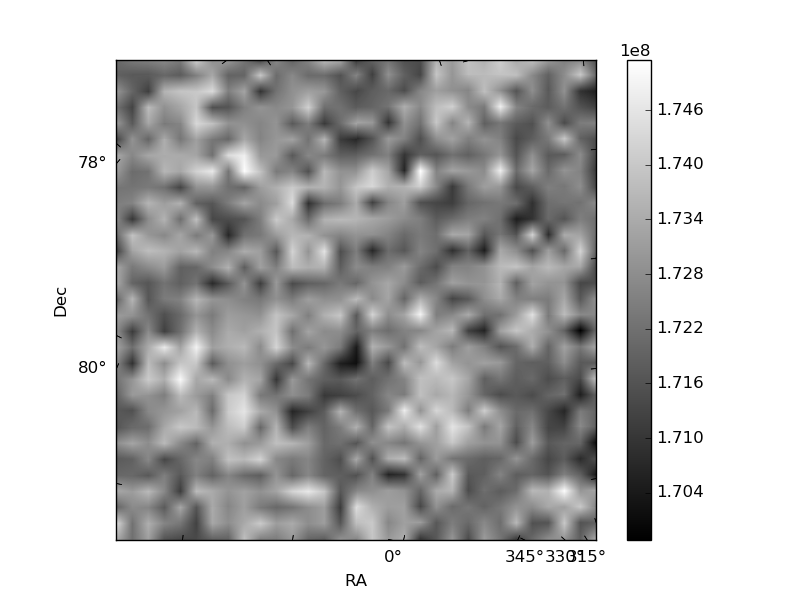

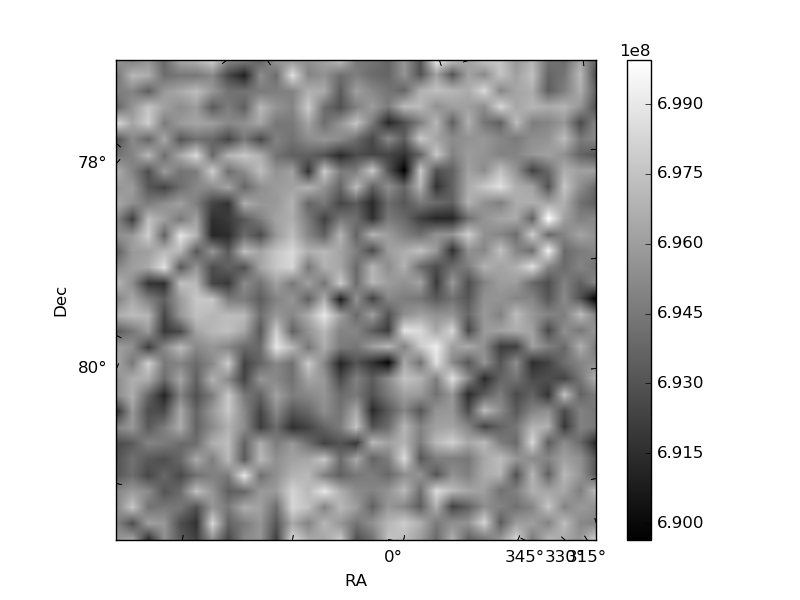

| Plot type | Count rate plots | Images |
|---|---|---|

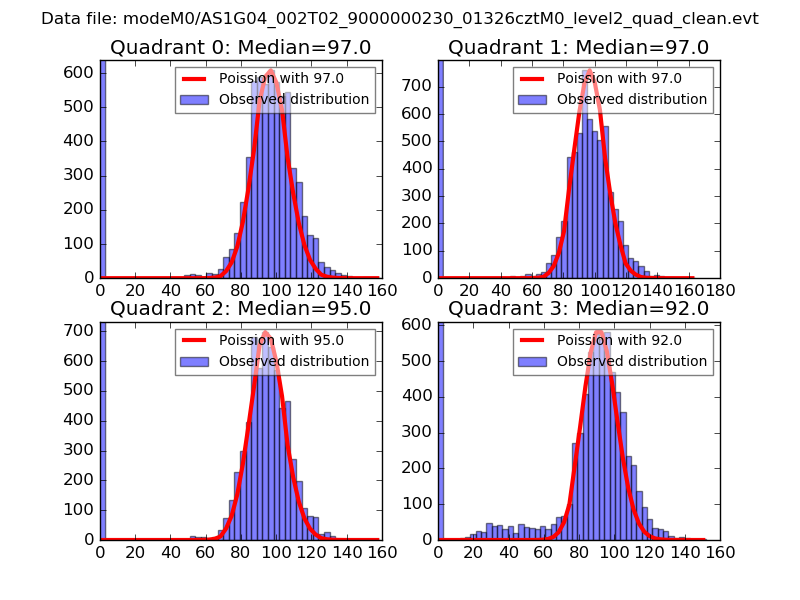

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

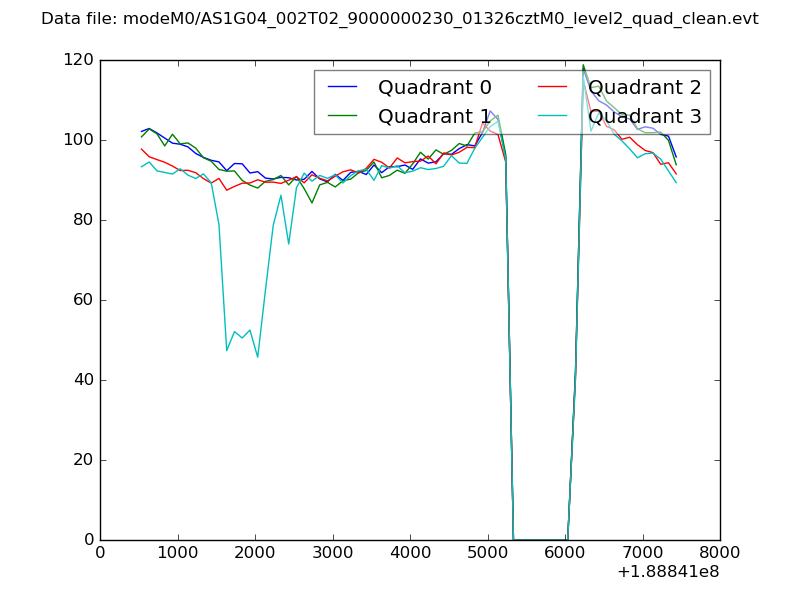

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

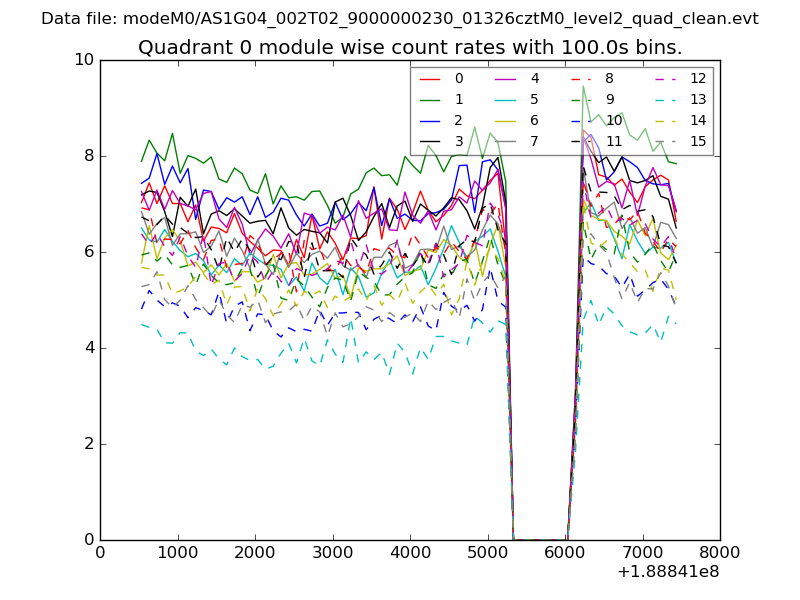

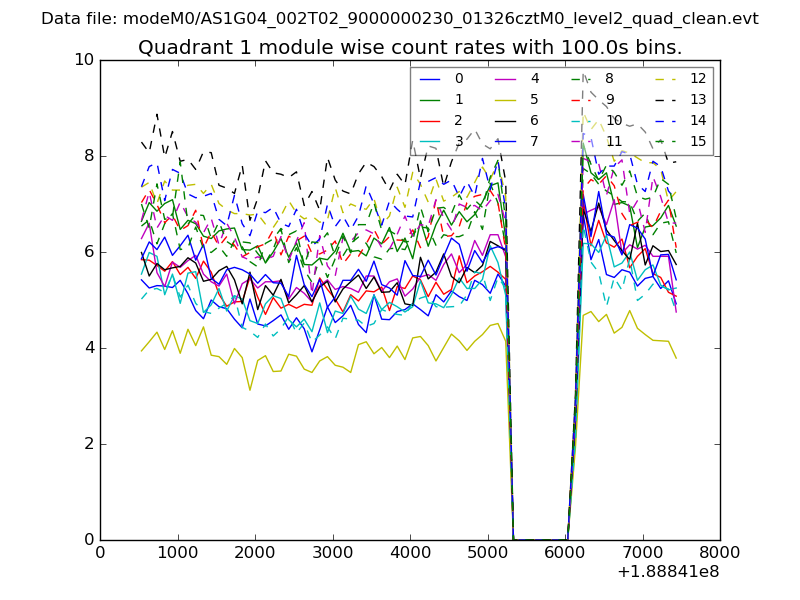

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

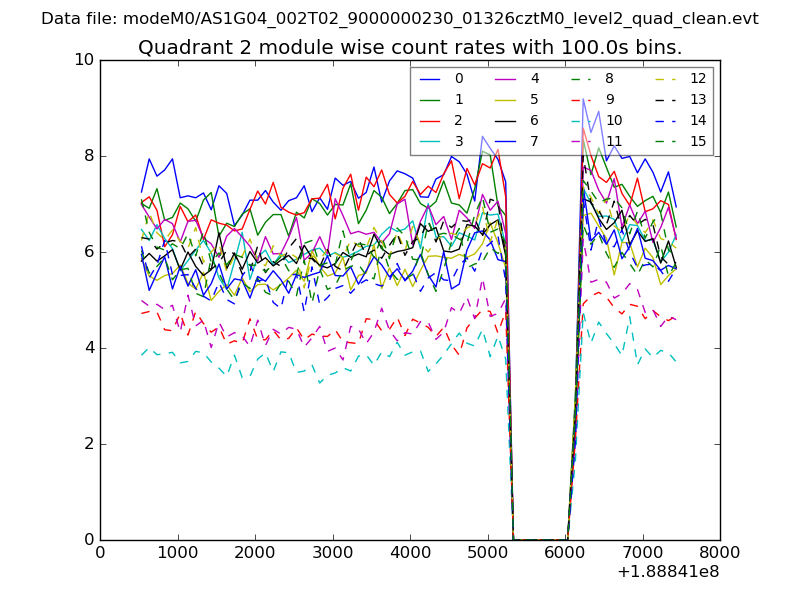

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

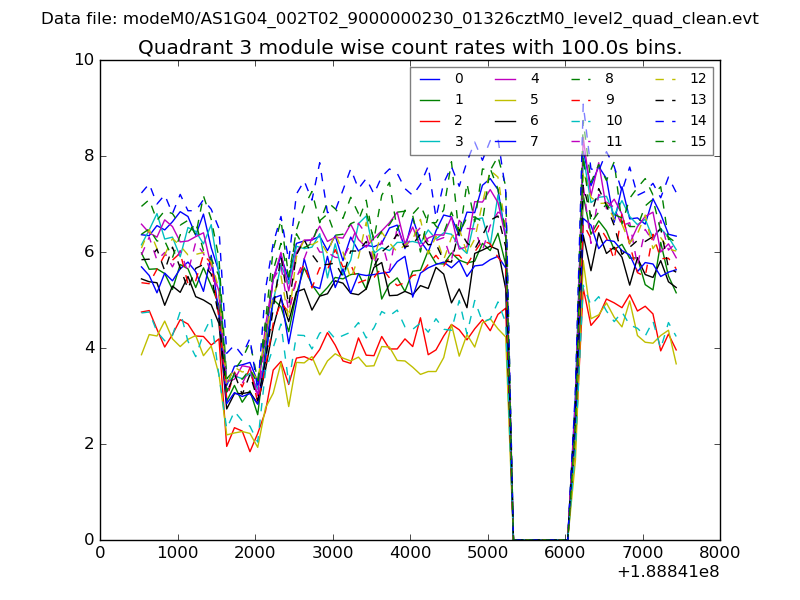

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

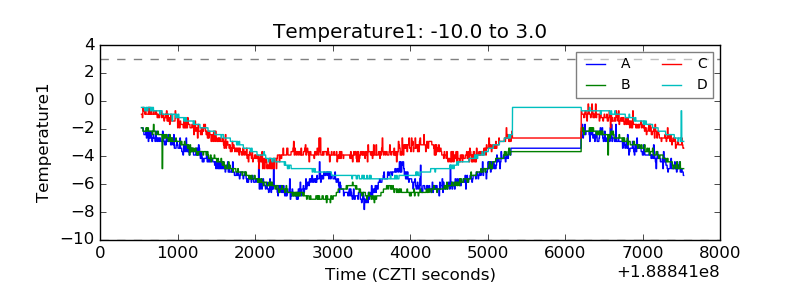

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

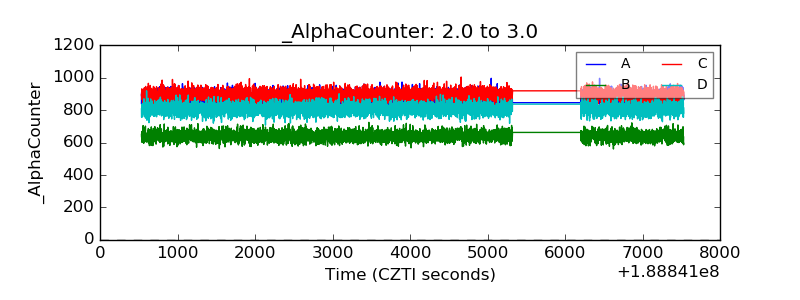

| Alpha Counter |  |

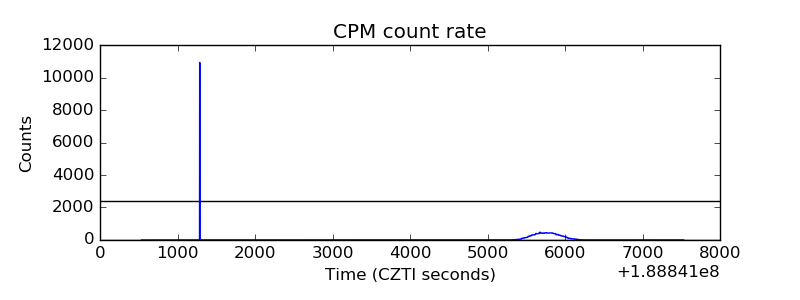

| _CPM_Rate |  |

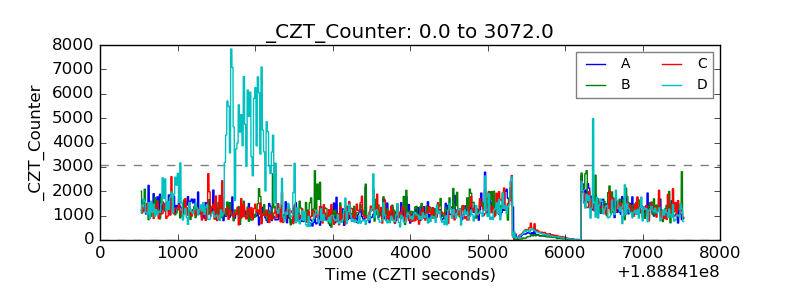

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

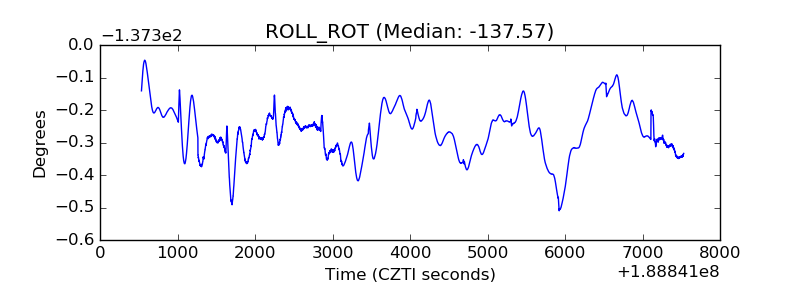

| _ROLL_ROT |  |

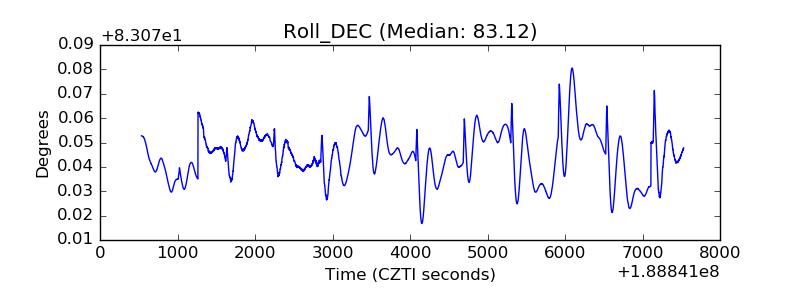

| _Roll_DEC |  |

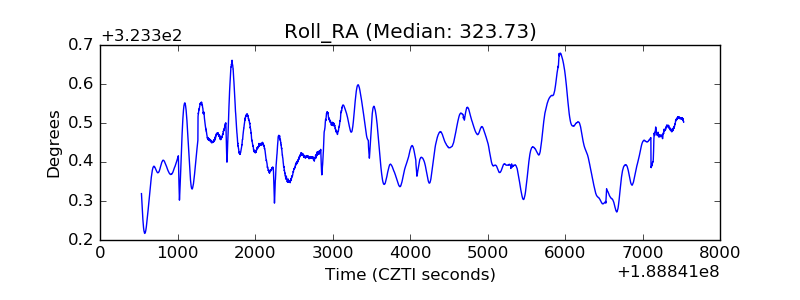

| _Roll_RA |  |

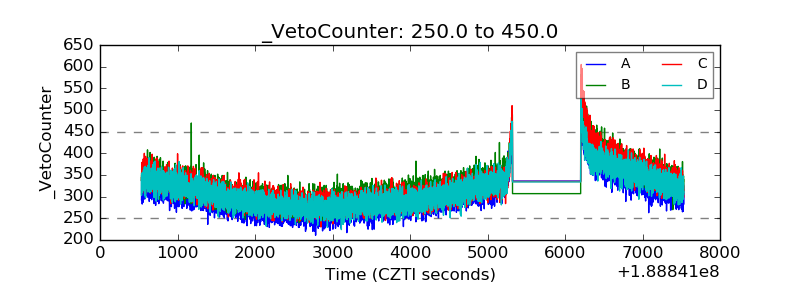

| Veto Counter |  |
