| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01331cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01331cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,082,459,520 | 104,230,080 |
| Size | 1.0 GB | 99.4 MB |
| Events in quadrant A | 7,516,925 | 684,669 |
| Events in quadrant B | 8,788,484 | 693,278 |
| Events in quadrant C | 7,826,768 | 681,084 |
| Events in quadrant D | 8,216,170 | 640,703 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27033 | 3 |
| B | 0 | 30748 | 2 |
| C | 0 | 27892 | 2 |
| D | 0 | 29143 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6553 | 6 | 0.091561% |
| B | 6553 | 39 | 0.595147% |
| C | 6553 | 5 | 0.076301% |
| D | 6553 | 347 | 5.295285% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7863 | 6554 | 161 | 161 | 2.05% | 2.46% |  |
| B | 7863 | 6554 | 455 | 455 | 5.79% | 6.94% |  |
| C | 7863 | 6554 | 202 | 202 | 2.57% | 3.08% |  |
| D | 7863 | 6554 | 722 | 722 | 9.18% | 11.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 5 | 28515 | 57.52 | 1940 | 1953 | 461.8 |
| A | 4 | 32 | 23118 | 45.84 | 1940 | 1953 | 461.8 |
| A | 15 | 233 | 12622 | 23.1 | 1940 | 1953 | 461.8 |
| B | 8 | 4 | 756775 | 1586.11 | 2050 | 2060 | 475.8 |
| B | 12 | 52 | 74708 | 152.68 | 2050 | 2060 | 475.8 |
| B | 15 | 22 | 54600 | 110.42 | 2050 | 2060 | 475.8 |
| C | 15 | 241 | 318810 | 621.18 | 1851 | 1915 | 510.1 |
| C | 3 | 9 | 167049 | 323.7 | 1851 | 1915 | 510.1 |
| C | 9 | 52 | 48198 | 90.72 | 1851 | 1915 | 510.1 |
| D | 10 | 84 | 1441301 | 2847.32 | 1757 | 1793 | 505.6 |
| D | 1 | 83 | 113616 | 221.18 | 1757 | 1793 | 505.6 |
| D | 10 | 125 | 45958 | 87.36 | 1757 | 1793 | 505.6 |

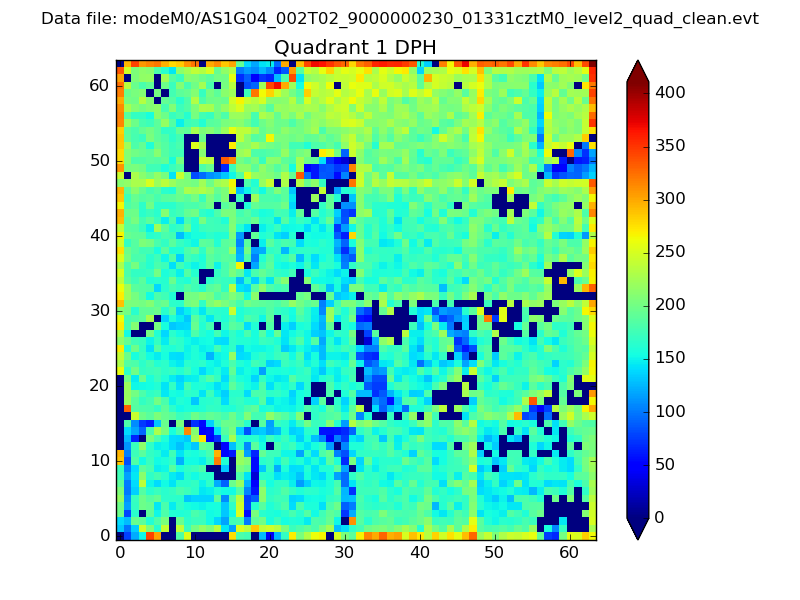

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

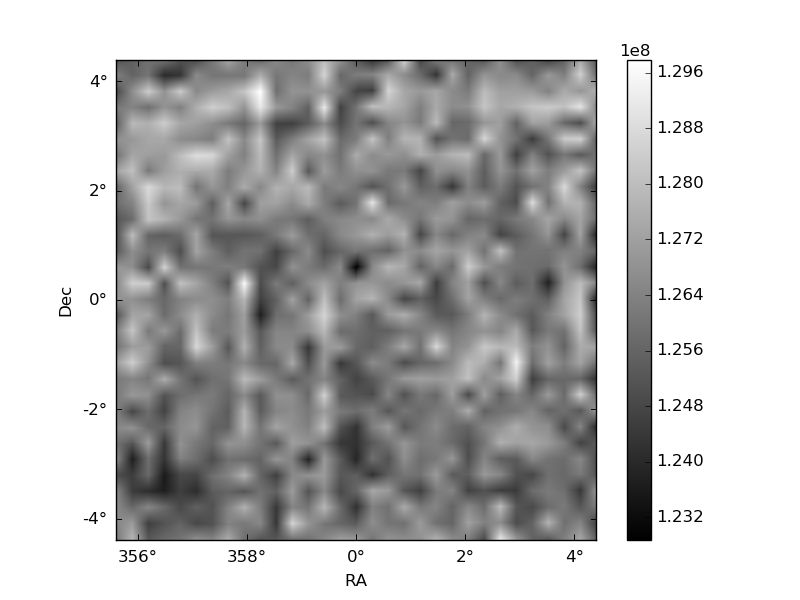

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

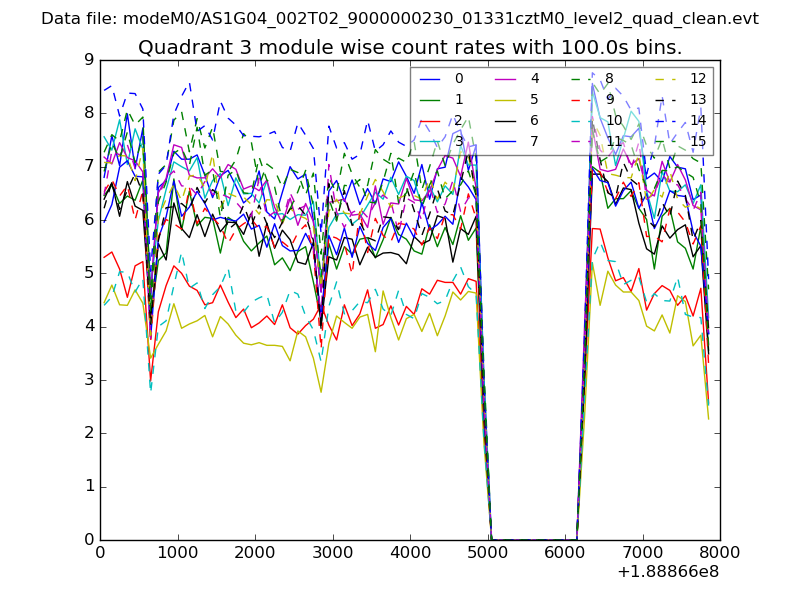

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

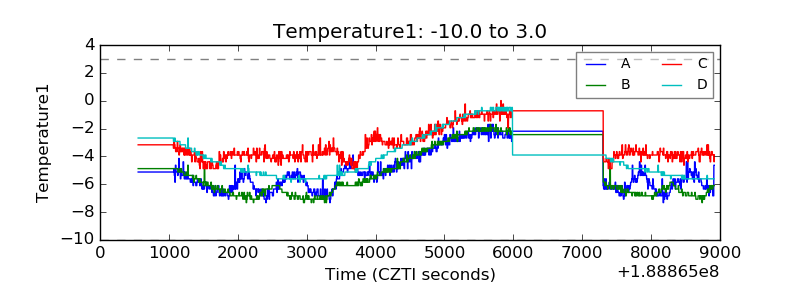

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

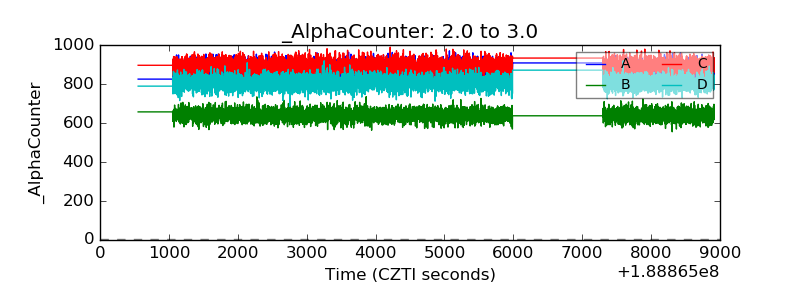

| Alpha Counter |  |

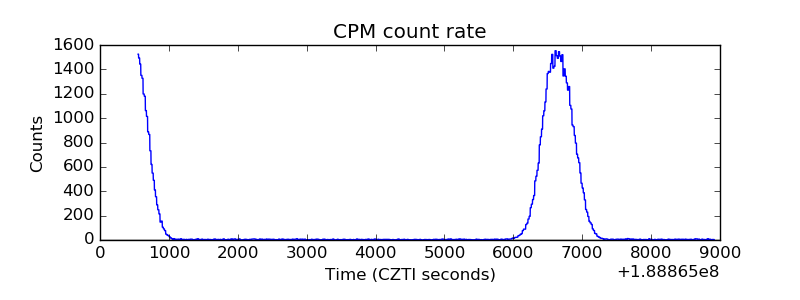

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

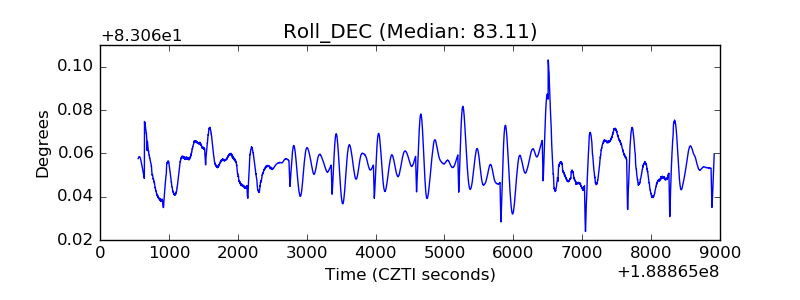

| _Roll_DEC |  |

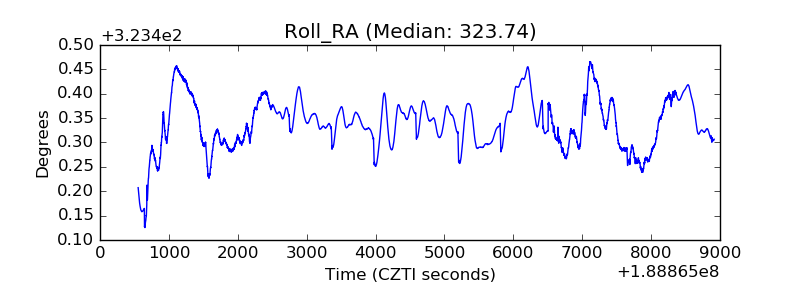

| _Roll_RA |  |
| Veto Counter |  |
