| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01332cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01332cztM0_level2_quad_clean.evt |
| Size (bytes) | 973,897,920 | 93,225,600 |
| Size | 928.8 MB | 88.9 MB |
| Events in quadrant A | 6,924,072 | 607,201 |
| Events in quadrant B | 8,314,630 | 615,133 |
| Events in quadrant C | 7,171,710 | 599,307 |
| Events in quadrant D | 6,685,665 | 581,978 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24841 | 2 |
| B | 0 | 28963 | 1 |
| C | 0 | 25572 | 1 |
| D | 0 | 24160 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6009 | 10 | 0.166417% |
| B | 6009 | 32 | 0.532535% |
| C | 6009 | 25 | 0.416043% |
| D | 6009 | 79 | 1.314695% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7264 | 6010 | 168 | 168 | 2.31% | 2.80% |  |
| B | 7264 | 6010 | 644 | 644 | 8.87% | 10.72% |  |
| C | 7264 | 6010 | 196 | 196 | 2.70% | 3.26% |  |
| D | 7264 | 6010 | 330 | 330 | 4.54% | 5.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 60922 | 138.02 | 1781 | 1793 | 428.4 |
| A | 8 | 14 | 9679 | 18.41 | 1781 | 1793 | 428.4 |
| A | 14 | 5 | 9008 | 16.84 | 1781 | 1793 | 428.4 |
| B | 8 | 4 | 986288 | 2244.34 | 1870 | 1877 | 438.6 |
| B | 6 | 53 | 134878 | 303.23 | 1870 | 1877 | 438.6 |
| B | 12 | 52 | 27704 | 58.88 | 1870 | 1877 | 438.6 |
| C | 15 | 241 | 289159 | 624.91 | 1665 | 1721 | 460.0 |
| C | 3 | 9 | 254364 | 549.26 | 1665 | 1721 | 460.0 |
| C | 14 | 223 | 60226 | 127.19 | 1665 | 1721 | 460.0 |
| D | 10 | 84 | 553487 | 1125.82 | 1582 | 1637 | 490.2 |
| D | 1 | 83 | 144539 | 291.53 | 1582 | 1637 | 490.2 |
| D | 2 | 236 | 27833 | 53.44 | 1582 | 1637 | 490.2 |

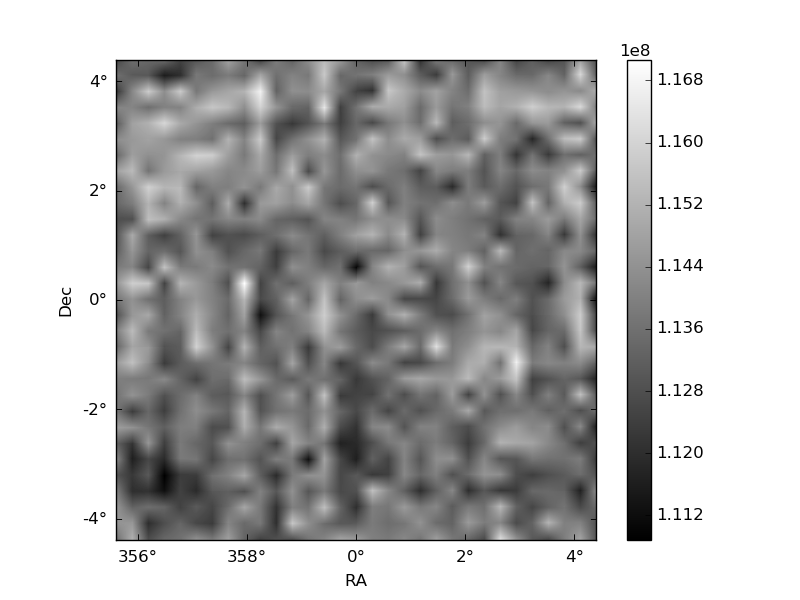

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

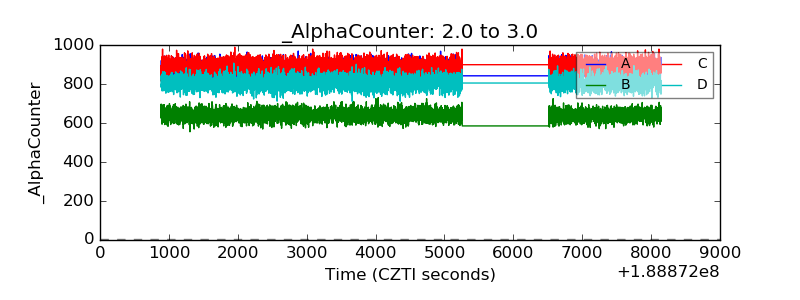

| Alpha Counter |  |
| _CPM_Rate |  |

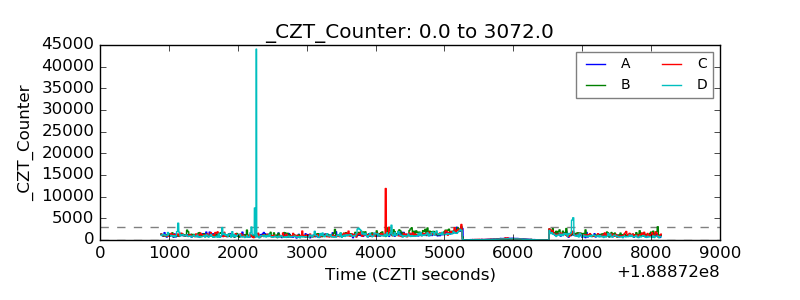

| CZT Counter |  |

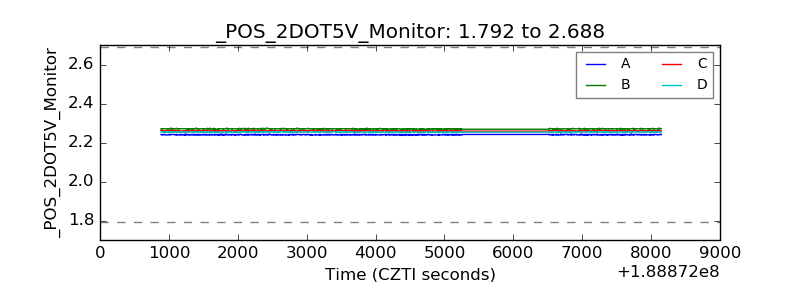

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
