| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01343cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01343cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,085,679,360 | 99,285,120 |
| Size | 1.0 GB | 94.7 MB |
| Events in quadrant A | 8,511,719 | 639,720 |
| Events in quadrant B | 8,301,397 | 651,093 |
| Events in quadrant C | 7,972,333 | 639,975 |
| Events in quadrant D | 7,669,881 | 628,500 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29853 | 3 |
| B | 0 | 29169 | 2 |
| C | 0 | 28243 | 2 |
| D | 0 | 27338 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6409 | 98 | 1.529100% |
| B | 6409 | 24 | 0.374473% |
| C | 6409 | 20 | 0.312061% |
| D | 6409 | 46 | 0.717741% |

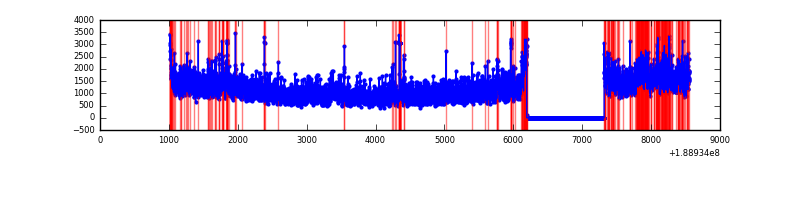

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7534 | 6410 | 562 | 562 | 7.46% | 8.77% |  |
| B | 7534 | 6410 | 307 | 307 | 4.07% | 4.79% |  |
| C | 7534 | 6410 | 234 | 234 | 3.11% | 3.65% |  |
| D | 7534 | 6410 | 355 | 355 | 4.71% | 5.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 32 | 805832 | 1740.41 | 1923 | 1934 | 461.9 |
| A | 15 | 127 | 265659 | 570.95 | 1923 | 1934 | 461.9 |
| A | 0 | 51 | 22158 | 43.78 | 1923 | 1934 | 461.9 |
| B | 8 | 4 | 201253 | 420.8 | 2032 | 2036 | 473.4 |
| B | 0 | 182 | 89293 | 184.31 | 2032 | 2036 | 473.4 |
| B | 6 | 53 | 85237 | 175.74 | 2032 | 2036 | 473.4 |
| C | 15 | 241 | 274023 | 520.18 | 1881 | 1948 | 523.0 |
| C | 3 | 9 | 272308 | 516.9 | 1881 | 1948 | 523.0 |
| C | 3 | 111 | 25923 | 45.84 | 1881 | 1948 | 523.0 |
| D | 12 | 22 | 458025 | 816.81 | 1814 | 1881 | 558.4 |
| D | 13 | 252 | 152192 | 269.16 | 1814 | 1881 | 558.4 |
| D | 1 | 83 | 111137 | 195.64 | 1814 | 1881 | 558.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

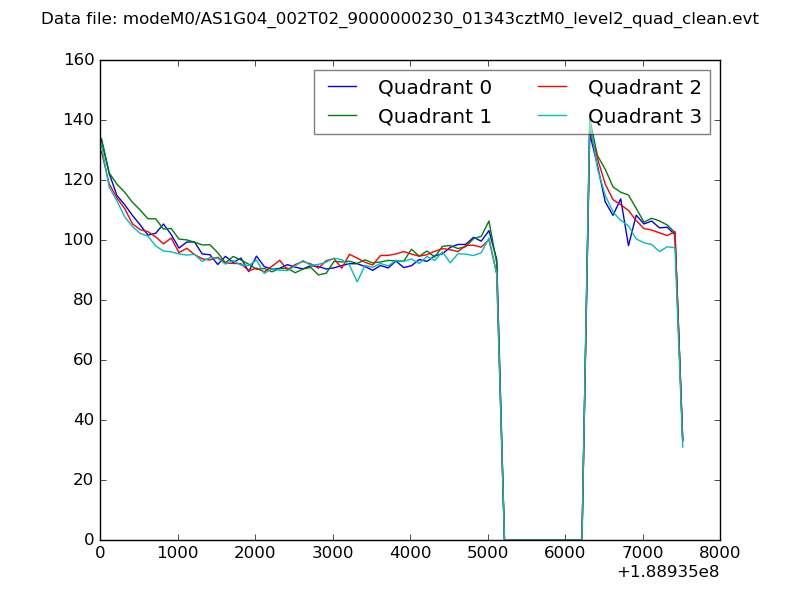

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

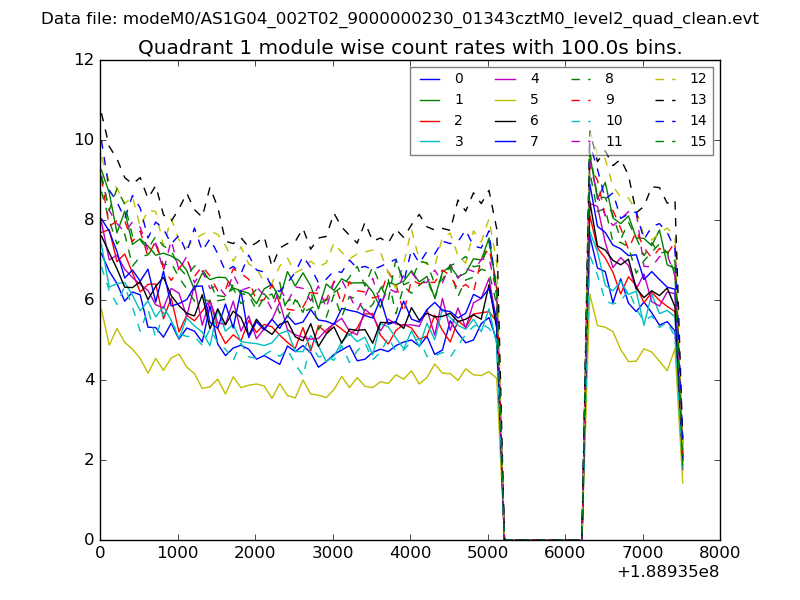

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

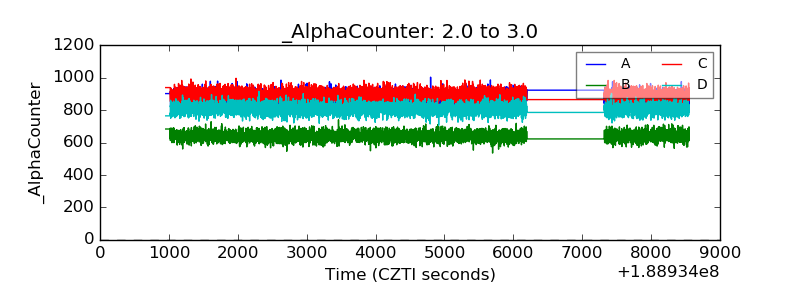

| Alpha Counter |  |
| _CPM_Rate |  |

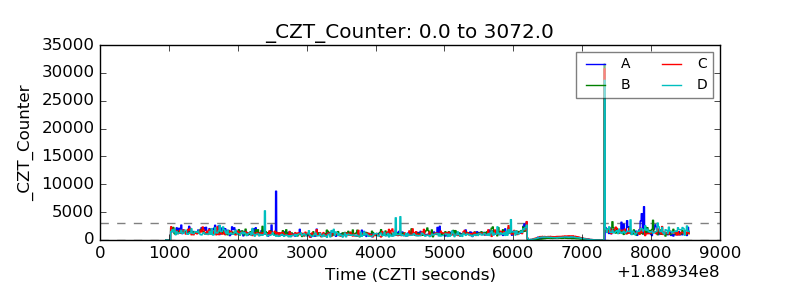

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

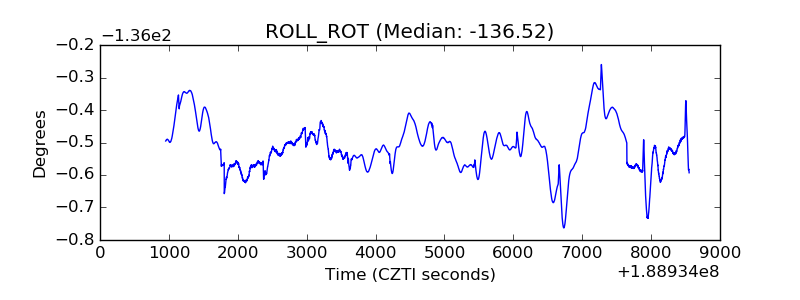

| _ROLL_ROT |  |

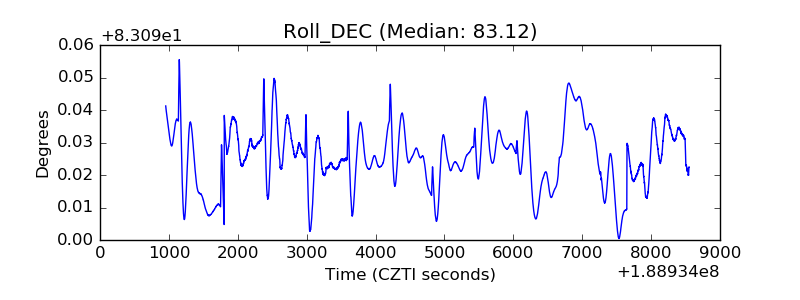

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
