| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01347cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01347cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,007,507,520 | 94,746,240 |
| Size | 960.8 MB | 90.4 MB |
| Events in quadrant A | 7,709,297 | 612,861 |
| Events in quadrant B | 8,473,958 | 621,801 |
| Events in quadrant C | 7,015,755 | 614,197 |
| Events in quadrant D | 6,902,341 | 587,744 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27325 | 2 |
| B | 0 | 29545 | 1 |
| C | 0 | 25298 | 1 |
| D | 0 | 24998 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6199 | 74 | 1.193741% |
| B | 6199 | 37 | 0.596870% |
| C | 6199 | 3 | 0.048395% |
| D | 6199 | 147 | 2.371350% |

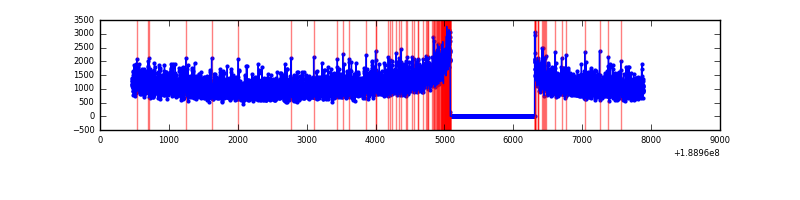

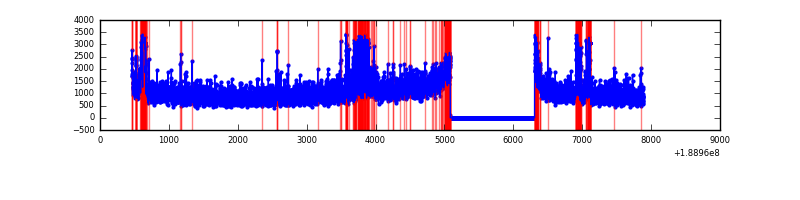

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7424 | 6199 | 414 | 414 | 5.58% | 6.68% |  |
| B | 7424 | 6200 | 478 | 478 | 6.44% | 7.71% |  |
| C | 7424 | 6200 | 145 | 145 | 1.95% | 2.34% |  |
| D | 7424 | 6200 | 350 | 350 | 4.71% | 5.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 687904 | 1565.34 | 1811 | 1827 | 438.3 |
| A | 0 | 253 | 35607 | 77.07 | 1811 | 1827 | 438.3 |
| A | 4 | 32 | 15177 | 30.46 | 1811 | 1827 | 438.3 |
| B | 8 | 4 | 802619 | 1776.33 | 1923 | 1929 | 450.8 |
| B | 12 | 52 | 149046 | 326.38 | 1923 | 1929 | 450.8 |
| B | 6 | 53 | 115496 | 251.95 | 1923 | 1929 | 450.8 |
| C | 15 | 241 | 278326 | 582.35 | 1717 | 1769 | 474.9 |
| C | 3 | 111 | 18218 | 34.64 | 1717 | 1769 | 474.9 |
| C | 3 | 79 | 13006 | 23.66 | 1717 | 1769 | 474.9 |
| D | 10 | 84 | 480158 | 1014.38 | 1653 | 1682 | 471.7 |
| D | 1 | 83 | 45033 | 91.91 | 1653 | 1682 | 471.7 |
| D | 2 | 170 | 44042 | 89.8 | 1653 | 1682 | 471.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

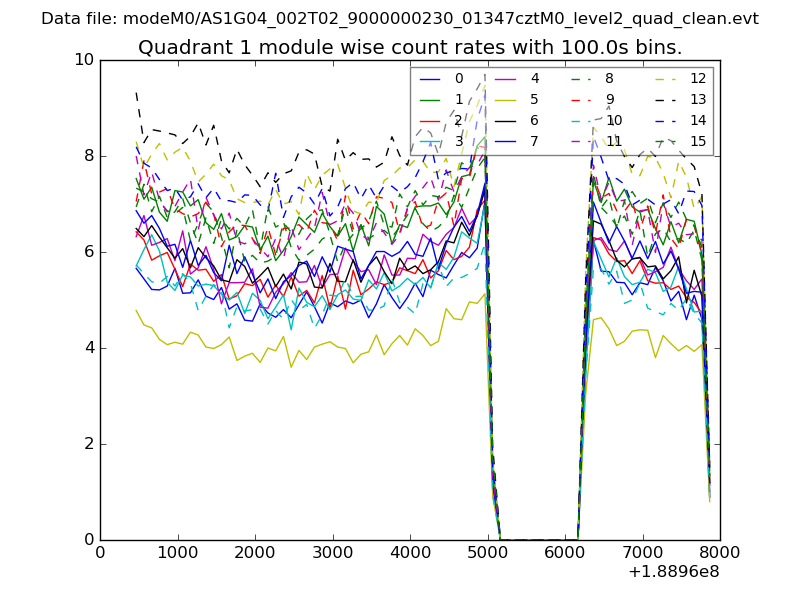

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

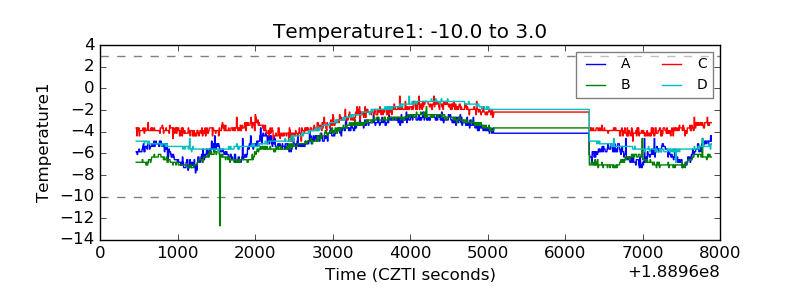

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
