| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_002T02_9000000230_01361cztM0_level2.evt | modeM0/AS1G04_002T02_9000000230_01361cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,158,940,800 | 101,476,800 |
| Size | 1.1 GB | 96.8 MB |
| Events in quadrant A | 10,652,599 | 615,534 |
| Events in quadrant B | 9,483,594 | 676,010 |
| Events in quadrant C | 7,545,064 | 671,462 |
| Events in quadrant D | 6,981,408 | 650,449 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36393 | 3 |
| B | 0 | 32818 | 2 |
| C | 0 | 27049 | 2 |
| D | 0 | 25444 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6588 | 818 | 12.416515% |
| B | 6588 | 144 | 2.185792% |
| C | 6588 | 8 | 0.121433% |
| D | 6588 | 20 | 0.303582% |

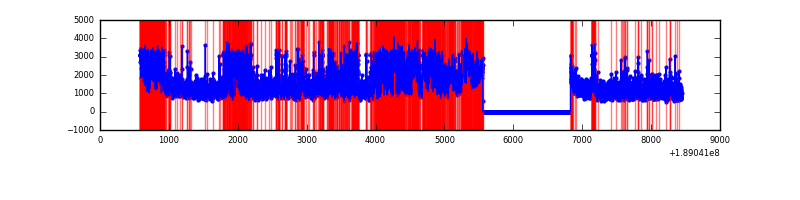

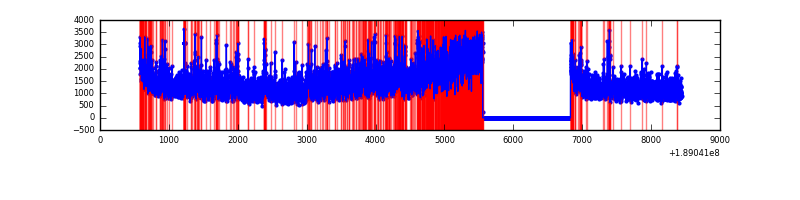

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7863 | 6589 | 1602 | 1602 | 20.37% | 24.31% |  |
| B | 7863 | 6589 | 917 | 917 | 11.66% | 13.92% |  |
| C | 7863 | 6589 | 143 | 143 | 1.82% | 2.17% |  |
| D | 7863 | 6589 | 139 | 139 | 1.77% | 2.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 2989497 | 6847.94 | 1829 | 1844 | 436.3 |
| A | 15 | 233 | 297690 | 678.1 | 1829 | 1844 | 436.3 |
| A | 4 | 32 | 166108 | 376.51 | 1829 | 1844 | 436.3 |
| B | 8 | 4 | 1247557 | 2620.98 | 2054 | 2057 | 475.2 |
| B | 12 | 52 | 118157 | 244.32 | 2054 | 2057 | 475.2 |
| B | 5 | 249 | 71106 | 145.3 | 2054 | 2057 | 475.2 |
| C | 15 | 241 | 212730 | 410.58 | 1864 | 1927 | 513.4 |
| C | 3 | 111 | 19723 | 34.66 | 1864 | 1927 | 513.4 |
| C | 3 | 79 | 15628 | 26.69 | 1864 | 1927 | 513.4 |
| D | 15 | 13 | 155786 | 280.57 | 1768 | 1828 | 548.7 |
| D | 10 | 125 | 73747 | 131.06 | 1768 | 1828 | 548.7 |
| D | 13 | 73 | 55426 | 97.68 | 1768 | 1828 | 548.7 |

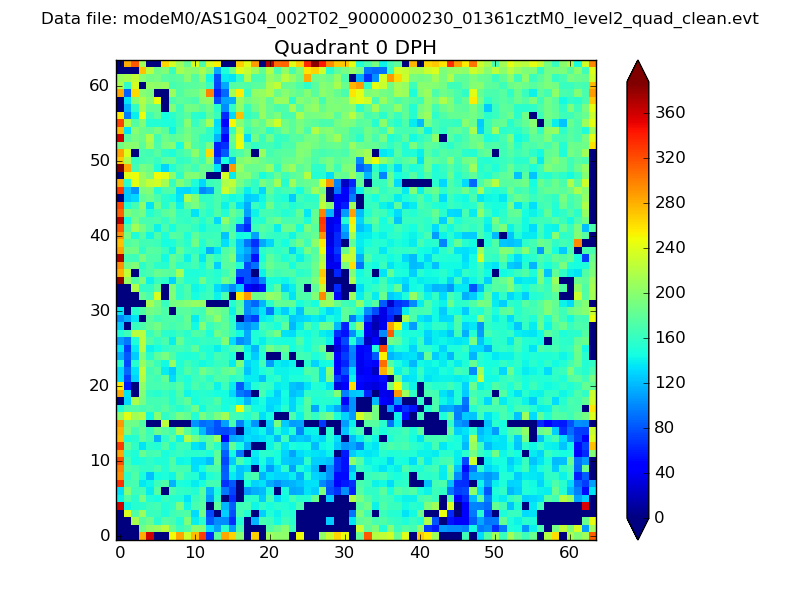

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

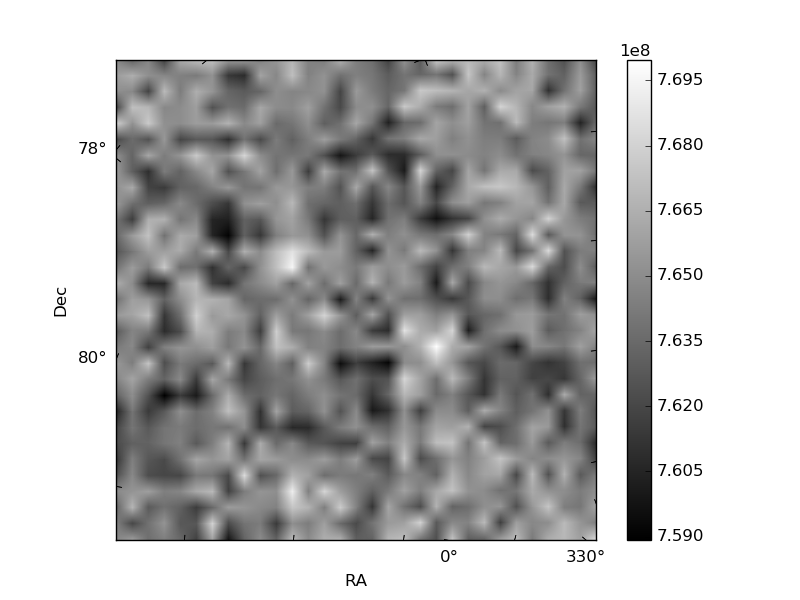

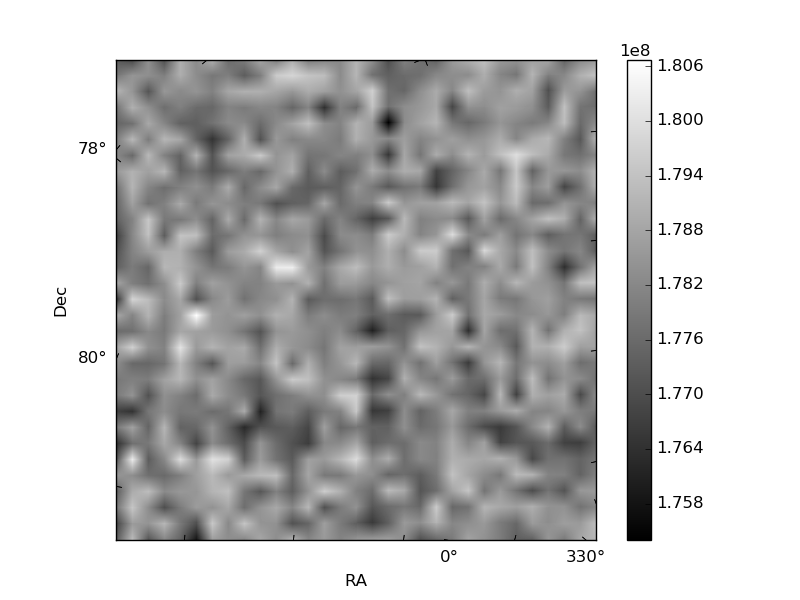

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

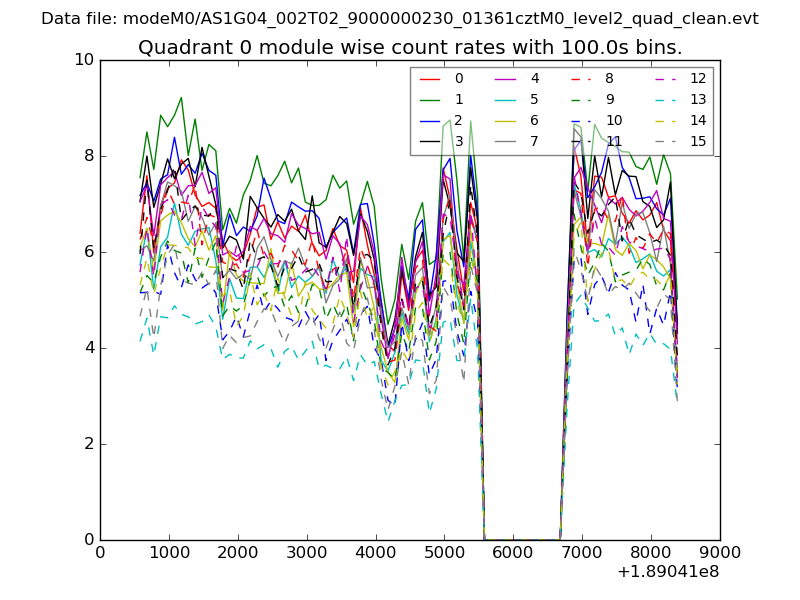

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

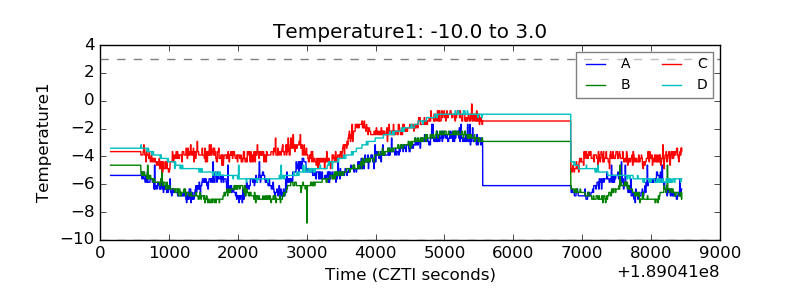

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

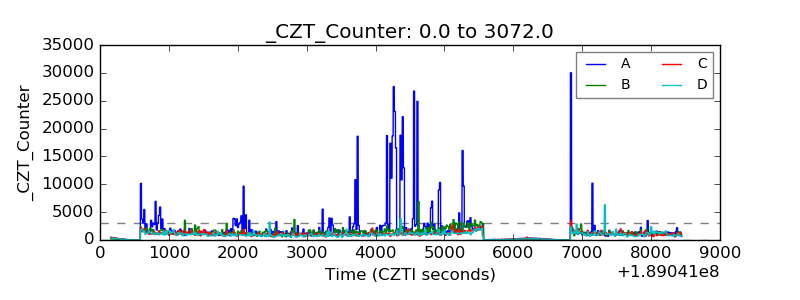

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
